Eurodib USA VGB3 Eurodib Vertical Broilers & Gyro Machines
Description

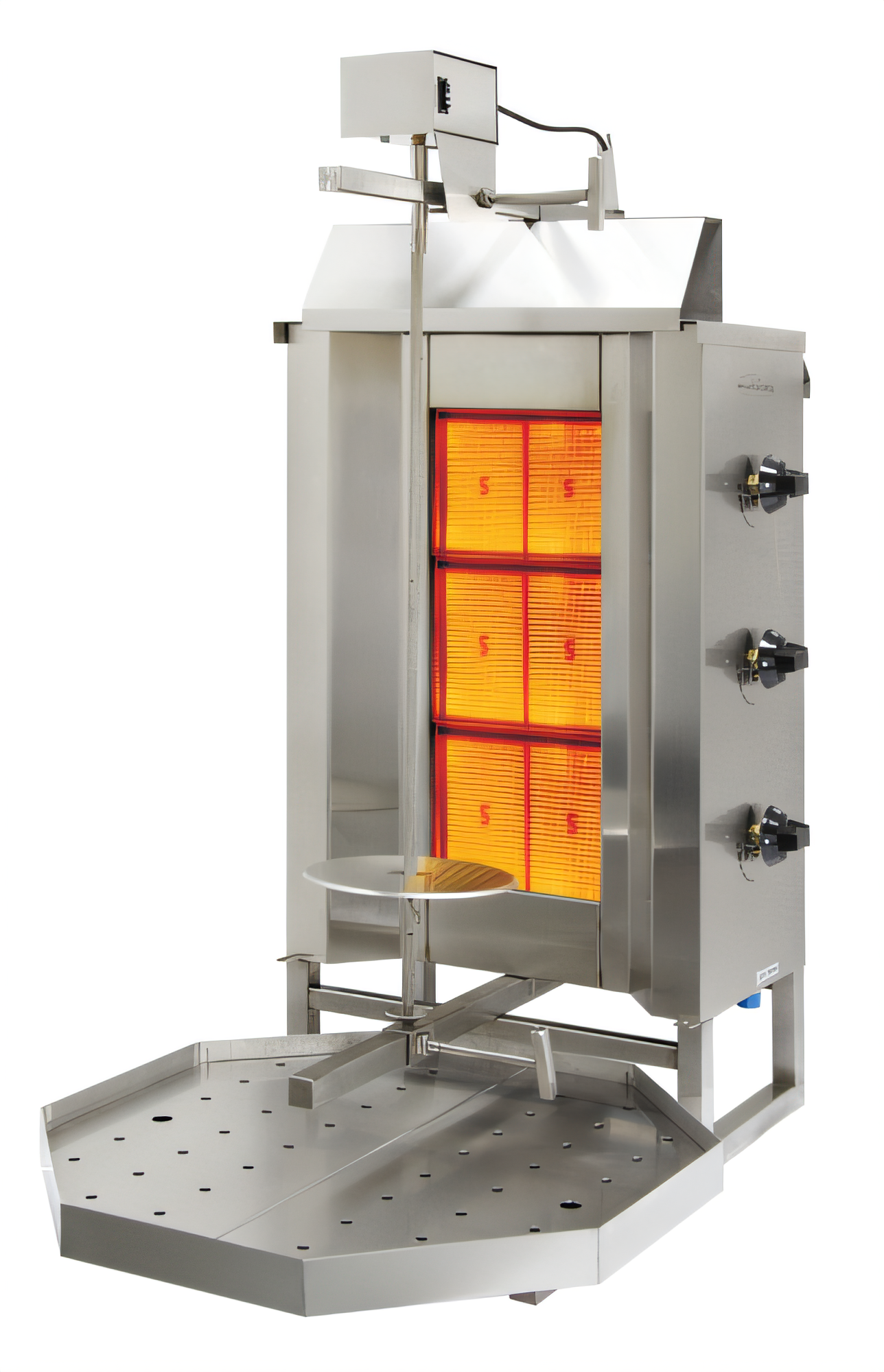

Eurodib VGB3 Vertical Gas Broiler
3 Double Burners • 33,268 BTU/h • Convertible NG / LPThe Eurodib VGB3 is a heavy-duty vertical broiler built for medium to high-volume kitchens that serve mouth-watering gyros, shawarma, and tacos al pastor. A top-mounted motor keeps critical components away from dripping grease, while three powerful double burners deliver consistent, even browning on up to 88 lb of meat. Stainless steel construction, side panels, and independent heat controls make the VGB3 a dependable, easy-to-clean workhorse.
Key Features

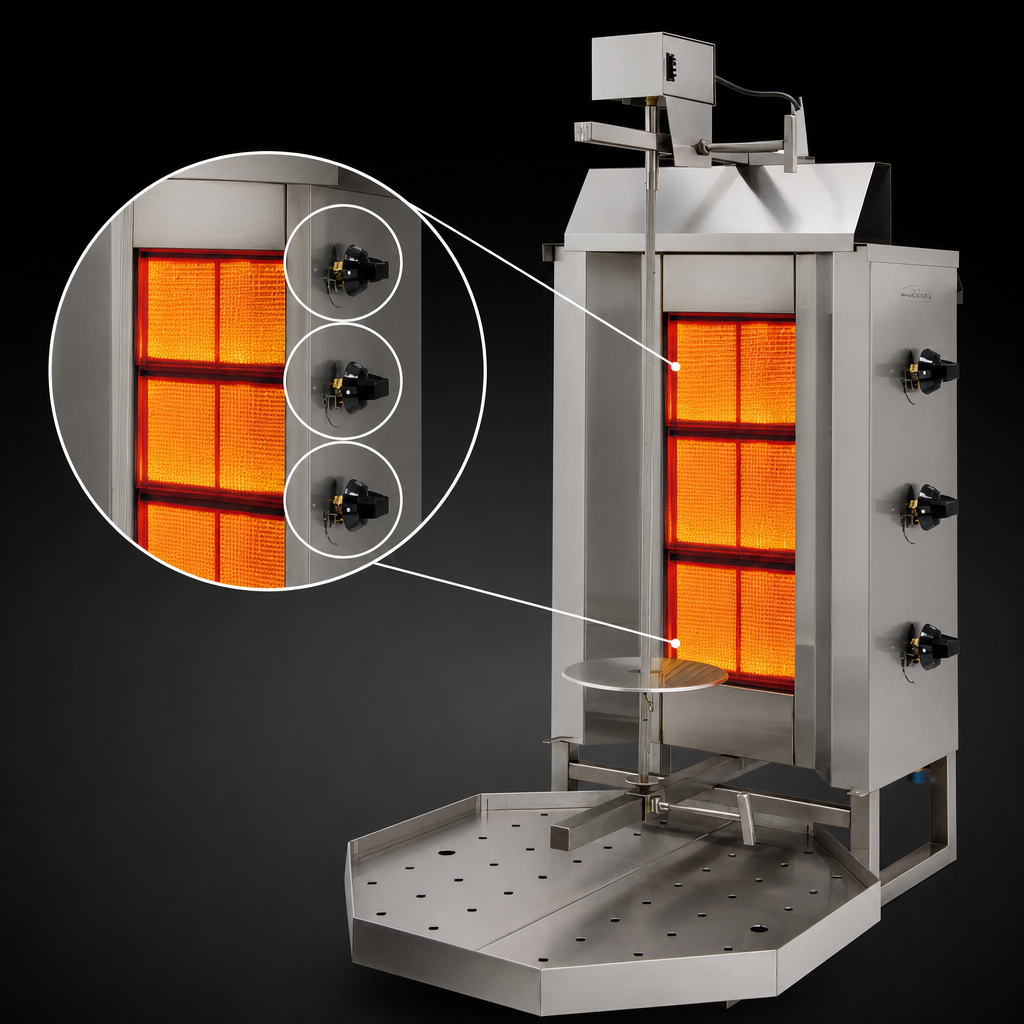

- Three double ceramic burners with independent min/max control

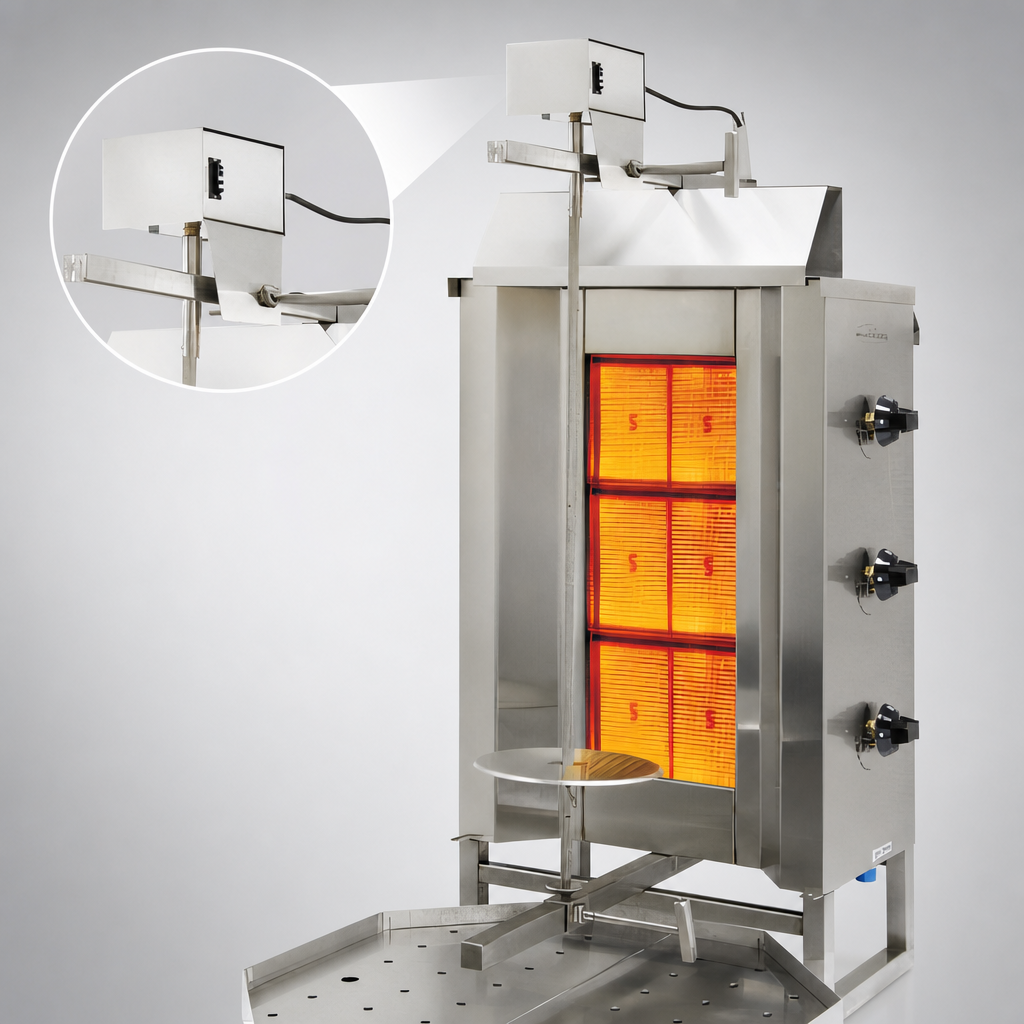

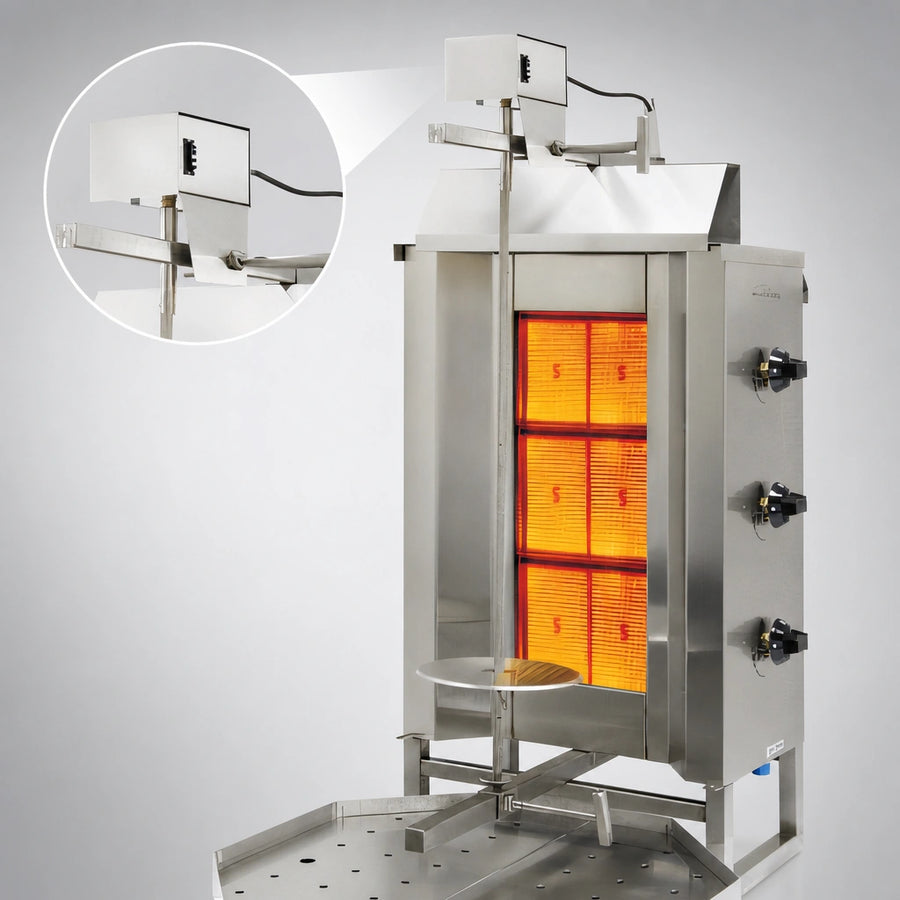

- Top-mounted 1 rpm motor with left/right rotation—protected from grease
- Adjustable skewer slides forward/backward for perfect heat distance
- 88 lb (40 kg) meat capacity • 28.7" spit height
- Factory-set for Natural Gas; field-convertible to Liquid Propane (kit included)
- All-stainless body with smooth surfaces for quick wipe-down
- Side panels included to concentrate heat and reduce splatter
- Integrated safety vent for operator protection
Specifications
| Performance | |
|---|---|
| Burners | 3 × double burners • 3.25 kW each |
| Total output | 33,268 BTU/h |
| Motor speed | 1 rpm, reversible |
| Meat capacity | 88 lb (40 kg) |
| Spit height | 28.7" |
| Gas Connection | |
| Connection size | 1/2" G (NPT compatible) |
| Natural Gas pressure | 7" – 8" WC • injector Ø 1.35 mm |
| Propane pressure | 10" – 13" WC • injector Ø 0.9 mm |
| Electrical | |
| Plug | 110 V NEMA 5-15 (NPE) |
| Motor power | 3.7 W |
| Dimensions & Weight | |
| Width | 17.7" |
| Depth | 22.0" |
| Height | 38.9" |
| Net weight | 53 lb (24 kg) |
Maintain a minimum clearance of 8" (20 cm) between the broiler and any wall or combustible surface during operation.
Certifications & Warranty
- cETLus listed — conforms to ANSI-Z83.11 & CAN/CGA-1.8
- NSF certified for sanitation
- 1-year parts & labor warranty
Optional Accessory (sold separately)
- VGB3 SPIT kit: spit, fixing pin & bottom plate
