Eurodib USA L21EKDPS Lamber Dishwashers
Description

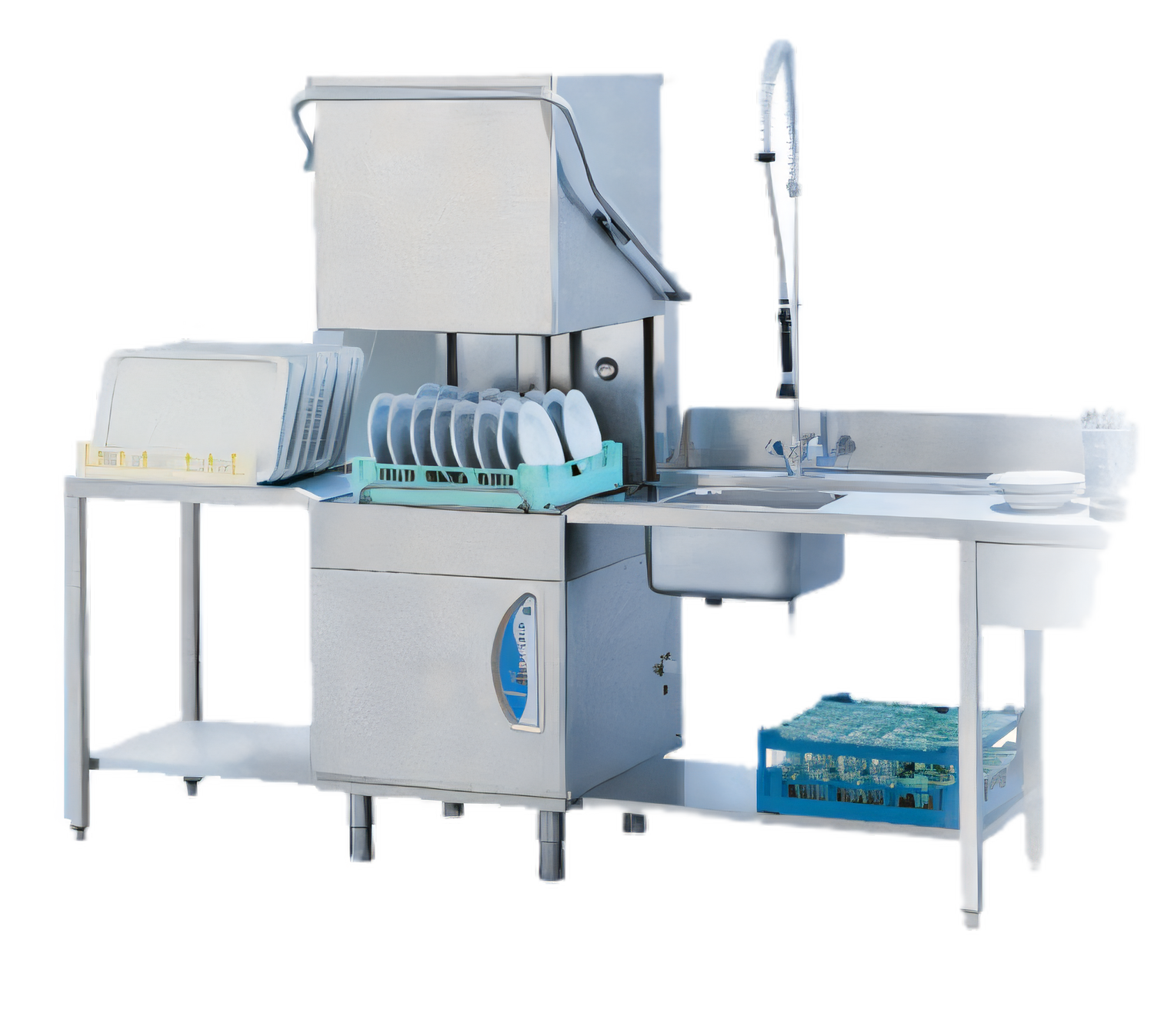

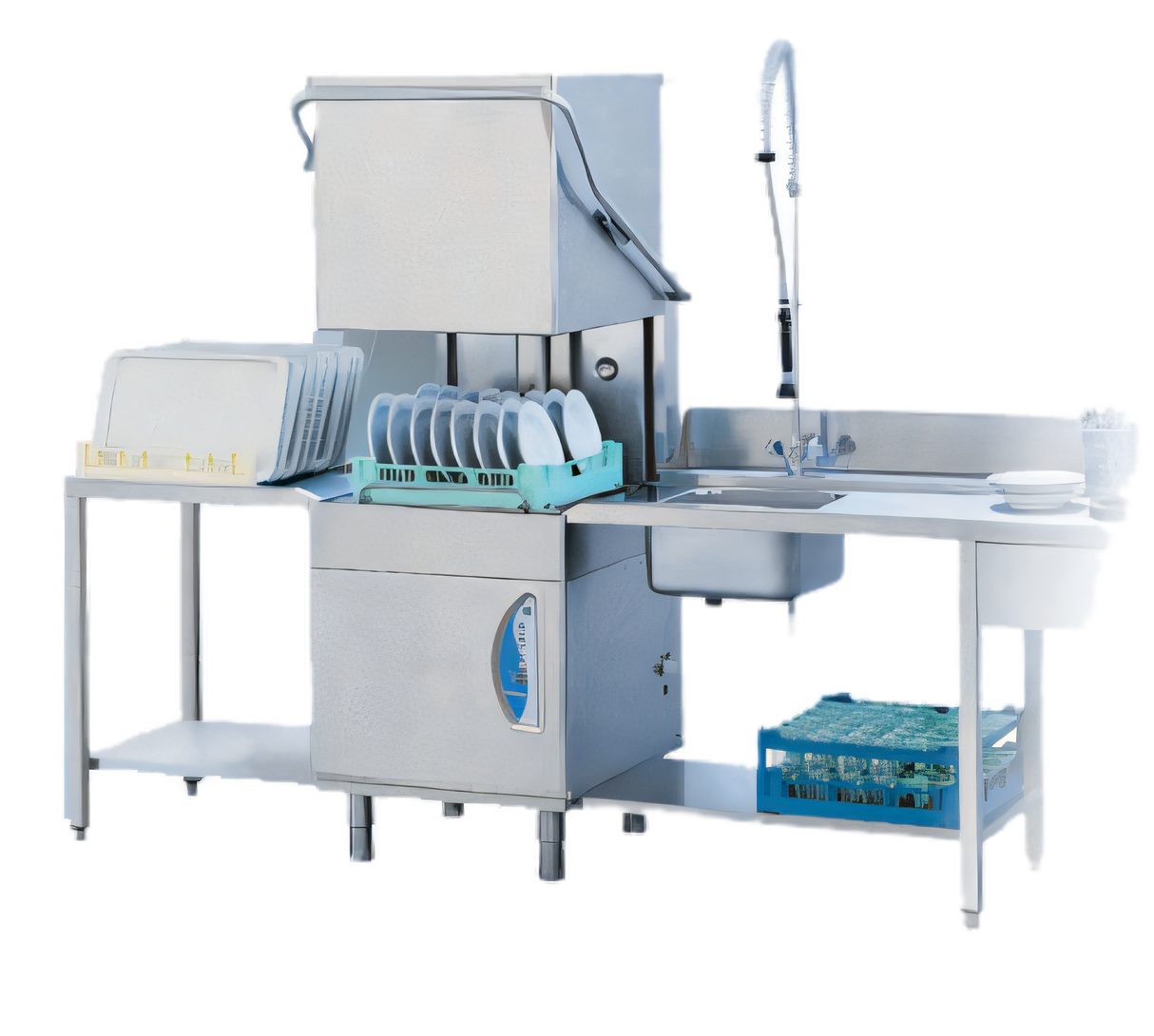

Lamber L21-EK High-Temp Pass-Through Dishwasher
30 racks/hr • 20" x 20" rack system • ENERGY STAR® certifiedMade in Italy from AISI 304 stainless steel, the Lamber L21-EK is the professional hood-type dishwasher that combines speed, hygiene and energy savings in one compact footprint. A powerful 6 kW booster, built-in chemical pumps and intuitive electronic controls guarantee spot-free results with every cycle.
Key advantages
- High-temperature sanitizing—reaches 179-194 °F rinse without external booster.
- Three adjustable cycles (2 / 3 / 4 min) process up to 30 racks or 540 plates per hour.

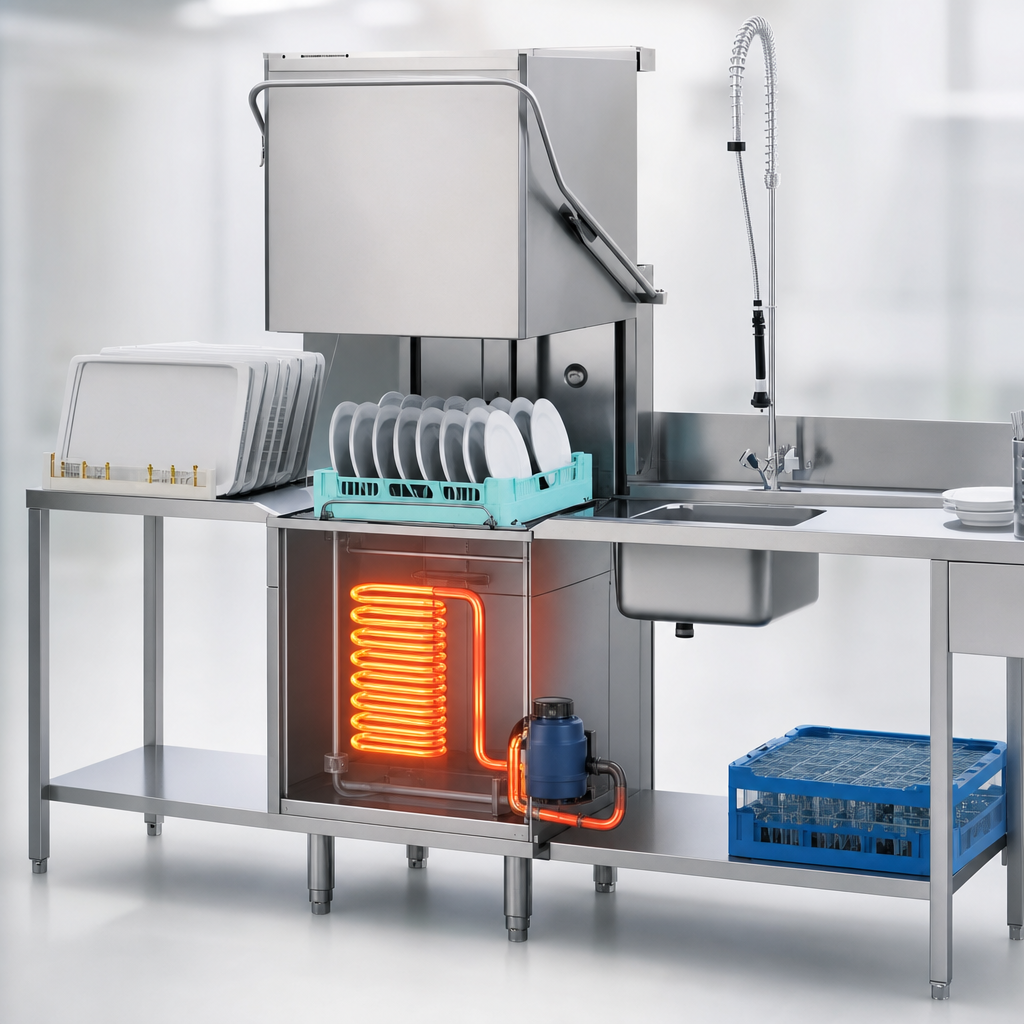

- 6 kW booster element + 2 kW wash tank element ensure constant temperatures.
- Soft-touch electronic panel with digital temperature read-out and cycle counter.
- Thermocontrol system guarantees rinse temp on every cycle, even during rush periods.
- Automatic fill, hood-closing start & safety cut-out for operator protection.
- Rotating stainless steel upper & lower arms for both wash and rinse phases.
- Double-skin, self-cleaning slanted tank with two integral filters reduces soil build-up.

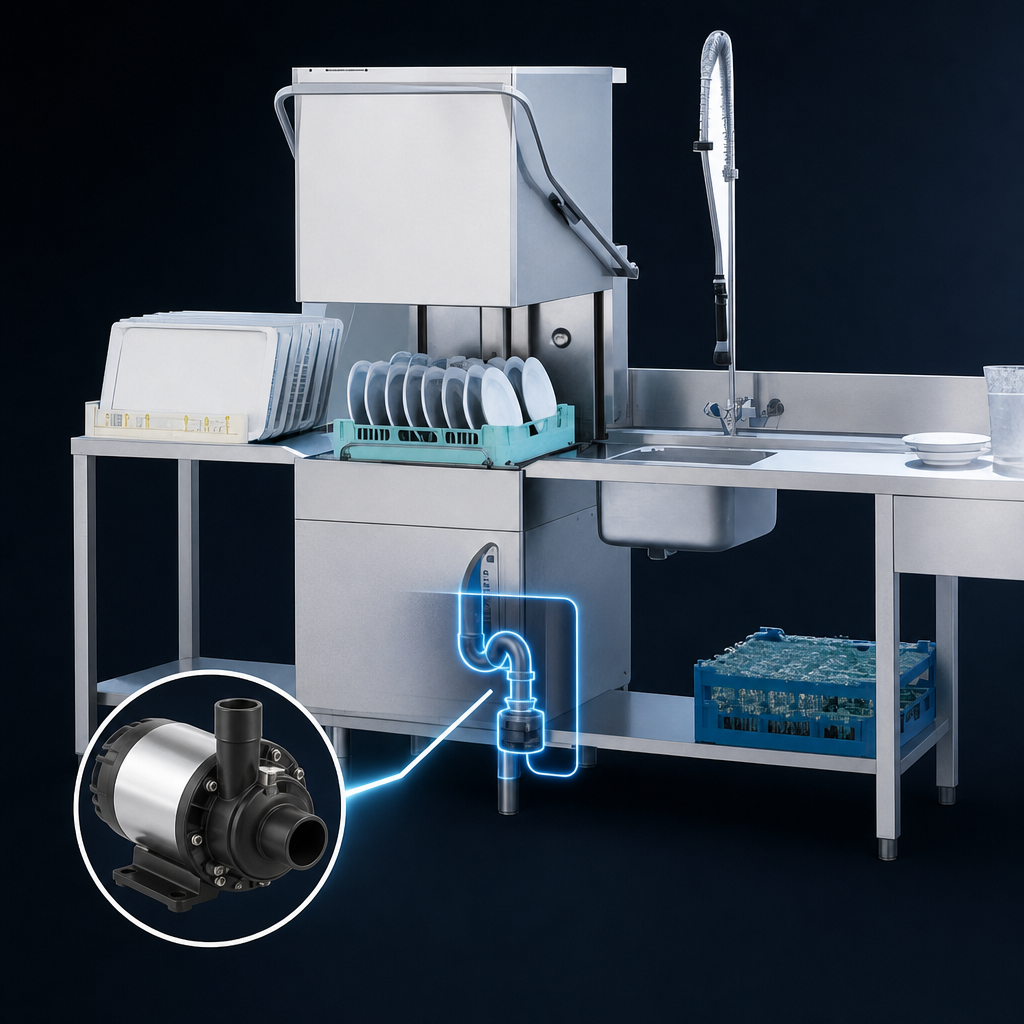

- Built-in rinse-aid dispenser, detergent pump and drain pump—no extra kits required.
- Convertible for straight-through or corner installation; noise level < 60 dB(A).
- UL, cULus, ANSI/NSF 3 & ENERGY STAR® listed for food-service compliance.
What’s in the box
- 2 × 20" x 20" racks for dishes (peg racks)
- 1 × flat/general utility rack
- 2 × cutlery baskets
- Factory-installed rinse-aid, detergent & drain pumps
- Comprehensive owner’s/installation manual
Technical specifications
| Model / Type | L21-EK • High-temp pass-through (hood) |
|---|---|
| Capacity | 30 racks/hr • up to 540 plates/hr |
| Wash Cycles | 2 / 3 / 4 minutes (selectable) |
| Rack Size | 20" x 20" (508 x 508 mm) |
| Maximum Ware Height | 14.96" (380 mm) |
| Electrical | 208-240 V, 1 ph, 60 Hz, 28 A, 6.65 kW total connected load |
| Heating Elements | Booster 6 kW • Wash tank 2 kW |
| Wash Pump | 0.65 kW (0.9 HP) |
| Water Consumption | 0.63 gal (2.4 L) per cycle • ≈ 13.7 gal (52 L) per hour |
| Water Inlet / Pressure | 3⁄4" G • 20 ± 5 psi • recommended 131 °F supply |
| Rinse Temperature | 179 – 194 °F (82 – 90 °C) |
| Tank / Boiler Capacity | 5.5 gal (21 L) • 1.6 gal (6 L) |
| Dimensions (W × D × H) | 24.4" W × 30.1" D × 57.5" H (620 × 765 × 1 460 mm) |
| Work Height | 34.25" (870 mm) |
| Net / Shipping Weight | 264 lb / 286 lb (120 / 130 kg) |
| Noise Level | < 60 dB(A) |
| Certifications | UL, cULus, UL Sanitation, ANSI/NSF 3, ENERGY STAR® |
Recommended accessories (sold separately)
- Base stand with or without door (AC00005 / AC00005D) for ergonomic loading height
- Extra open, peg or cutlery racks (see Lamber 20" x 20" rack catalogue)
- Water softener for supplies above 10 grains hardness
Electrical and plumbing connections must be carried out by qualified personnel and in accordance with local codes. Specifications are subject to change without notice.
