Eurodib USA ICH500 Resolute Ice Systems Ice Machines
Description

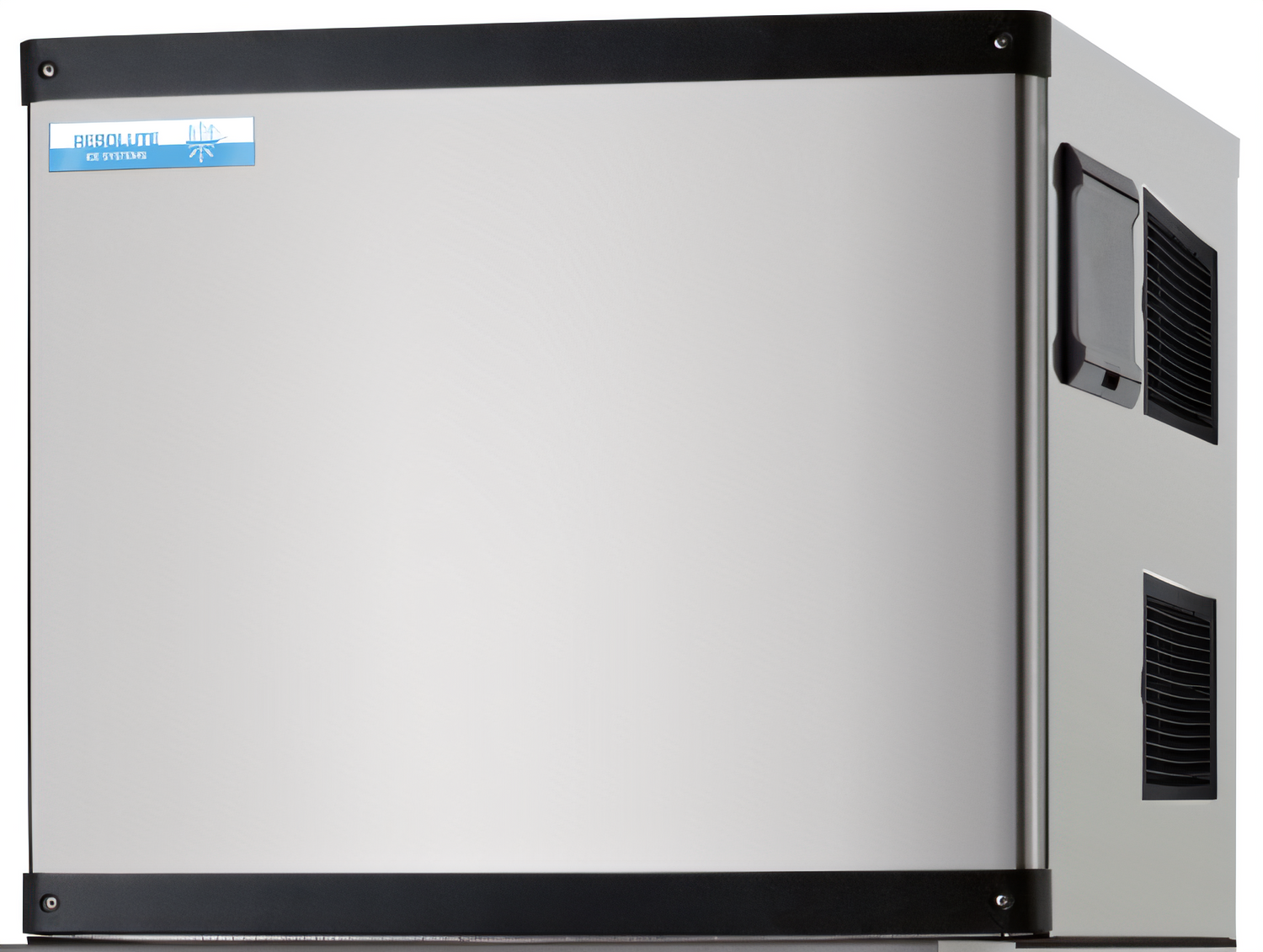

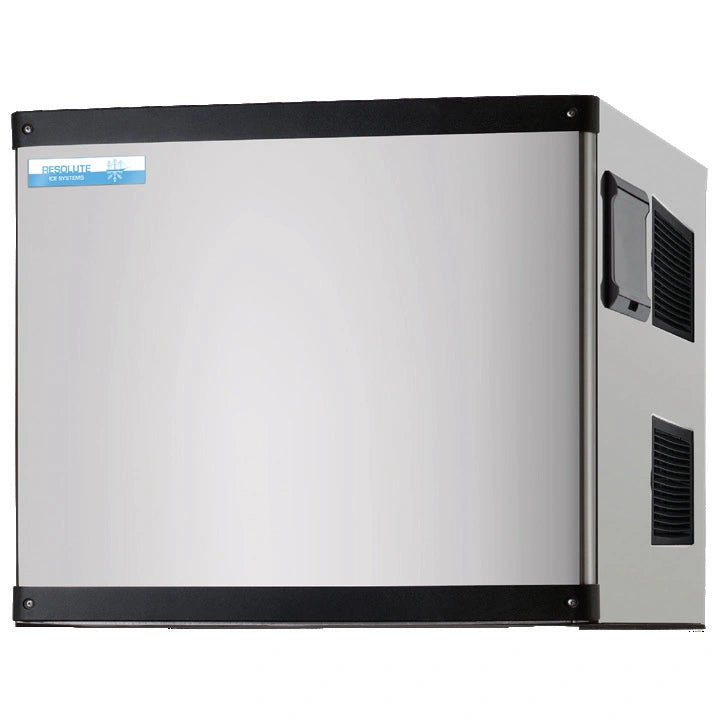

Resolute Ice Systems ICH500 Modular Ice Machine

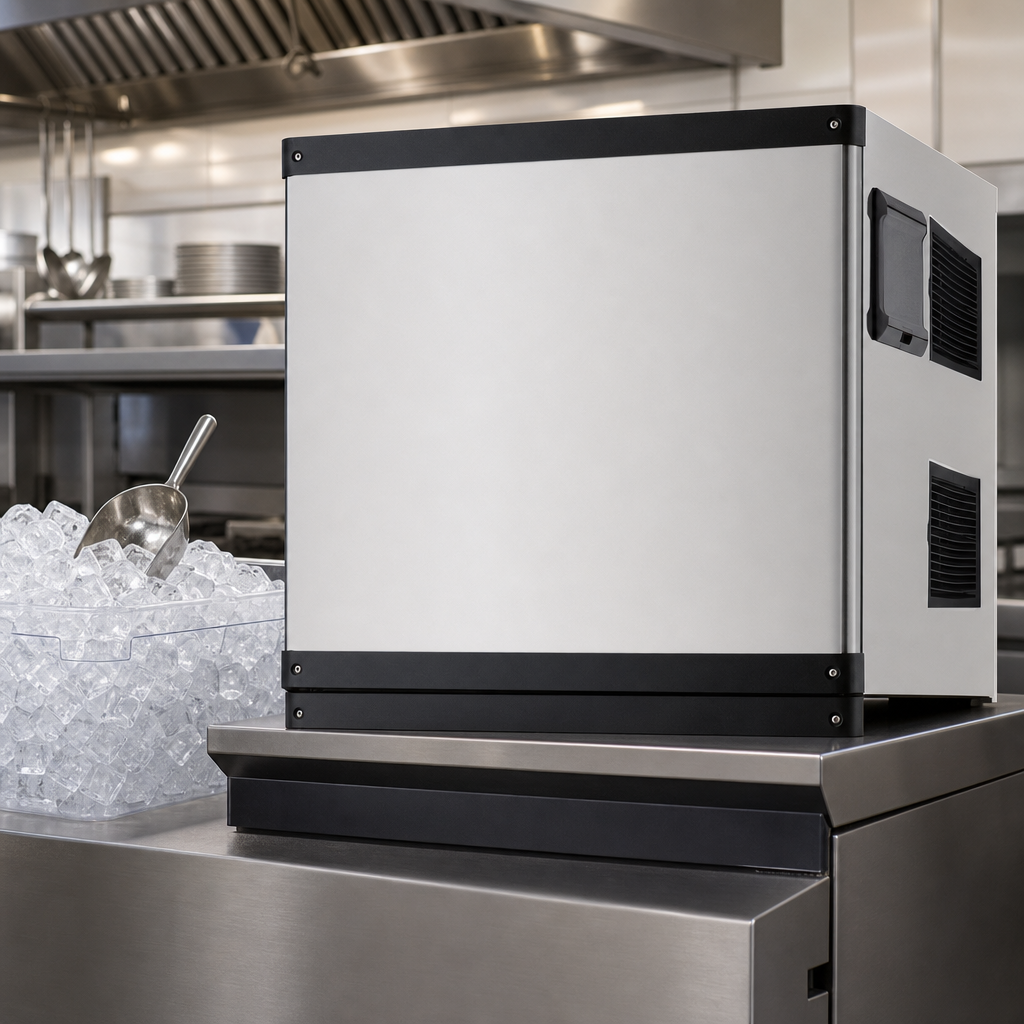

500 lb / 24 hr | 9 g (22 mm³) cube | Air-cooled | 115 VBuilt for high-volume bars, restaurants, and hospitality venues, the Energy-Star–rated ICH500 delivers up to 500 lb of crystal-clear 9-gram cubes every day while keeping operating costs low. A compact, front-breathing design and a suite of self-cleaning features make this stainless-steel workhorse as effortless to own as it is powerful.
Key benefits & features
- 500 lb* daily production; 240-cube batches with 12 × 20 evaporator grid.
- 9 g (0.87"³) square cubes—perfect for cocktails, soft drinks, and banquet service.
- Air-cooled, gravity-drain system with eco-friendly R290 refrigerant.
- Automatic cleaning cycle and removable, washable air filter reduce downtime.
- Intuitive control panel:
- On/Off & dedicated cleaning buttons
- + / – keys to fine-tune cube thickness
- Indicator lights & digital read-out for cycle status and error codes
- AISI 304 stainless-steel cabinet with ABS components for corrosion resistance.
- Includes inlet water filter (mounting kit & cartridge) for superior ice clarity; replacement cartridge code: SWF.

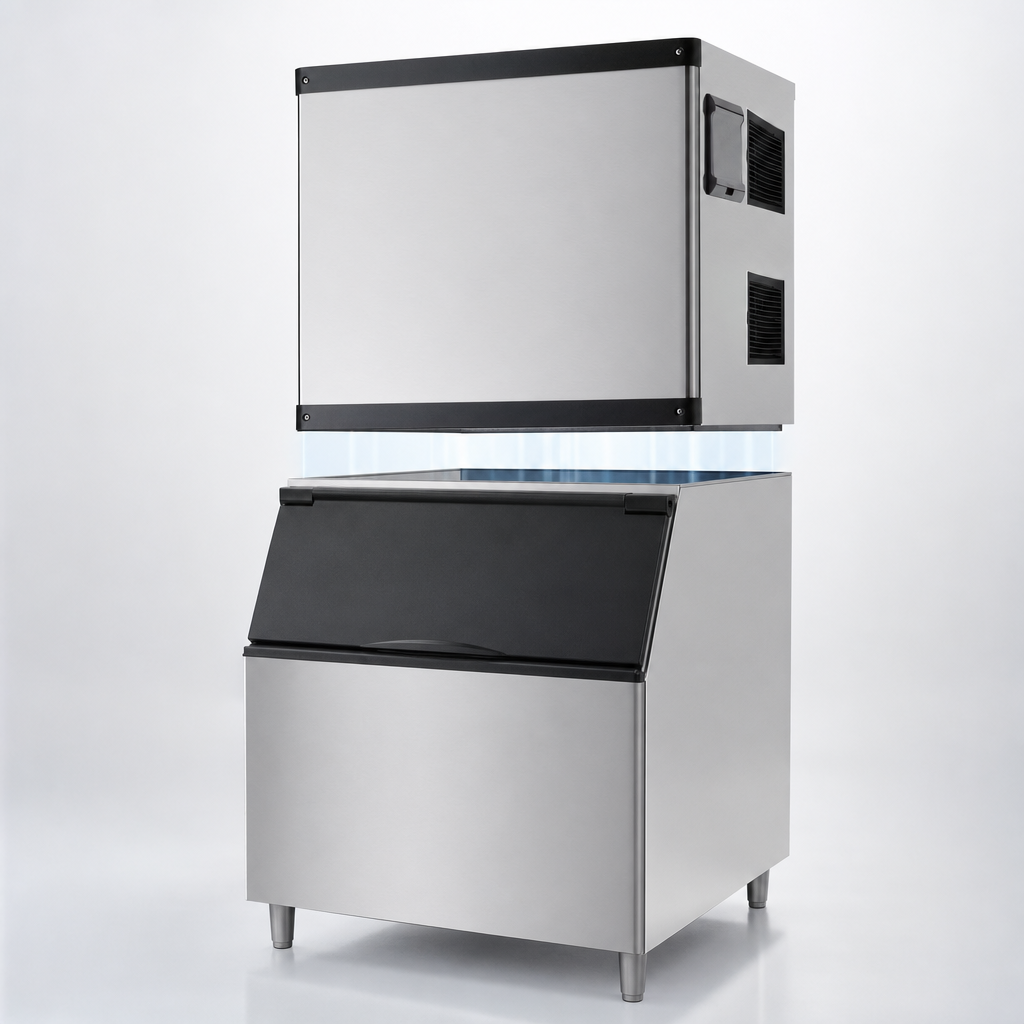

- Compatible, sold-separately ice bins: IB375 (recommended) or IDB130.
- cETLus, ETL Sanitation, NSF & Energy Star certified.
Technical specifications
| Model | ICH500 |
|---|---|
| Ice type | Full cube, 9 g (22 mm³) |
| Production capacity* | 500 lb (227 kg) / 24 hr |
| Batch size | 240 cubes |
| Refrigerant | R290 (natural) |
| Cooling | Air-cooled, front-breathing |
| Electrical | 115 V / 60 Hz / 1-ph, 1,113 W, 9.7 A, NEMA 5-15P |
| Construction | AISI 304 stainless steel & ABS plastic |
| Dimensions (W × D × H) | 24.3″ × 29.9″ × 22.4″ |
| Net / Ship weight | 143 lb / 151 lb |
| Certifications | cETLus, ETL Sanitation, NSF, Energy Star |
| Warranty | 3 yr parts & labor; 5 yr compressor |
*Production rated at 70 °F (21 °C) ambient and 50 °F (10 °C) incoming water temperature.
Allow 9–12″ of clearance at the front and rear for proper ventilation.
Replace water-filter cartridge every 3 months—see accessories below.
Popular accessories
- IB375 Stainless-Steel Ice Bin – 375 lb capacity
- IDB130 Insulated Ice Bin – 130 lb capacity
- SWF Replacement Water-Filter Cartridge
- SWFCK Cartridge & Connections Kit
