Eurodib USA DSP4DPS Lamber Undercounter Dishwashers
Description

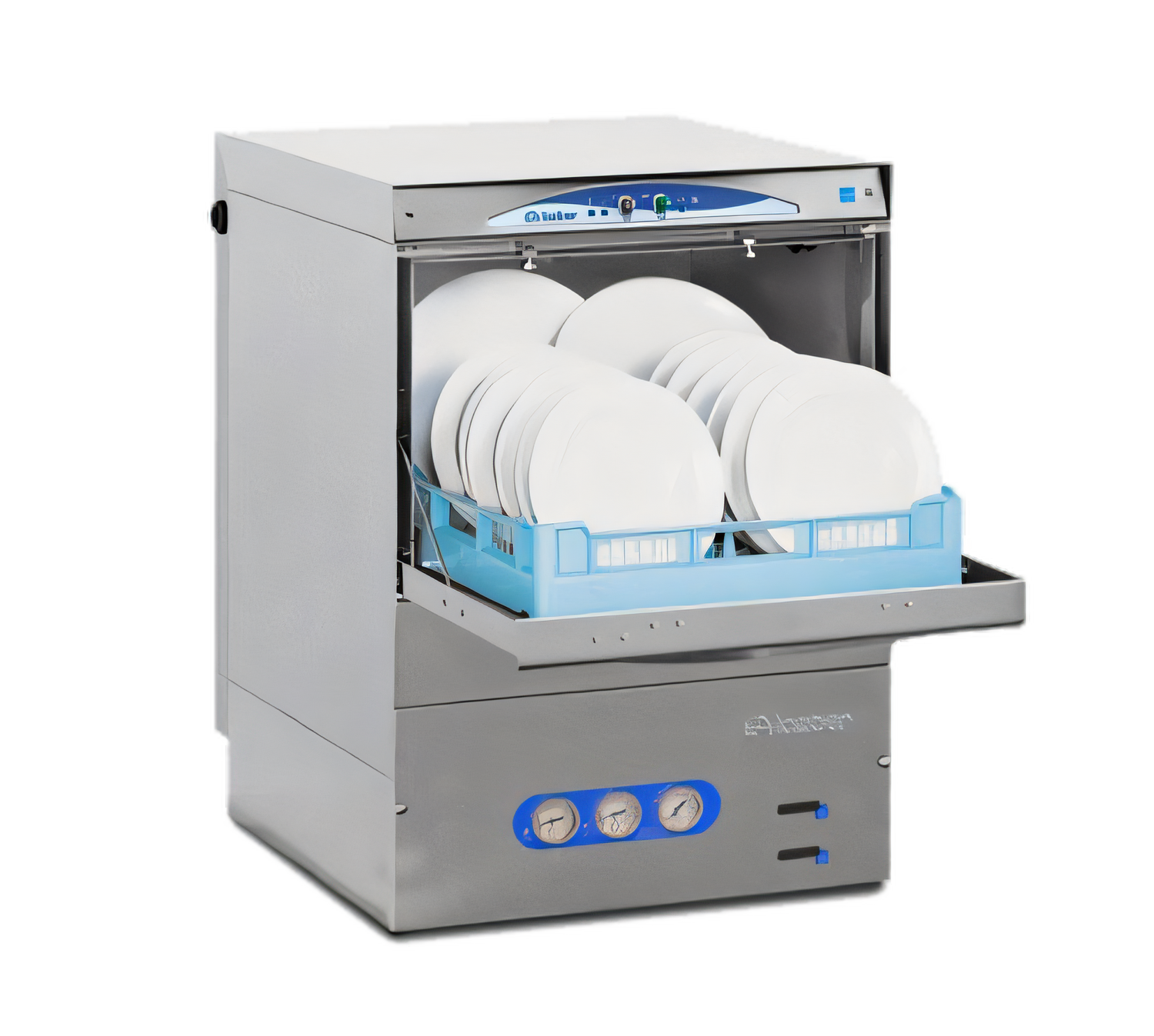

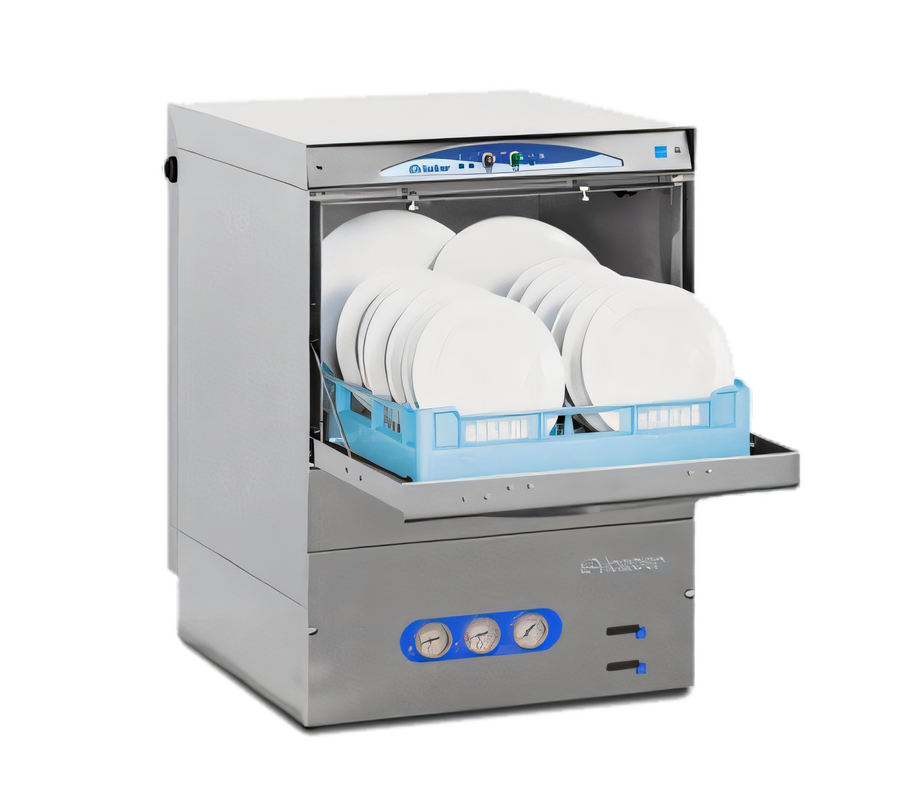

Lamber DSP4 High-Temp Undercounter Dishwasher
20" × 20" rack • 2-minute cycle • Made in ItalyGet full-size performance in a compact footprint. The Lamber DSP4 cleans up to 30 racks per hour while using only 0.6 gal of water per cycle. A built-in booster heater and Thermocontrol technology guarantee a 180–195 °F rinse on every cycle, eliminating the need for chemical sanitizers and keeping you in full NSF/ANSI 3 compliance.
Key features
- High-temperature sanitizing rinse (180–195 °F) with automatic temperature verification
- Fast 2-minute wash cycle = 30 racks (≈720 plates) per hour
- Rotating stainless-steel wash arms (top & bottom) plus dedicated rinse arms

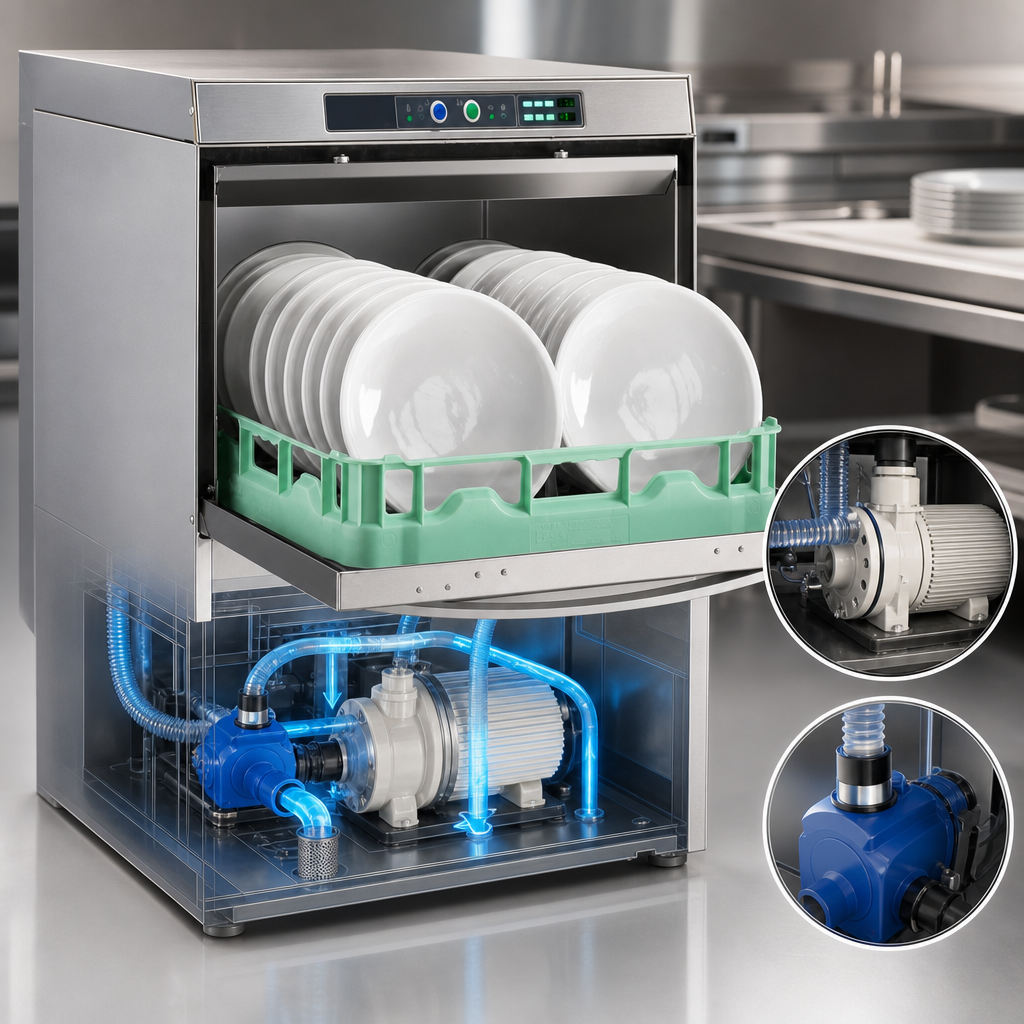

- Integrated rinse-aid & detergent pumps for perfect chemical dosing

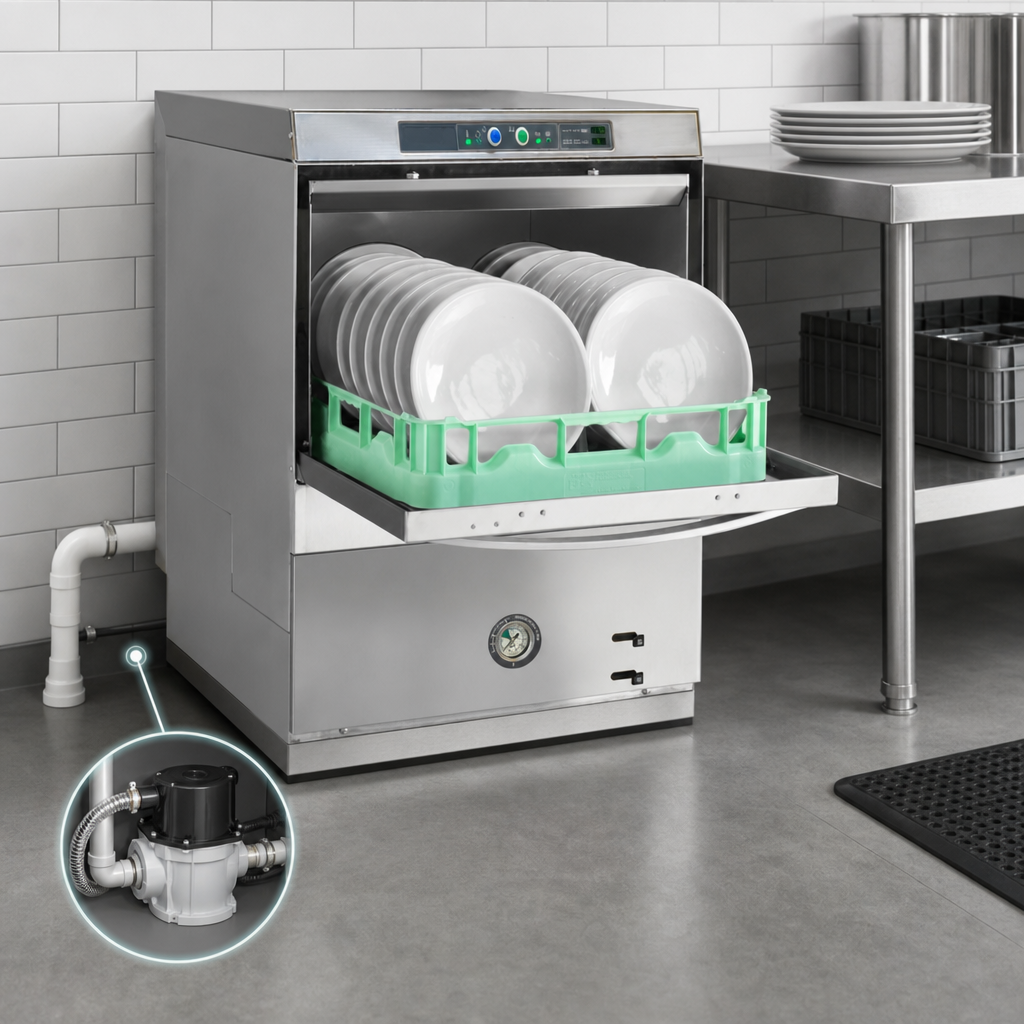

- Pump-assisted drain – no floor drain required
- Automatic tank fill and door-opening safety interlock
- Front-mounted wash & rinse thermometers—no guesswork
- Removable control panel for quick, tool-free service access
- Energy-efficient 18/10 AISI 304 stainless-steel construction
- UL, cULus & ENERGY STAR® certified
What’s included
- (1) 20" × 20" dish rack
- (1) 20" × 20" open/flat rack
- (1) Cutlery basket
Performance data
| Rack size | 20" × 20" (508 × 508 mm) |
|---|---|
| Cycle time | 2 minutes |
| Racks per hour | 30 |
| Water use per cycle | 0.6 gal (2.3 L) |
| Plate clearance | 11.8" (300 mm) |
| Noise level | <70 dB(A) |
Utilities
| Electrical | 208–240 V / 60 Hz / 1-ph, 15 A, 3.55 kW total load |
|---|---|
| Wash pump | 0.74 HP (550 W) |
| Tank heater | 2000 W |
| Booster heater | 3000 W |
| Water inlet | 3/4" G, 40–80 psi; cold or 120 °F recommended |
| Drain connection | 3/4" G, built-in drain pump |
Dimensions & weight
| Exterior (W × D × H) | 23 3/4" × 25" × 32 1/2" (603 × 635 × 826 mm) |
|---|---|
| Net weight | 136 lb (62 kg) |
| Shipping (W × D × H) | 25.5" × 28.7" × 38.6" |
| Shipping weight | 154 lb (70 kg) |
Optional 20" × 20" racks & accessories
- Open rack – SKU CC00019
- Plate rack with pegs – SKU CC00024
- Small cutlery basket – SKU CC00045
- Compartmented cutlery basket – SKU CC00043
- Saucer rack – SKU CC00049
- Counterbalance rack for cups & glasses – SKU CC00059
- Rack for 8 gastronorm pans – SKU CC00064
NSF/ANSI 3 compliant • ENERGY STAR® qualified • Made in Italy
