Eurodib Visvardis DG20VN Gas Vertical Broiler Gyro Machine, 2 Plates, 308 lb Meat Capacity, Electronic Ignition
- Gas type
- Natural gas or LP
- Dimensions
- 22.4"W × 28.7"D × 45.6"H
- Power
- 119,420 BTU/hr
- Meat capacity
- 308 lb (140 kg)
- Gas connection
- 1/2 in. G
- Gas consumption
- LP: 5.93 lb/h (2.69 kg/h); natural gas: 126 ft³/h (3.58 m³/h)
Specifications
Description

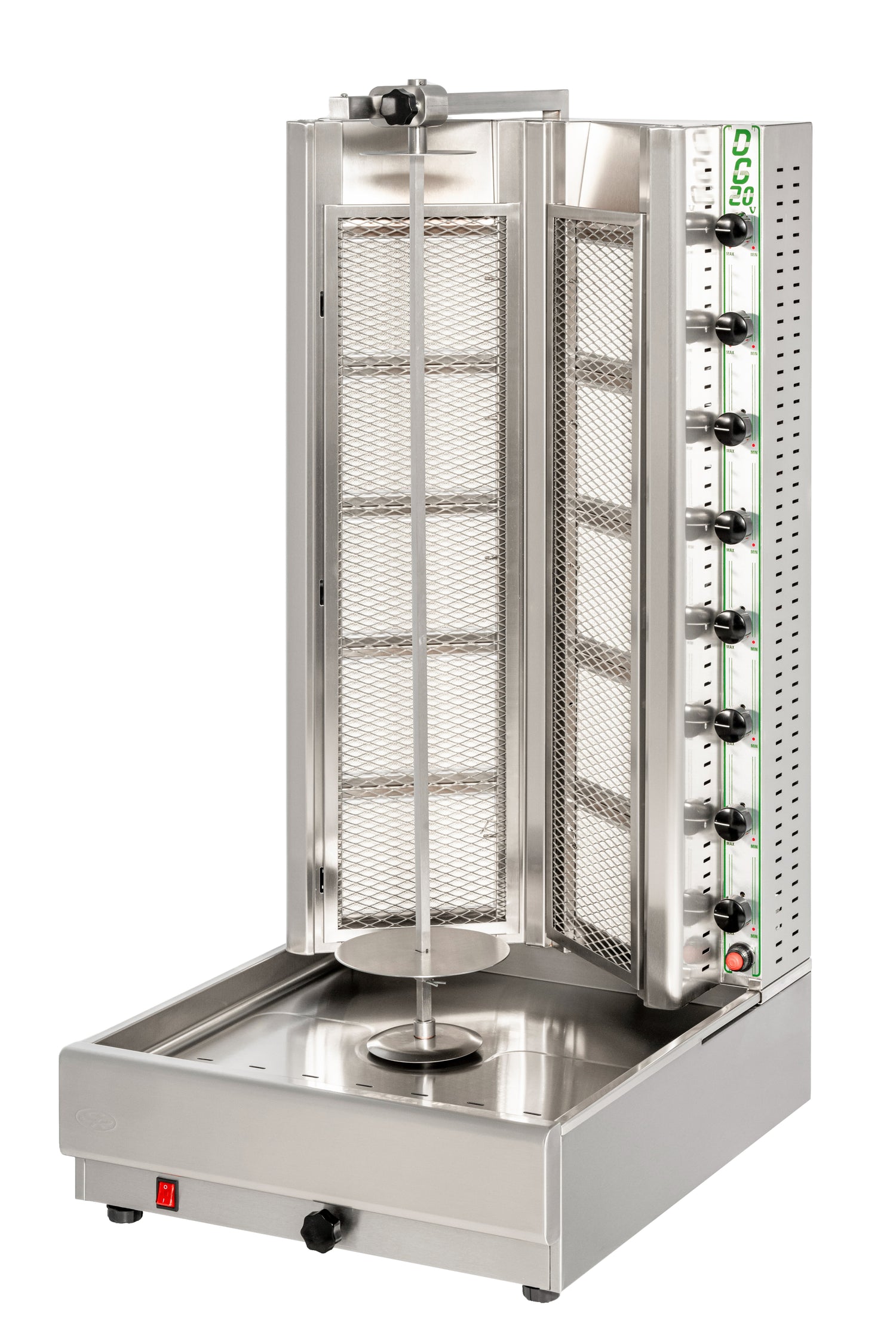

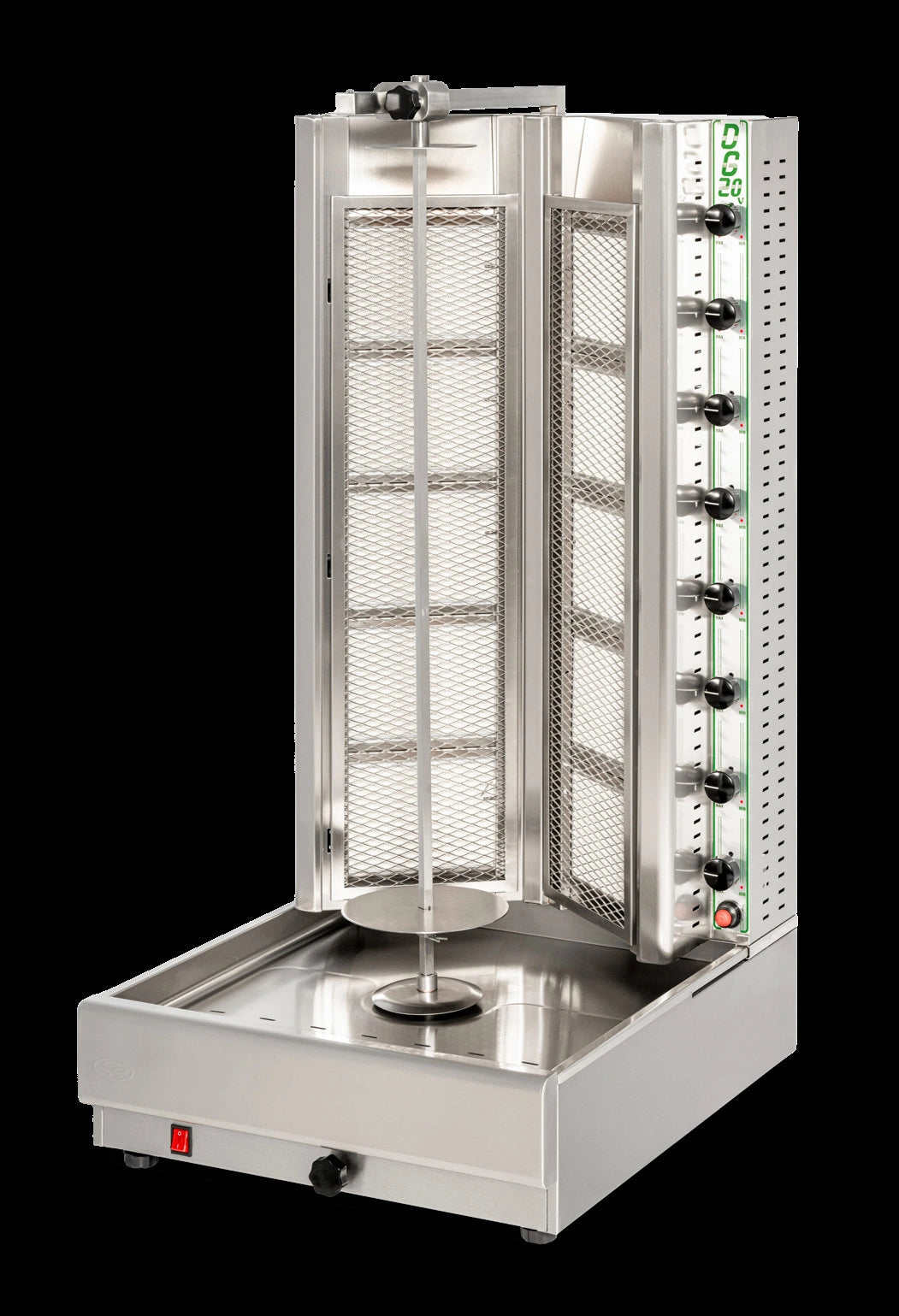

The Visvardis DG20VN is a gas gyro machine with two plates and a 308 lb (140 kg) meat capacity.
- Natural gas or LP operation with a 1/2 in. G gas connection
- Ten burners per plate and 119,420 BTU/hr input
- Electronic ignition and built-in thermocouples
- Eight gas control valves with maximum and minimum settings
- Adjustable levers set the distance between the spit and burners
- Front control panel for operation
- Removable nets and oil containers for cleaning
Documented included accessories are a spit and a meat shovel.
Overall Dimensions:
22.4"W x 28.7"D x 45.6"HProduct Weight:
135.0 lbGas operation
Designed for natural gas or LP, with a 1/2 in. G gas connection.
Two-plate burner system
Includes two plates with 10 burners per plate.
Electronic ignition
Provides electronic ignition for starting the machine.
Built-in thermocouples
Includes thermocouples as part of the gas burner system.
Gas control valves
Eight gas control valves provide maximum and minimum settings.
Adjustable burner spacing
Adjustable levers set the distance between the spit and burners.
Front control panel
Controls are positioned on the front of the machine.
Removable cleaning components
Nets and oil containers are removable for cleaning.
