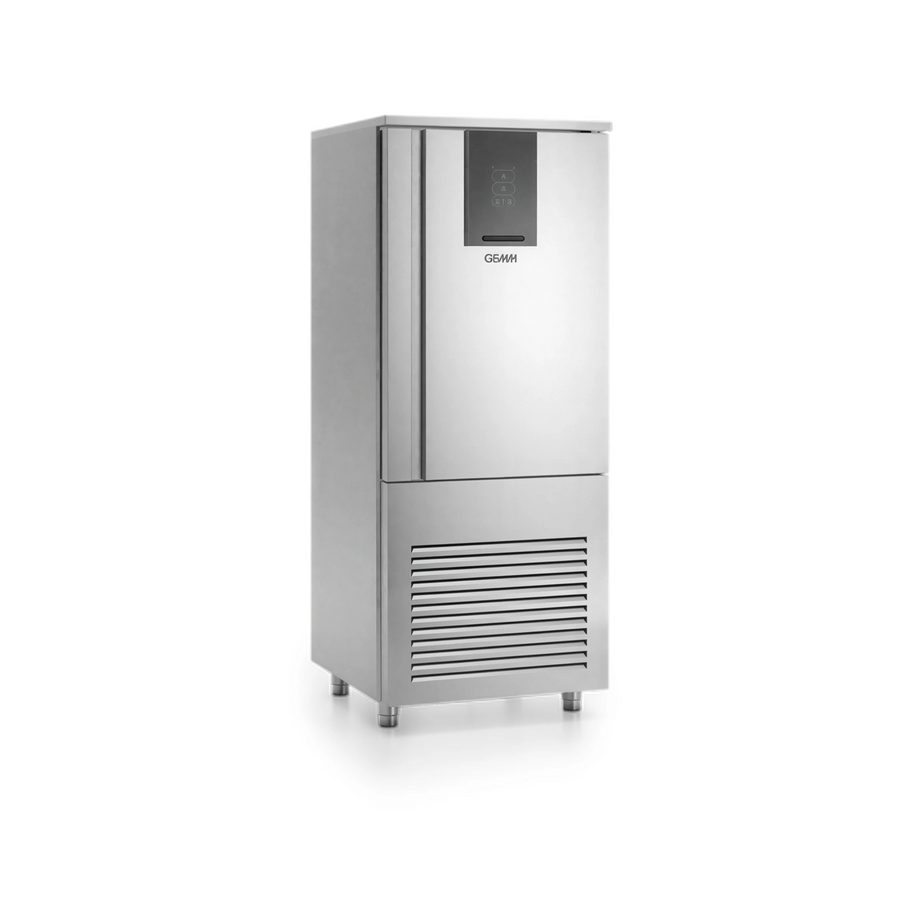

Eurodib USA Gemm® BCT15USN Reach-In Blast Chiller, Single Section, Self-Contained, 15-Tray Capacity

SKU: BCT15USN
$25,080.00
/each
Free Shipping
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Blast Chiller Equipment Blast Chillers Blast Chillers & Shock Freezers Blast Chilling & Medical Refrigeration Commercial Refrigeration Commercial Refrigerators Eurodib USA New Arrivals Refrigeration & Ice Restaurant Equipment

The Gemm® BCT15USN is a single-section, self-contained reach-in blast chiller with capacity for 15 trays. Trays are not included.

A 7-inch color touchscreen supports time and probe cycles, programming, recipe book mode, and display in eight languages. The unit is compatible with GN 1/1 and 18 x 26 inch trays.

Overall Dimensions:

33.8"W x 34.6"D x 74.8"H

15-tray capacity

The unit accommodates 15 trays; trays are not included.

Compatible tray formats

Compatible with GN 1/1 and 18 x 26 in (45 x 66 cm) trays.

Touchscreen control

A 7 in color touchscreen control panel displays in 8 languages.

Programmable cycles

Supports time and probe cycles with programmable settings.

Recipe book mode

Built-in recipe book programming provides repeatable cycle options.

Core temperature probe

A core temperature probe supports monitoring during chilling and freezing cycles.

R290 refrigerant

Uses R290 refrigerant.

Ventilation panel

The ventilation panel is designed to simplify maintenance.

Product type Reach-in blast chiller
Configuration Single section
Refrigeration Self-contained
Tray capacity 15 trays; trays not included
Compatible tray formats GN 1/1 and 18 x 26 in (45 x 66 cm)
Tray pitch 2.6 in (66 mm)
Control panel 7 in color touchscreen
Display languages 8
Cycle types Time and probe cycles
Programming Programmable; recipe book mode
Refrigerant R290
Maximum absorbed power 3050 W
Electrical 208-240 V, 60 Hz, 3-phase
Connection Hardwired
Cooling power 10,538 BTU/h
Minimum air temperature -40°F (-40°C)
Climate class 5
Chilling capacity 150 lb from 149°F to 37°F in 90 minutes
Freezing capacity 108 lb from 149°F to 0.4°F in 240 minutes

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No. The 15 trays are not included.
The unit is compatible with GN 1/1 and 18 x 26 in (45 x 66 cm) trays.
It uses a 7 in color touchscreen with time and probe cycles, programmable settings, recipe book mode, and display in 8 languages.
The unit uses 208-240 V, 60 Hz, 3-phase power, is rated at 3050 W, and requires a hardwired connection.
The product measures 33.8 in wide, 34.6 in deep, and 74.8 in high, with a net weight of 412 lb.
