Gemm Commercial Reach-In Blast Chiller/Freezer, Single Section, Self-Contained, 15 Pan Capacity

SKU: BCC4008
GTIN: 628242149600
$41,008.45
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Blast Chillers Blast Chillers & Freezers Commercial Refrigeration Commercial Refrigerators Eurodib USA New Arrivals Restaurant Equipment Walk-In Coolers & Freezers

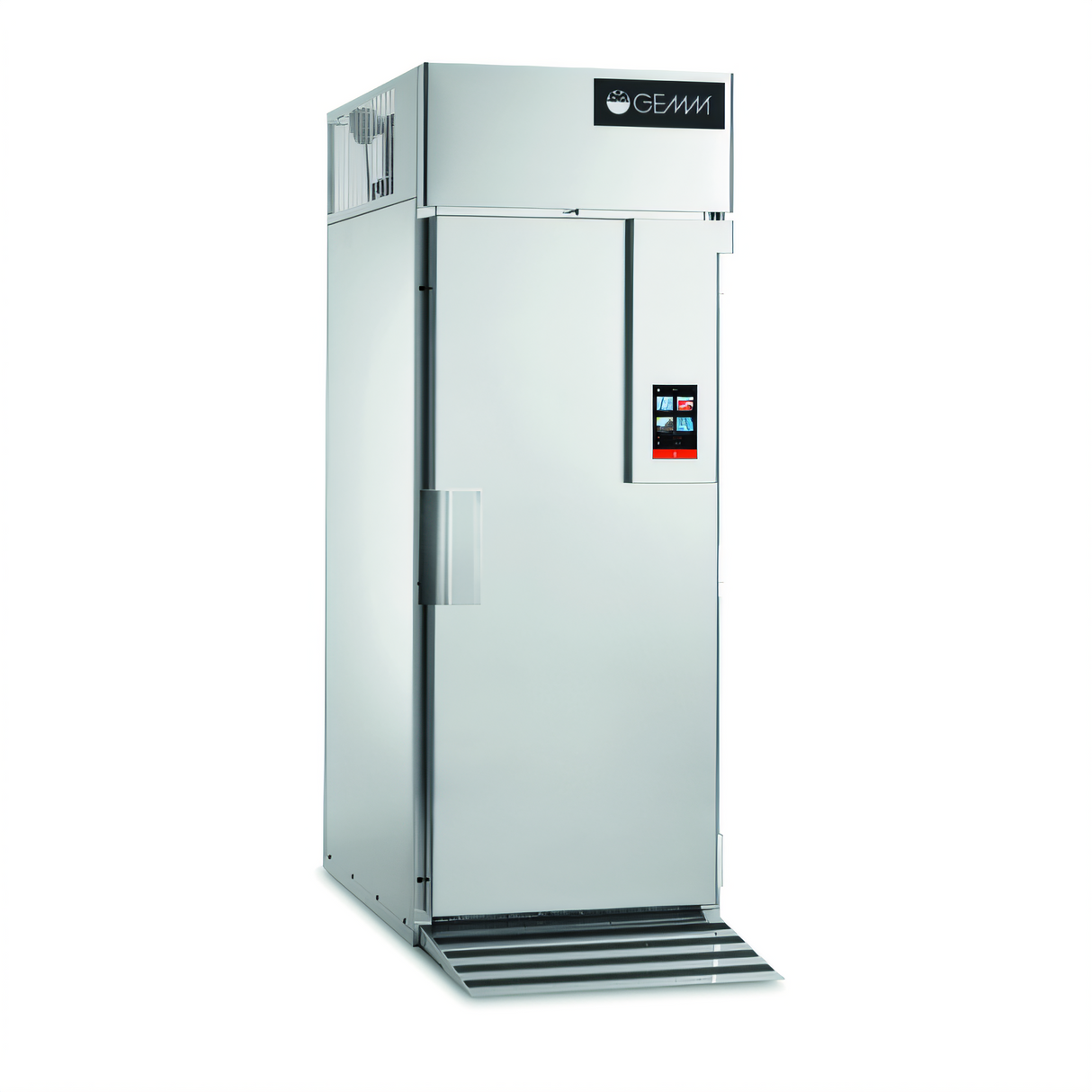

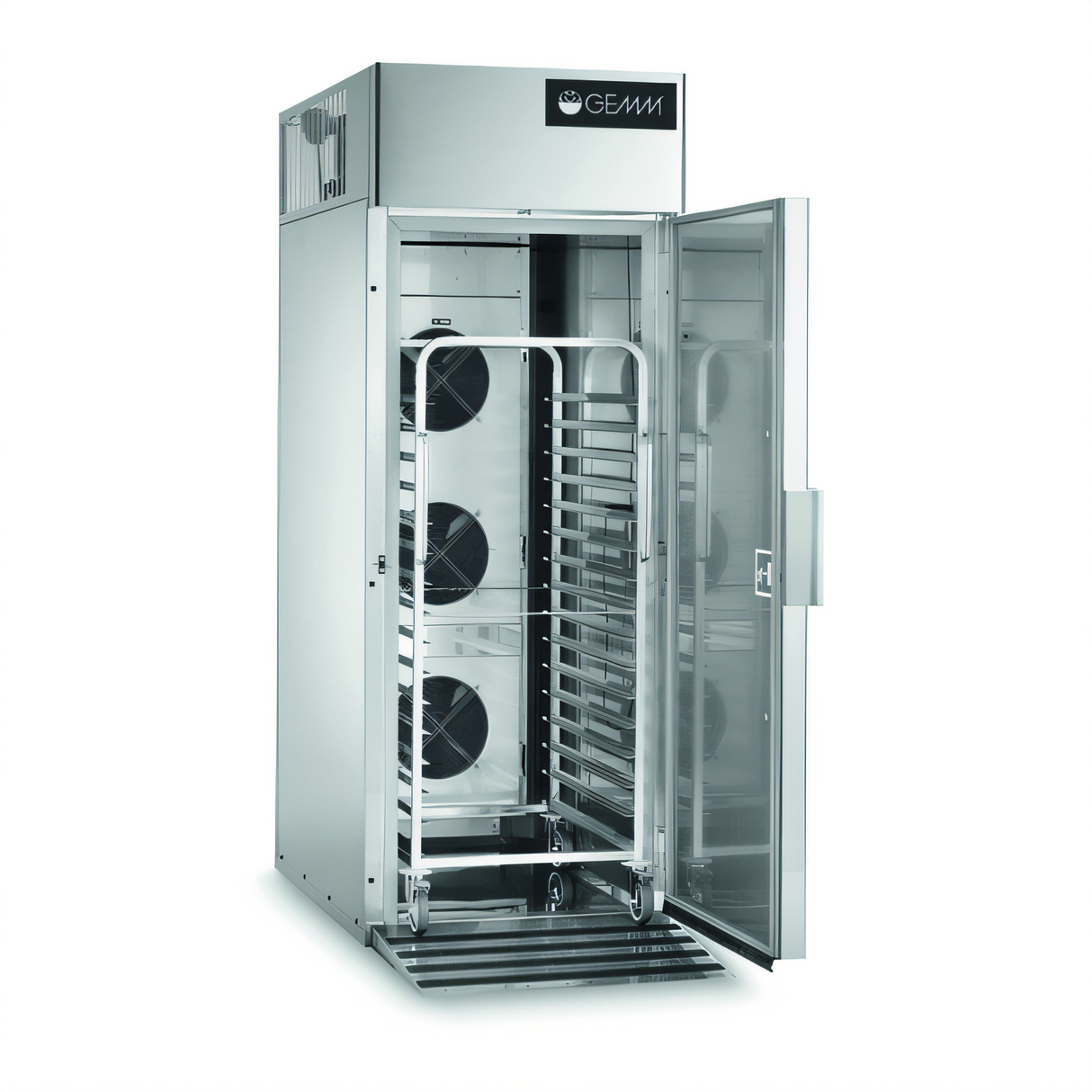

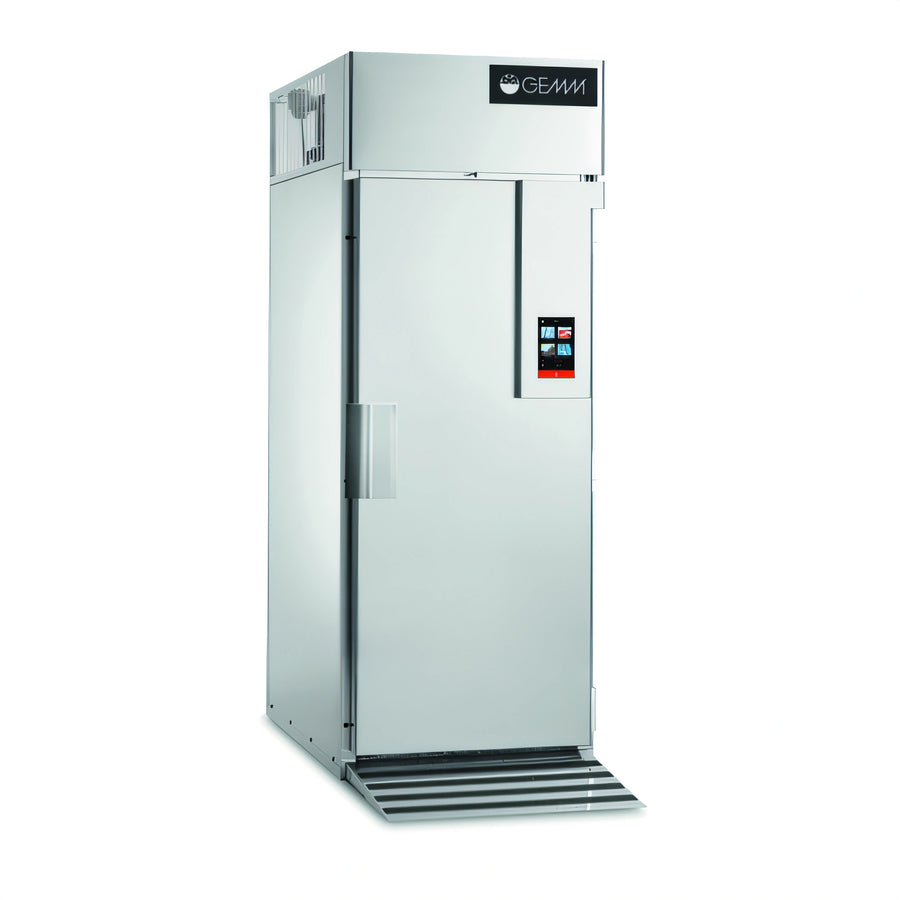

Gemm Commercial Reach-In Blast Chiller/Freezer, Single Section, Self-Contained, 15 Pan Capacity

230V, 3-Phase, 7-Inch Touch Screen, AISI 304 Stainless Steel

Rapidly chill or freeze large batches with a durable, self-contained blast chiller/freezer built for 15 full-size sheet pans.

  • Chills from 197°F to 37°F and freezes from 197°F to 0°F for flexible batch processing.
  • Holds up to (15) 18" x 26" pans with 209.5 lb. chilling and 165.5 lb. freezing capacity.
  • 7-inch touch screen control board with 8 language options and self-diagnostic support.
  • Continuous and fish sanitizing cycles plus auto defrost with pause help streamline maintenance.
  • AISI 304 stainless steel interior and exterior with insulated floors and a solid hinged door.
  • Self-contained refrigeration using R449A, 3.5 HP, and 230V / 60 Hz / 3-phase power.

Overall Dimensions:

52.0"W x 35.0"D x 95.25"H

Product Weight:

1138.0 lb

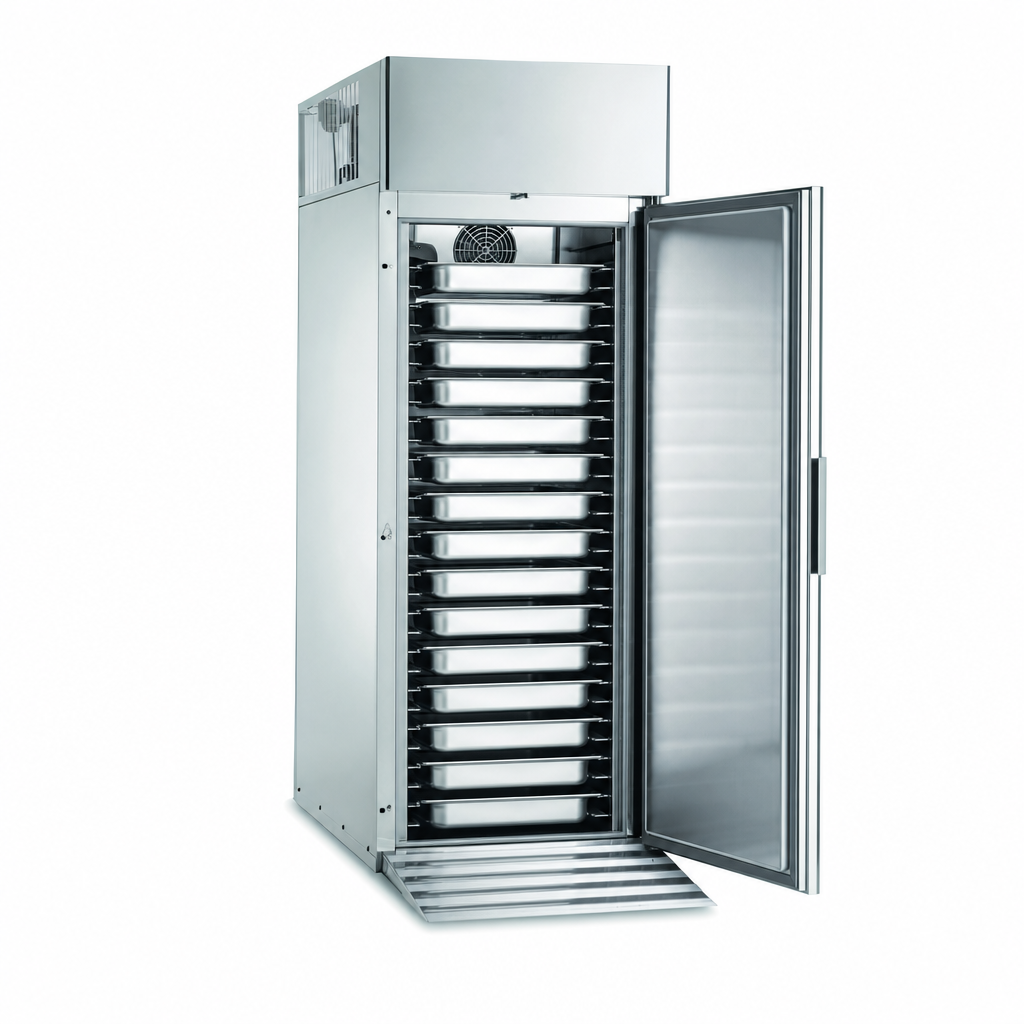

High Pan Capacity

Accommodates up to (15) 18" x 26" pans for high-volume chilling and freezing.

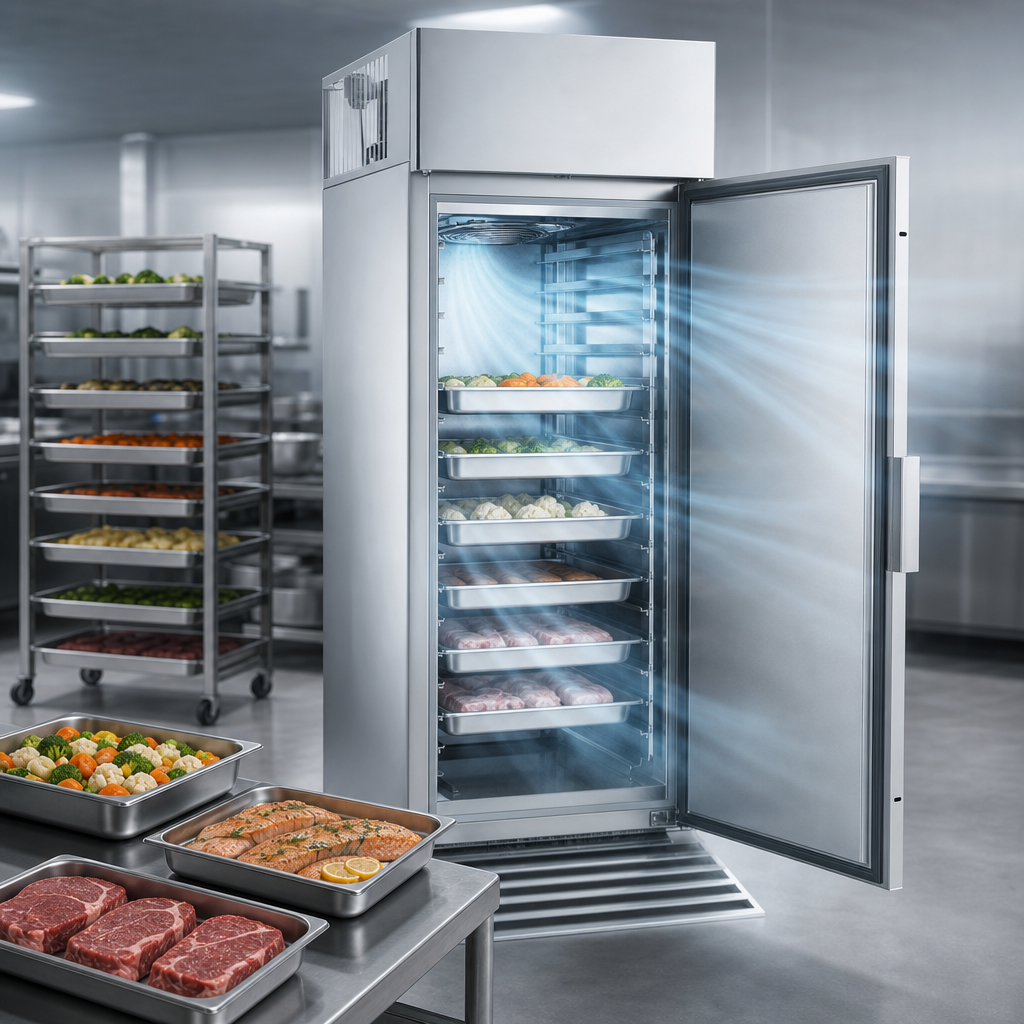

Rapid Chilling and Freezing

Supports 197°F to 37°F chilling and 197°F to 0°F freezing for fast batch control.

7-Inch Touch Screen Control Board

Touchscreen interface includes 8 language options for easier operation.

Self-Diagnostic System

Built-in diagnostics help with troubleshooting and maintenance.

Sanitizing and Defrost Cycles

Includes continuous and fish sanitizing cycles plus auto defrost with pause.

304 Stainless Steel Construction

AISI 304 stainless steel interior and exterior with insulated floors for durability and cleaning.

Loading Ramp Included

Includes a 20-1/2-inch ramp to assist with loading pans.

Self-Contained Refrigeration

All refrigeration components are built in for simpler installation.

Hardwired Electrical

Designed for 230V, 60 Hz, 3-phase service at 16 amps.

Made in Italy

Manufactured in Italy.

Type Blast Chiller/Freezer
Style Reach-In
Compartments 1
Installation Type Floor Model
Capacity 209.5 lb. Chilling / 165.5 lb. Freezing
Pan Capacity 15 Full-Size Sheet Pans
Pan Size 18 x 26 Inches
Temperature Range 197°F to 37°F Chilling / 197°F to 0°F Freezing
Controls Touch Screen
Refrigeration Type Self-Contained
Refrigerant Type R449A
Horsepower 3.5 HP
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Voltage 230 Volts
Amps 16 Amps
Watts 5.285 kW
Hertz 60 Hz
Phase 3-Phase
Country of Origin Italy
Shipping Width 52 Inches
Shipping Depth 35 Inches
Shipping Height 96 Inches
Shipping Weight 1138 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It holds up to (15) 18" x 26" pans.
The unit is rated for 209.5 lb. of chilling capacity and 165.5 lb. of freezing capacity.
It chills from 197°F to 37°F and freezes from 197°F to 0°F.
Yes, the unit uses self-contained refrigeration.
It is specified for 230V / 60 Hz / 3-phase operation at 16 amps with a cord/hardwire connection.
The interior and exterior are made from AISI 304 stainless steel.
