Espresso Soci LATTE ART FACTORY BAR SYSTEM Automatic Foamed Milk and Concentrate Dispenser with Undercounter Refrigerated Unit
$9,900.00
/each
Ships in 16–19 business days
- Operation
- Automatic
- Countertop dispenser dimensions
- 8.27 W x 22.76 H x 12.52 D in
- Undercounter unit dimensions
- 8.72 W x 22.46 H x 20.53 D in
- Dispense speed
- Up to 0.317 gal/min, depending on foam texture
- Dispenser power
- 24 V
- Fridge power
- 120 V~, 60 Hz, 1 A, NEMA 5-15
Specifications
Operation
Automatic
Countertop dispenser dimensions
8.27 W x 22.76 H x 12.52 D in
Undercounter unit dimensions
8.72 W x 22.46 H x 20.53 D in
Dispense speed
Up to 0.317 gal/min, depending on foam texture
Dispenser power
24 V
Fridge power
120 V~, 60 Hz, 1 A, NEMA 5-15
LAF power
120 V~, 60 Hz, 20 A, NEMA 5-20
Water connection
3/8-inch cold water line with shutoff
Mechanical filtration
10 µm
Water pressure
14.5–115 PSI
Water drainage
One 0.24-inch drain tube
Carbonate hardness
≤5°dKH
Standard refrigerator setup
3.7 L (1 gal) container
Operating temperature
+41 °F to +95 °F
Operating humidity
≤80% relative humidity, no condensation
Description

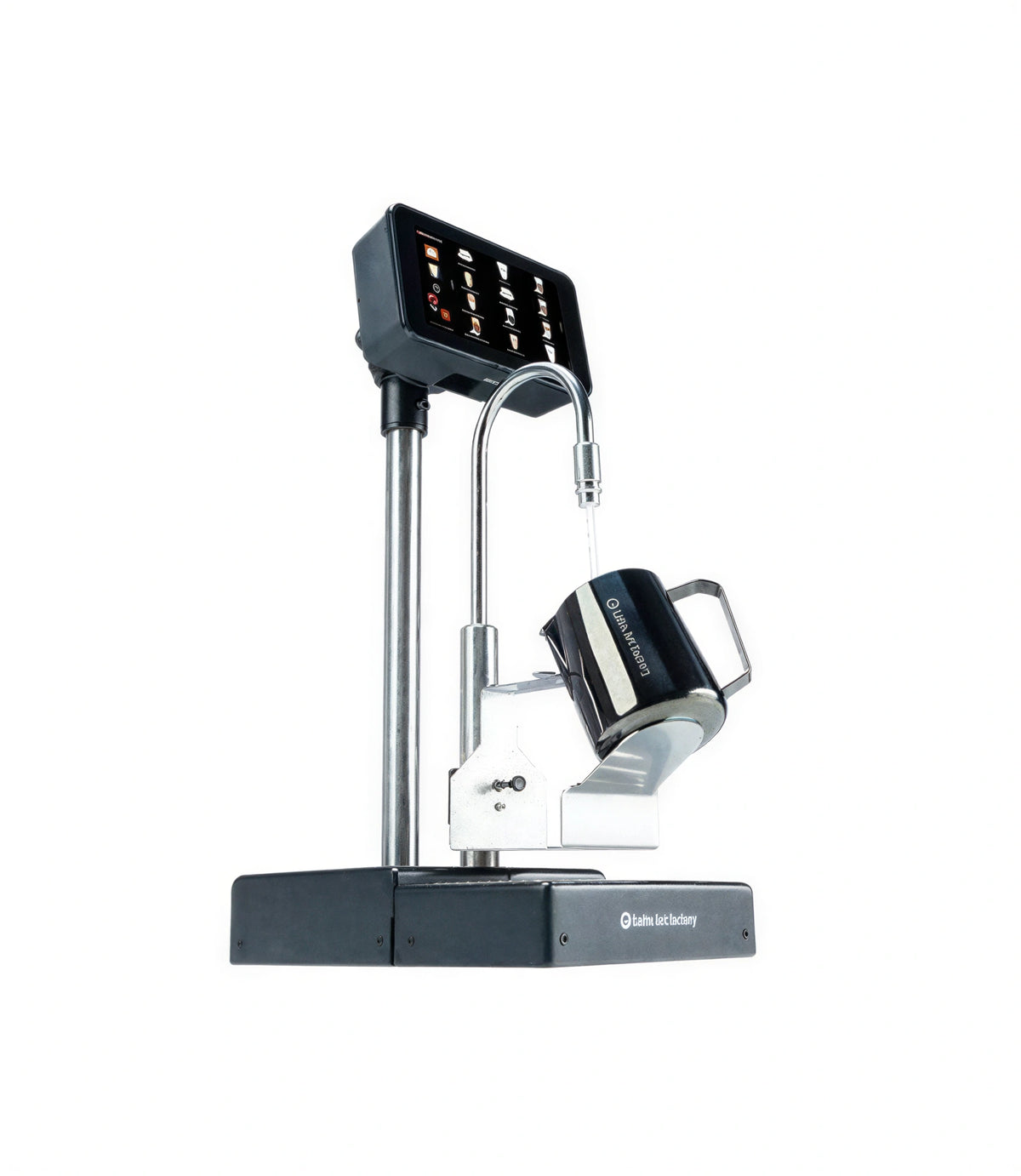

The LATTE ART FACTORY BAR SYSTEM combines a bar countertop dispenser with an undercounter refrigerated unit for hot and cold foamed milk and concentrates.
- Automatic dispensing with a speed of up to 0.317 gal/min, depending on foam texture.
- The dispenser uses 24 V power and requires a 3/8-inch cold water line with shutoff.
- Water treatment includes 10 µm mechanical filtration, and the system provides drainage through a 0.24-inch drain tube.
Overall Dimensions:
8.72"W x 20.53"D x 22.76"HProduct Weight:
72.0 lbAutomatic dispensing
The system is specified for automatic operation.
Foamed milk and concentrate dispensing
Designed to dispense hot and cold foamed milk and concentrates.
Undercounter refrigerated unit
Includes an undercounter milk and refrigerator module.
Water filtration
Requires mechanical filtration rated at 10 µm; water should be free from undissolved solids.
Water drainage
Provides drainage through one 0.24-inch drain tube.
Ventilation clearance
At least 7.9 inches of free space behind the machine is specified for ventilation and connections.
Documentation
Frequently Asked Questions
It is designed for hot and cold foamed milk and concentrates.
It requires a 3/8-inch cold water line with shutoff, with water pressure from 14.5 to 115 PSI.
Yes. It includes water drainage through one 0.24-inch drain tube.
The bar countertop dispenser measures 8.27 W x 22.76 H x 12.52 D inches, and the undercounter unit measures 8.72 W x 22.46 H x 20.53 D inches.
