Empire Bakery Equipment LFE 3424 Electric 3-Deck Bread Oven, 97.6" W x 94.5" D Decks, Without Legs

SKU: LFE 3424
$108,557.76
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

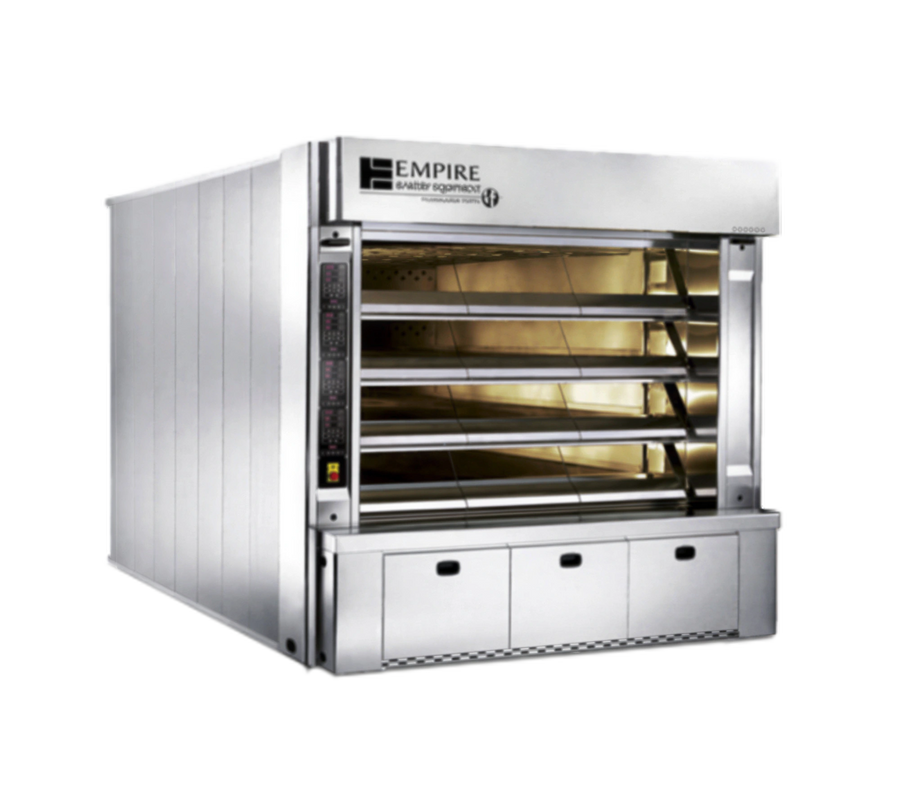

The Empire LFE 3424 is an electric, three-deck stone hearth oven configured without legs. Its three 97.6 in W x 94.5 in D decks provide a combined 192.1 sq. ft. stone hearth baking surface.

  • Each deck accommodates 12 trays measuring 18 in x 26 in, with a baking capacity of 325 approximately 1 lb. loaves.
  • The digital control panel stores up to 99 baking programs, with up to three baking and steaming phases per program.
  • Bottom and ceiling heating elements are independently controlled on each deck.
  • The oven includes four counterbalanced loading doors, AISI 309 steel heating elements, and ceramic insulators.
  • Electrical specifications are 81.5 kW, 220 V, 60 Hz, 3-phase, and 214.0 amps.

Overall Dimensions:

119.7"W x 145.7"D x 105.6"H

Product Weight:

4601.75 lb

Three stone hearth decks

The oven has three decks with 97.6 in W x 94.5 in D baking surfaces and 192.1 sq. ft. of total stone hearth area.

Tray and loaf capacity

Each deck accommodates 12 trays measuring 18 in x 26 in. The listed baking capacity is 325 approximately 1 lb. loaves.

Digital control panel

The digital control panel stores up to 99 baking programs.

Multi-phase baking programs

Each stored program can include up to three different baking and steaming phases.

ECO Energy Optimization System

The ECO Energy Optimization System helps control energy consumption.

Independent heating control

Bottom and ceiling heating elements are independently controlled.

Counterbalanced loading doors

The oven has four counterbalanced loading doors.

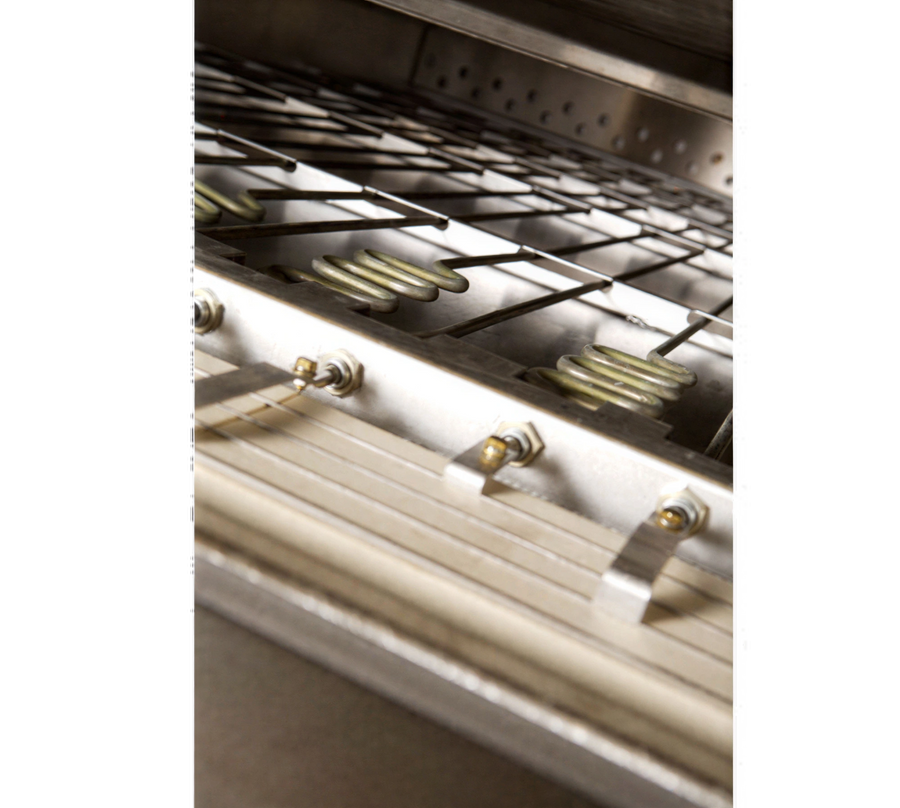

Heating element construction

Heating elements are made of AISI 309 steel with ceramic insulators.

Related Searches

Best Sellers Commercial Ovens Commercial Ovens Cooking Equipment Deck Ovens Deck Ovens Deck Ovens Empire Bakery Equipment Equipment New Arrivals Ovens Restaurant Equipment
Oven type Electric stone hearth deck oven
Deck quantity 3
Deck dimensions 97.6 in W x 94.5 in D
Tray capacity per deck 12 trays, 18 in x 26 in
Approximate 1 lb loaf capacity 325 loaves
Stone hearth baking surface 192.1 sq. ft.
Control panel Digital
ECO system ECO Energy Optimization System
Baking program storage 99 programs
Baking and steaming phases Up to 3 different phases per program
Heating element control Independently controlled bottom and ceiling elements
Loading doors 4 counterbalanced doors
Heating element material AISI 309 steel
Insulator material Ceramic
Power 81.5 kW
Electrical requirements 220 V / 60 Hz / 3-phase
Current 214.0 amps
Door width per deck 24.4 in
Exterior finish Stainless steel front and hoods; galvanized sides
Interior finish Stainless steel interior
Mounting type Without legs
Drain line 1 1/2 in
Water connection 1/2 in cold water
Steam exhaust 10 in; 1,166 cfm
Shipping requirement Must ship Load to Ride

Warranty & Protection

Limited warranty against material and workmanship defects for the original purchaser.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The LFE 3424 has three electric stone hearth decks.
Each deck accommodates 12 trays measuring 18 in x 26 in.
The listed baking capacity is 325 approximately 1 lb. loaves.
The overall dimensions are 119.7 in W x 145.7 in D x 105.6 in H.
It requires 81.5 kW at 220 V, 60 Hz, 3-phase, and draws 214.0 amps.
No. The mounting type is without legs.
The product has a limited warranty against material and workmanship defects for one year on parts and labor, with 90 days on electrical components.
