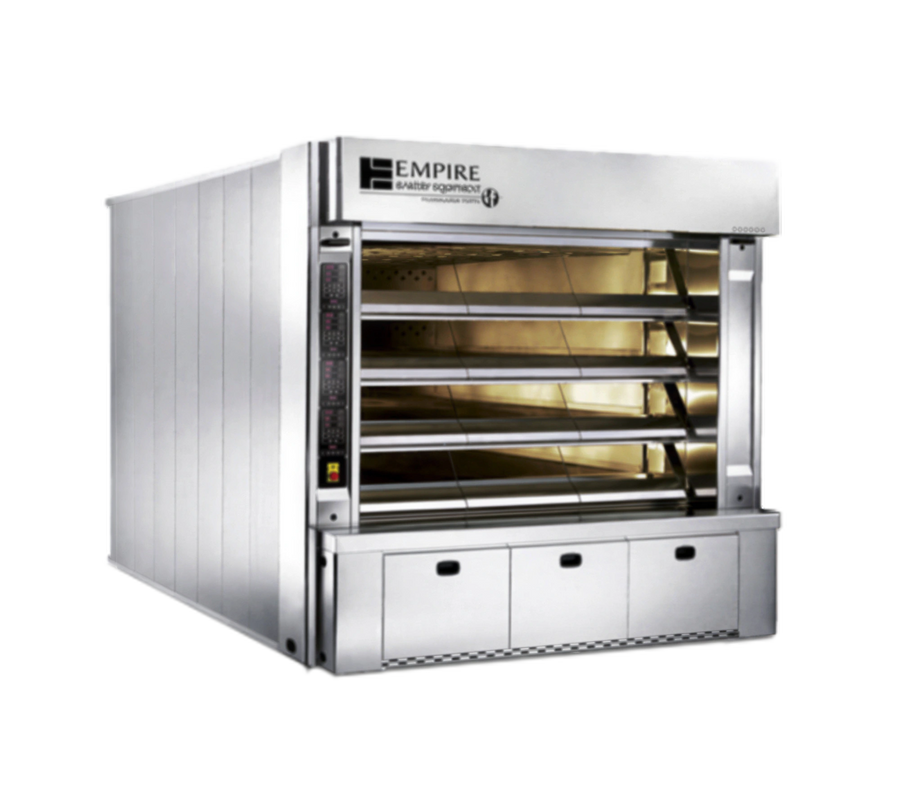

Empire Bakery Equipment LFE 3416 Electric 3-Deck Bread Oven, 97.6"W x 63"D Decks, Stone Hearth, Digital Controls

SKU: LFE 3416
$91,669.44
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The LFE 3416 is an electric three-deck stone hearth oven with three 97.6 in W x 63 in D decks and a 128.1 sq. ft. baking surface. Each deck accommodates up to eight 18 in x 26 in trays.

Digital controls store up to 99 baking programs, with up to three different baking and steaming phases per program. Bottom and ceiling heating elements are independently controlled, and the ECO Energy Optimization System helps control energy consumption.

  • 55.5 kW; 220 V, 60 Hz, 3-phase; 146.0 amps.
  • Four counter-balanced loading doors and AISI 309 steel heating elements with ceramic insulators.
  • Overall dimensions: 119.7 in W x 114.2 in D x 105.6 in H.

Overall Dimensions:

119.7"W x 114.2"D x 105.6"H

Product Weight:

4601.75 lb

Stone hearth baking surface

Provides 128.1 sq. ft. of baking surface.

Three-deck format

Each 97.6 in W x 63 in D deck accommodates up to eight 18 in x 26 in trays.

Digital program control

Stores up to 99 customized baking programs, with up to three baking and steaming phases per program.

Independent heating control

Bottom and ceiling heating elements are independently controlled.

ECO Energy Optimization System

Helps control energy consumption.

Counter-balanced loading doors

Includes four counter-balanced loading doors.

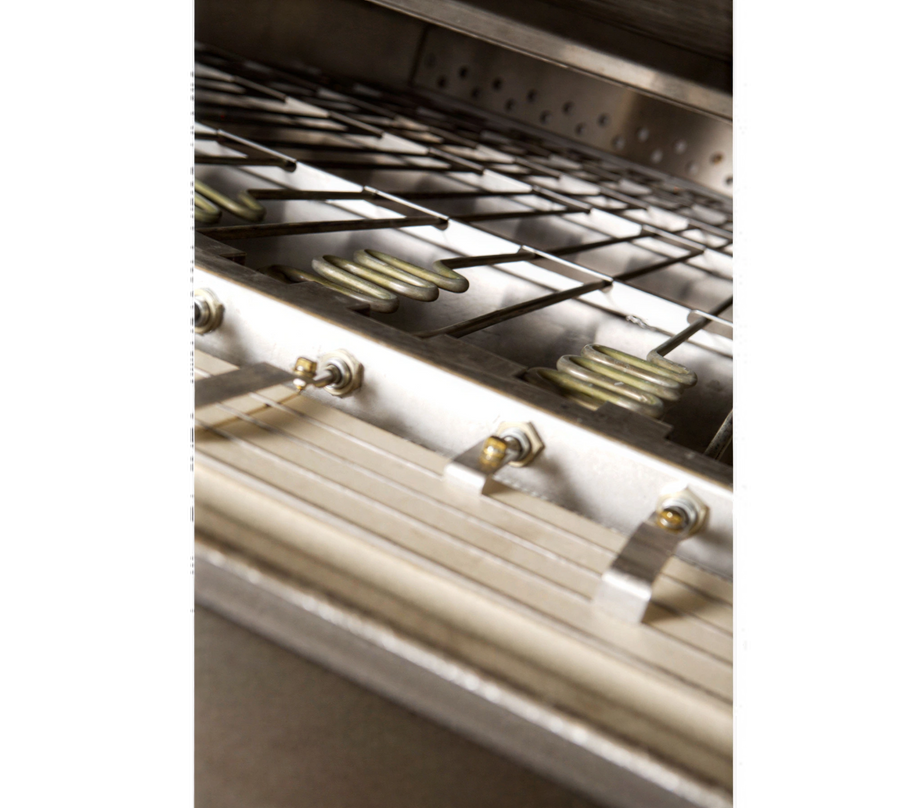

Heating element construction

Uses AISI 309 steel heating elements with ceramic insulators.

Related Searches

Best Sellers Commercial Ovens Commercial Ovens Cooking Equipment Deck Ovens Deck Ovens Deck Ovens Empire Bakery Equipment Equipment New Arrivals Ovens Restaurant Equipment
Oven type Electric deck oven
Deck count 3
Deck dimensions 97.6 in W x 63 in D
Tray capacity per deck 8 trays, 18 in x 26 in
Baking surface 128.1 sq. ft., stone hearth
Approximate 1 lb loaf capacity 217 loaves
Control type Digital control panel
Baking program storage 99 programs
Phases per program Up to 3 baking and steaming phases
Heating element control Independently controlled bottom and ceiling heating elements
Heating element material AISI 309 steel
Insulator material Ceramic
Loading doors 4 counter-balanced doors
Electrical power 55.5 kW
Voltage 220 V
Frequency 60 Hz
Phase 3-phase
Amperage 146.0 amps
Overall dimensions 119.7 in W x 114.2 in D x 105.6 in H
Usable deck heights 9.45 in top deck; 7.1 in middle deck; 7.1 in bottom deck
Door width 24.4 in per deck
Exterior finish Stainless steel front and hoods; galvanized sides
Interior finish Stainless steel interior
Mounting type Without legs
Drain line 1-1/2 in
Water connection 1/2 in NPT, cold water
Steam exhaust 10 in, 1,166 cfm
Construction clearance 16 in minimum

Warranty & Protection

Limited warranty for one year from the date of purchase on parts and labor, with 90 days on electrical components.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The LFE 3416 has three decks.
Each deck measures 97.6 in W x 63 in D and accommodates up to eight 18 in x 26 in trays.
The specified approximate capacity is 217 one-pound loaves.
The digital control panel stores up to 99 baking programs, with up to three baking and steaming phases per program.
The specification is 55.5 kW at 220 V, 60 Hz, 3-phase, with 146.0 amps.
The oven measures 119.7 in W x 114.2 in D x 105.6 in H.
The limited warranty covers material and workmanship defects for one year from the date of purchase on parts and labor, with 90 days of coverage on electrical components.
