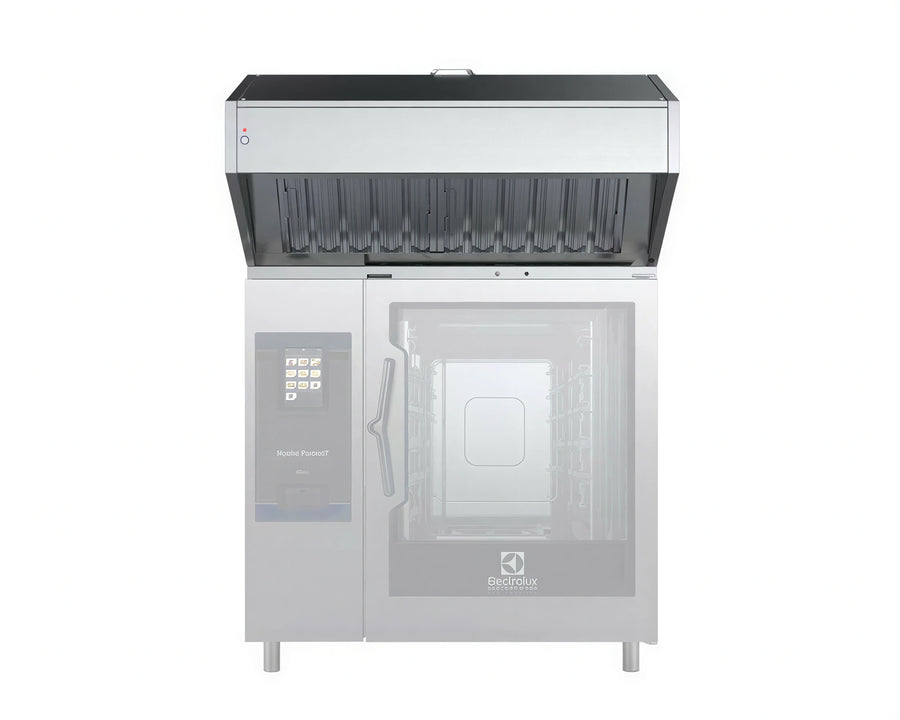

Electrolux Professional 9R011U Recirculating Ventless Hood for Electric 62-102 Skyline Ovens

SKU: 9R011U
$19,035.79
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The 9R011U is a recirculating ventless hood for electric 62-102 Skyline ovens. Its integrated ventilation and filtration system removes steam and reduces odors without an external exhaust duct connection.

  • Three-stage filtration uses a stainless steel baffle filter, mesh filter, and MERV 14 HEPA filter.
  • Automatic two-speed fan control and oven communication adjust operation based on real oven activity.
  • Front-accessible baffle and mesh filters and top-accessible HEPA filtration support cleaning and maintenance.
  • Constructed entirely in 304 AISI stainless steel.

Product Weight:

725.5 lb

Recirculating ventless operation

The complete ventilation system eliminates the need for an external exhaust duct connection.

Three-stage filtration

Stage 1 uses a baffle filter for large grease particles, stage 2 uses a mesh filter for finer moisture and grease particles, and stage 3 uses a MERV 14 HEPA filter.

Steam removal

An integrated heat exchanger supports removal of steam and reduction of latent load.

UV and catalyst filtration

The UV system attacks fat molecules, while the catalyst filter restrains residual odors and unreacted ozone.

Automatic fan control

The fully automatic two-speed fan control supports operation based on oven activity.

Oven communication

Cable connection to the oven enables fan power and odor absorption to activate based on real oven activity.

Filter access

Baffle and mesh filters are removable from the front, while the HEPA filter is accessible from the top. The stainless steel baffle filter is dishwasher washable.

Automatic door activation

The hood includes an automatic door opening activation system.

Related Searches

Best Sellers Commercial Kitchen Hoods Electrolux Professional Equipment Facility & Ventilation Equipment New Arrivals
Equipment type Recirculating ventless hood
Compatible equipment Electric 62-102 Skyline ovens
Supply voltage 110-120 V, 1 ph, 60 Hz
Current 1.7 A
Total power 0.4 kW
Air capacity 1200-1500 m³/h
Construction 304 AISI stainless steel
Filtration Three-stage baffle, mesh, and MERV 14 HEPA filtration
HEPA filtration efficiency Up to 84% for 0.3-1.0 micron particles; 90% or greater for 1.0-3.0 micron particles
Grease-laden emissions Less than 5 mg/m³ based on EPA Method 202

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Electrolux Professional warranty terms list 1 year of labor coverage and 2 years of parts coverage.

Documents

PDF Cutsheet PDF Download PDF Diagram PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a recirculating ventless hood for electric 62-102 Skyline ovens and can be used with electric lengthwise combi ovens in the Skyline PremiumS, Skyline Pro, and Skyline ProS ranges.
No. The manufacturer describes it as a complete ventilation system that eliminates the need for an external exhaust duct connection.
It uses three stages: a stainless steel baffle filter, a mesh filter, and a MERV 14 HEPA filter.
The supply is 110-120 V, single phase, 60 Hz, with a rated current of 1.7 A and total power of 0.4 kW.
The baffle and mesh filters are removable from the front, while the HEPA filter is accessible from the top. The stainless steel baffle filter can be washed in a dishwasher.
Yes. The manufacturer states that the hood must be installed in a space where normal aeration according to regulations is present.
