Electrolux Professional 587021 Electric Pressure Braising Pan, 24 Gallon, Power Tilt, Console Base

SKU: 587021
$109,289.48
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

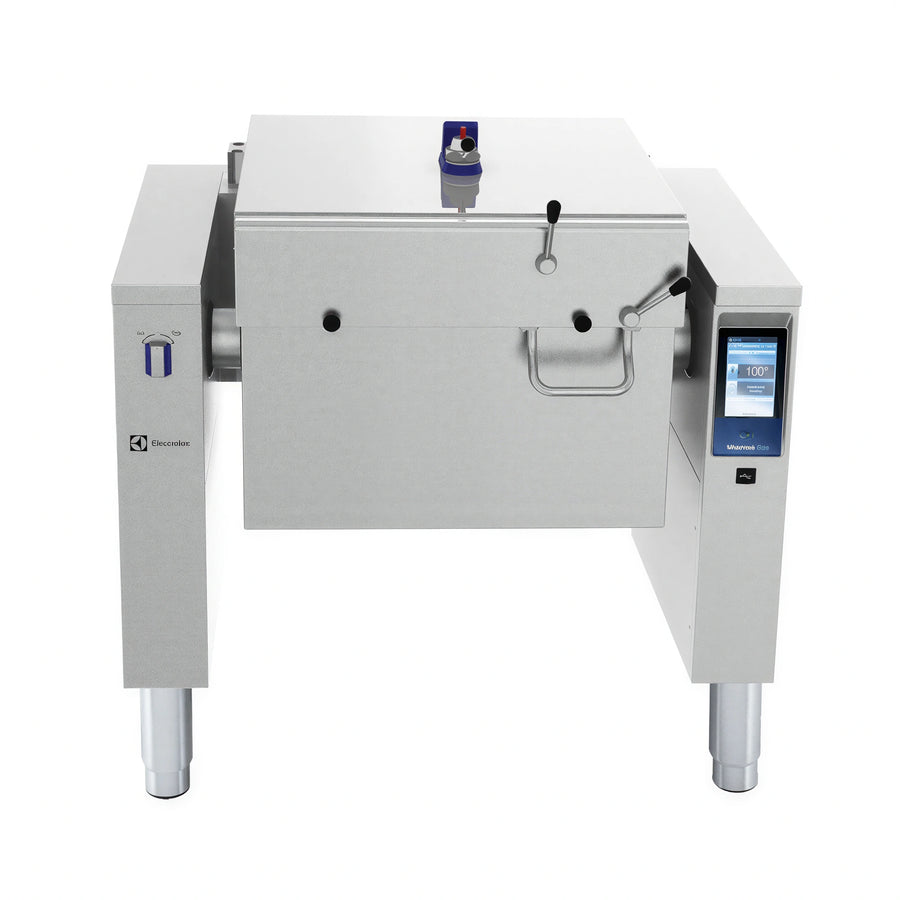

Electrolux Professional 587021 is an electric Touchline pressure braising pan with a 24 gal (90 L) capacity, motorized power tilt, and a TOUCH control panel.

  • Supports roasting, braising, simmering, boiling, pressure cooking, and steaming.
  • Features a GN-compliant stainless steel pan with two individually adjustable heating zones.
  • The motorized pan tilts over 90° with variable speed control and SOFT STOP.
  • Pressure cooking operates at 6.5 psi (0.45 bar), with a safety lid lock and safety valve.
  • The USB connection supports software updates, recipe uploads, and HACCP data downloads.
  • Electrical service is 208 V, 3 phase, 60 Hz, with 15.5 kW total power and 43 A total current.

Overall Dimensions:

47.25"W x 35.44"D x 27.56"H

Product Weight:

992.0 lb

Motorized power tilt

Variable-speed tilting with SOFT STOP allows the pan to tilt beyond 90° for pouring and cleaning.

Pressure cooking

The pressure function operates at 6.5 psi (0.45 bar) and includes a fast-acting lid lock and safety valve.

Temperature control

Electronic controls manage pan-bottom temperature from 122 to 482°F (50 to 250°C).

TOUCH control panel

The front-mounted panel displays actual and set temperature, cooking time, remaining time, and error information.

Thermoblock heating

The heating system provides temperature distribution and uses two individually adjustable heating zones with temperature sensors.

USB connectivity

The USB connection supports software updates, recipe uploads, and HACCP data downloads.

Stainless steel construction

The unit has an AISI 304 stainless steel body and tub with an AISI 316L stainless steel cooking surface.

Water-resistant design

The unit is specified as IPX6 water resistant.

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Cooking Equipment Electrolux Professional Equipment New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment
Product type Electric pressure braising pan
Capacity 24 gal (90 L)
Base Console
Tilt Power tilt; motorized variable speed; over 90°
Construction AISI 304 stainless steel body and tub; AISI 316L stainless steel cooking surface
Pan size GN compliant
Power 15.5 kW
Voltage 208 V
Phase 3 phase
Frequency 60 Hz
Current 43 A
Working pressure 6.5 psi (0.45 bar)
Working temperature 122 to 482°F (50 to 250°C)
Heating system Thermoblock
Heating type Direct
Controls TOUCH control panel
Water supply pressure 29 to 87 psi (2 to 6 bar)
Water inlet 1/2 in
Drain line 1/2 in
Safety thermostat Included

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Electrolux Professional warranty coverage includes 1 year of labor and 2 years of parts.

Documents

PDF Cutsheet PDF Download PDF Video-skyclean PDF Download PDF Video-cook&chill PDF Download PDF Video-breakfast concept PDF Download PDF Paid installation form PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking capacity is 24 gal (90 L).
It requires 208 V, 3 phase, 60 Hz service and is rated at 15.5 kW and 43 A.
Yes. It has motorized, variable-speed power tilt and can tilt beyond 90°.
The specified working pressure is 6.5 psi (0.45 bar).
The specified range is 122 to 482°F (50 to 250°C).
The cutsheet specifies a 1/2 in incoming cold or hot water line, 29 to 87 psi supply pressure, and a 1/2 in drain line.
The catalog configuration is a console base.
