Key specifications

Amps
28 Amps
Phase
3-Phase
Dimensions
29.63"W × 29.75"D × 61.69"H
Type
Door-Type Dishwasher
Style
Universal Straight-Through/Corner
Installation Type
Floor Model
Spec sheet

Electrolux Professional 504263 60-Rack/Hour Door Dishwasher

$12,948.21
/each
Estimated to ship in 16–19 business days Free Shipping
Electrical
Included: Electrolux Professional warranty Two-year parts and one-year labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,198/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Door-Type Dishwasher
Style Universal Straight-Through/Corner
Installation Type Floor Model
Material 304 Stainless Steel
Capacity 60 Racks/Hour
Voltage 208 Volts
Amps 28 Amps
Hertz 60 Hz
Phase 3-Phase
Tank Heat Electric
Controls Electronic with Built-In Programming
Sanitizing Type Hot Water with Booster
Wash Cycle 57/84/150 Seconds
Wash Temperature 160°F Minimum
Rinse Temperature 183.2°F Minimum
Water Consumption 2 L/Rack
Tank Capacity 6.34 gal (24 L)
Booster Capacity 3.17 gal (12 L)
Rack Size 20 x 20 in

Description

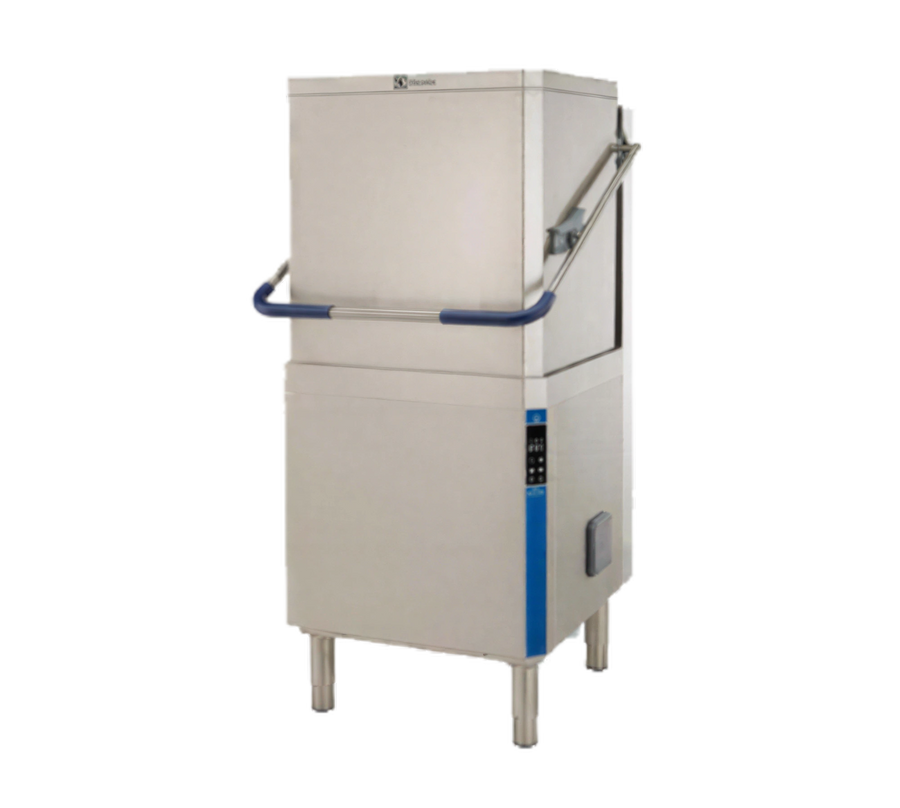

The Electrolux Professional 504263 is a door-type dishwasher with hot-water sanitizing, a built-in booster heater, and a field-convertible straight-through or corner configuration.

  • Provides a capacity of 60 racks per hour.
  • Includes corner-mounted electronic controls with built-in programming and 57-, 84-, and 150-second cycles.
  • Features Wash Safe Control, Zero Lime Device, Clear Blue advanced filtering, automatic self-cleaning, and built-in detergent and rinse aid pumps.
  • Constructed from 304 stainless steel and equipped with adjustable feet.
  • Includes two cutlery containers, one plate basket, and one cup basket.

Overall Dimensions:

29.63"W x 29.75"D x 61.69"H

Product Weight:

317.0 lb

Hot-Water Sanitizing

Built-in booster heater supports hot-water sanitizing without an external booster.

Field-Convertible Configuration

Can be configured for straight-through or corner installation.

Electronic Controls

Corner-mounted electronic controls include built-in programming.

Wash Cycles

Provides 57-, 84-, and 150-second cycles.

Wash Water Management

Zero Lime Device helps remove scale from the hydraulic circuits and washing chamber, while Clear Blue advanced filtering manages wash water.

Wash Safe Control

A green indicator confirms that items have been properly rinsed.

Automatic Cleaning

Includes an automatic self-cleaning cycle.

Integrated Chemical Pumps

Includes detergent and rinse aid pumps.

Soft Start

Soft start provides additional protection for delicate items.

Frequently Asked Questions

The 504263 is specified for 60 racks per hour.
Yes. It has a built-in booster heater for hot-water sanitizing.
Yes. The unit is field convertible for corner or straight-through installation.
It requires 208 volts, 60 Hz, three-phase electrical service and draws 28 amps.
The dishwasher includes two cutlery containers, one plate basket, and one cup basket.
