Eagle Group WTFT-2448-SG Cool Trough Water Tempering System with Grated Floor Drain

48 Inch Width, 24 Inch Depth, Stainless Steel, Subway-Style Grating

Ensure proper waste tempering and efficient drainage in your commercial kitchen with the robust Eagle Group Cool Trough Water Tempering System.

  • Constructed from durable 14 gauge 304 stainless steel for superior corrosion resistance and longevity.
  • Features an integral mechanical temperature sensor for automatic water tempering without requiring an electrical connection.
  • Equipped with a built-in pitch towards a 4-inch drain, ensuring efficient liquid waste removal and preventing standing water.
  • Includes heavy-duty, removable stainless steel subway-style grating and a perforated basket for easy cleaning and debris capture.
  • Designed for seamless drop-in installation, complete with a shutoff valve and two pressure check valves for plumbing integration.
  • Meets local plumbing codes for water tempering and is designed for use with an Eagle-supplied RPZ valve for backflow prevention.

Heavy-Duty Stainless Steel Construction

Built with 14 gauge, Type 304 stainless steel for the floor pan and access compartment, providing exceptional durability and resistance to rust and corrosion in demanding commercial environments.

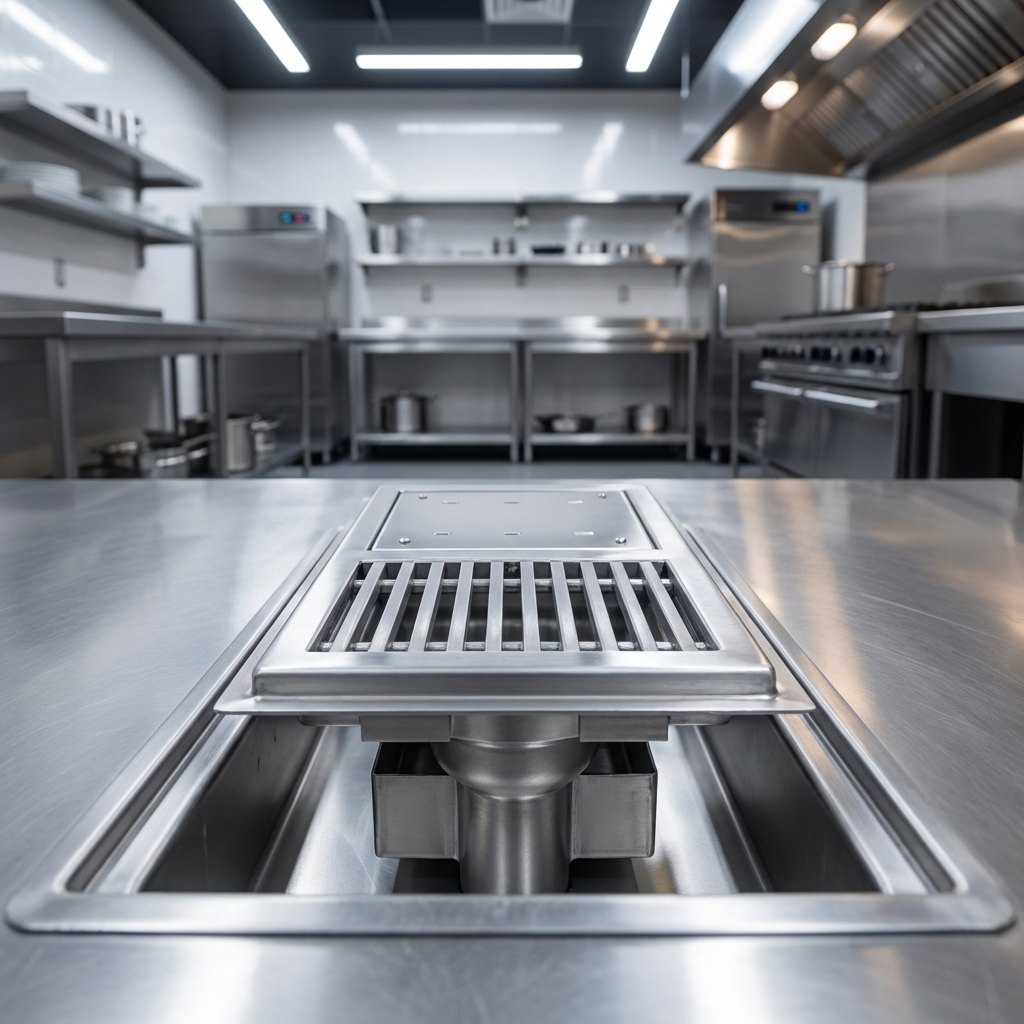

This image highlights the Eagle Group Cool Trough's exceptional durability, featuring robust 14 gauge, Type 304 stainless steel construction designed for demanding commercial use.

Integrated Mechanical Water Tempering

Features an integral mechanical temperature sensor and a drain water tempering valve (supplied by Eagle) that requires no electrical connection, automatically tempering waste water to meet local discharge regulations.

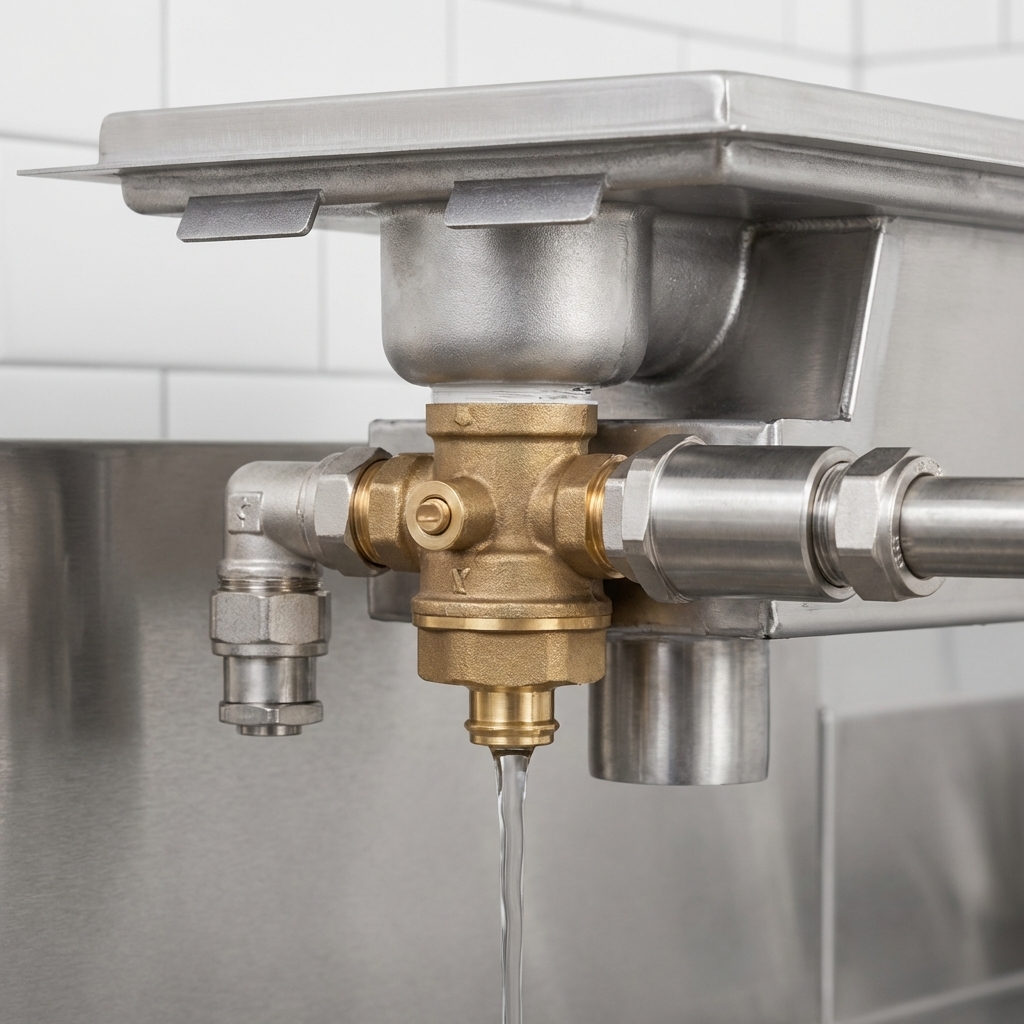

This image highlights the integrated mechanical water tempering valve and sensor, ensuring automatic waste water temperature regulation without electrical connections.

Efficient Trough Drainage

The trough's floor pan is designed with a built-in pitch that actively directs water and waste towards the 4-inch drain, ensuring rapid and complete liquid removal.

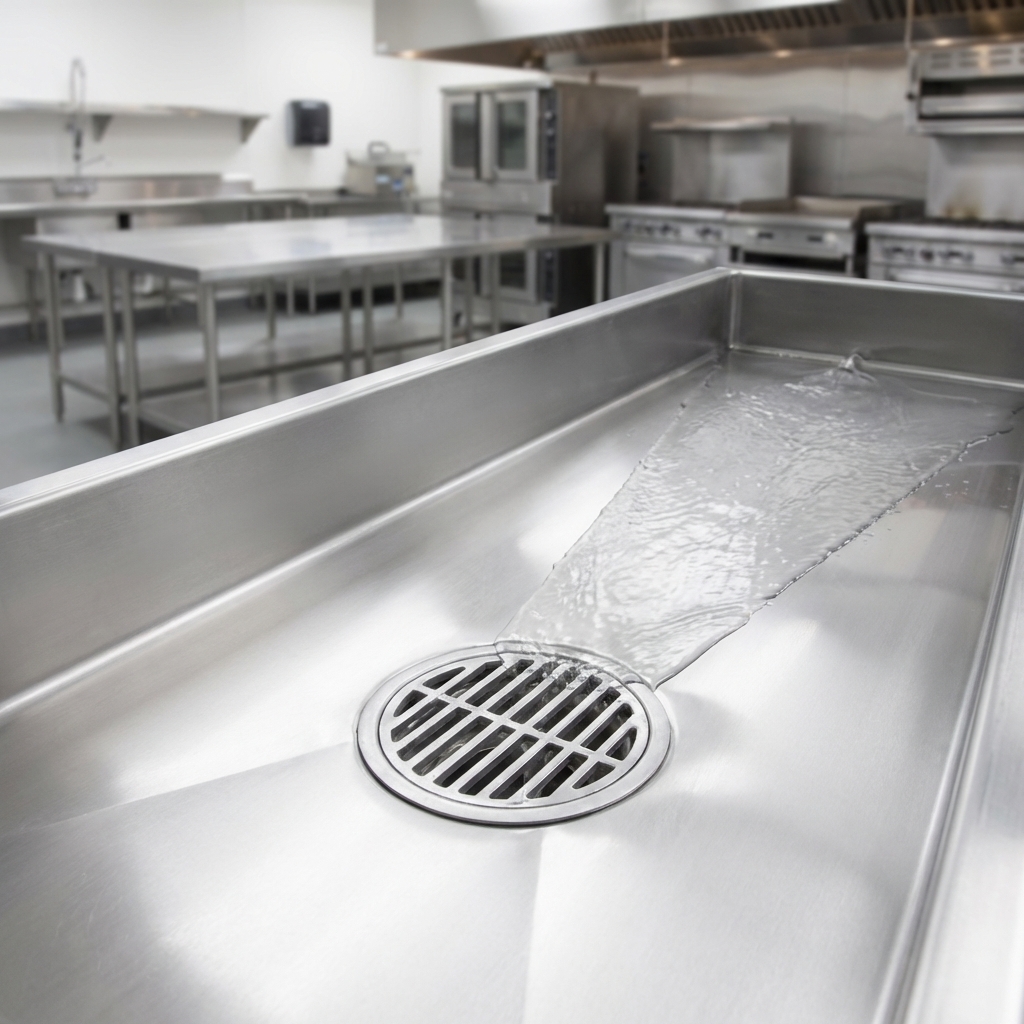

Experience superior hygiene with the trough's intelligently pitched floor and 4-inch drain, ensuring rapid and complete liquid removal.

Subway-Style Grating and Perforated Basket

Includes robust, removable stainless steel subway-style grating for a sturdy walking surface, along with a removable perforated basket to effectively capture solid debris and prevent drain clogs.

Plumbing Components Included

Supplied with a shutoff valve and two pressure check valves to facilitate plumbing connections and ensure proper operation within your existing system.

Accessible Design for Maintenance

Features a stainless steel access compartment that allows for easy serviceability and testing of the tempering valve and other internal plumbing components.

Specifications

Type Water Tempering System
Style Floor Drain Trough
Installation Type Drop-In
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Trough Construction 14 Gauge Stainless Steel
Grate Type Subway-Style Grating
Grate Construction Stainless Steel Grates
Capacity 4 Inches Deep
Controls Mechanical Temperature Sensor
Drain Connection Size 4 Inches
Water Connection Required
Water Inlet Size 1 Inch
Shipping Width 48 Inches
Shipping Depth 24 Inches
Shipping Height 13 Inches
Shipping Weight null
Selling Unit Each
Units Per Case 1

Overall Dimensions:

48.0"W x 24.0"D x 13.0"H
Manufacturer Eagle Group
Height 13.0in
Width 48.0in
Depth 24.0in
Width (long side) 37" - 48" (4 ft)
Trough Construction 14 ga stainless steel trough
Deep (pan depth) 4"
Depth (short side) 24"
Grate Type subway-style grating
Pan Type non anti-splash
Grate Construction stainless steel grates
Specifications Cool Trough® Water Tempering Systems, grated floor drain, 48"W x 24"D x 13"H, stainless steel subway-style grating, removable perforated basket, built-in pitch toward 4" drain, integral mechanical temperature sensor (no electrical connection required), includes shutoff valve & (2) pressure check valves, 14/304 stainless steel construction

Warranty & Protection

1-year parts and labor warranty from installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The system requires a 1-inch water line connection for tempering and a drain line with an air gap from the relief valve connection for discharge. An RPZ (Reduced Pressure Zone) valve, supplied by Eagle, is also a required component to be installed by a plumbing contractor.
No, the integral water tempering system operates with a mechanical temperature sensor and does not require an electrical connection for its function.
The RPZ valve must be installed by a plumbing contractor, mounted a minimum of 12 inches above the trough's flood level. It must be easily accessible for periodic testing and servicing and should never be installed in concealed locations or above the ceiling.
The Cool Trough system includes a removable perforated basket designed to catch solid debris and prevent it from entering and clogging the main drainage system. The trough's built-in pitch also aids in efficient waste removal.
The rough-in hole for the trough itself should be 21.25 inches wide, 48 inches long, and 4.25 inches deep. For the plumbing compartment, the rough-in should be 33.375 inches wide, 14.75 inches long, and 11.25 inches deep.
