Eagle Group WTFT-1860-SG 60"W x 18"D Cool Trough Water Tempering System with Subway-Style Grating

Floor Drain, Built-In, 14 Gauge 304 Stainless Steel

Maintain safe drain water temperatures and prevent plumbing issues with the robust and reliable Eagle Group Cool Trough® Water Tempering System.

  • Durable 14 gauge 304 stainless steel construction ensures longevity in commercial environments.
  • Features a built-in pitch and 4-inch drain for efficient water evacuation.
  • Subway-style stainless steel grating and removable perforated basket for easy cleaning and debris capture.
  • Integral mechanical temperature sensor provides reliable water tempering without electrical connections.
  • Designed for seamless installation into recessed concrete slabs, offering a clean, integrated look.
  • Includes essential shutoff and pressure check valves for comprehensive water management.

Durable Stainless Steel Construction

Constructed from heavy-duty 14 gauge, 304 stainless steel for superior durability and corrosion resistance, suitable for demanding commercial use.

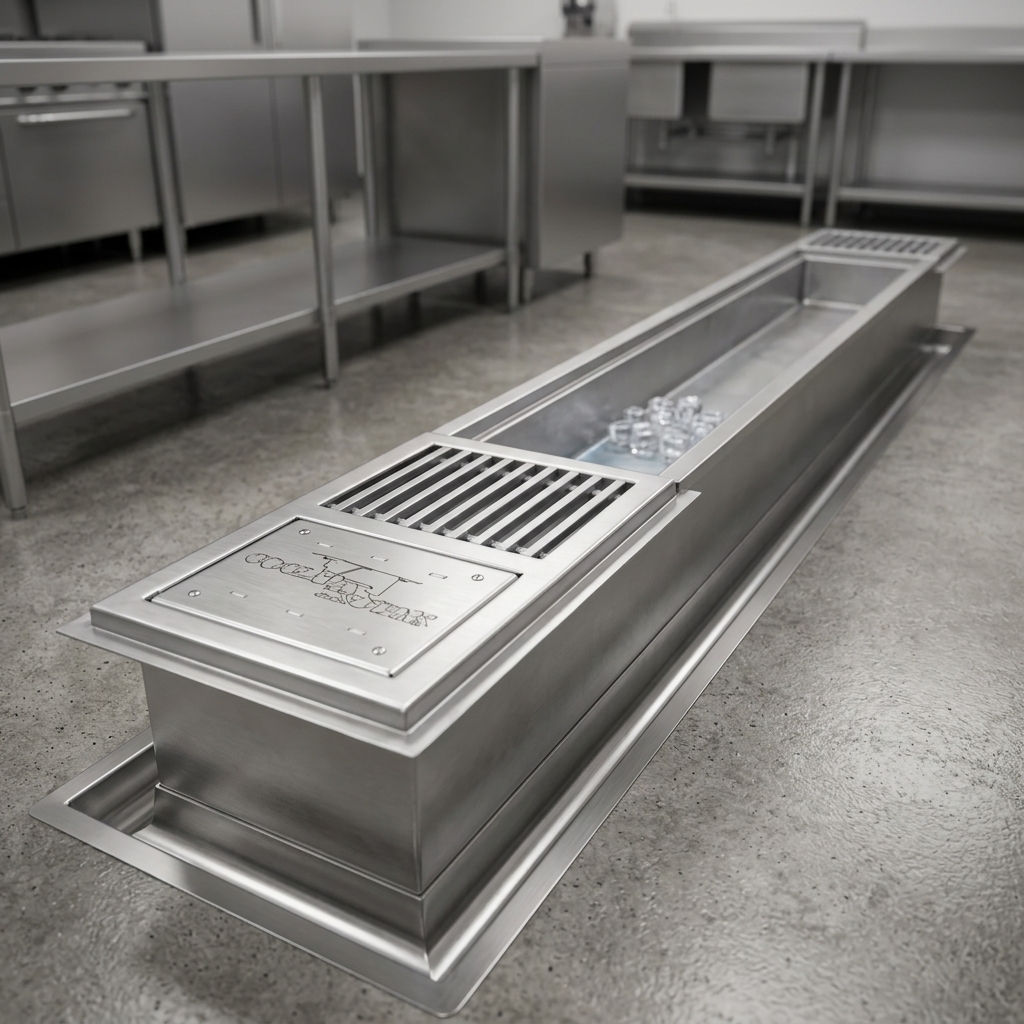

Experience the superior durability and corrosion resistance of this cool trough, crafted from heavy-duty 14 gauge, 304 stainless steel for demanding commercial use.

Efficient Drainage System

Features a built-in pitch towards a 4-inch drain, ensuring efficient water evacuation and preventing pooling.

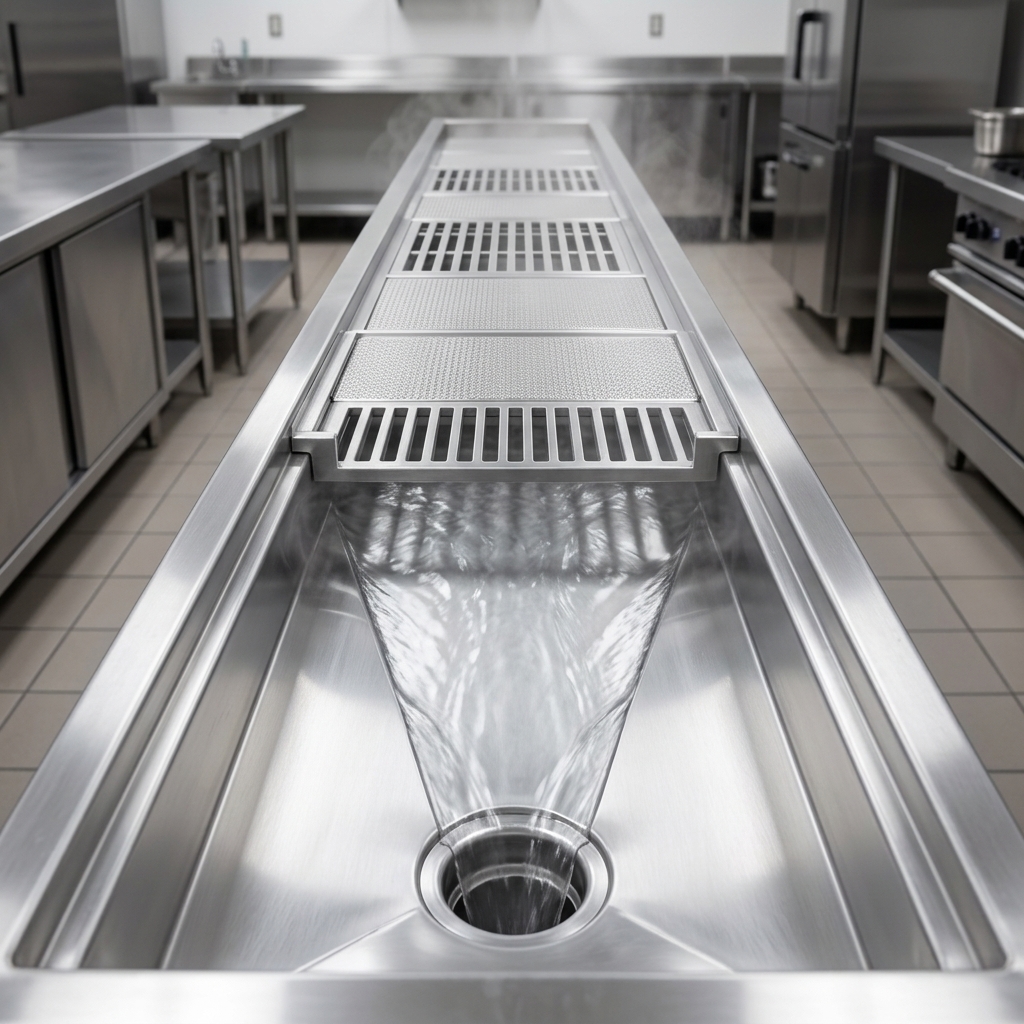

Experience efficient water evacuation with this cool trough's built-in pitch, expertly guiding water directly into its 4-inch drain.

Subway-Style Grating

Includes stainless steel subway-style grating for a secure walking surface and effective debris capture, with easy removal for cleaning.

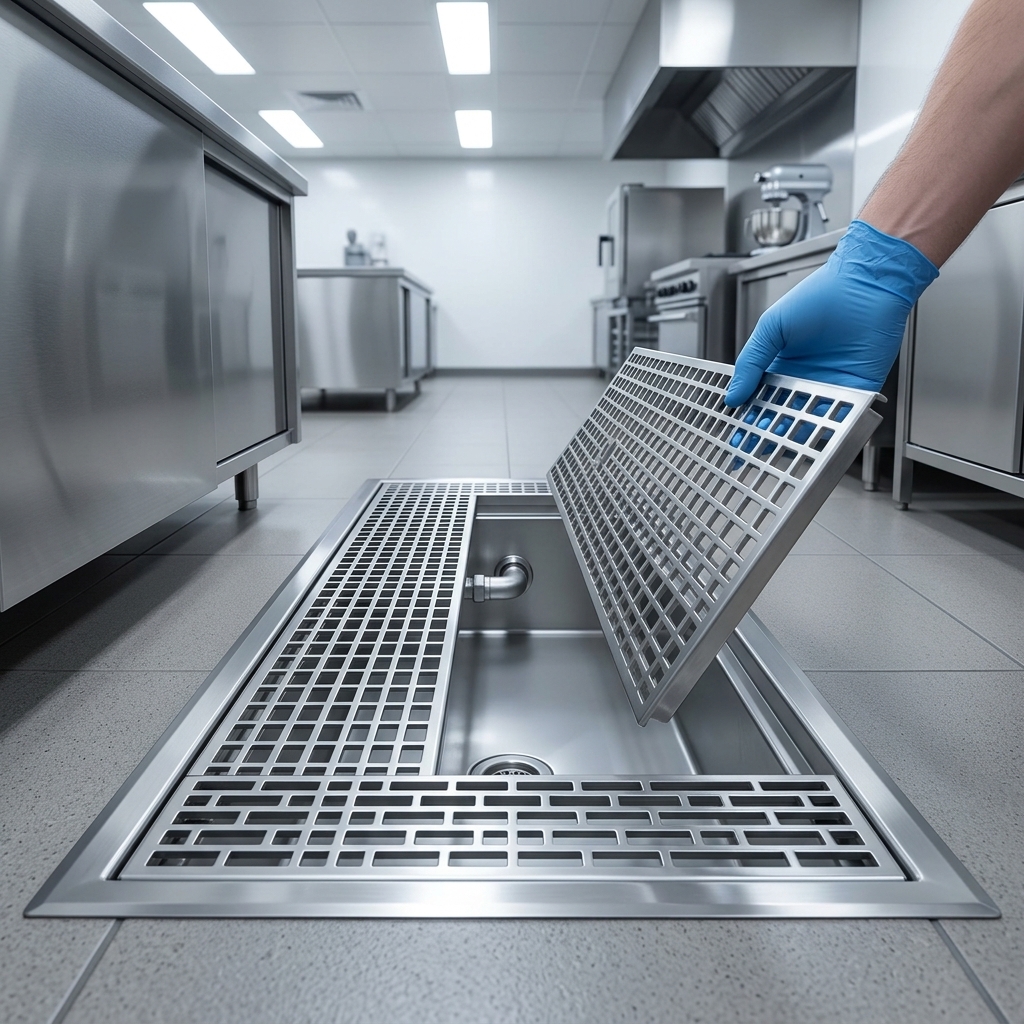

This image highlights the durable, easy-to-remove subway-style grating of the Cool Trough Water Tempering System, ensuring a secure surface and efficient debris capture.

Removable Perforated Basket

A removable perforated basket is included to catch solids and prevent clogs in the drain system.

Mechanical Water Tempering

Equipped with an integral mechanical temperature sensor that requires no electrical connection, providing reliable water tempering to meet local plumbing codes.

Integrated Plumbing Components

Comes with a shutoff valve and two pressure check valves for convenient installation and water flow control.

Recessed Installation Design

Specifically designed for installation into a recessed concrete slab, providing a flush, integrated floor drain solution.

Specifications

Type Cool Trough Water Tempering System
Style Floor Drain
Installation Type Drop-In
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Grate Type Subway-Style Grating
Water Inlet Size 1 Inch
Drain Connection Size 4 Inches
Water Connection Required
Drain Connection Required
Controls Mechanical Temperature Sensor
Shipping Width 60 Inches
Shipping Depth 18 Inches
Shipping Height 13 Inches
Shipping Weight null
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

60.0"W x 18.0"D x 13.0"H
Manufacturer Eagle Group
Height 13.0in
Width 60.0in
Depth 18.0in
Grate Construction stainless steel grates
Deep (pan depth) 4"
Grate Type subway-style grating
Width (long side) 49" - 60" (5 ft)
Depth (short side) 18"
Trough Construction 14 ga stainless steel trough
Pan Type non anti-splash
Specifications Cool Trough® Water Tempering Systems, grated floor drain, 60"W x 18"D x 13"H, stainless steel subway-style grating, removable perforated basket, built-in pitch toward 4" drain, integral mechanical temperature sensor (no electrical connection required), includes shutoff valve & (2) pressure check valves, 14/304 stainless steel construction

Warranty & Protection

1-year parts and labor limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The system is designed to temper the temperature of drain water, ensuring it meets local plumbing codes and preventing potential damage or hazards from excessively hot water entering the drainage system.
No, this Cool Trough® model features an integral mechanical temperature sensor that does not require any electrical connection for its operation.
This system is designed for drop-in installation into a recessed concrete slab, providing a flush and integrated floor drain solution.
The Cool Trough® is constructed from durable 14 gauge, 304 stainless steel, offering excellent corrosion resistance and longevity in commercial environments.
The system includes a shutoff valve and two pressure check valves. A separate backflow preventer (RPZ valve) is supplied by Eagle and typically installed by a plumbing contractor as a required component.
