Eagle Group WTFT-1572-SG Cool Trough Water Tempering Floor Drain System

72" Wide, 15" Deep, Subway-Style Grating

Ensure your facility meets plumbing codes by safely tempering hot drain water before it enters the plumbing system with this robust stainless steel cool trough.

  • Durable 14 gauge 304 stainless steel construction ensures longevity in commercial environments.
  • Integrated mechanical temperature sensor automatically tempers hot drain water without requiring an electrical connection.
  • Features a subway-style stainless steel grating and removable perforated basket for easy cleaning and debris collection.
  • Designed with a built-in pitch towards a 4-inch drain for efficient water flow.
  • Includes essential plumbing components: shutoff valve and two pressure check valves for reliable operation.
  • Ideal for applications requiring hot water disposal, helping to prevent drain system damage and meet local codes.

Heavy-Duty Stainless Steel Construction

Constructed from durable 14 gauge 304 stainless steel, providing exceptional corrosion resistance and a long service life in demanding commercial settings.

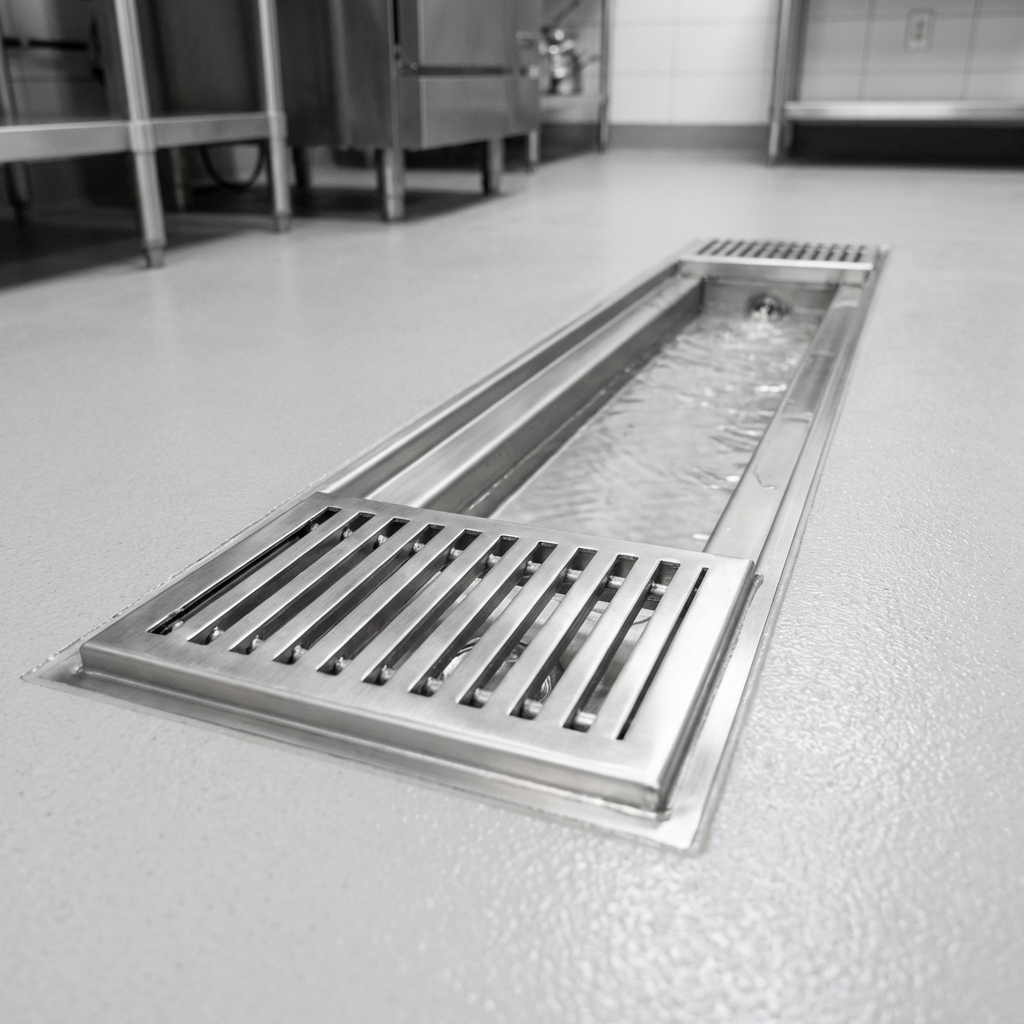

Experience the superior durability and corrosion resistance of this floor drain system's heavy-duty stainless steel construction.

Integral Mechanical Temperature Sensor

Equipped with a built-in mechanical temperature sensor that automatically tempers hot drain water, eliminating the need for an electrical connection and simplifying installation.

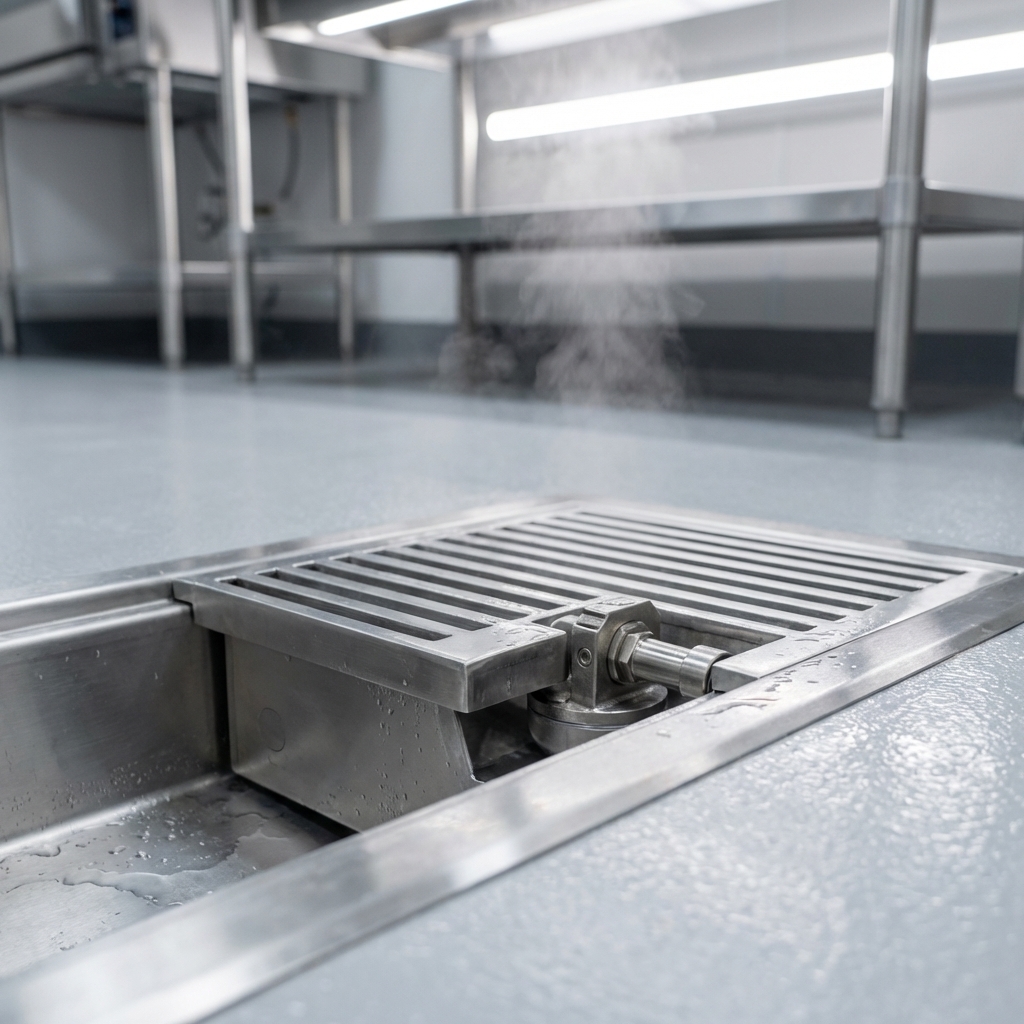

Observe the Cool Trough's integral mechanical temperature sensor, which automatically tempers hot drain water without the need for an electrical connection.

Subway-Style Grating

Features a robust stainless steel subway-style grating, designed for durability and a clean appearance, while allowing efficient water drainage.

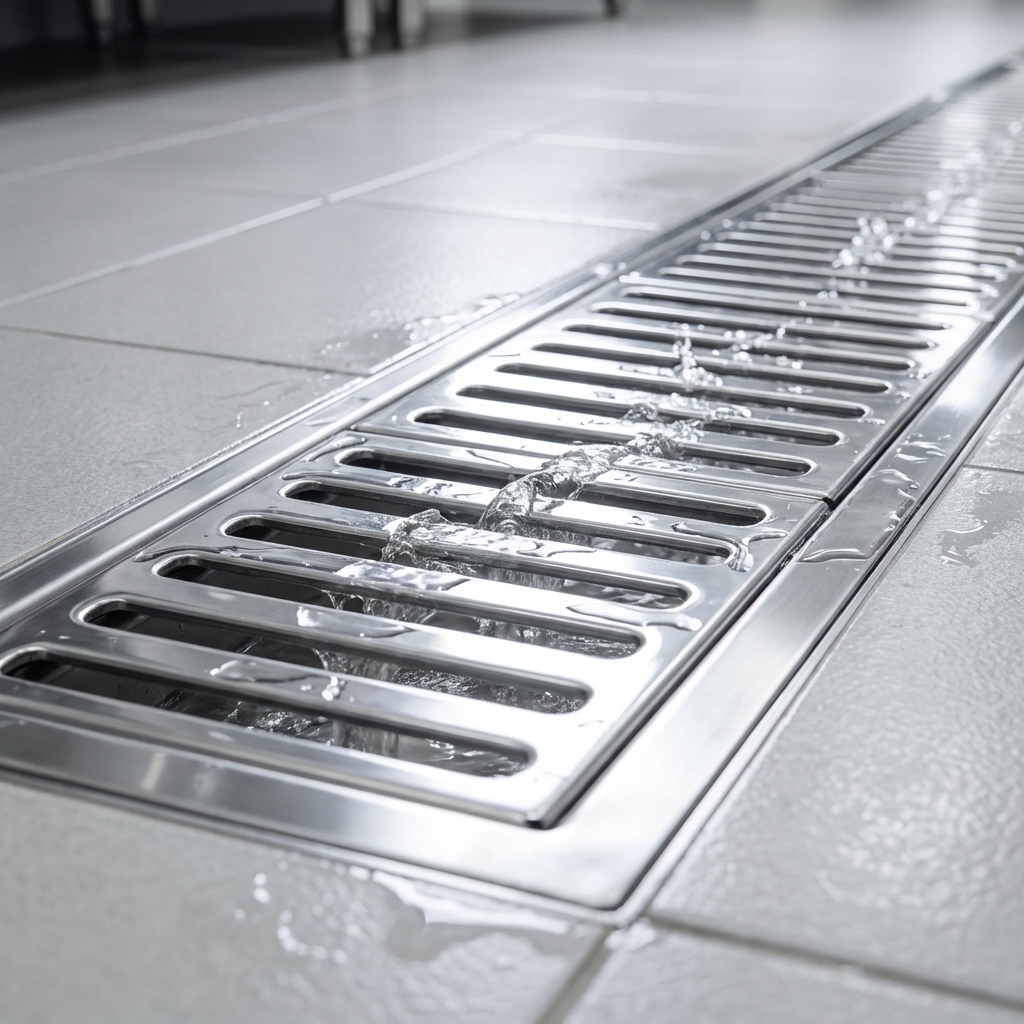

This image highlights the durable, subway-style stainless steel grating, designed for efficient water drainage and a clean, professional look in any commercial kitchen.

Removable Perforated Basket

Includes a removable perforated basket under the grate to easily capture solid debris, preventing clogs and simplifying cleaning and maintenance.

Efficient Drainage Design

The trough floor has a built-in pitch that directs water towards the 4-inch drain, ensuring complete and efficient liquid removal.

Pre-Installed Valves

Comes equipped with a shutoff valve and two pressure check valves, providing necessary controls and safety features for the water tempering process.

Code Compliance Ready

Designed to help facilities comply with local plumbing codes regarding hot water discharge into public drains.

Specifications

Type Water Tempering System
Style Floor Drain Trough
Installation Type Drop-In
Material 14 Gauge 304 Stainless Steel
Grate Style Subway-Style
Grate Material Stainless Steel
Controls Mechanical Temperature Sensor
Water Connection Required
Water Inlet Size 1 Inch
Drain Connection Required
Drain Connection Size 4 Inches
Pan Capacity Removable Perforated Basket
Shipping Width 72 Inches
Shipping Depth 15 Inches
Shipping Height 13 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1

Overall Dimensions:

72.0"W x 15.0"D x 13.0"H
Manufacturer Eagle Group
Height 13.0in
Width 72.0in
Depth 15.0in
Pan Type non anti-splash
Deep (pan depth) 4"
Grate Type subway-style grating
Depth (short side) 15"
Grate Construction stainless steel grates
Trough Construction 14 ga stainless steel trough
Width (long side) 61" - 72" (6 ft)
Specifications Cool Trough® Water Tempering Systems, grated floor drain, 72"W x 15"D x 13"H, stainless steel subway-style grating, removable perforated basket, built-in pitch toward 4" drain, integral mechanical temperature sensor (no electrical connection required), includes shutoff valve & (2) pressure check valves, 14/304 stainless steel construction

Warranty & Protection

1-year limited warranty for parts and labor from the date of original installation (not to exceed 18 months from shipment).

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No, the Eagle Group WTFT-1572-SG Cool Trough features an integral mechanical temperature sensor, which operates without the need for an electrical connection.
This system includes durable stainless steel subway-style grating, designed for efficient drainage and easy cleaning.
For the 15" wide x 72" long trough, the rough-in hole should be approximately 12.25" wide, 72" long, and 4.25" deep. Specific plumbing compartment rough-in dimensions are also provided in the instruction manual.
The Cool Trough is constructed from heavy-duty 14 gauge 304 stainless steel, offering excellent durability and resistance to corrosion.
Yes, the system includes a shutoff valve and two pressure check valves. An RPZ (Reduced Pressure Zone) valve is also supplied by Eagle but must be installed by a plumbing contractor, 12 inches minimum above the trough's flood level.
