Key specifications

Amps
20.8 Amps
Phase
1-Phase
Dimensions
79.0"W × 30.0"D × 34.0"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: WT5-240

Eagle Group WT5-240 5-Pan Electric Water Bath Steam Table

$4,522.67
/each
Estimated to ship in 3–6 business days
Number of Compartments
Electrical
Undershelf mounting
Overshelves
Cutting board material
Factory Add-Ons
Included: Eagle Group warranty Limited warranty for 12 months from factory shipment or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $418/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Base Material Galvanized Steel
Water Pan Material 304 Stainless Steel
Cutting Board Material Polyethylene
Pan Size 12 x 20 Inches
Pan Capacity 5 Pans
Well Type Open Well
Heating Type Electric
Water Fill Automatic
Low Water Cutoff Automatic
Cutting Board Width 8 Inches
Voltage 240 Volts
Watts 5 kW
Amps 20.8 Amps
Hertz 60 Hz
Phase 1-Phase
Wiring Field Wiring
Controls Thermostatic Temperature Control

Description

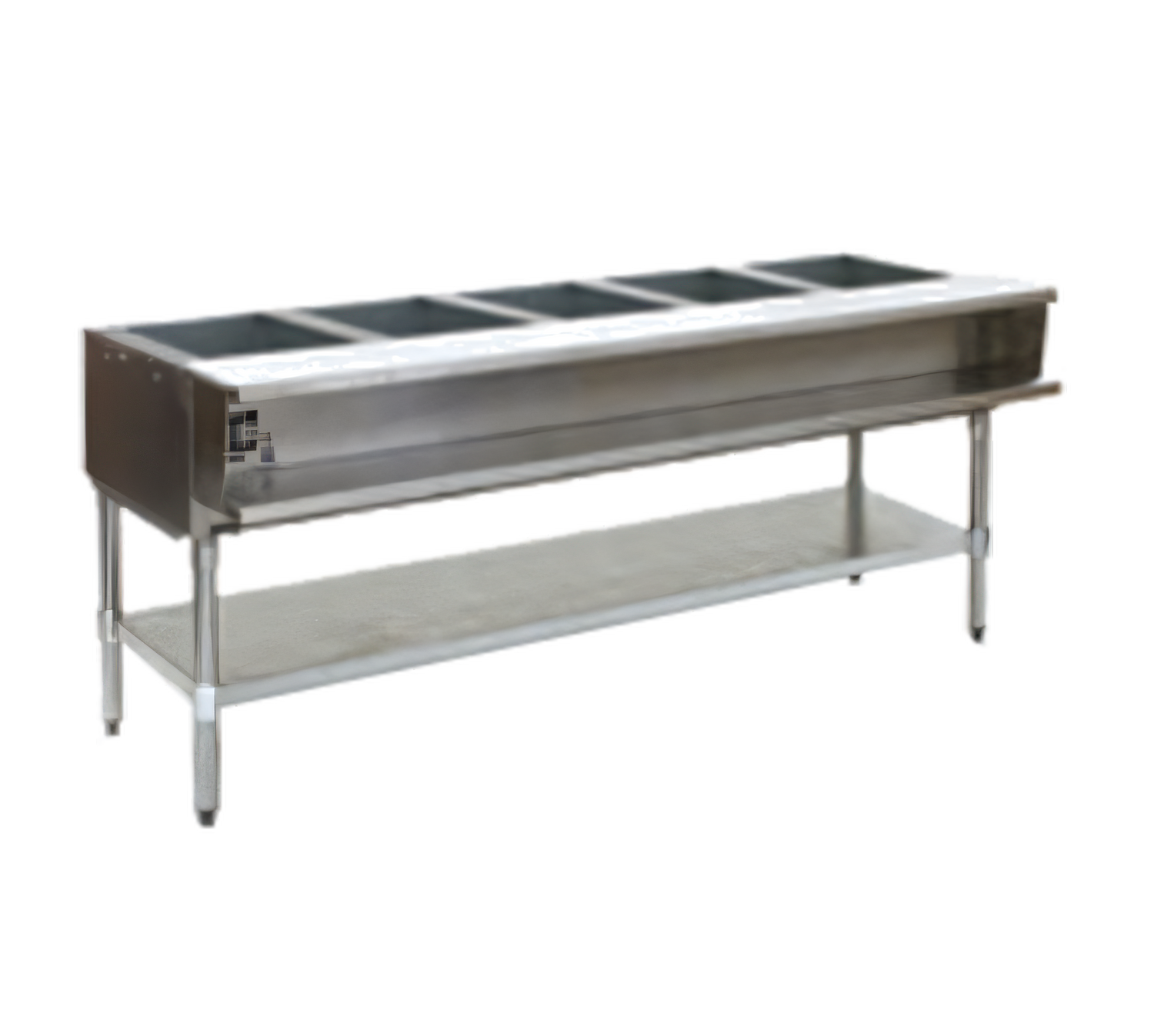

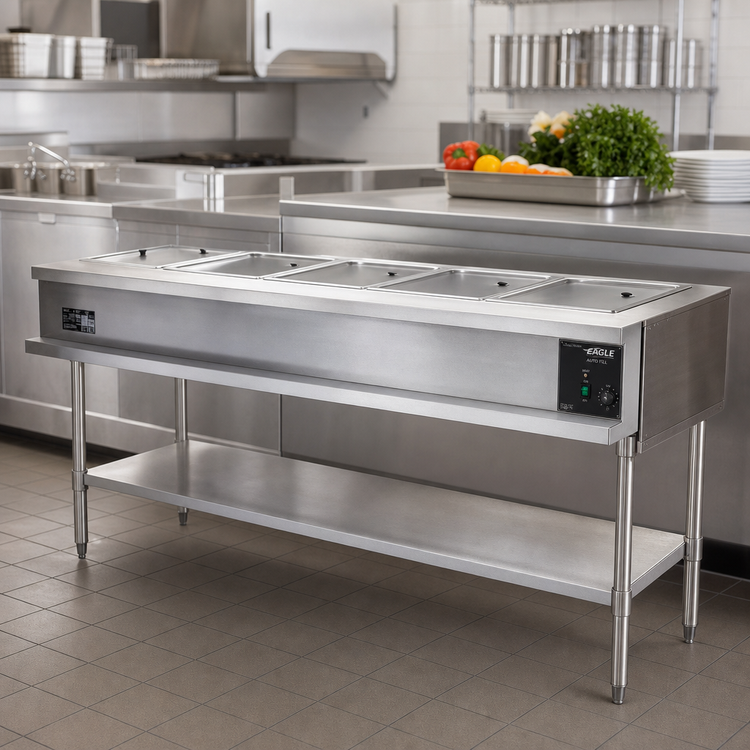

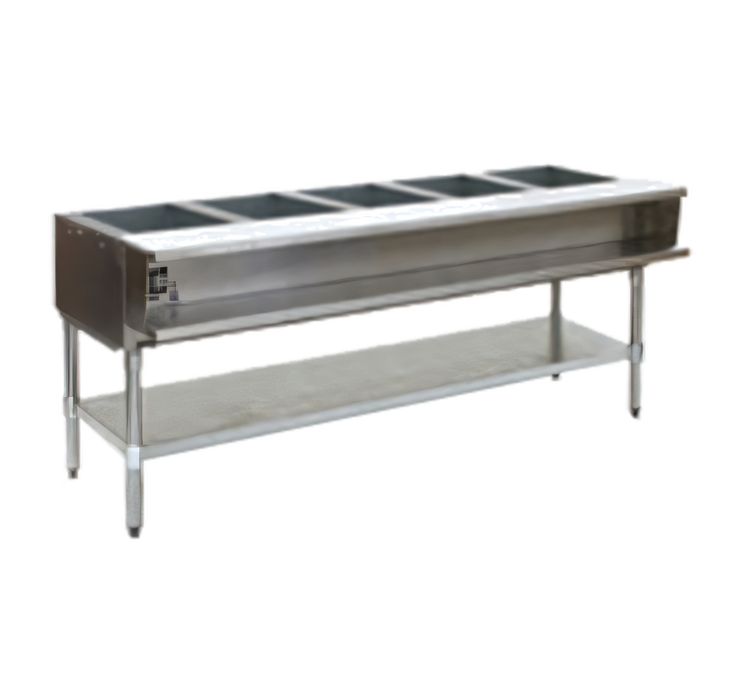

The Eagle Group WT5-240 is a 79-inch electric water bath hot food table with five 12 x 20 inch openings, AutoFill, and an open cabinet base.

It has a stainless steel water pan, top, and enclosure, plus thermostatic temperature control and an automatic low-water cutoff with manual reset. An 8-inch polyethylene cutting board, stainless steel plate shelf, galvanized legs and undershelf, and adjustable feet are provided.

Overall Dimensions:

79.0"W x 30.0"D x 34.0"H

Product Weight:

183.0 lb

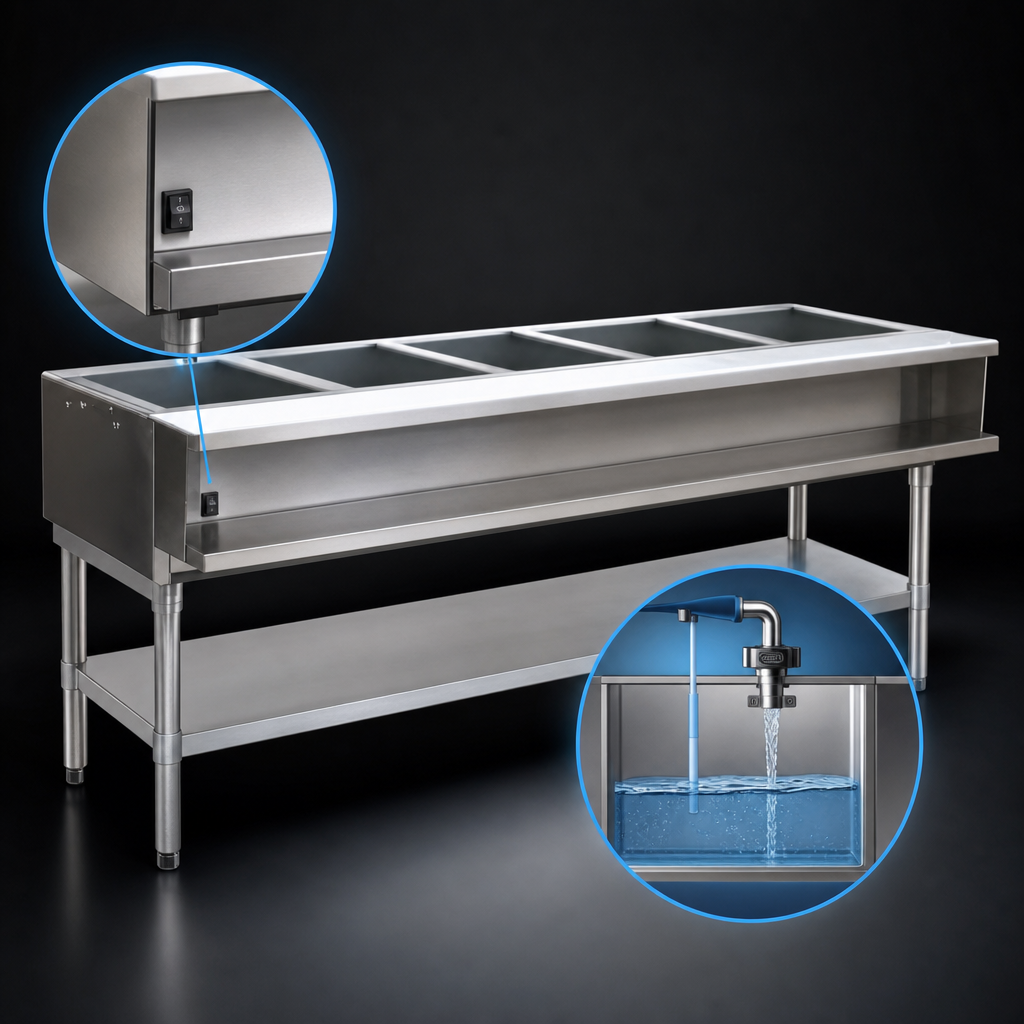

AutoFill Water System

Fills and maintains the proper water level in all wells when connected to a continuous flowing hot water source.

Five Pan Openings

Provides five openings sized for 12 x 20 inch steam table pans.

Water Bath Heating

Uses an immersion heater with thermostatic temperature control.

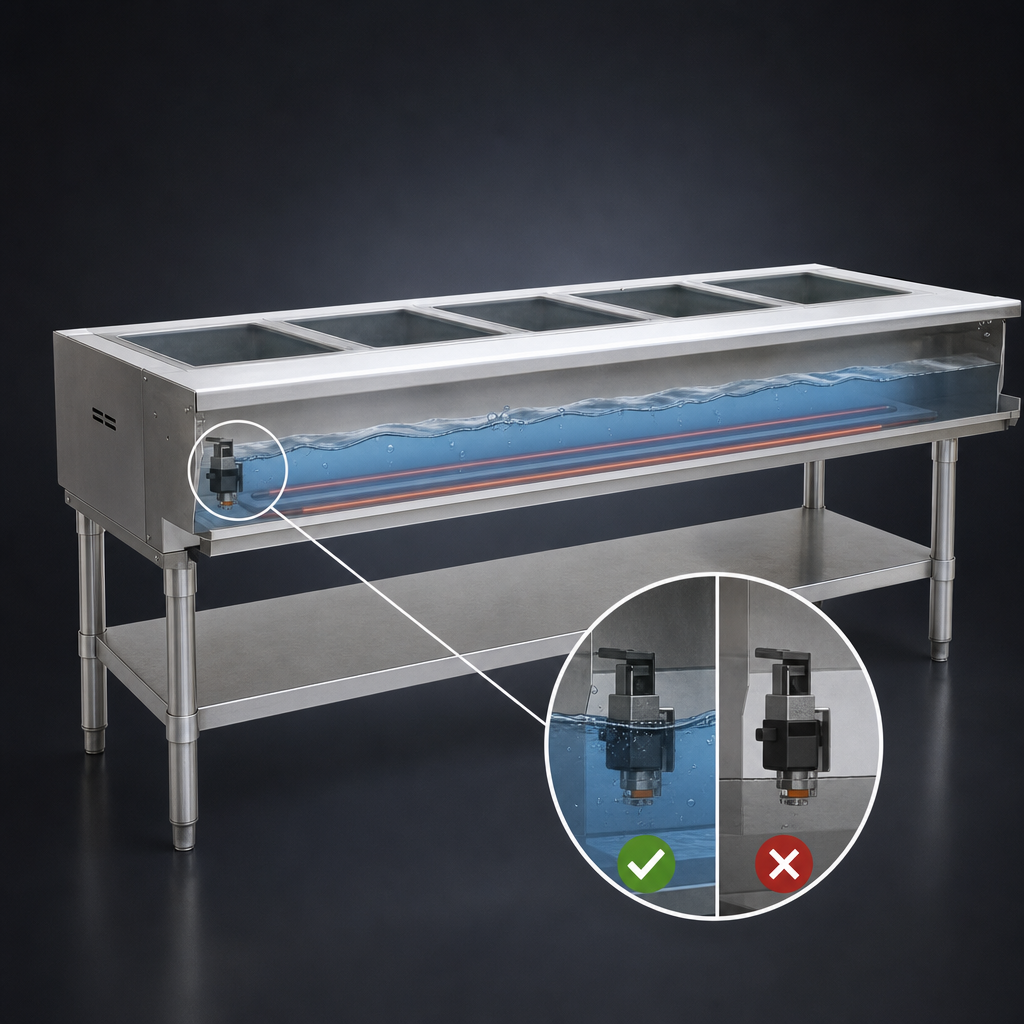

Low-Water Cutoff

Automatic low-water cutoff includes a built-in manual reset button.

Stainless Steel Water Pan

The water pan is constructed from all-welded 304 stainless steel.

Open Cabinet Base

Galvanized legs and undershelf are paired with adjustable feet.

Cutting Board and Plate Shelf

An 8-inch polyethylene cutting board and stainless steel plate shelf are provided.

Field Wiring

Wiring terminates in a junction box and requires field wiring.

Frequently Asked Questions

It has five 12 x 20 inch openings for steam table pans.
The unit requires 240 Volts, 60 Hz, 1-Phase service and is rated at 5 kW and 20.8 Amps. Field wiring is required.
Yes. The AutoFill water system fills and maintains the proper water level in all wells when connected to a continuous flowing hot water source.
The product measures 79 inches wide by 30 inches deep by 34 inches high and weighs 183 pounds.
