Key specifications
- Amps
- 24.1 Amps
- Phase
- 1-Phase
- Dimensions
- 79.0"W × 30.0"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model
Eagle Group WT5-208 5-Pan Electric Water Bath Hot Food Table
- 208 V · 1-phase · 24.1 A
- 240 V · 1-phase · 20.8 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

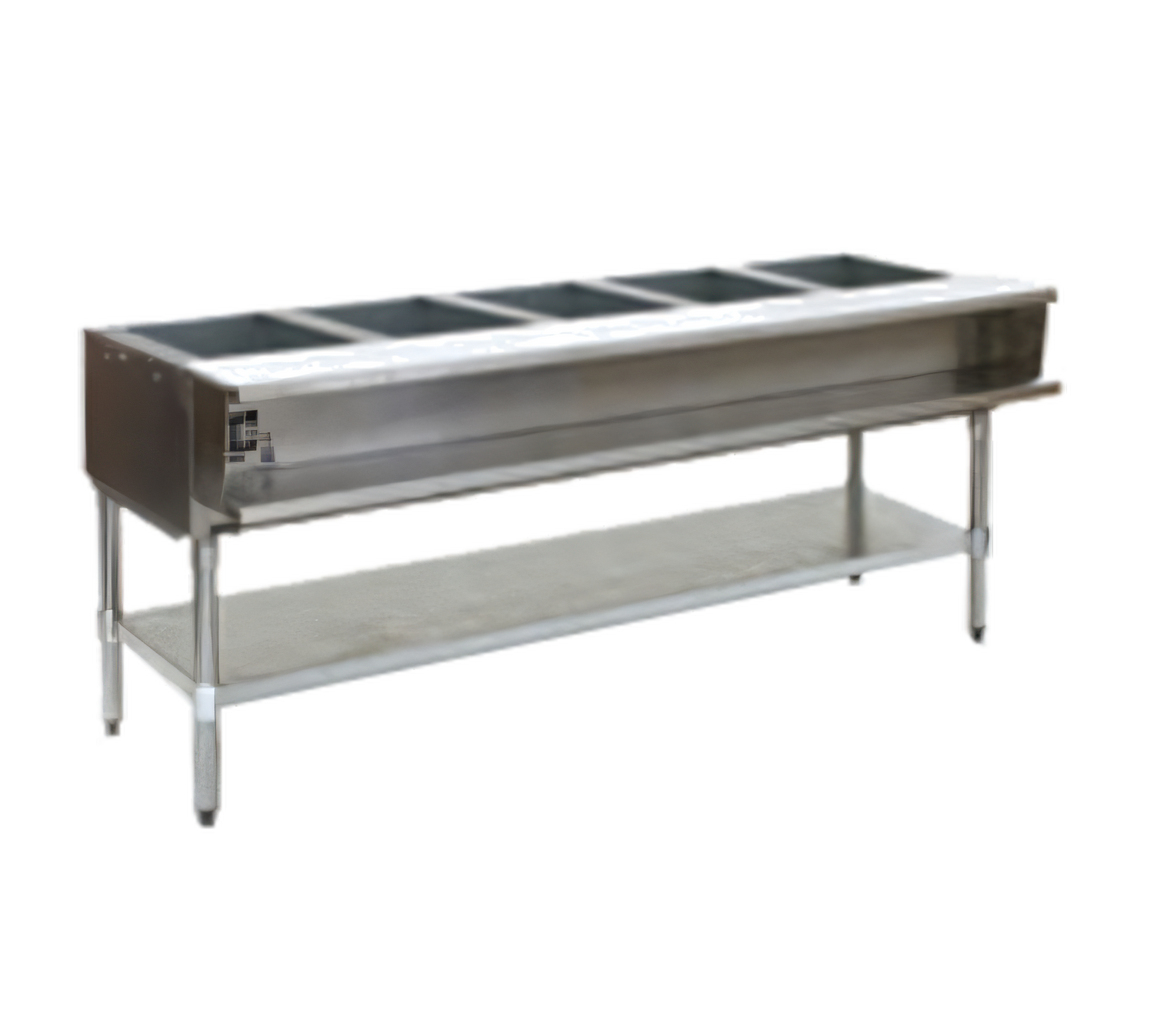

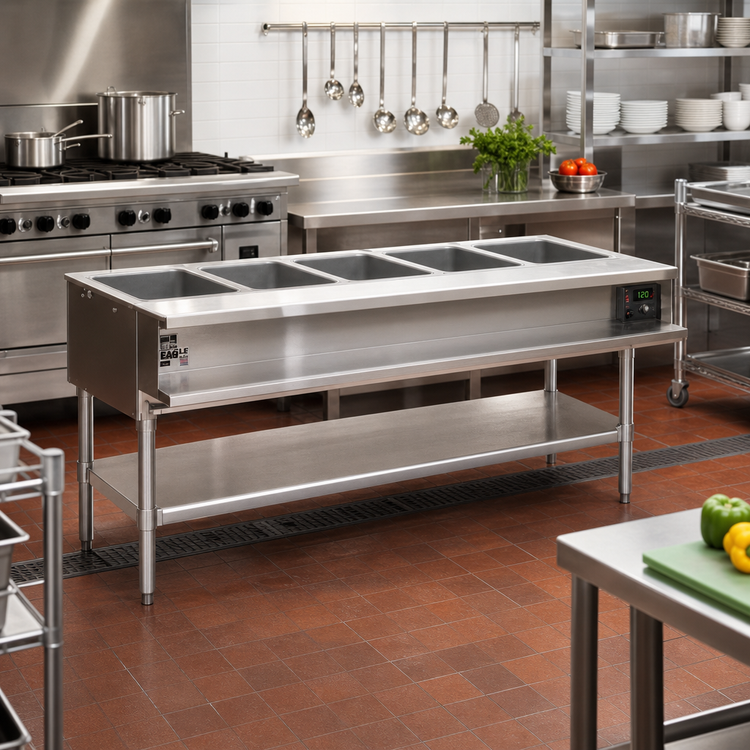

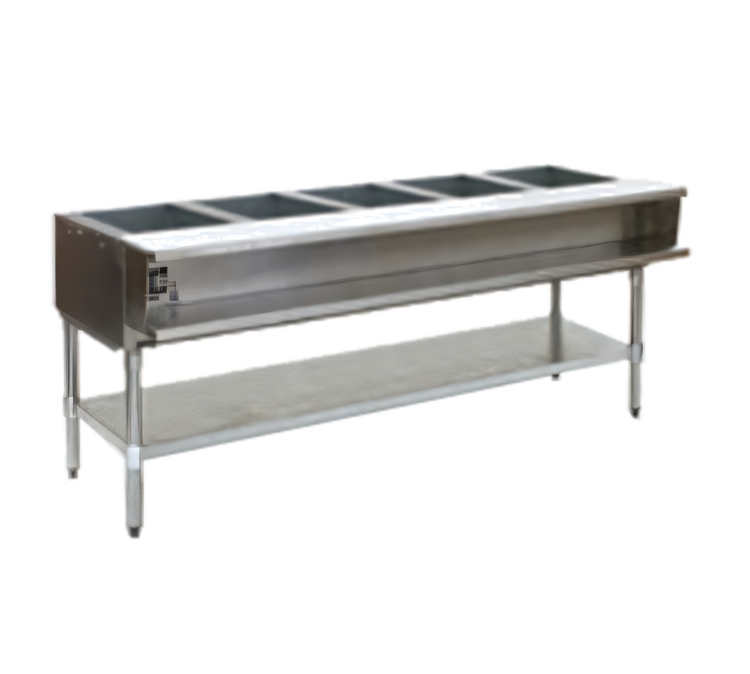

The Eagle Group WT5-208 is an electric water bath hot food table with an open base and five 12 in x 20 in openings.
- Stainless steel top, enclosure, and water pan.
- Automatic low-water cutoff with built-in manual reset.
- Includes an 8 in polyethylene cutting board and stainless steel plate shelf.
- Galvanized legs and undershelf with adjustable feet.
- Requires field wiring to the adjacent junction box.
The unit measures 79 in wide by 30 in deep by 34 in high and operates at 208 volts, 5 kW, 24.1 amps, 60 Hz, and single phase.
Overall Dimensions:
79.0"W x 30.0"D x 34.0"HProduct Weight:
183.0 lbFive-Pan Open Well
Five openings accommodate 12 in x 20 in steam table pans.
Water Bath Heating
A copper-sheathed immersion heater is recessed in the stainless steel water pan.
Thermostatic Control
Thermostat temperature control regulates the water bath.

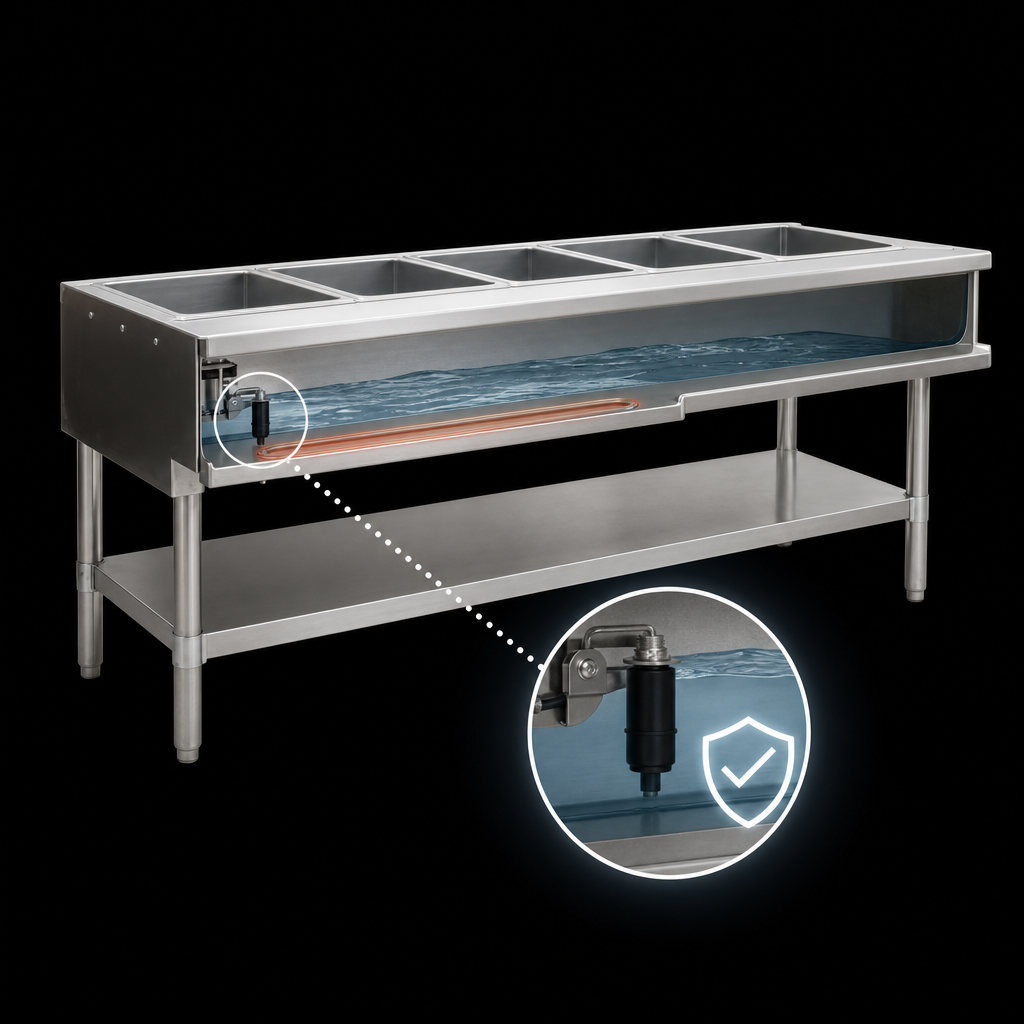

Low-Water Protection
Automatic low-water cutoff includes a built-in manual reset button.
Stainless Steel Water Pan
The water pan is constructed from 16-gauge 304 series stainless steel with an all-welded design.
Work Surface and Shelf
Includes an 8 in polyethylene cutting board and stainless steel plate shelf.
Open Base
Galvanized legs and undershelf are fitted with adjustable feet.
Field-Wired Electrical Connection
Wiring terminates in a junction box and requires field wiring.
