Eagle Group

Spec-Bar 18-Inch x 24-Inch Single-Compartment Wet Waste Sink with Deck-Mount Faucet

SKU: WS18-24
$1,438.20
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

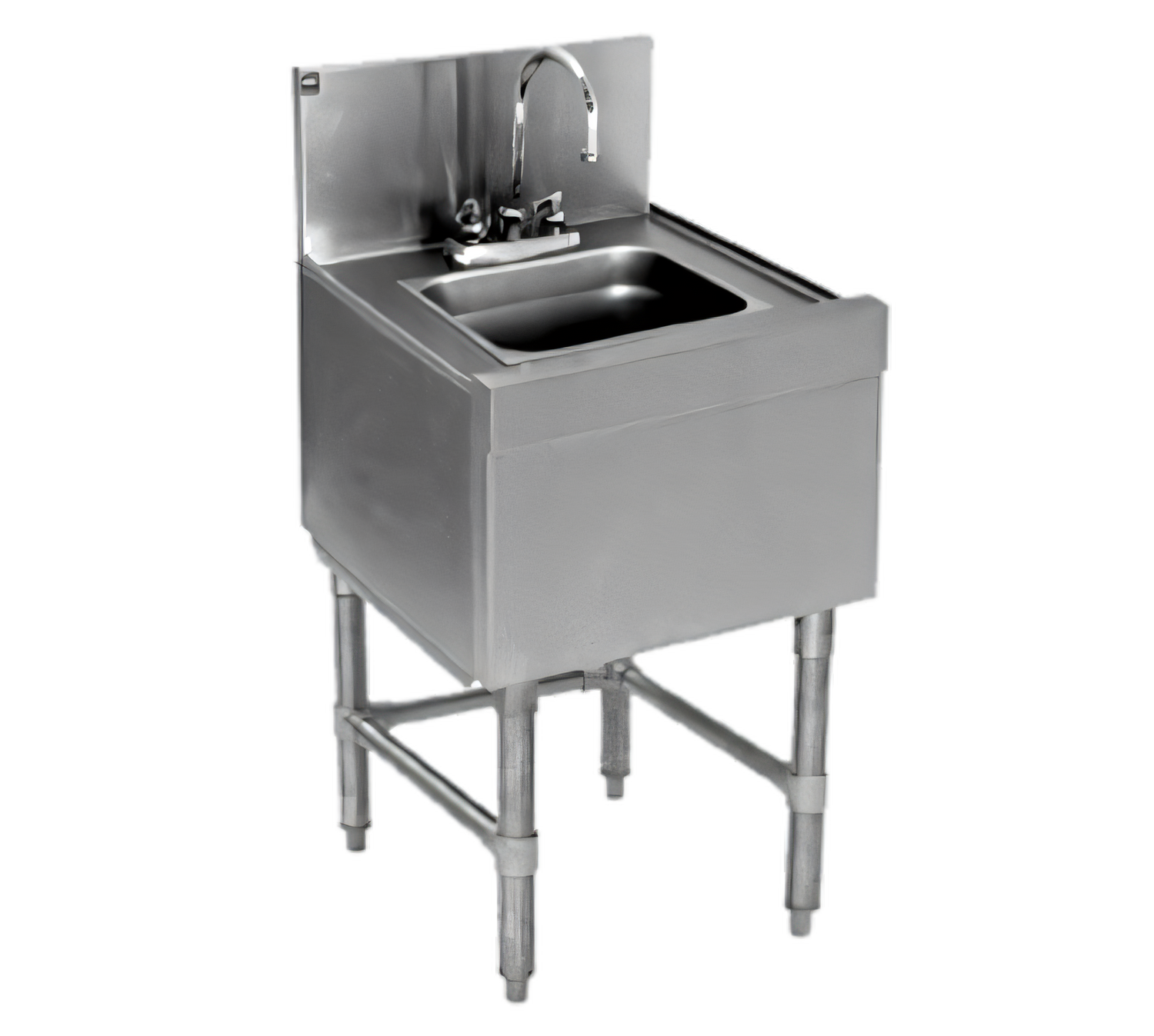

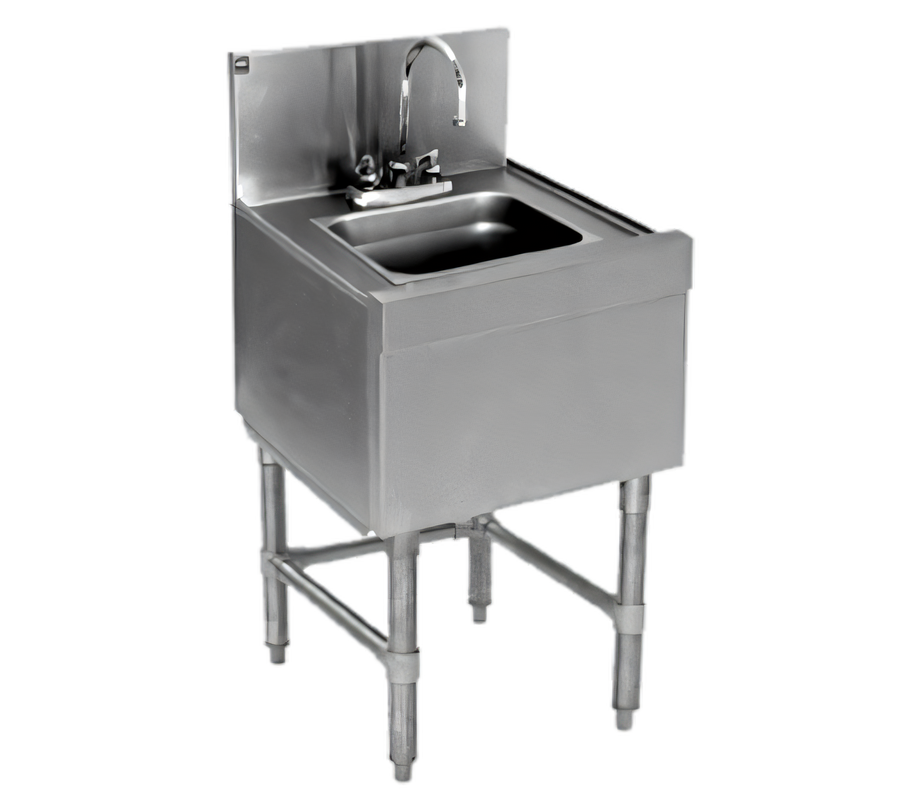

Spec-Bar 18-Inch x 24-Inch Single-Compartment Wet Waste Sink with Deck-Mount Faucet

304 Stainless Steel, 6-Inch Deep Bowl, 7-5/8-Inch Backsplash

Keep bar cleanup moving with a compact stainless steel wet waste sink that combines a deep compartment, integrated faucet, and durable underbar construction.

  • Compact 18" W x 24" D footprint fits busy underbar beverage and bar service areas.
  • Type 304 stainless steel construction helps resist corrosion in wet environments.
  • One 9-1/4" x 11-1/2" x 6" deep compartment is sized for wet waste handling.
  • Includes a T&S deck-mounted faucet with gooseneck spout and 4" centers.
  • 1-1/2" I.P.S. threaded drain and lift-out perforated sink strainer simplify cleanup.
  • Adjustable stainless steel bullet feet and 7-5/8" backsplash add stability and wall protection.

Overall Dimensions:

18.0"W x 24.0"D x 36.63"H

Product Weight:

42.0 lb

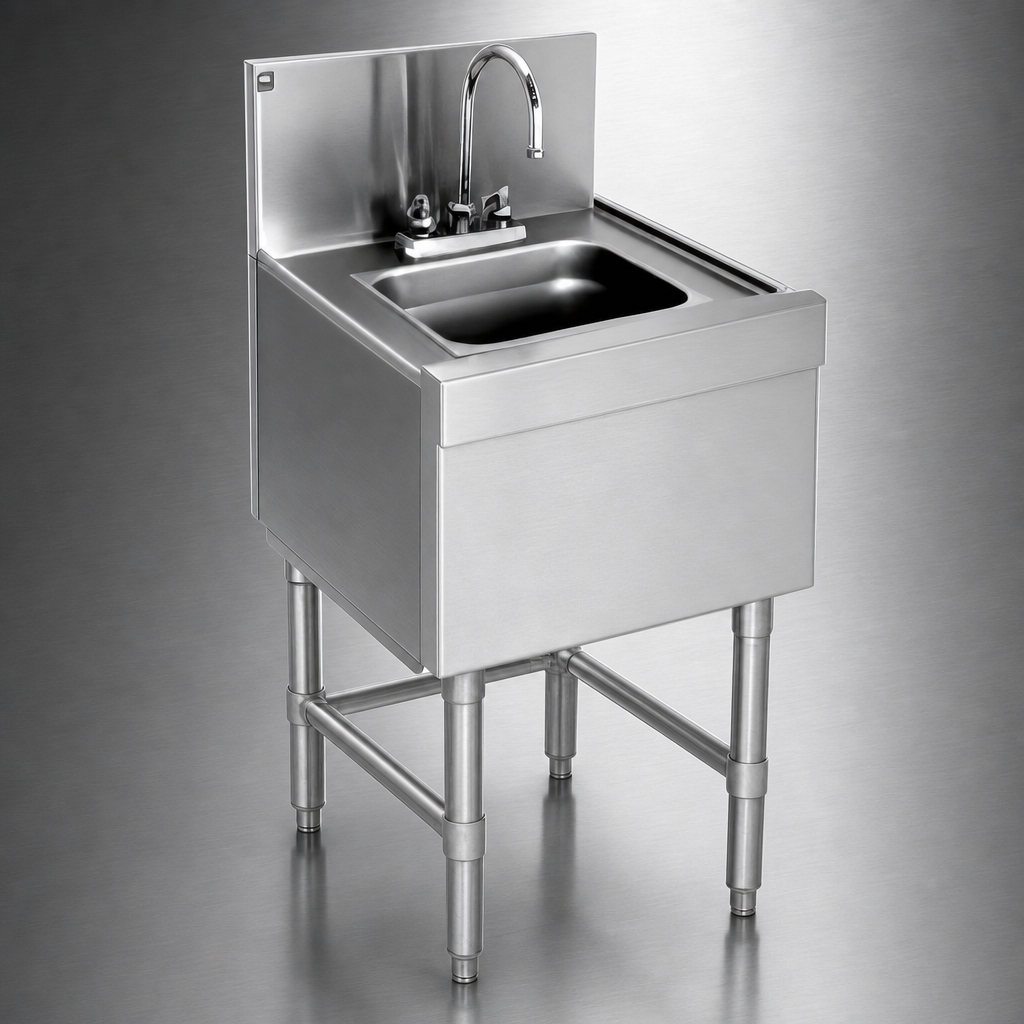

304 Stainless Steel Construction

Body, legs, leg channels, and cross rails are made from type 304 stainless steel for strength and corrosion resistance.

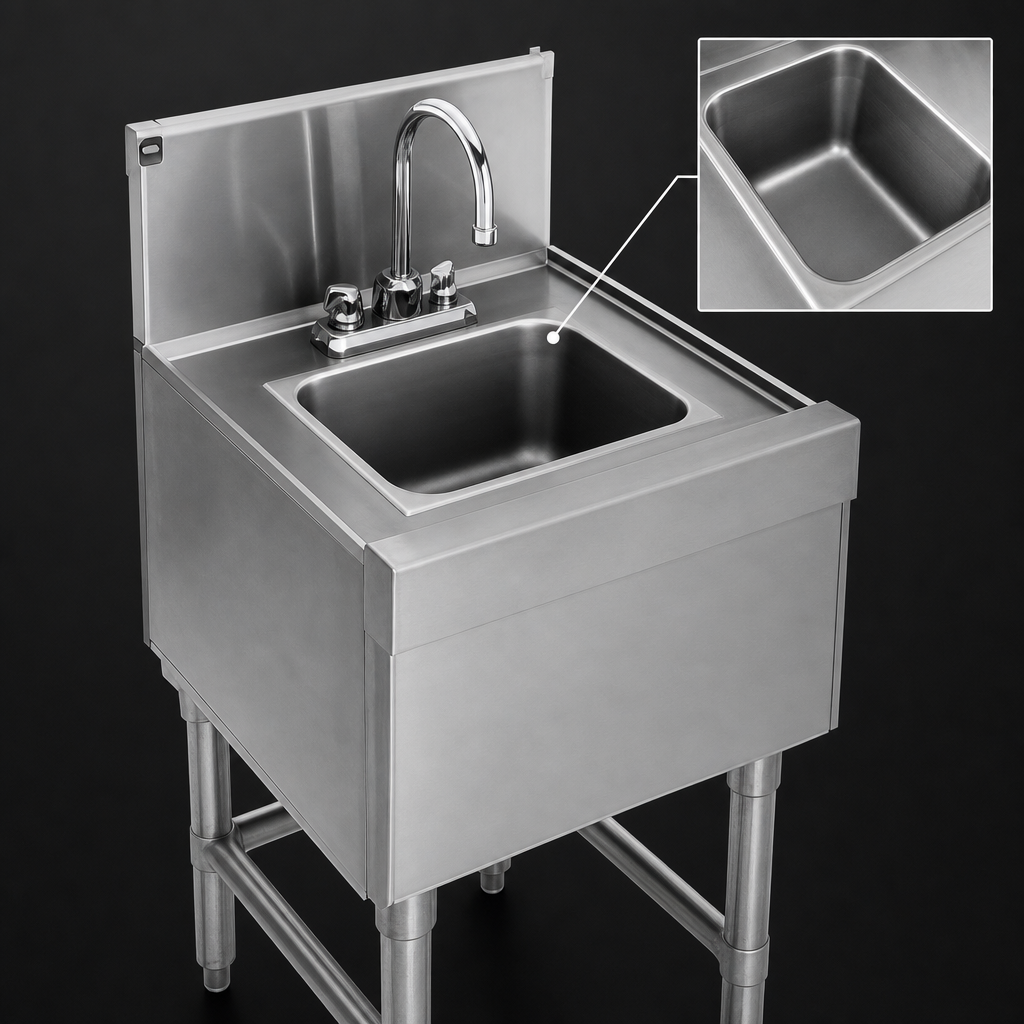

Deep Wet Waste Compartment

The single sink compartment measures 9-1/4" wide x 11-1/2" front-to-back x 6" deep for wet waste use.

T&S Deck-Mounted Faucet

Includes a T&S deck-mounted faucet on 4" centers with a gooseneck spout; hot and cold water connections are required.

Integrated Drain Assembly

A 1-1/2" I.P.S. threaded drain with nut and washer is included, along with a lift-out stainless steel perforated sink strainer.

Stable Leg Base

16-gauge stainless steel legs and crossbracing on the sides and rear help support the sink structure.

Adjustable Bullet Feet

Stainless steel adjustable bullet feet make it easier to level the unit during installation.

High Backsplash

A 7-5/8" backsplash helps protect the wall behind the sink area.

Type Wet Waste Sink
Style Underbar
Installation Type Floor Model
Compartments 1
Material 304 Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch NPT
Drain Connection Size 1-1/2 Inch IPS
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 42 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Spec-bar® modular bar die PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It includes a T&S deck-mounted faucet on 4" centers with a gooseneck spout.
The compartment measures 9-1/4" wide x 11-1/2" front-to-back x 6" deep.
It has a 1-1/2" I.P.S. threaded drain with nut and washer.
Yes. Hot and cold water connections are required, and the faucet has a 1/2" NPT inlet.
The product is covered by Eagle's limited warranty for 1 year from original installation, not to exceed 18 months from shipment. Accessory items such as faucets and drains are covered for 90 days.
