Eagle Group Spec-Bar 1-Compartment Freestanding Wet Waste Sink with Deck-Mount Gooseneck Faucet, 12 x 19 Inch

SKU: WS12-19
$1,294.56
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

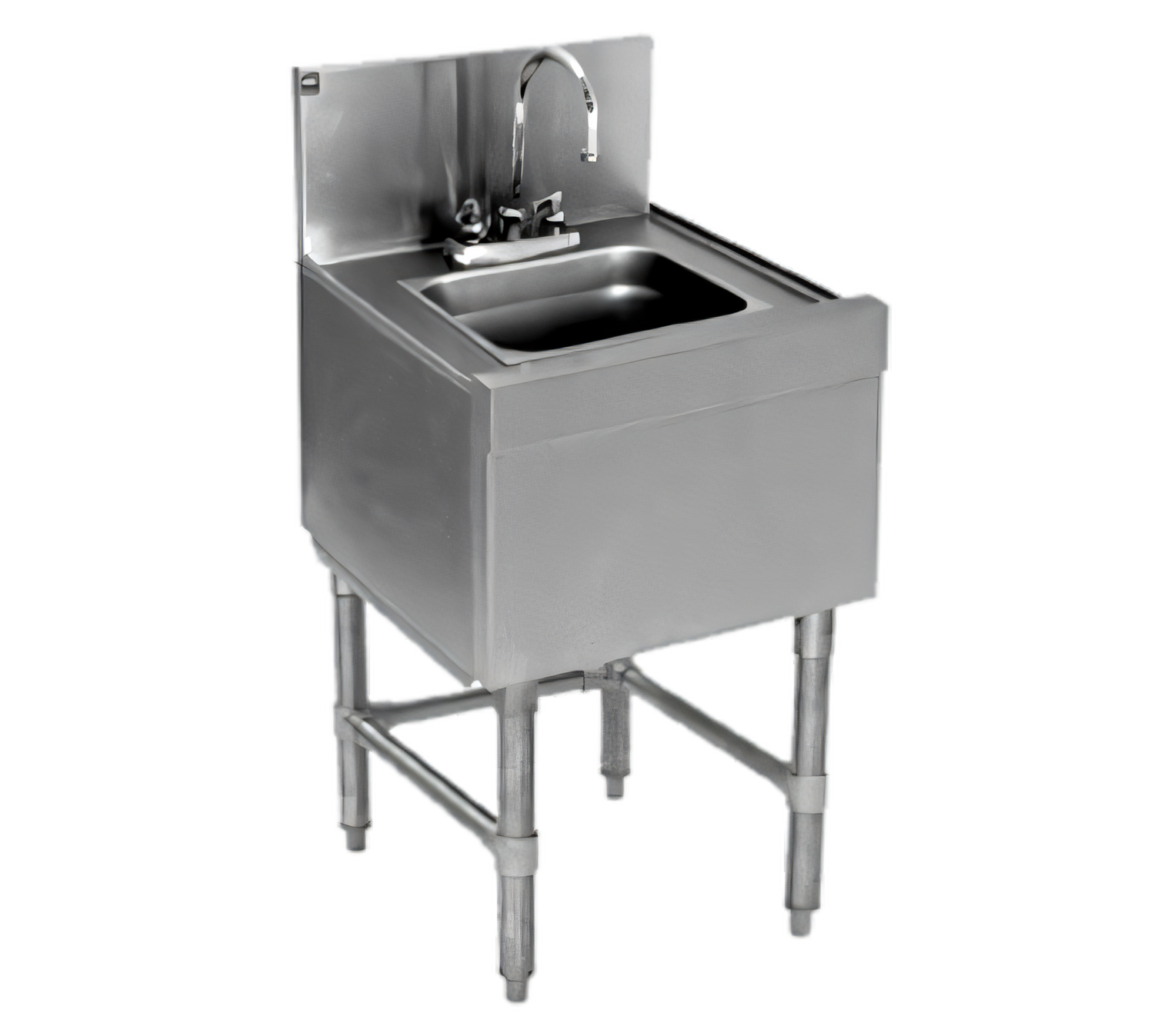

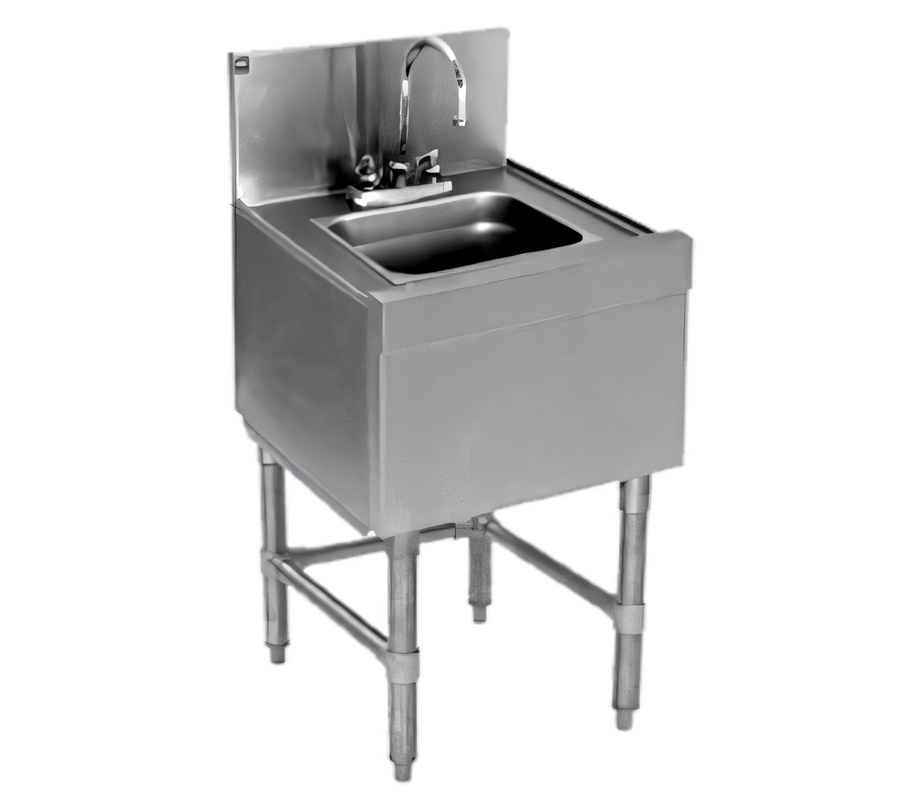

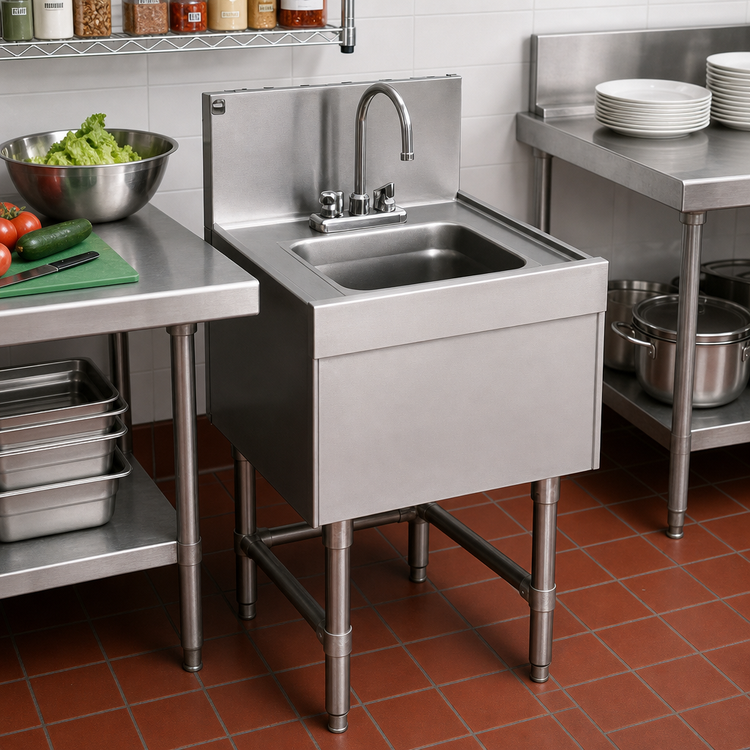

Eagle Group Spec-Bar 1-Compartment Freestanding Wet Waste Sink with Deck-Mount Gooseneck Faucet, 12 x 19 Inch

304 Stainless Steel, 6-Inch Deep Bowl, 7-5/8-Inch Backsplash

Built for compact underbar cleanup, this stainless steel wet waste sink includes a deck-mounted gooseneck faucet, perforated strainer, and adjustable bullet feet.

  • Compact 12" x 19" footprint works well in tight underbar spaces.
  • 1 compartment with a 9-1/4" x 11-1/2" x 6" deep bowl for wet waste handling.
  • T&S deck-mounted faucet includes hot and cold water service on 4" centers.
  • 1-1/2" I.P.S. threaded drain includes nut and washer for installation.
  • Lift-out perforated stainless steel sink strainer helps capture debris.
  • 16-gauge stainless steel legs and crossbracing provide sturdy support.
  • 7-5/8" backsplash helps protect walls from splashes.

Overall Dimensions:

12.0"W x 19.0"D x 36.63"H

Product Weight:

56.0 lb

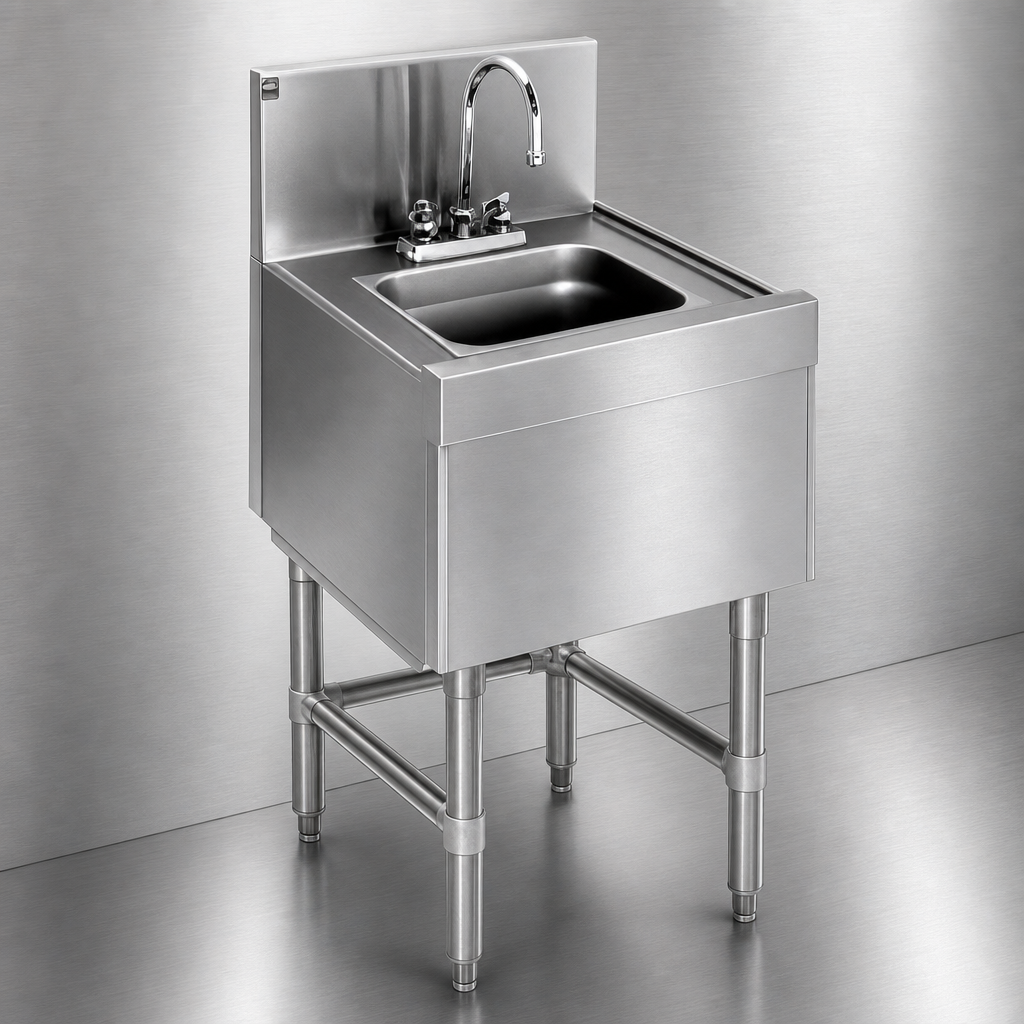

Type 304 Stainless Steel Construction

Body and legs are built from type 304 stainless steel for durability and corrosion resistance.

20-Gauge Stainless Steel Sink Assembly

Back, backsplash, sides, bottom, front panel, and bowl are made from 20-gauge stainless steel.

Compact Wet Waste Bowl

The sink compartment measures 9-1/4" wide x 11-1/2" front-to-back x 6" deep.

Deck-Mount T&S Faucet

Includes a hot and cold gooseneck faucet mounted on 4" centers.

Threaded Drain Assembly

Features a 1-1/2" I.P.S. threaded drain with nut and washer.

Lift-Out Sink Strainer

A stainless steel perforated sink strainer lifts out for quick cleaning.

Stainless Steel Support Frame

Leg channels, legs, and crossbracing are constructed of 16-gauge stainless steel.

Adjustable Bullet Feet

Stainless steel bullet feet allow leveling on uneven floors.

High Backsplash

The 7-5/8" backsplash helps contain splashes behind the sink.

Type Wet Waste Sink
Installation Type Freestanding
Compartments 1
Material 304 Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch NPT
Drain Connection Size 1-1/2 Inch IPS Threaded
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 56 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from the date of original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Spec-bar® modular bar die PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The bowl measures 9-1/4 inches wide by 11-1/2 inches front-to-back by 6 inches deep.
Yes. It includes a T&S deck-mounted gooseneck faucet on 4-inch centers with hot and cold water connections required.
It includes a 1-1/2-inch I.P.S. threaded drain with nut and washer, plus a lift-out stainless steel perforated sink strainer.
The body and legs are type 304 stainless steel, while the back, backsplash, sides, bottom, front panel, and bowl are 20-gauge stainless steel. The leg channels, legs, and crossbracing are 16-gauge stainless steel.
Yes. It comes with stainless steel adjustable bullet feet.
