Eagle Group

2200 Series Recessed Workboard Underbar Glass Rack Storage Unit, 24" W x 24" D

SKU: WBGR24-22
$1,419.12
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Glass Storage Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

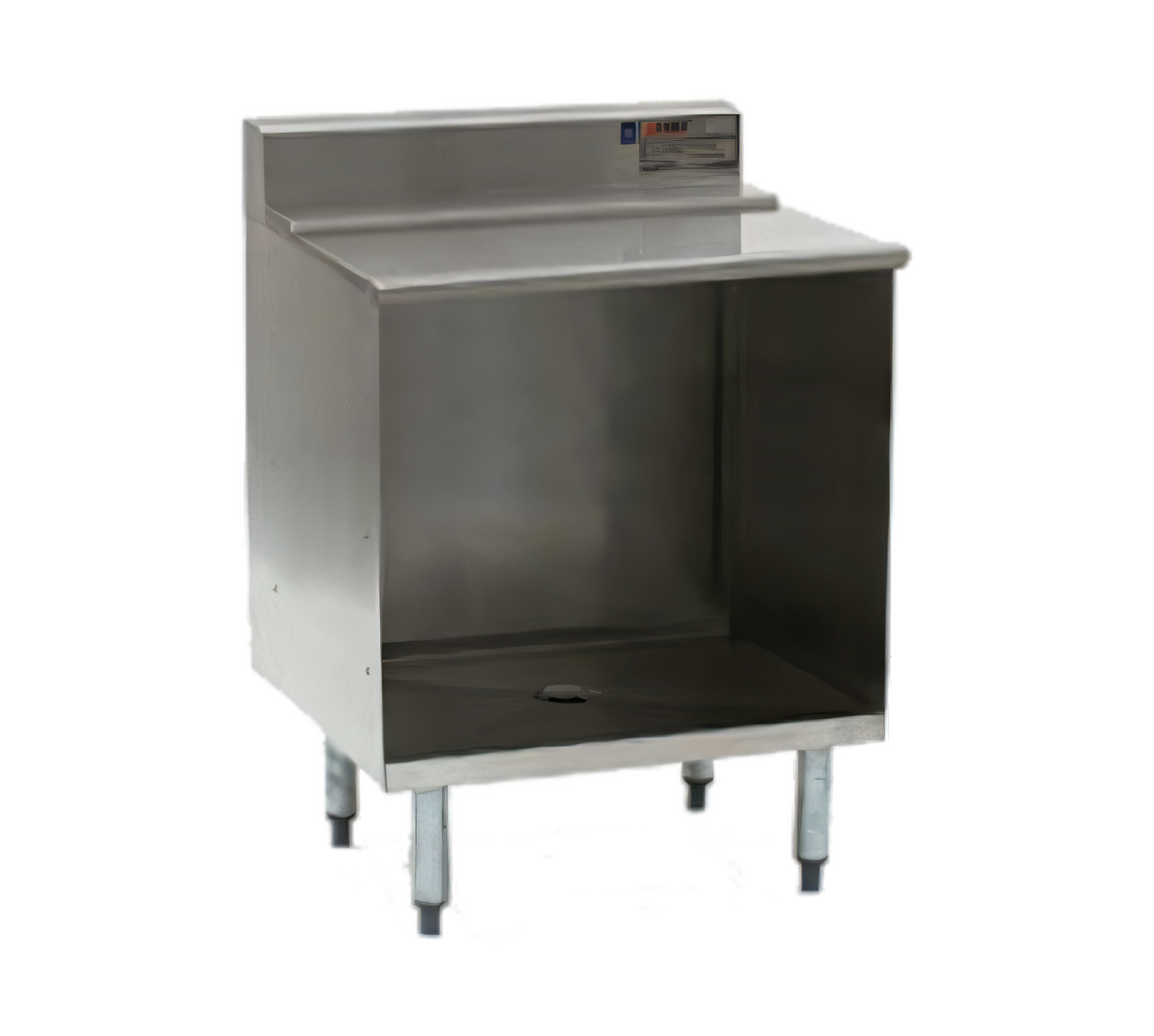

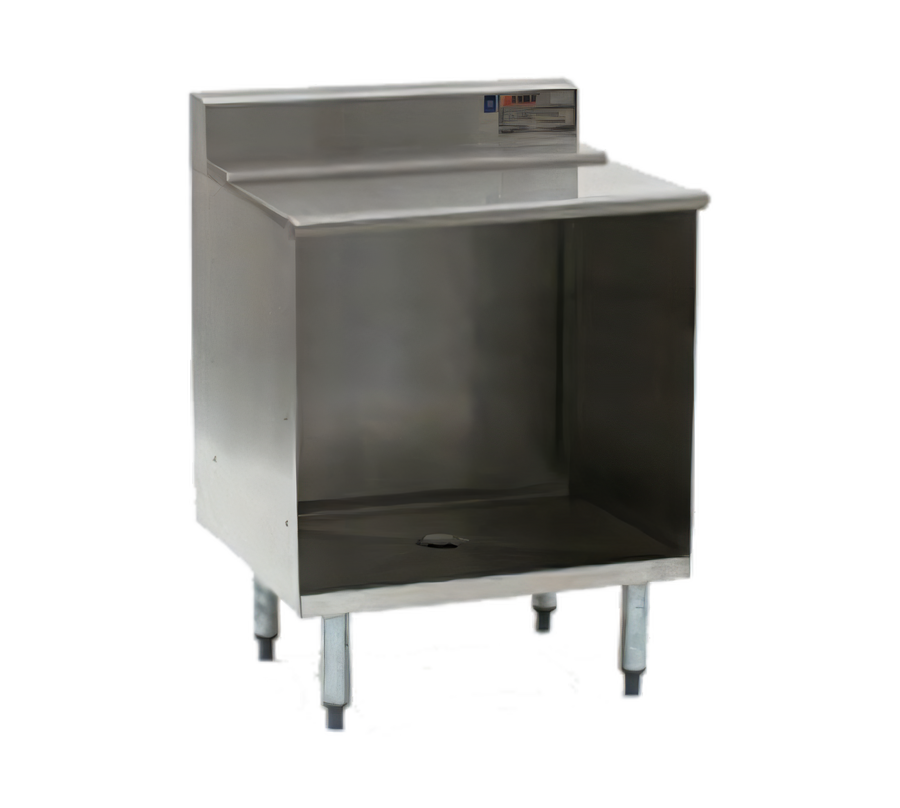

2200 Series Recessed Workboard Underbar Glass Rack Storage Unit, 24" W x 24" D

Open Front Cabinet Base, Holds 20" x 20" Glass Racks

A rugged recessed-top underbar storage unit that keeps full-size glass racks organized and draining efficiently while staying easy to access from the front.

  • Recessed workboard top with removable perforated stainless steel insert for efficient drainage.
  • Sized to hold nominal 20" x 20" full-size glass racks.
  • Open front cabinet base provides quick access to stored racks behind the bar.
  • Stainless steel all-welded construction is paired with galvanized legs for lasting durability.
  • Includes a 1-1/2" top drain and a 1-1/2" I.P.S. bottom drain for dependable water management.
  • Adjustable plastic bullet feet help level the unit on uneven flooring.

Overall Dimensions:

24.0"W x 24.0"D x 33.5"H

Product Weight:

68.0 lb

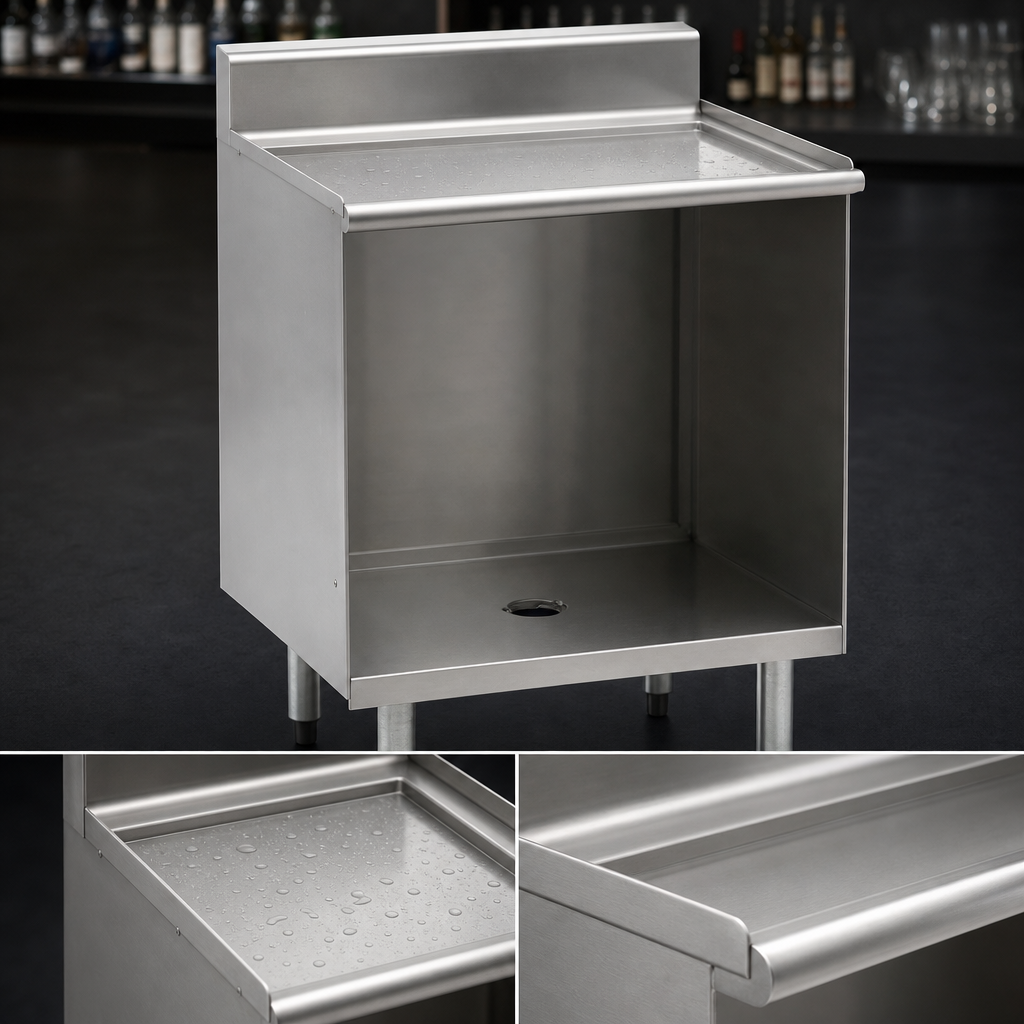

Recessed Workboard Top

Provides a recessed surface that helps contain moisture and supports underbar prep and storage.

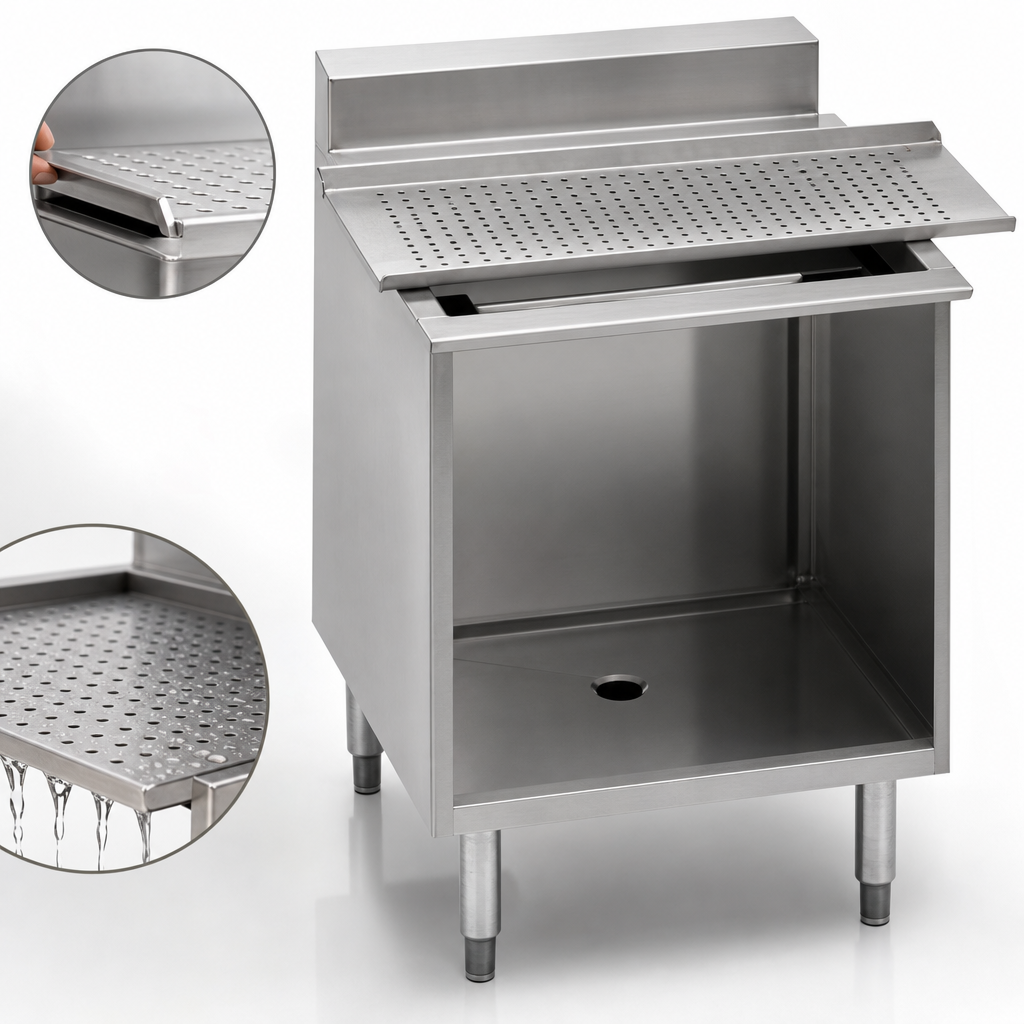

Removable Perforated Stainless Insert

The top includes a removable perforated insert to promote drainage and simplify cleaning.

Top Drain

Features a 1-1/2" stainless steel drain in the worktop insert.

Bottom Drain

Includes a 1-1/2" I.P.S. stainless steel drain on the bottom of the unit.

Open Front Cabinet Base

Keeps the storage area accessible from the front for quicker loading and unloading.

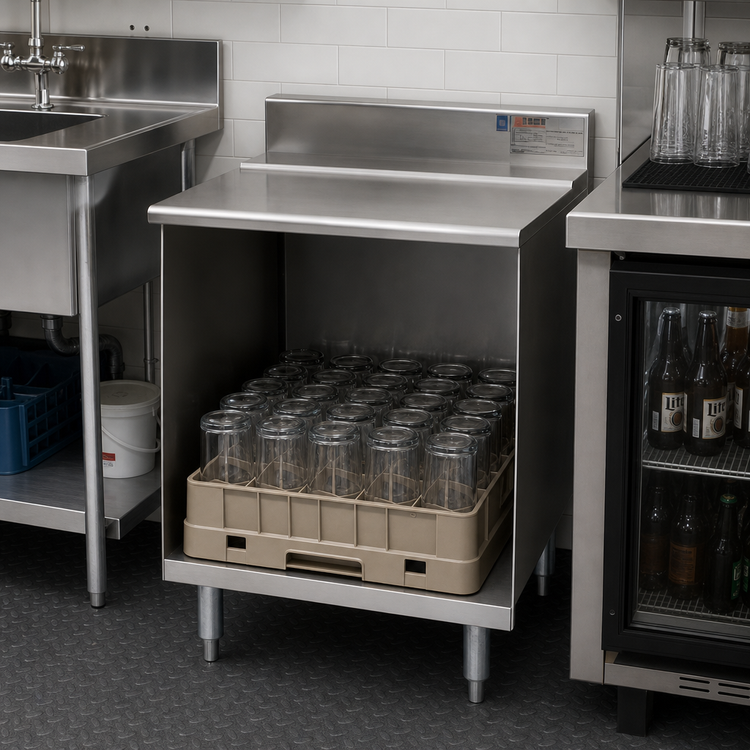

20" x 20" Glass Rack Capacity

Designed to accommodate nominal 20" x 20" full-size glass racks.

3-1/2 Inch Backsplash

Helps contain splashes and protect the wall area behind the unit.

Bullnose Front Edge

Rounded front edge helps improve user comfort and durability.

Stainless Steel All-Welded Construction

Durable commercial construction built for long-term use.

Galvanized Legs with Adjustable Bullet Feet

Galvanized tubular legs and adjustable plastic bullet feet provide stability and leveling.

Type Underbar Glass Rack Storage Unit
Style Recessed Workboard Top
Installation Type Floor Model
Material Stainless Steel
Finish Galvanized
Capacity 20-Inch x 20-Inch Glass Racks
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 34 Inches
Shipping Weight 68 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Modular bar dies PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed to accommodate nominal 20" x 20" full-size glass racks.
This model has a recessed workboard top with a removable stainless steel perforated insert.
Yes. It includes a 1-1/2" stainless steel drain in the top insert and a 1-1/2" I.P.S. stainless steel drain on the bottom of the unit.
It features stainless steel all-welded construction with galvanized legs and adjustable plastic bullet feet.
Yes. Optional accessories include a center shelf and stainless steel leg kits.
Yes, it is NSF certified.
