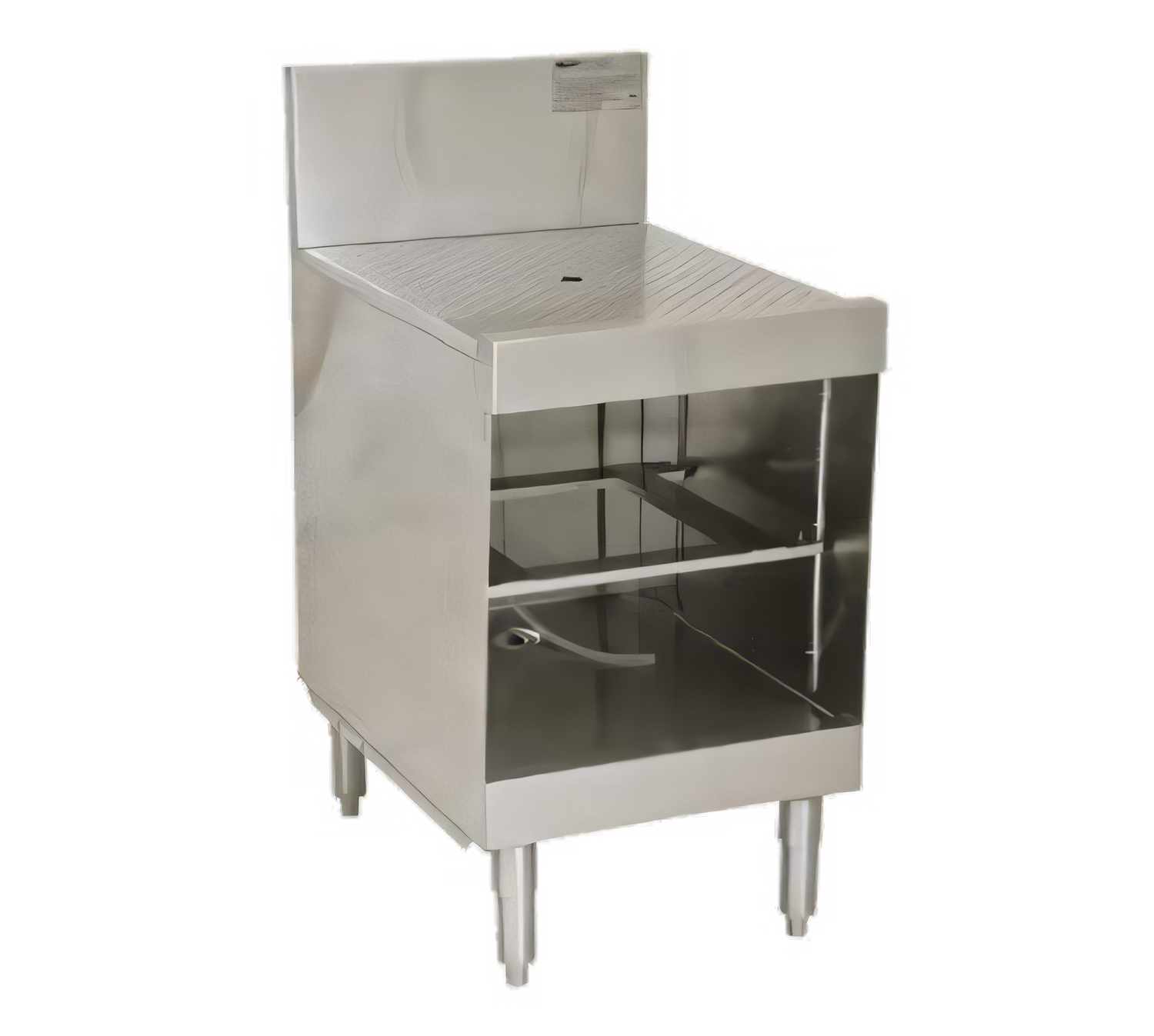

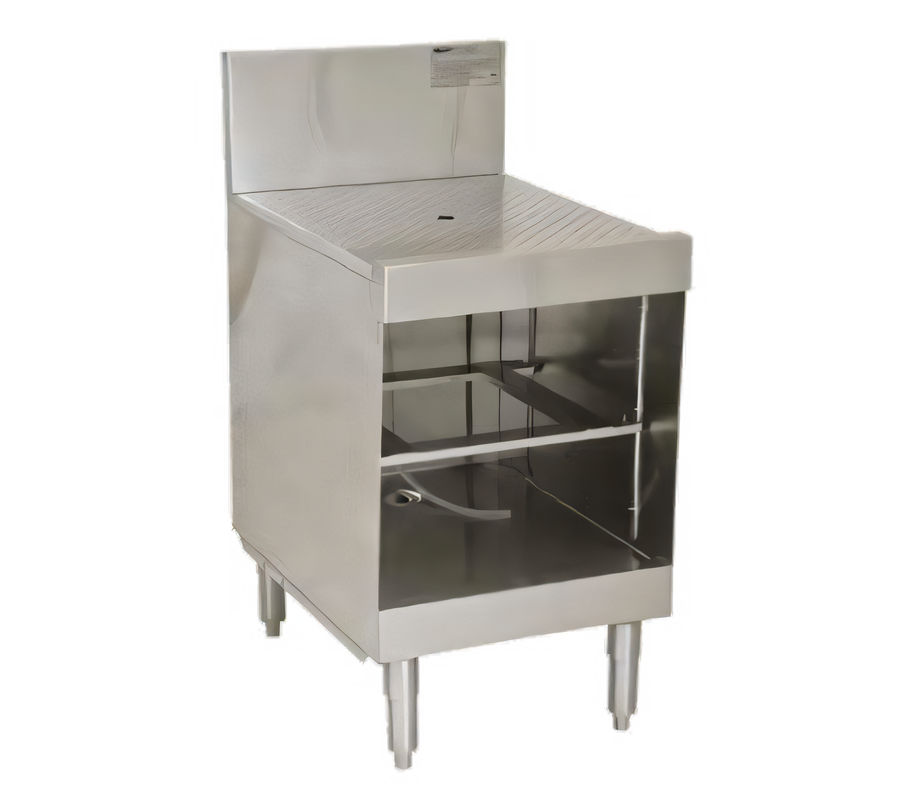

Eagle Spec-Bar WBGR18-24 Underbar Glass Rack Storage Unit — Recessed Workboard Top, 18 Inches W x 24 Inches D x 36.5 Inches H, Holds 2 16-Inch Glass Racks

SKU: WBGR18-24
$1,362.96
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Glass Storage Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

Eagle Spec-Bar WBGR18-24 Underbar Glass Rack Storage Unit — Recessed Workboard Top, 18 Inches W x 24 Inches D x 36.5 Inches H, Holds 2 16-Inch Glass Racks

304 Stainless Steel with Perforated Lift-Out Insert & Integrated 1.5 Inches Drains — NSF Listed

Durable 304 stainless steel underbar unit with a recessed perforated workboard and integrated 1.5" drains for sanitary, space-saving storage of glass racks.

  • Heavy-duty type 304 stainless steel construction for commercial durability
  • Recessed stainless steel workboard with removable perforated insert and integrated 1.5 Inches drain
  • Holds two 16-Inch diameter glass racks (18" wide models); open-front base with adjustable shelf for easy access
  • Full bottom shelf with 1.5 Inches I.P.S. drain (includes nut & washer) for efficient drainage
  • Removable clips and pilasters included; stainless steel legs with adjustable bullet feet
  • NSF listed for foodservice use

Overall Dimensions:

18.0"W x 24.0"D x 36.5"H

Product Weight:

53.0 lb

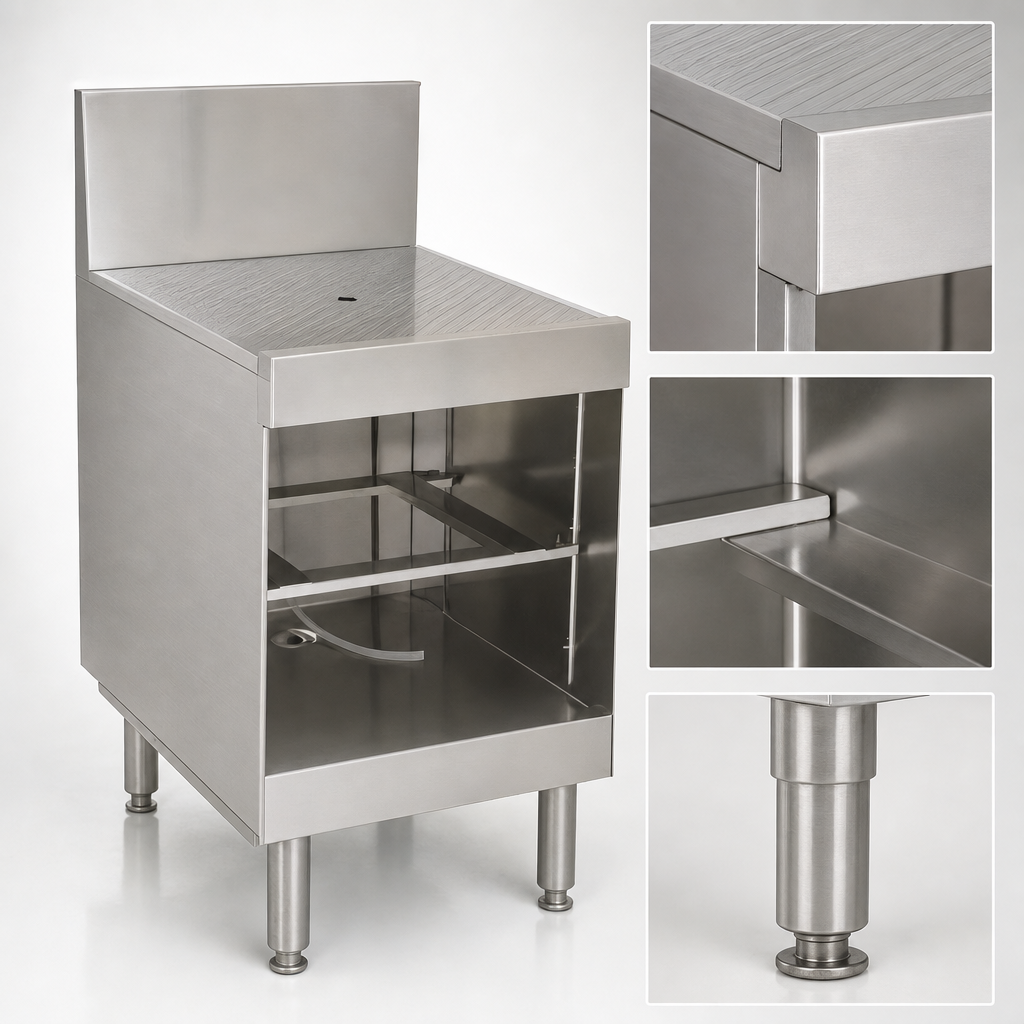

Construction

Heavy-gauge type 304 stainless steel body, legs and leg channels; WBGR series uses 20 gauge sides/front/drain pan/perforated insert and 16 gauge leg channels.

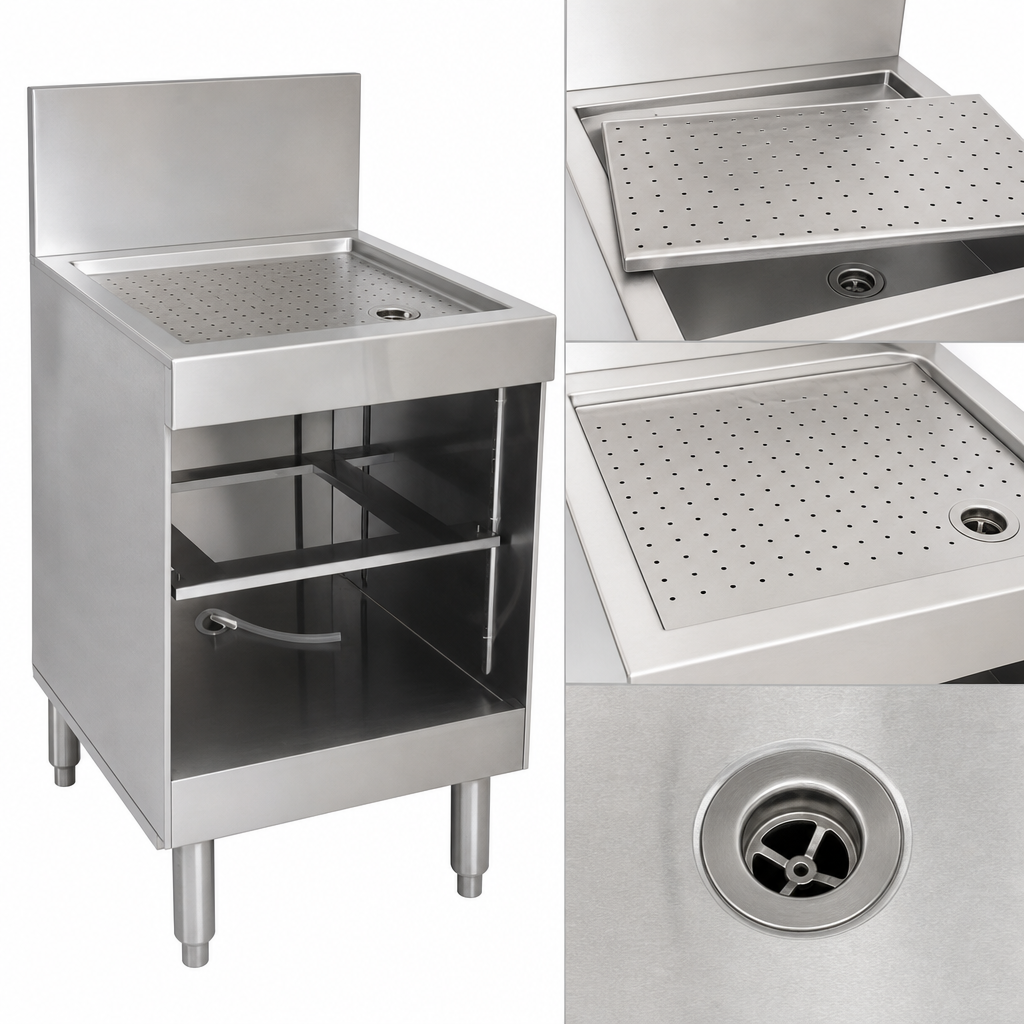

Recessed Workboard Top

Standard recessed stainless steel workboard with removable perforated lift-out insert and integrated 1.5 Inches stainless steel drain.

Rack Capacity

18"-wide models accommodate two 16" (406 mm) diameter round glass racks.

Adjustable Shelf

One adjustable intermediate shelf for flexible storage and organization.

Bottom Shelf Drain

Full bottom shelf equipped with a 1.5 Inches I.P.S. threaded drain; drain includes nut and washer.

Pilasters & Clips

Removable clips and pilasters are included for secure rack support and adjustable positioning.

Legs & Feet

1-5/8" (41 mm) diameter stainless steel legs with adjustable stainless steel bullet feet for leveling.

Open Front Base

Open-front base design provides easy access to glass racks and simplifies cleaning.

Sanitation

NSF listed for use in commercial foodservice environments.

Type Glass Rack Storage Unit
Installation Type Floor Model
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Capacity 2 Racks (16 Inch Diameter)
Backsplash Height 7 Inches
Drain Connection Size 1.5 Inches I.P.S.
Leg Diameter 1.625 Inches (1 5/8 Inches)
Style Open Front Base
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 53 Pounds
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 Year Limited Warranty (covers defects in materials and workmanship).

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Spec-bar® modular bar die PDF Download PDF Brochure PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The WBGR18-24 (18"-wide model) is designed to hold two 16" (406 mm) diameter round glass racks.
Yes. The recessed workboard top has a 1.5 Inches stainless steel drain with a removable perforated insert, and the full bottom shelf also has a 1.5 Inches I.P.S. threaded drain (drain includes nut & washer).
Yes. The WBGR18-24 is NSF listed for use in commercial foodservice environments.
The unit is constructed of type 304 stainless steel (20 gauge sides/front/drain pan/perforated insert; 16 gauge legs/leg channels) and includes 1-5/8" stainless steel legs with adjustable stainless steel bullet feet.
Includes removable perforated workboard insert, drains (with nut & washer), one adjustable intermediate shelf, removable clips and pilasters, and adjustable bullet feet.
