Eagle Group

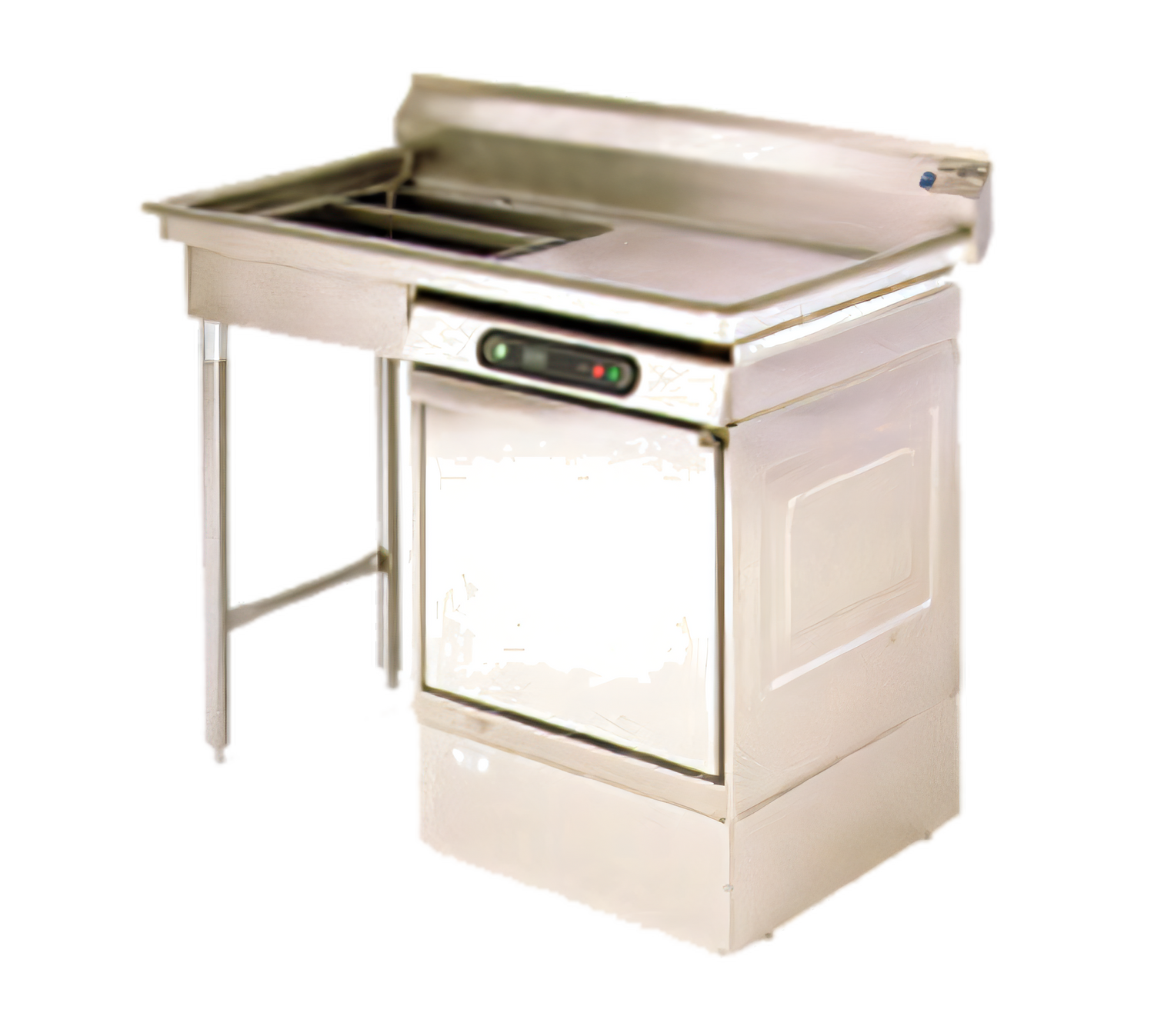

Eagle Group Right-Hand Soiled Dishtable for Undercounter Dishwasher, 60-Inch x 27-1/2-Inch, 20 x 20 x 5 Pre-Rinse Sink, Stainless Steel

SKU: UDT-5R-16/4
$1,504.08
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Compartment Sinks Dish Tables Eagle Group New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Eagle Group Right-Hand Soiled Dishtable for Undercounter Dishwasher, 60-Inch x 27-1/2-Inch, 20 x 20 x 5 Pre-Rinse Sink, Stainless Steel

16/430 Stainless Steel Top, 8-Inch Backsplash, Galvanized Legs

Built to streamline dishroom workflow, this right-hand soiled dishtable pairs with an undercounter dishwasher and adds an integrated pre-rinse sink, splash protection, and a durable stainless steel worktop.

  • Right-hand layout is designed for a left-side sink and right-side undercounter dishwasher setup.
  • Integrated 20 x 20 x 5 inch pre-rinse sink helps simplify scraping and rinsing before warewashing.
  • 8-inch backsplash and raised rolled rims help contain splashes and protect nearby surfaces.
  • 16/430 stainless steel top delivers a durable, easy-to-clean work surface.
  • Galvanized legs and crossrails with adjustable plastic bullet feet provide stable support.
  • Includes basket drain with removable crumb cup for easier cleanup.
  • NSF listed for sanitary foodservice applications.

Overall Dimensions:

60.0"W x 27.5"D x 43.5"H

Product Weight:

105.0 lb

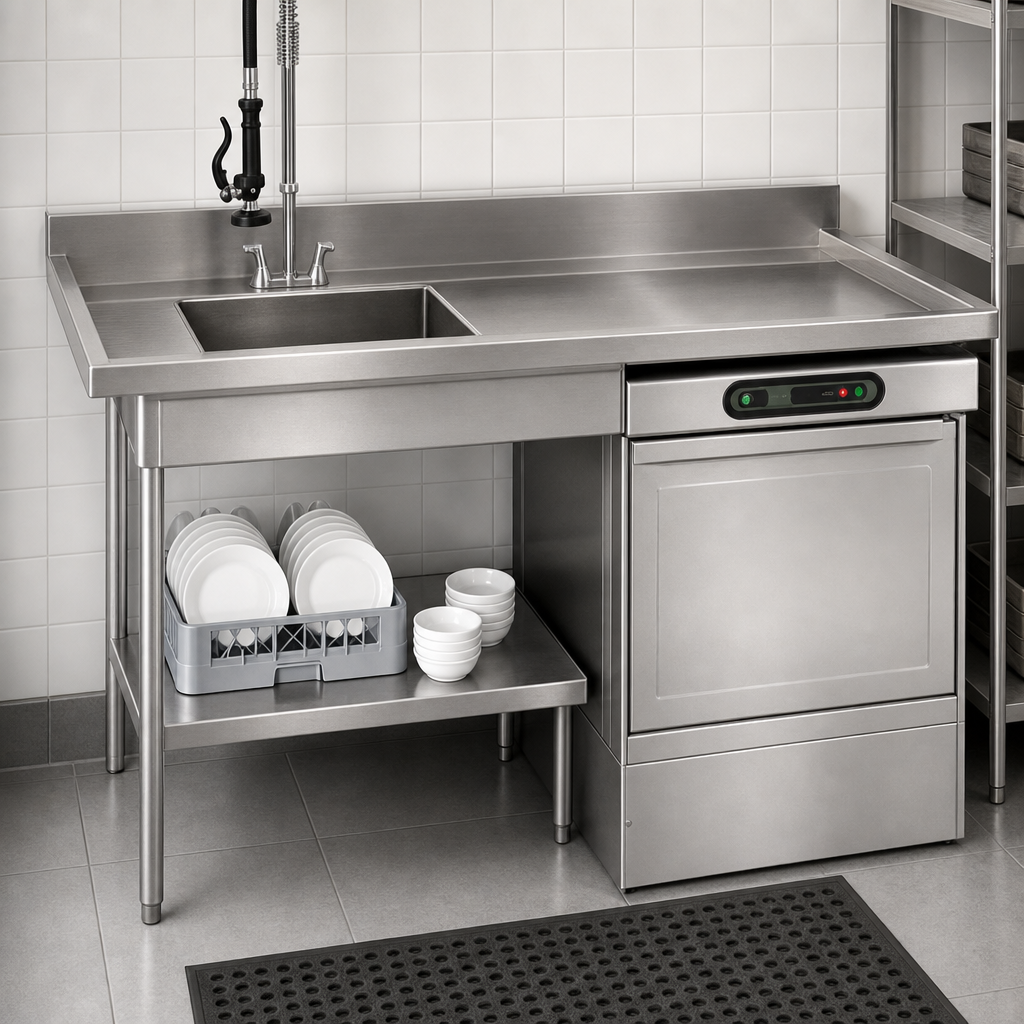

Right-Hand Dishwasher Layout

Configured with the dishwasher on the right side for efficient workflow in the dish area.

20 x 20 x 5 Pre-Rinse Sink

Integrated sink provides a dedicated area for scraping and rinsing soiled ware before washing.

Basket Drain with Removable Crumb Cup

Helps capture debris and can be removed for easier cleaning.

8-Inch Backsplash

Adds wall protection behind the sink and work surface.

Deck-Mount Faucet Hole

Single faucet hole is provided for a pre-rinse setup.

Rolled Front and Side Rims

Raised rolled edges help contain spills and improve safety.

Undercounter Dishwasher Compatible

Accommodates a 24-inch front-to-back undercounter dishwasher.

Galvanized Support Frame

Galvanized legs and crossrails with adjustable plastic bullet feet provide support and leveling.

Stainless Steel Work Surface

16/430 stainless steel top offers a durable and easy-to-clean work area.

Type Soiled Dishtable
Style Undercounter Dishwasher Right
Installation Type Floor Model
Material Stainless Steel
Compartments 1
Sink Location Left Of Machine
Backsplash Height 8 Inches
Sink Size 20 Inches x 20 Inches x 5 Inches
Leg Type Galvanized
Faucet Hole Type Single Deck-Mount
Shipping Width 60 Inches
Shipping Depth 28 Inches
Shipping Height 44 Inches
Shipping Weight 105 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The dishwasher is on the right side, with the sink positioned on the left.
It accommodates a 24-inch front-to-back undercounter dishwasher.
The integrated sink measures 20 x 20 x 5 inches.
Yes. It includes an 8-inch backsplash and a single deck-mount faucet hole for a pre-rinse setup.
Eagle provides a 1-year limited warranty from the original installation date, not to exceed 18 months from shipment. Accessory items such as faucets, drains, and pre-rinse units carry a 90-day limited warranty unless otherwise covered.
