Eagle Group 60-Inch Undercounter Soiled Dish Table with Right-Hand Dishwasher and 20 x 20 Pre-Rinse Sink

SKU: UDT-5R-16/3-X
$1,604.88
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Compartment Sinks Dish Tables Eagle Group New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

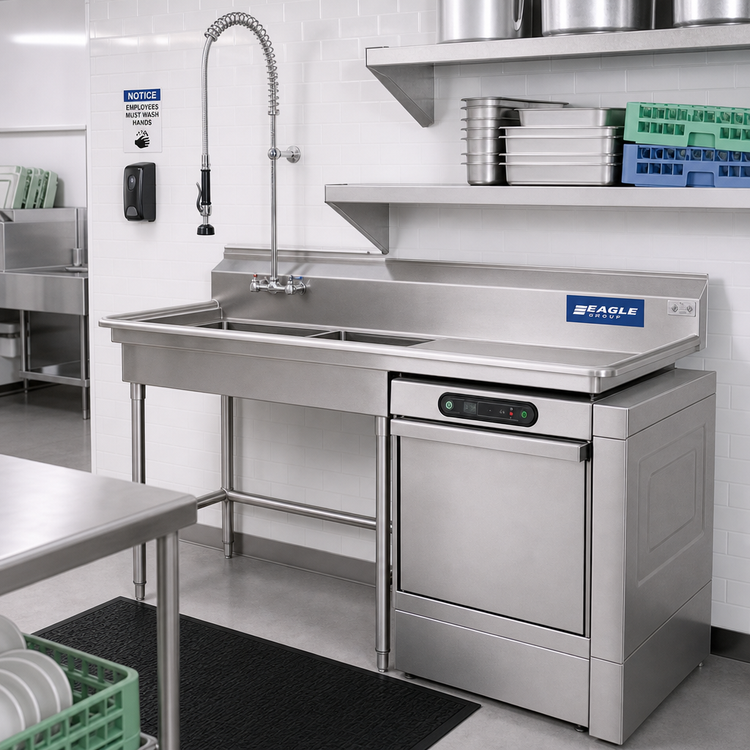

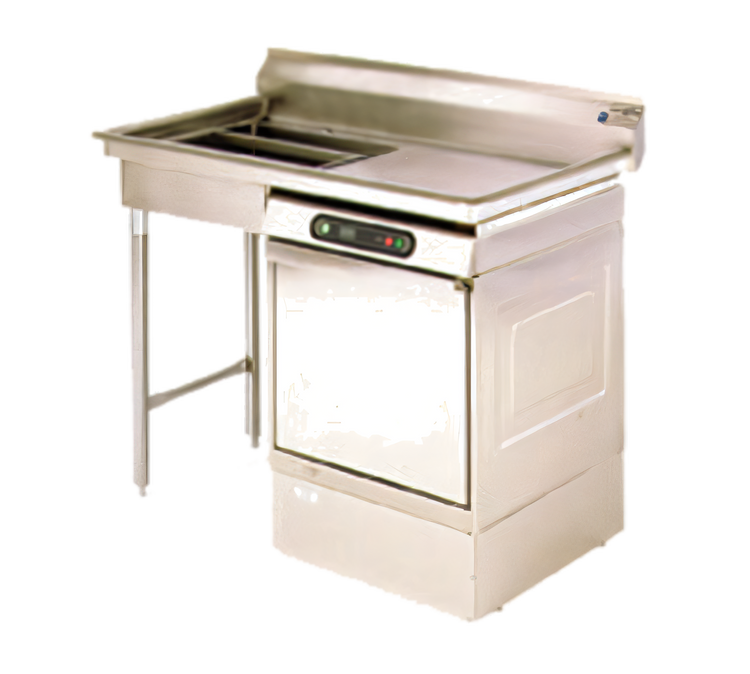

Eagle Group 60-Inch Undercounter Soiled Dish Table with Right-Hand Dishwasher and 20 x 20 Pre-Rinse Sink

16/304 Stainless Steel Top, 8-Inch Backsplash

Built to streamline dirty-dish handling, this undercounter station combines a pre-rinse sink, dishwasher opening, and durable stainless top in one compact layout.

  • Right-hand dishwasher layout with the sink on the left supports an efficient soiled-dish workflow.
  • Built-in 20 x 20 x 5 pre-rinse sink includes a basket drain and removable crumb cup.
  • 16/304 stainless steel top is designed for heavy commercial use and easy cleanup.
  • 8-inch backsplash helps contain splashes and protect the wall behind the table.
  • Accommodates a 24-inch front-to-back undercounter dishwasher.
  • Galvanized legs and crossrails with adjustable plastic bullet feet provide stable, level support.

Overall Dimensions:

60.0"W x 27.5"D x 35.5"H

Product Weight:

105.0 lb

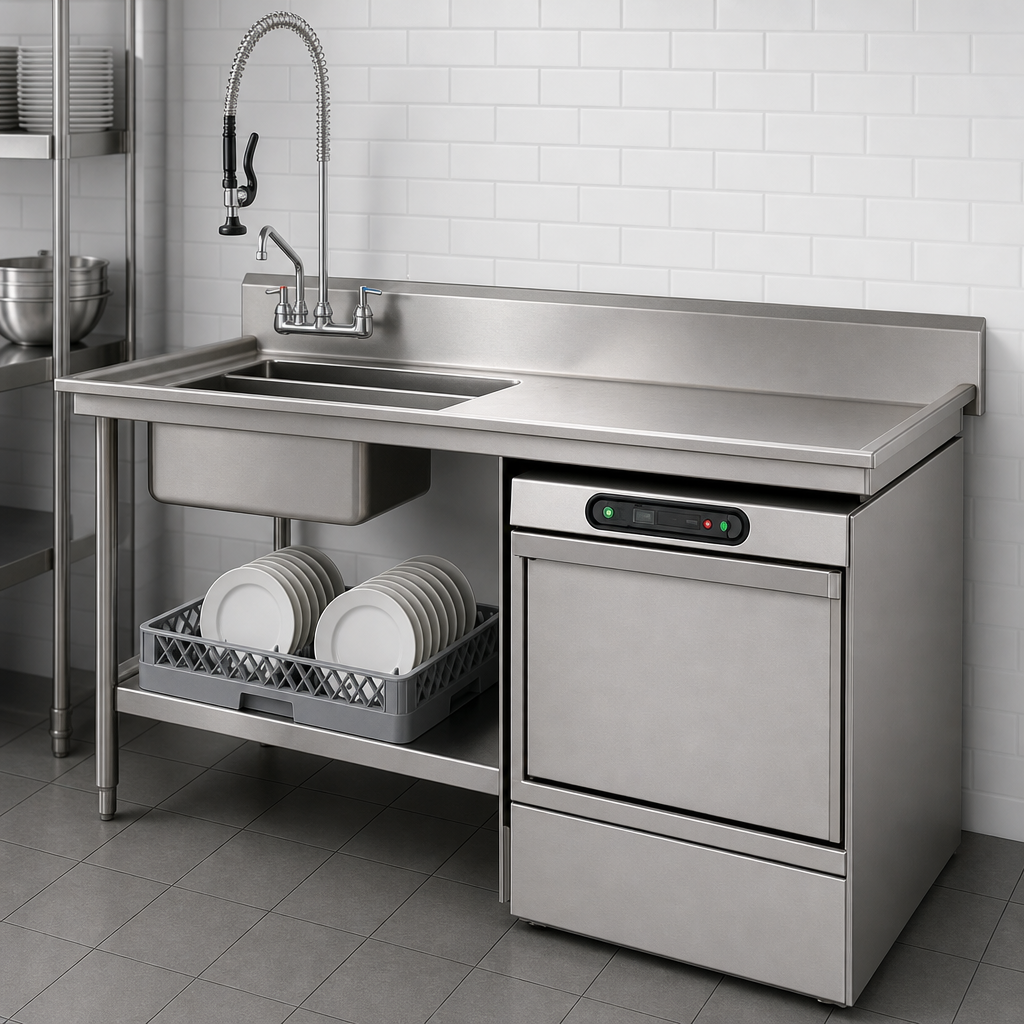

Right-Hand Dishwasher Layout

Sink is positioned on the left side of the table with the dishwasher opening on the right for a streamlined dish-handling setup.

Right-Hand Dishwasher Layout

20 x 20 x 5 Pre-Rinse Sink

Integrated sink provides space for pre-rinsing and scraping dishes before they enter the dishwasher.

Basket Drain with Removable Crumb Cup

Helps trap food debris at the sink and makes cleanup easier.

16/304 Stainless Steel Top

Heavy-duty stainless work surface stands up to demanding commercial dish room use.

8-Inch Backsplash

Helps contain water and debris while protecting the wall behind the table.

Single Deck-Mount Faucet Hole

Provides a mounting point for pre-rinse faucet installation.

Raised Rolled Rims

Rolled front and side edges add durability and help improve user safety.

24-Inch Dishwasher Clearance

Designed to accommodate a 24-inch front-to-back undercounter dishwasher.

Galvanized Legs and Crossrails

Galvanized support structure with adjustable plastic bullet feet helps keep the table stable and level.

NSF Listed

Listed in the flyer for commercial foodservice use.

Type Soiled Dish Table
Style Undercounter
Installation Type Freestanding
Material 304 Stainless Steel
Finish Galvanized
Sink Location Left
Dishwasher Position Right
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 28 Inches
Shipping Height 36 Inches
Shipping Weight 105 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates a 24-inch front-to-back undercounter dishwasher.
The sink is on the left side of the machine, with the dishwasher on the right.
The built-in pre-rinse sink measures 20 x 20 x 5 inches.
Yes. It includes an 8-inch backsplash and a single deck-mount faucet hole for pre-rinse use.
The top is 16/304 stainless steel, and the legs and crossrails are galvanized with adjustable plastic bullet feet.
Yes, the flyer lists it as NSF.
