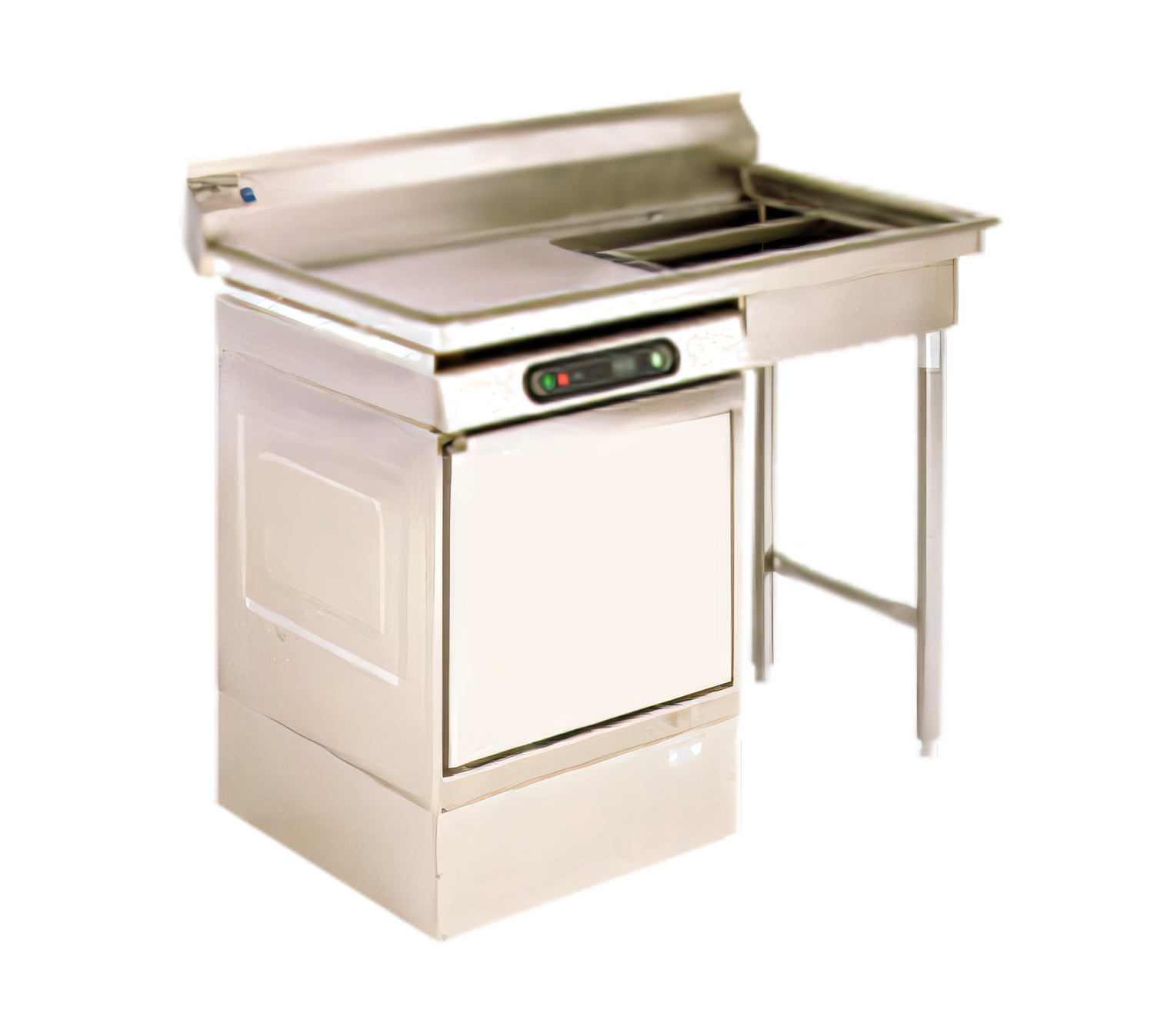

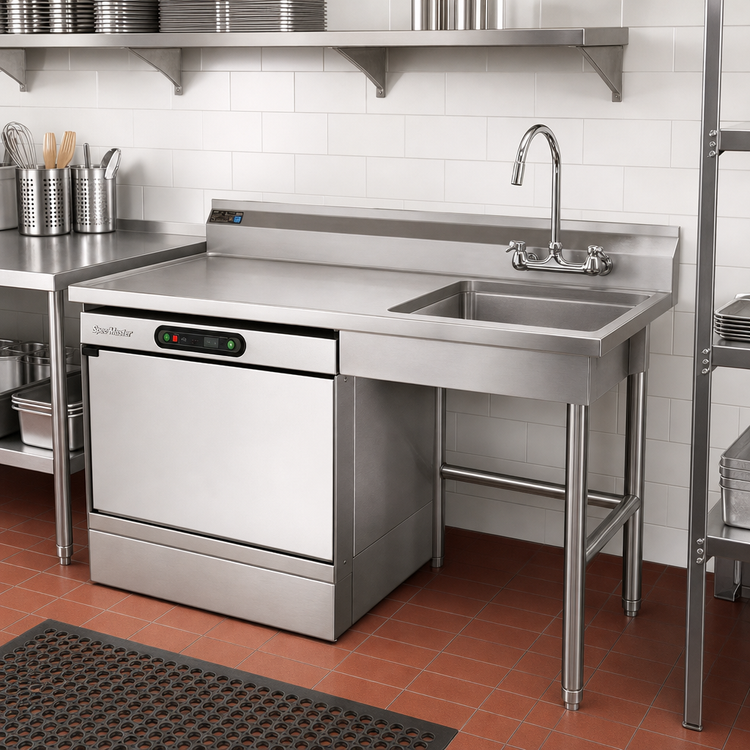

Eagle Group Spec-Master Undercounter Soiled Dishtable, Sink on Right, Dishwasher on Left, 60 Inch Wide

14/304 Stainless Steel Top, 20 x 20 x 5 Sink, 8-Inch Backsplash

A rugged stainless steel dish table that combines soiledware handling and dishwasher integration in one compact undercounter layout.

  • Designed for an undercounter dishwasher with the sink positioned on the right side.
  • Includes a 20 x 20 x 5 inch pre-rinse sink with basket drain and removable crumb cup.
  • Built with a 14/304 stainless steel top plus stainless steel legs and crossrails.
  • 8-inch backsplash and raised rolled rims help contain splashes.
  • Single deck-mount faucet hole supports pre-rinse setup.
  • Adjustable metal feet make leveling easier on uneven floors.

Overall Dimensions:

60.0"W x 27.5"D x 43.5"H

Product Weight:

105.0 lb

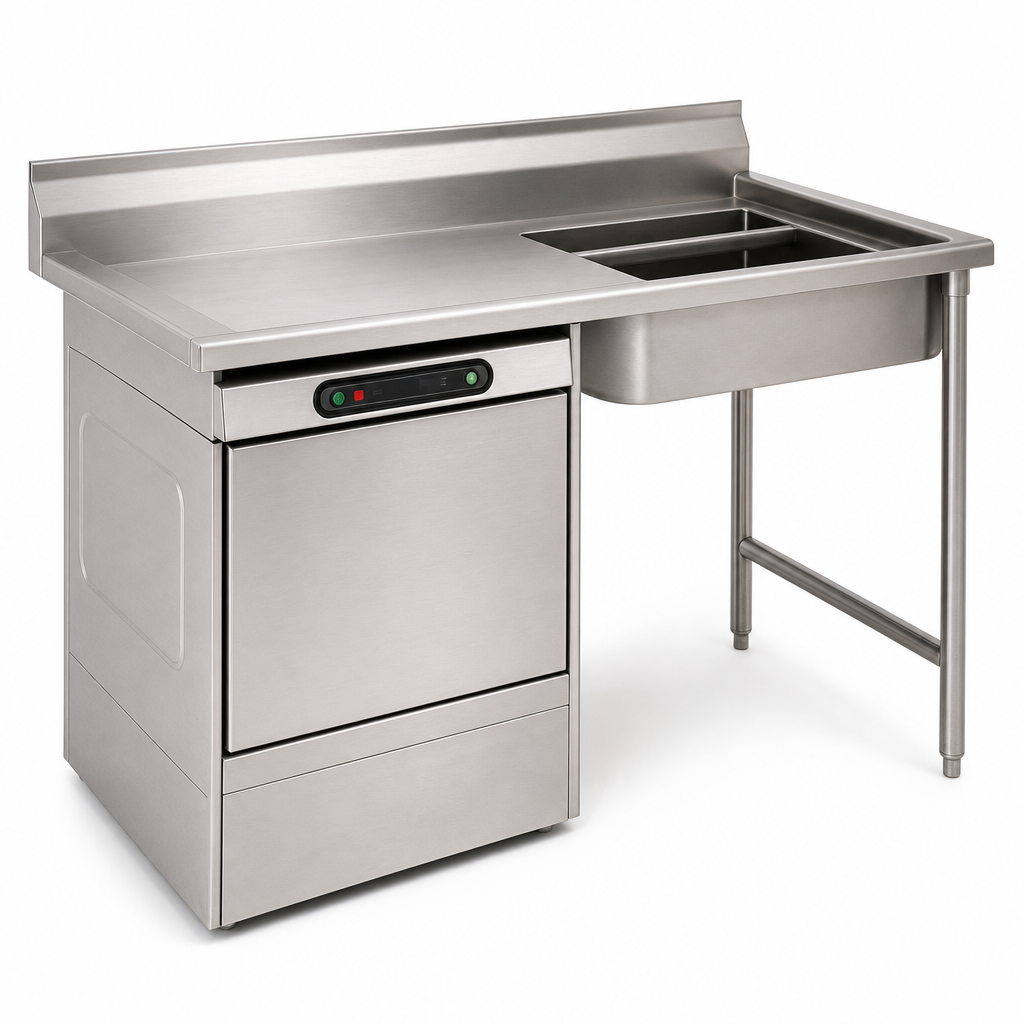

Undercounter Dishwasher Layout

Configured with the dishwasher on the left and the sink on the right for efficient warewashing workflow.

Integrated Pre-Rinse Sink

20 x 20 x 5 inch sink includes a basket drain and removable crumb cup.

Stainless Steel Construction

14/304 stainless steel top with stainless steel legs and crossrails for durability.

8-Inch Backsplash

Helps protect nearby walls and surfaces from splash and spray.

Raised Rolled Rims

Front and side rims are rolled to help contain water and improve safety at the edges.

Deck-Mount Faucet Hole

Single deck-mount faucet hole is provided for pre-rinse equipment.

Adjustable Metal Feet

Metal feet adjust to help level the table during installation.

Type Soiled Dishtable
Installation Type Undercounter
Material Stainless Steel
Sink Location Right of Machine
Splash Height 8 Inches
Sink Size 20 Inches x 20 Inches x 5 Inches
Dishwasher Compatibility 24 Inches Front-To-Back Undercounter Dishwasher
Leg Type Stainless Steel
Shipping Width 60 Inches
Shipping Depth 28 Inches
Shipping Height 44 Inches
Shipping Weight 105 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The dishwasher is on the left side of the unit, with the sink on the right.
It accommodates a 24-inch front-to-back undercounter dishwasher.
The integrated sink measures 20 x 20 x 5 inches and includes a basket drain with removable crumb cup.
Yes, it includes an 8-inch backsplash and raised rolled rims on the front and sides.
Eagle provides a limited warranty of 1 year from the date of original installation, not to exceed 18 months from the date of shipment. Accessory items such as faucets, drains, and pre-rinse units are covered for 90 days.
