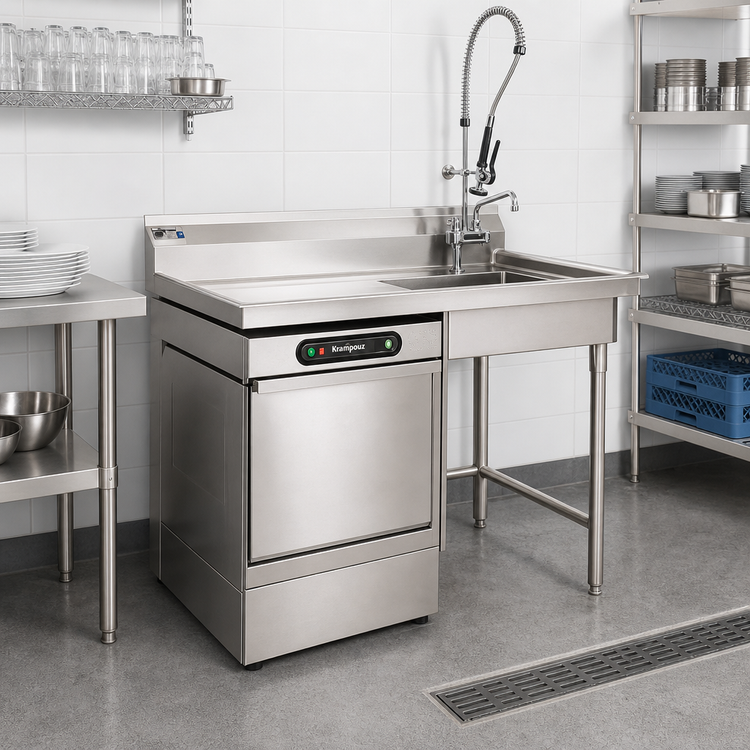

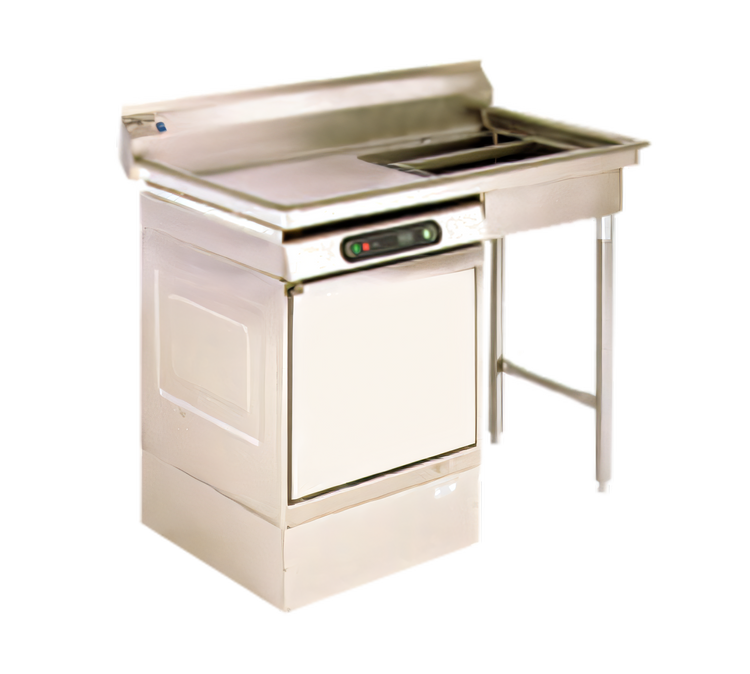

Undercounter Soiled Dishtable with Left-Side Dishwasher and Right-Side Sink, 48 x 27-1/2 Inch

16/304 Stainless Steel Top, 20 x 20 x 5 Inch Sink, 8-Inch Backsplash

This undercounter soiled dishtable streamlines dish room workflow with a left-side dishwasher setup, integrated pre-rinse sink, and durable stainless steel construction.

  • Designed for an undercounter dishwasher with the machine on the left and the sink on the right.
  • 16/304 stainless steel top stands up to daily commercial dish room use.
  • 20 x 20 x 5-inch pre-rinse sink includes a basket drain with removable crumb cup.
  • 8-inch backsplash and raised rolled rims help contain splashes and runoff.
  • Single deck-mount faucet hole is ready for a pre-rinse faucet.
  • Galvanized legs and crossrails with adjustable plastic bullet feet provide stable support.

Overall Dimensions:

48.0"W x 27.5"D x 35.5"H

Product Weight:

95.0 lb

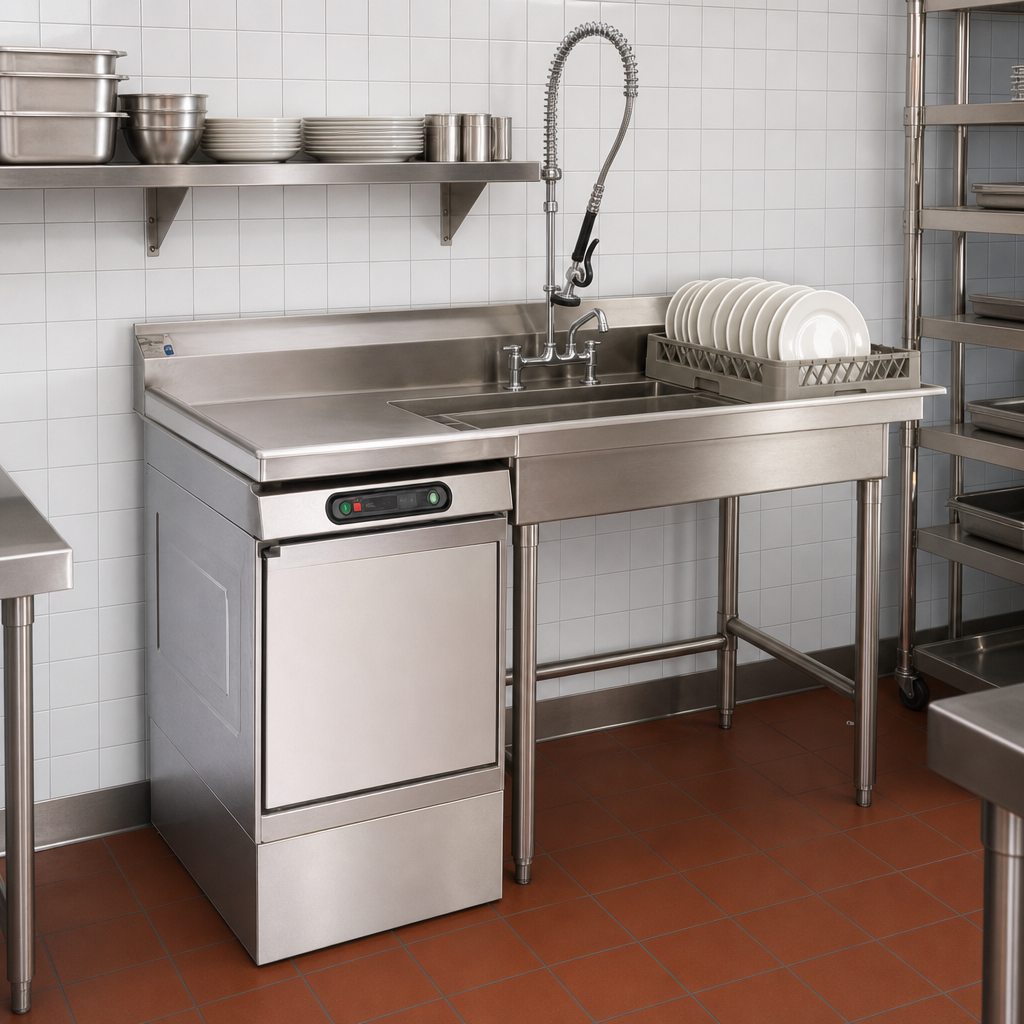

Left-Side Dishwasher Layout

Configured with the dishwasher on the left and the sink on the right for efficient dish room workflow.

Left-Side Dishwasher Layout

20 x 20 x 5 Inch Pre-Rinse Sink

Integrated sink area provides a dedicated rinse station before dishes enter the dishwasher.

Basket Drain with Removable Crumb Cup

Helps catch debris and makes cleanup easier during heavy use.

8-Inch Backsplash

Helps protect the wall and surrounding area from splashes during rinsing and scraping.

16/304 Stainless Steel Top

Durable stainless steel work surface is built for commercial foodservice environments.

Single Deck-Mount Faucet Hole

Provides a mounting point for a pre-rinse faucet setup.

Raised Rolled Front and Side Rims

Helps contain water and improve durability along the work surface edges.

Galvanized Legs and Crossrails

Adds sturdy support for a floor-mounted installation.

Adjustable Plastic Bullet Feet

Allows for leveling on uneven floors.

24-Inch Dishwasher Compatibility

Accommodates a 24-inch front-to-back undercounter dishwasher.

Type Soiled Dishtable
Style Undercounter
Installation Type Floor Model
Material 304 Stainless Steel
Sink Location Right of Machine
Splash Height 8 Inches
Sink Size 20 x 20 x 5 Inches
Compatible Dishwasher Size 24 Inches Front-to-Back
Leg Type Galvanized Legs
Shipping Width 48 Inches
Shipping Depth 28 Inches
Shipping Height 36 Inches
Shipping Weight 95 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The dishwasher mounts on the left side, leaving the sink on the right.
It accommodates a 24-inch front-to-back undercounter dishwasher.
The integrated pre-rinse sink measures 20 x 20 x 5 inches.
Yes, it includes an 8-inch backsplash.
The top is 16/304 stainless steel, and the base uses galvanized legs and crossrails.
