Key specifications

Amps
24.1 Amps
Phase
1-Phase
Dimensions
79.0"W × 30.0"D × 34.0"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: SWT5-208

Eagle Group SWT5-208 5-Pan Open-Base Steam Table

$4,965.10
/each
Estimated to ship in 3–6 business days
Number of Compartments
Electrical
Undershelf
Overshelf
Feet
Cutting board
Factory Add-Ons
Included: Eagle Group warranty Eagle warrants hot food tables for 12 months from the date of factory shipment or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $459/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Finish Polished
Pan Capacity 5 Pans
Pan Size 12 x 20 Inches
Well Type Open Well
Power Type Electric
Voltage 208 Volts
Amps 24.1 Amps
Watts 5 kW
Hertz 60 Hz
Phase 1-Phase
Controls Thermostatic Temperature Control
Water Fill System AutoFill
Low Water Cutoff Automatic
Water Pan Material 304 Stainless Steel
Cutting Board Material Polyethylene
Cutting Board Width 8 Inches
Plate Shelf Material Stainless Steel
Electrical Connection J-Box; Field Wiring Required

Description

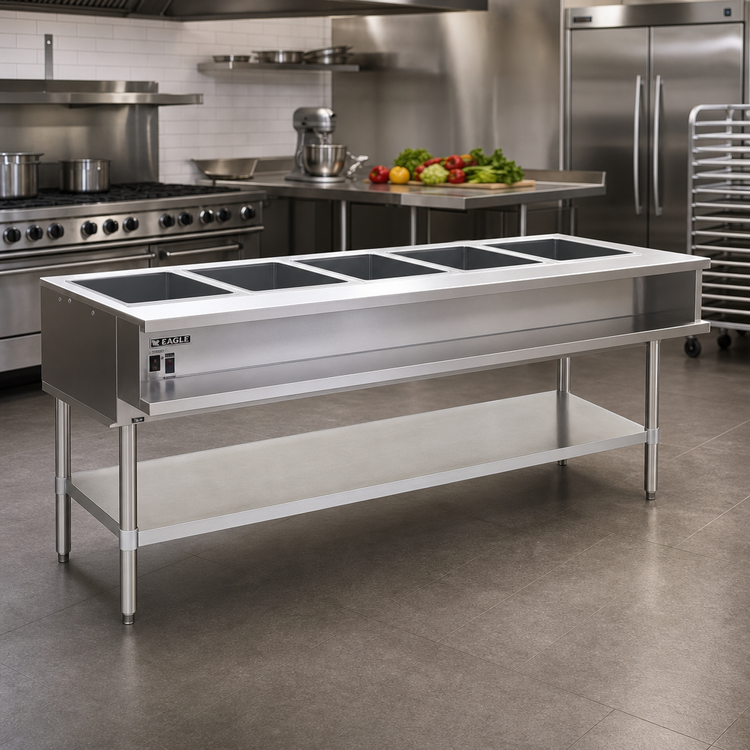

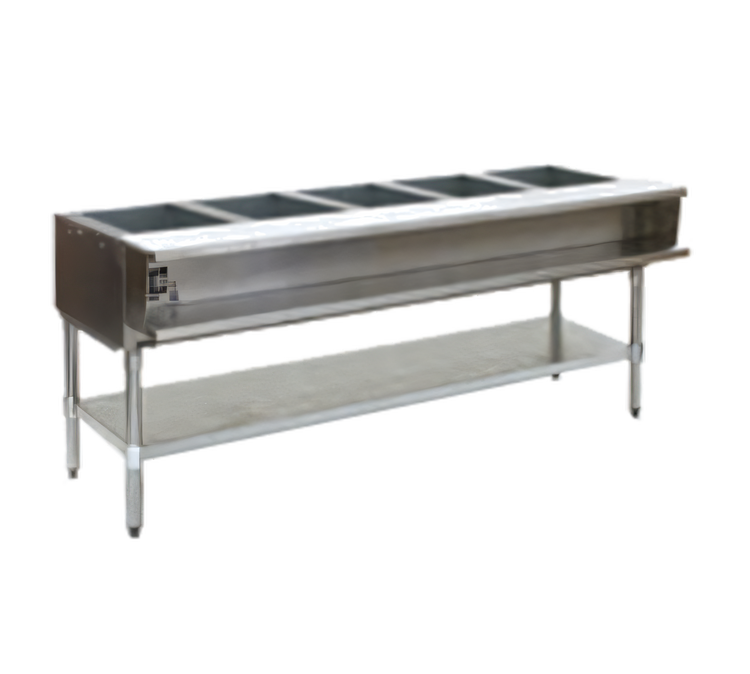

The Eagle Group SWT5-208 is a 79-inch electric water bath hot food table with an open cabinet base and five openings sized for 12 x 20-inch steam table pans.

It uses a 208-volt, 5 kW heating system with thermostatic temperature control and an automatic low-water cutoff with a built-in manual reset. The AutoFill water system fills and maintains the proper water level in all wells and operates independently of the hot wells.

  • 430 stainless steel top and body with a 304 stainless steel water pan
  • 8-inch polyethylene cutting board and stainless steel plate shelf
  • Stainless steel legs and undershelf with adjustable feet
  • Field wiring to a junction box is required

Overall Dimensions:

79.0"W x 30.0"D x 34.0"H

Product Weight:

183.0 lb

Five Pan Openings

Five openings accommodate 12 x 20-inch steam table pans.

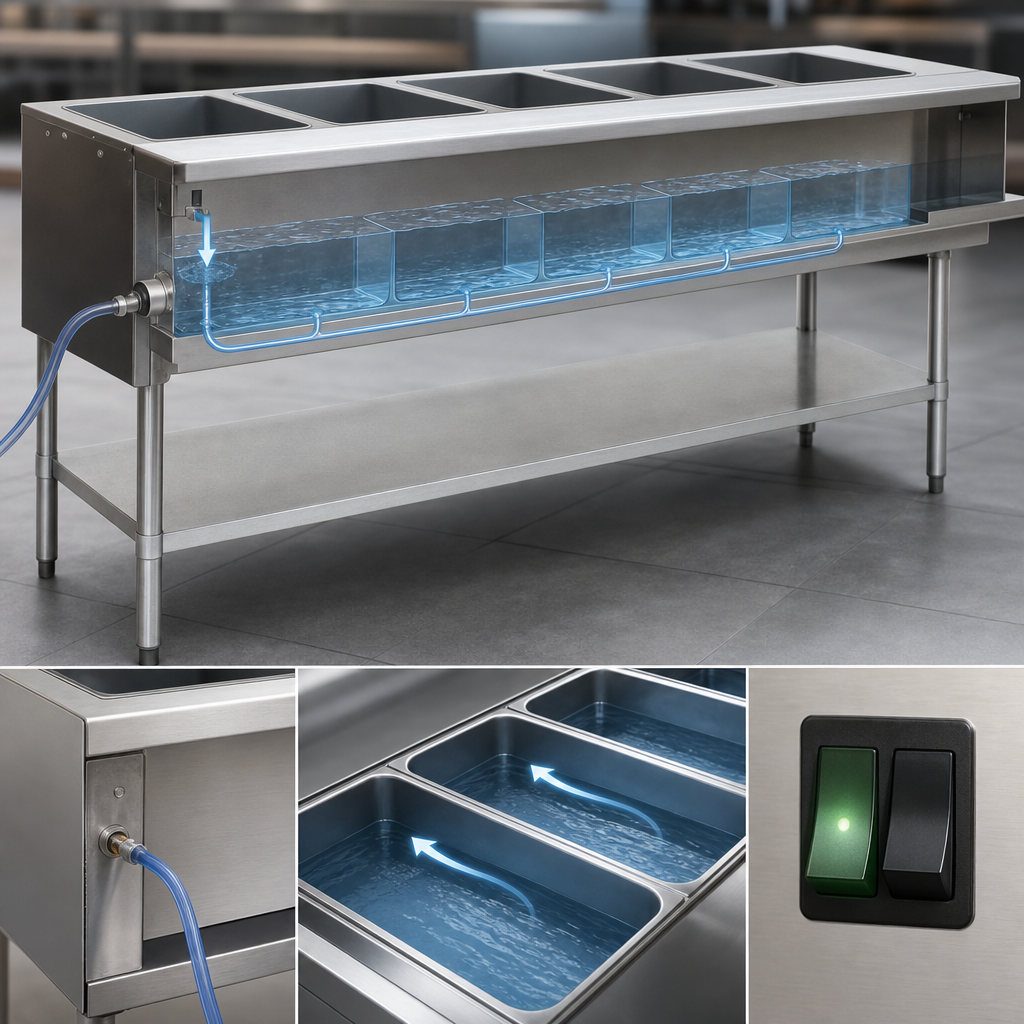

AutoFill Water System

Fills and maintains the proper water level in all wells and operates independently of the hot wells.

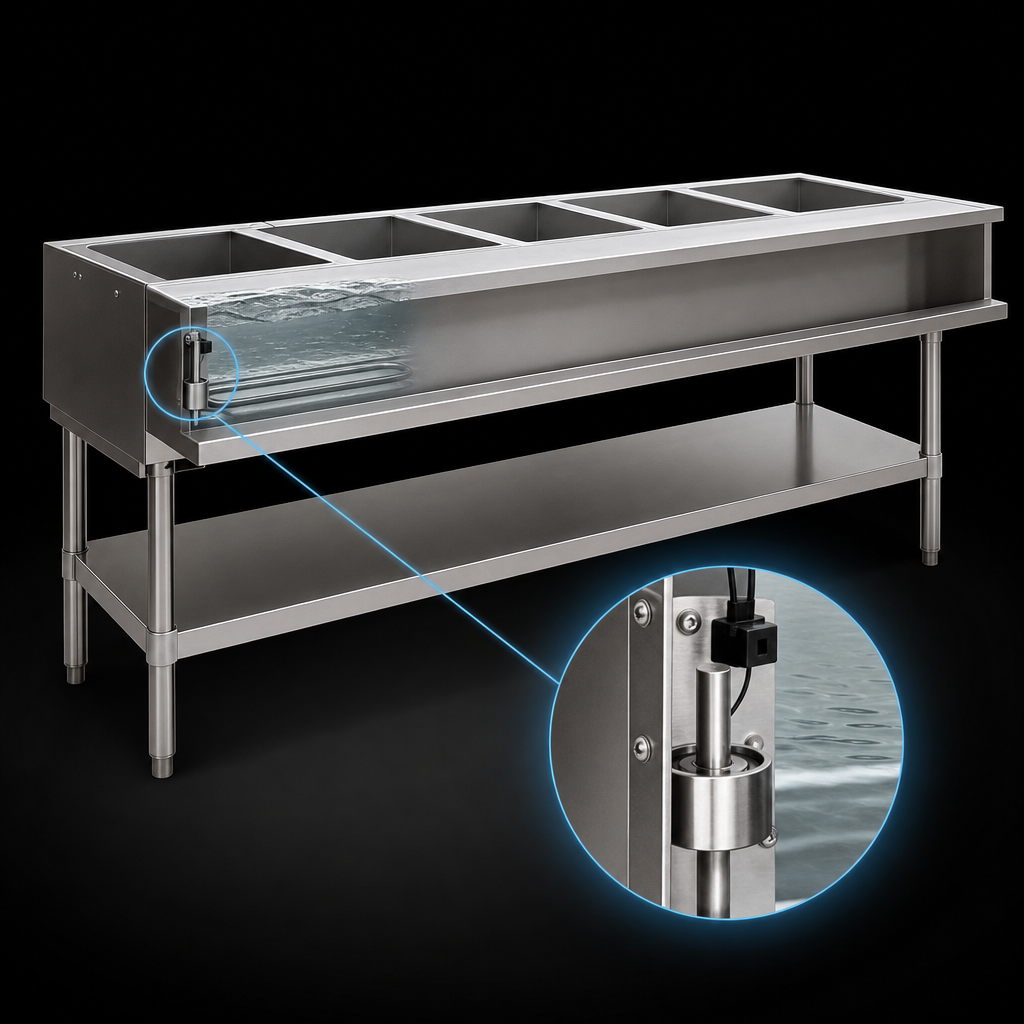

Low-Water Cutoff

Automatic low-water cutoff includes a built-in manual reset button.

Thermostatic Temperature Control

The water bath uses thermostatic temperature control.

Stainless Steel Construction

The top and body are 430 stainless steel, and the water pan is 304 stainless steel.

Cutting Board And Plate Shelf

Includes an 8-inch polyethylene cutting board and stainless steel plate shelf.

Adjustable Support

Stainless steel legs and undershelf are paired with adjustable feet.

Field-Wired Connection

Wiring terminates in a junction box and requires field wiring.

Frequently Asked Questions

It has five openings sized for 12 x 20-inch steam table pans.
The AutoFill system fills and maintains the proper water level in all wells and operates independently of the hot wells.
It is rated for 208 Volts, 60 Hz, single-phase power at 5 kW and 24.1 Amps. Wiring terminates in a junction box and requires field wiring.
Yes. It includes an 8-inch polyethylene cutting board and a stainless steel plate shelf.
Yes. The automatic low-water cutoff has a built-in manual reset button.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
