Key specifications

Amps
19.2 Amps
Phase
1-Phase
Dimensions
63.0"W × 30.0"D × 34.0"H
Type
Hot Food Table
Style
Open Cabinet Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: SWT4-208

Eagle Group SWT4-208 4-Pan Electric Water Bath Steam Table

$4,704.65
/each
Estimated to ship in 3–6 business days
Number of Compartments
Electrical
Overshelves
Cutting board
Feet
Factory Add-Ons
Included: Eagle Group warranty Eagle warrants hot food tables for 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $435/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Cabinet Base
Installation Type Floor Model
Material 430 Stainless Steel
Finish Stainless Steel
Well Type Open Well
Pan Capacity 4 Pans
Pan Size 12 x 20 in
Water Pan Material 304 Stainless Steel
Cutting Board Material Polyethylene
Cutting Board Width 8 in
Power Source Electric
Voltage 208 Volts
Watts 4 kW
Amps 19.2 Amps
Hertz 60 Hz
Phase 1-Phase
Controls Thermostatic Temperature Control
Water Fill AutoFill
Low Water Protection Automatic Low-Water Cutoff
Wiring Field Wired

Description

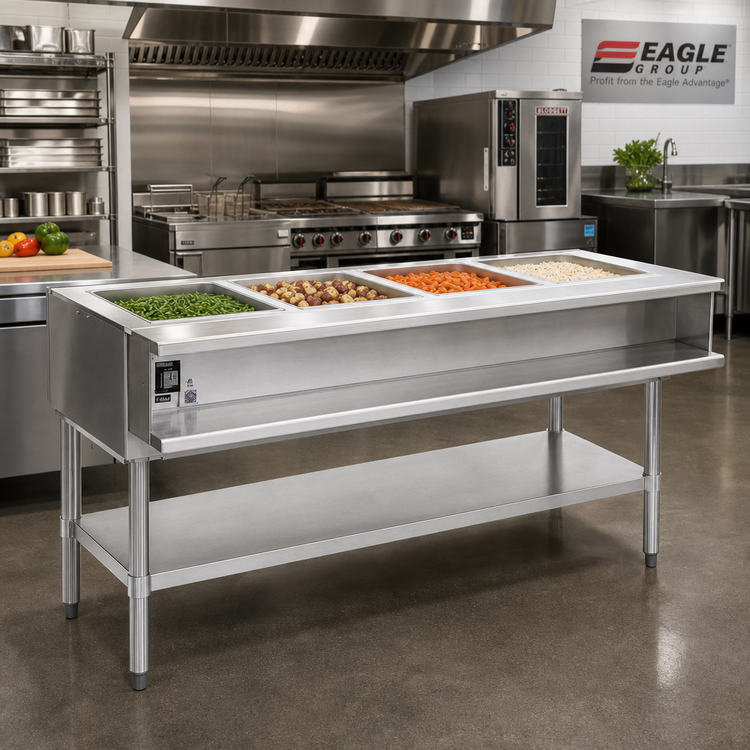

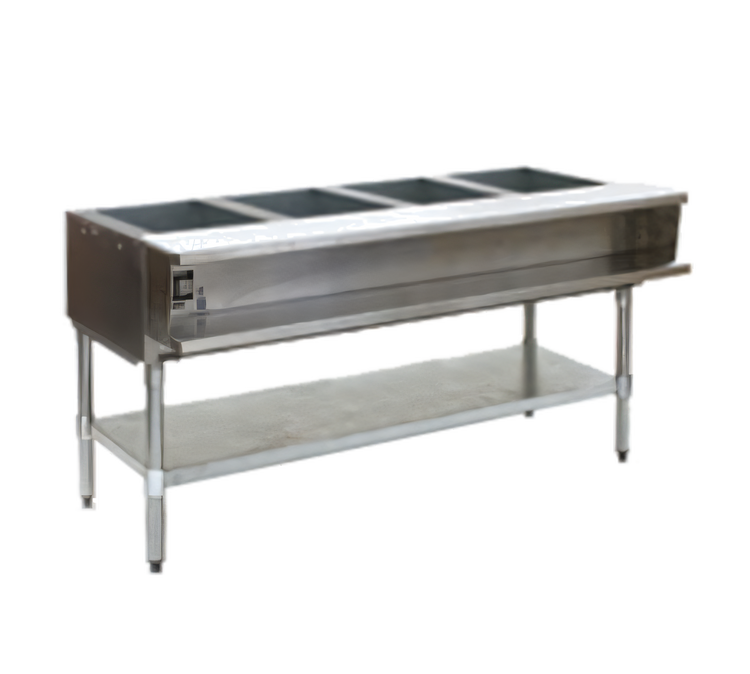

The Eagle Group SWT4-208 is a four-well electric water bath hot food table with an open cabinet base. Its openings accommodate 12 x 20 in steam table pans, and its AutoFill water system fills and maintains the proper water level in all wells.

The unit includes a stainless steel water pan, stainless steel top and enclosure, an 8 in polyethylene cutting board, a stainless steel plate shelf, stainless steel legs and undershelf, adjustable feet, thermostatic temperature control, and automatic low-water cutoff with a built-in manual reset button.

  • Electrical: 208 Volts, 4 kW, 19.2 Amps, 60 Hz, single phase.
  • Wiring: Wiring terminates in a junction box and requires field wiring.

Overall Dimensions:

63.0"W x 30.0"D x 34.0"H

Product Weight:

146.0 lb

Four Well Openings

Four openings accommodate 12 x 20 in steam table pans.

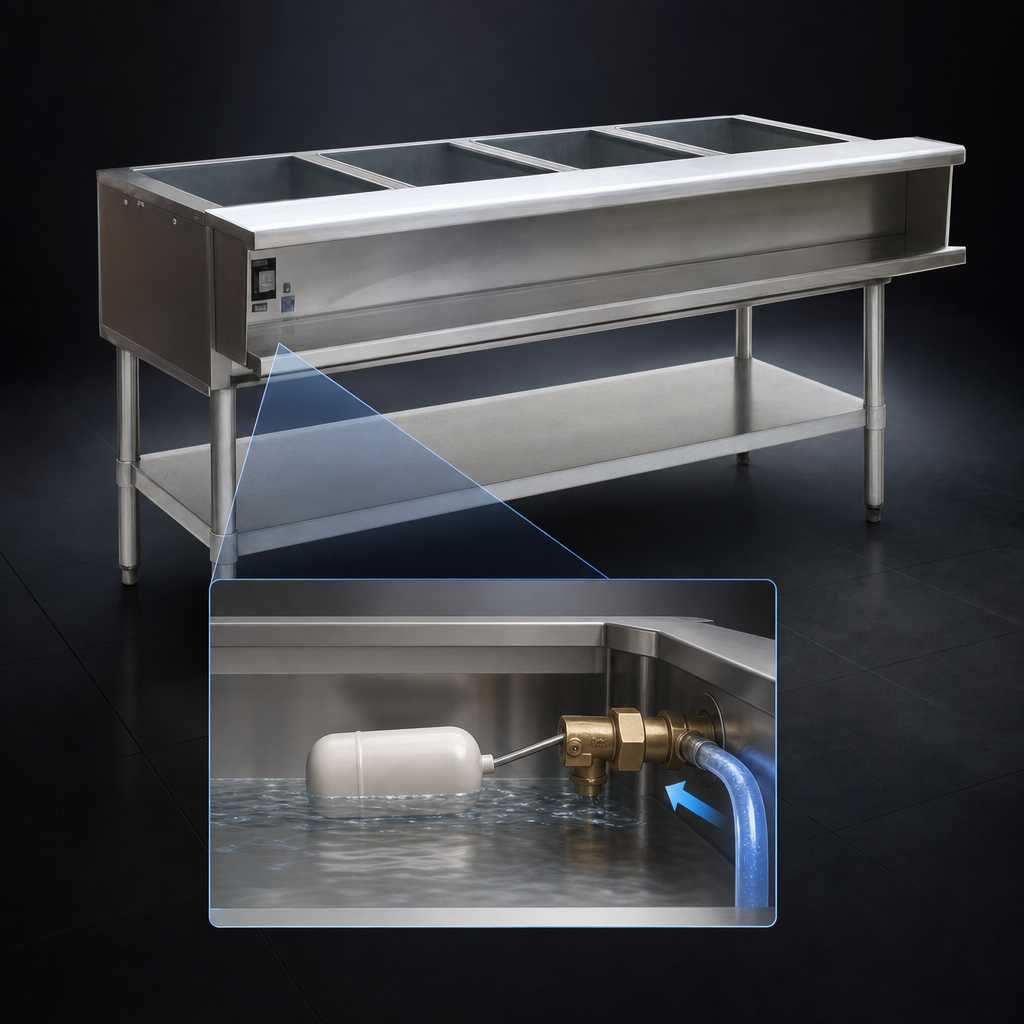

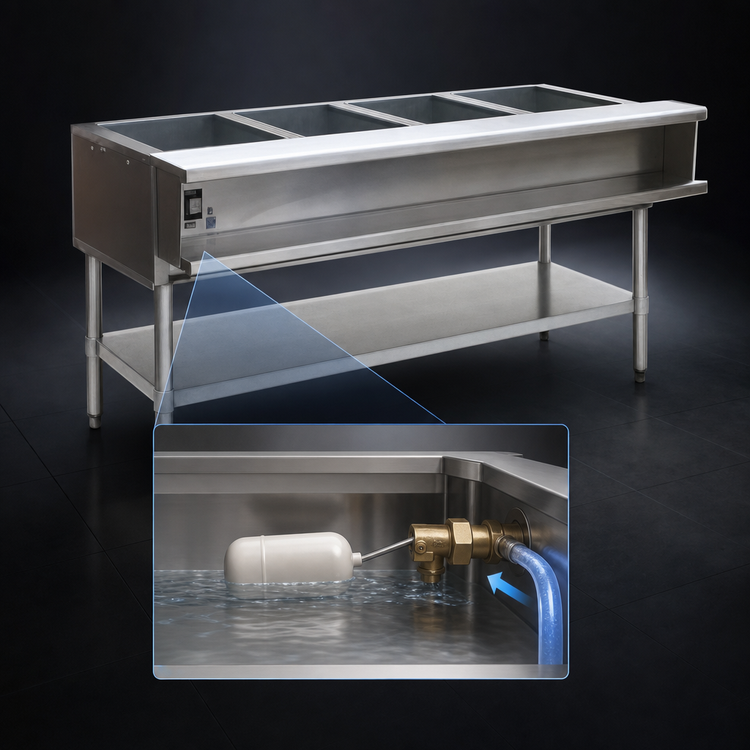

AutoFill Water System

The AutoFill system fills and maintains the proper water level in all wells.

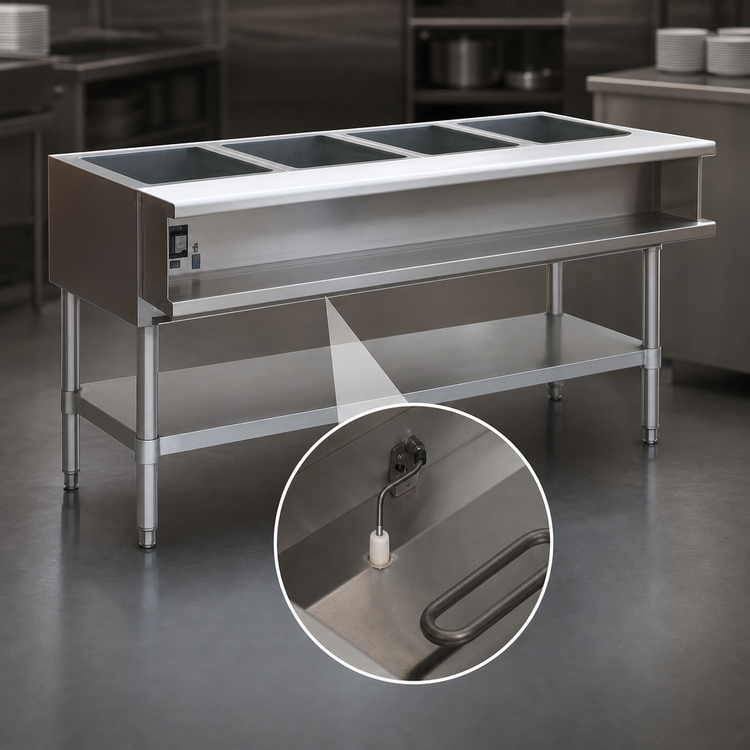

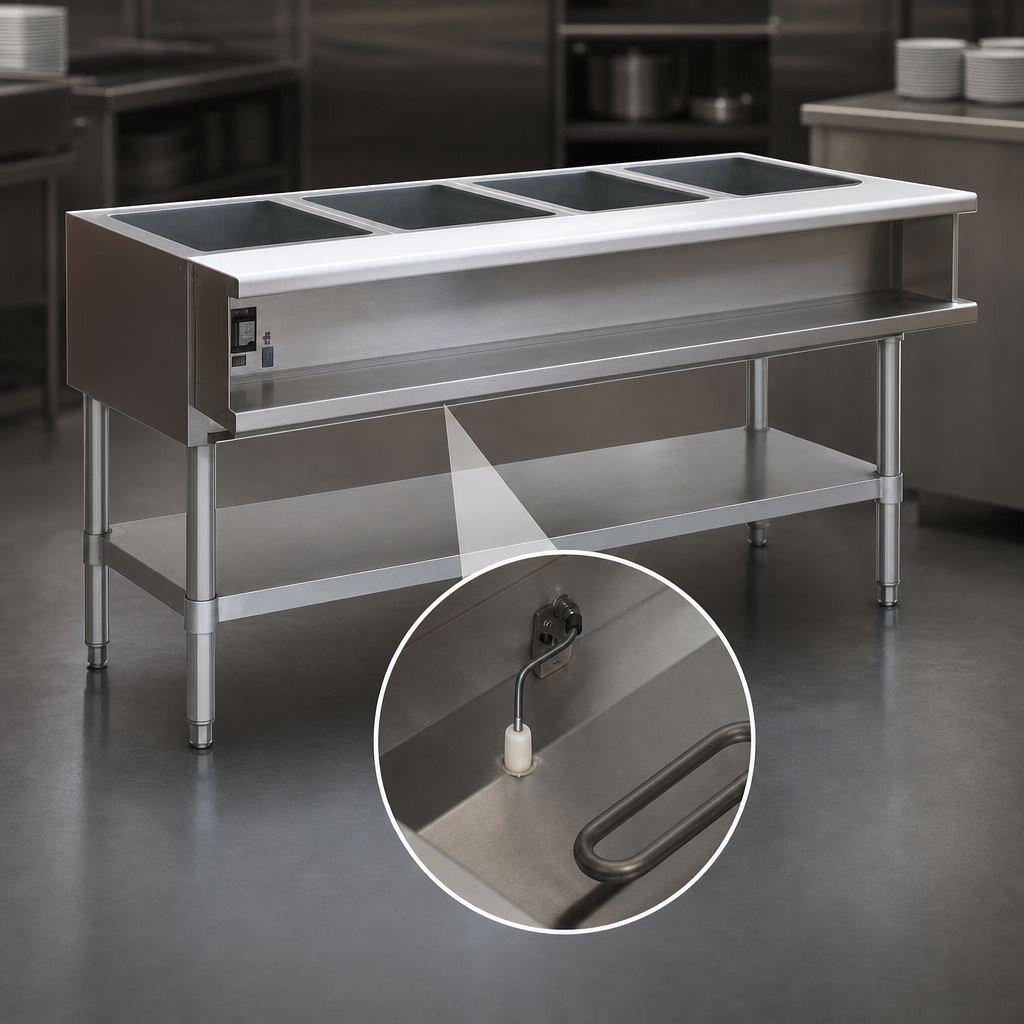

Low-Water Cutoff

Automatic low-water cutoff includes a built-in manual reset button.

Thermostatic Temperature Control

The water bath uses thermostatic temperature control.

Stainless Steel Water Pan

The unit has a stainless steel water pan.

Polyethylene Cutting Board

An 8 in polyethylene cutting board is provided.

Stainless Steel Plate Shelf

A stainless steel plate shelf is provided.

Field Wiring

Wiring terminates in a junction box and requires field wiring.

Adjustable Feet

The unit includes adjustable feet.

Frequently Asked Questions

It is rated 208 Volts, 4 kW, 19.2 Amps, 60 Hz, single phase, and requires field wiring to a junction box.
Its four openings accommodate 12 x 20 in steam table pans.
It has an automatic low-water cutoff with a built-in manual reset button.
The AutoFill water system fills and maintains the proper water level in all wells; its switch can be turned off when automatic filling is not desired.
The product measures 63 in wide by 30 in deep by 34 in high and weighs 146 lb.
The installation instructions call for a continuous flowing hot water source, an overflow drain connection, and the proper power source.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
