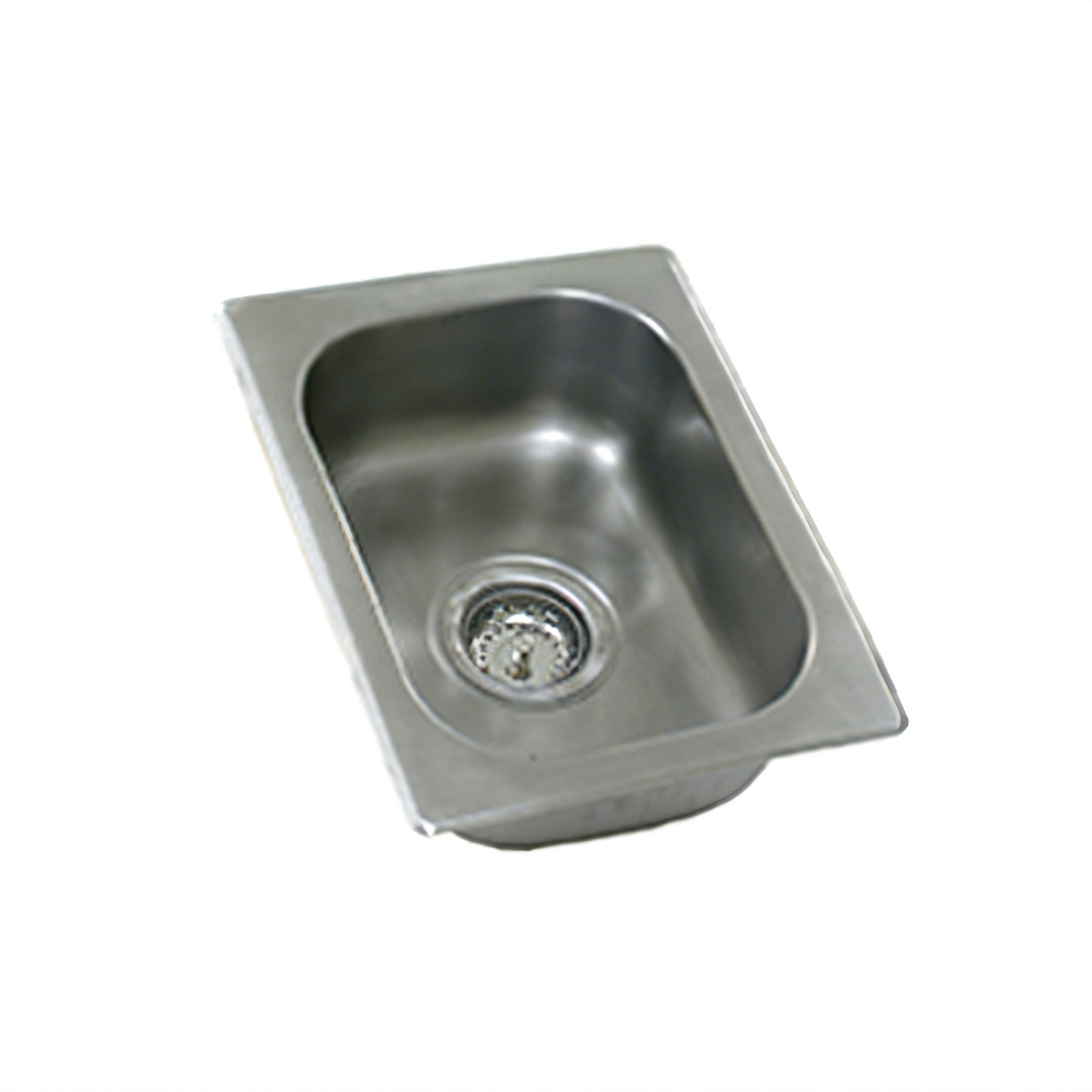

Eagle Group Self-Rimming One-Compartment Drop-In Sink with No Deck, 16 x 20 x 13.5 Inch Bowl

18-Gauge 304 Stainless Steel, Top or Bottom Mount

A durable, no-deck countertop sink that delivers a clean built-in look and flexible top or bottom mounting.

  • Self-rimming drop-in sink with no deck for a clean countertop installation.
  • One compartment with a 16" x 20" x 13.5" bowl and no drainboards.
  • 18-gauge 304 stainless steel construction for durability and corrosion resistance.
  • Includes a 3.5" basket drain with a 1.5" outlet.
  • Can be top-mounted or bottom-mounted; bottom mount uses kit 362188 sold separately.
  • 1.375" trim on all four sides and positive hold-down tabs help secure the sink.

Overall Dimensions:

18.5"W x 22.38"D

Product Weight:

27.0 lb

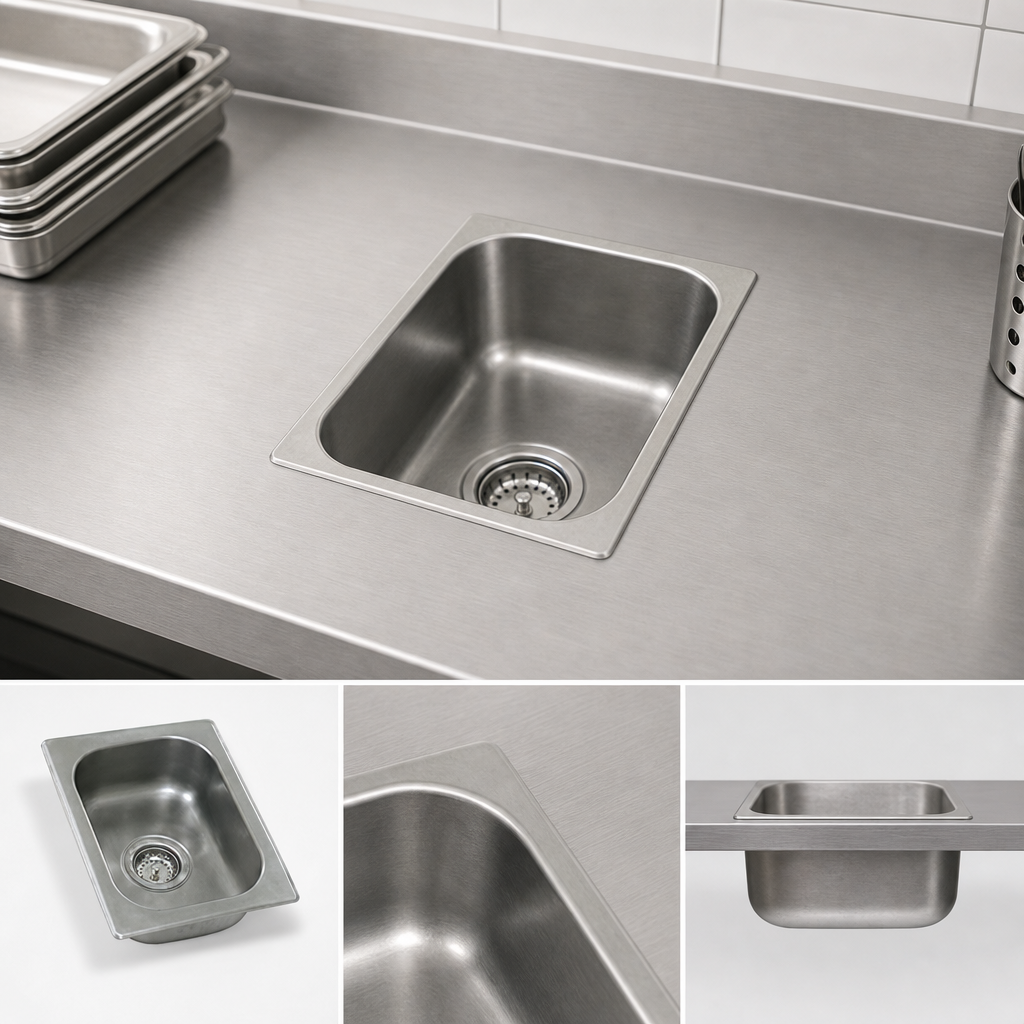

No Deck Design

Self-rimming sink installs cleanly into a countertop without a rear deck.

Deep-Drawn Bowl

Deep-drawn coved bowl construction with large radius corners helps simplify cleaning.

Single-Compartment Layout

One bowl design is well suited for compact hand-wash or prep sink applications.

304 Stainless Steel Construction

18-gauge type 300 series stainless steel provides durability and corrosion resistance.

1.375-Inch Trim Flange

Trim on all four sides helps create a secure, finished fit in the countertop cutout.

Basket Drain Included

Includes a 3.5-inch basket drain with a 1.5-inch outlet.

Top or Bottom Mount

Can be installed on top of or beneath the countertop; bottom mount requires kit 362188, sold separately.

Positive Hold-Down Tabs

Twist-tabs help secure top-mount installations on countertops up to 1 inch thick.

Type Drop-In Sink
Style Self-Rimming
Installation Type Countertop
Compartments 1
Material 304 Stainless Steel
Bowl Width 16 Inches
Bowl Length 20 Inches
Bowl Depth 13.5 Inches
Trim Width 1.375 Inches
Drain Connection Size 1.5 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 19 Inches
Shipping Depth 23 Inches
Shipping Weight 27 Pounds

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Installation sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It can be mounted on the top or bottom of the countertop. Bottom mounting requires kit 362188, sold separately.
The bowl measures 16" wide x 20" front-to-back x 13.5" deep.
Yes. It includes a 3.5" basket drain with a 1.5" outlet.
It is constructed from 18-gauge 304 stainless steel.
The positive hold-down clamping tabs are designed for countertops up to 1 inch thick.
