Key specifications
- Amps
- 19.8 Amps
- Phase
- 1-Phase
- Dimensions
- 81.5"W × 32.25"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model
Spec sheet

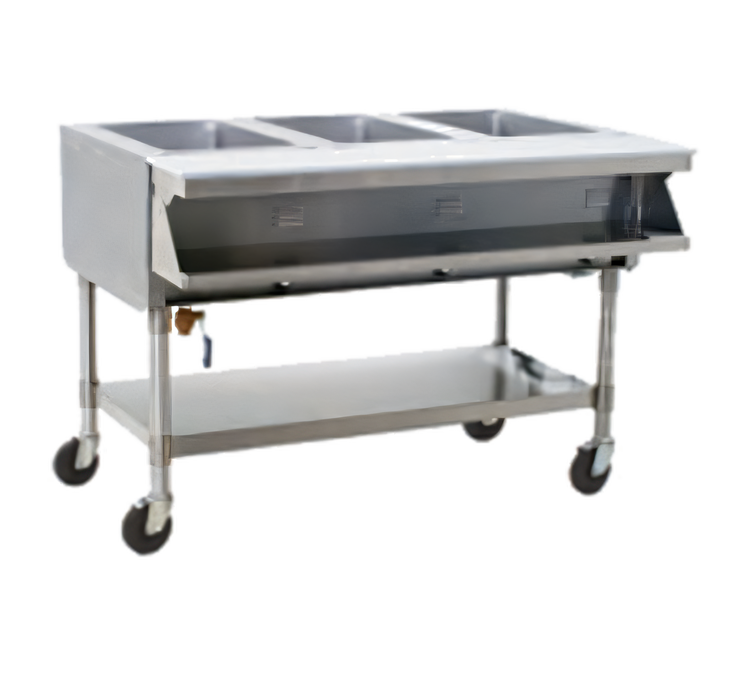

Eagle Group SPHT5-240 5-Pan Mobile Sealed-Well Steam Table
- 208 V · 1-phase · 17.2 A
- 208 V · 3-phase · 11.9 A
- 240 V · 1-phase · 19.8 A
- 240 V · 3-phase · 13.7 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Portable electric hot food table with an open base and five 12 x 20-inch stainless steel sealed wells for wet or dry operation.
- Individual infinite controls provide high, low, and eight additional temperature settings.
- Each well has a 3/4-inch drain connected to a drain manifold with valve.
- Includes a removable polyethylene cutting board, stainless steel dish shelf, and adjustable stainless steel undershelf.
- Built with a highly polished 430 stainless steel top and body, tubular stainless steel legs, and 4-inch swivel casters.
The unit operates at 4,750 watts, 240 volts, single-phase, and includes a NEMA 6-30P plug.
Overall Dimensions:
81.5"W x 32.25"D x 34.0"HProduct Weight:

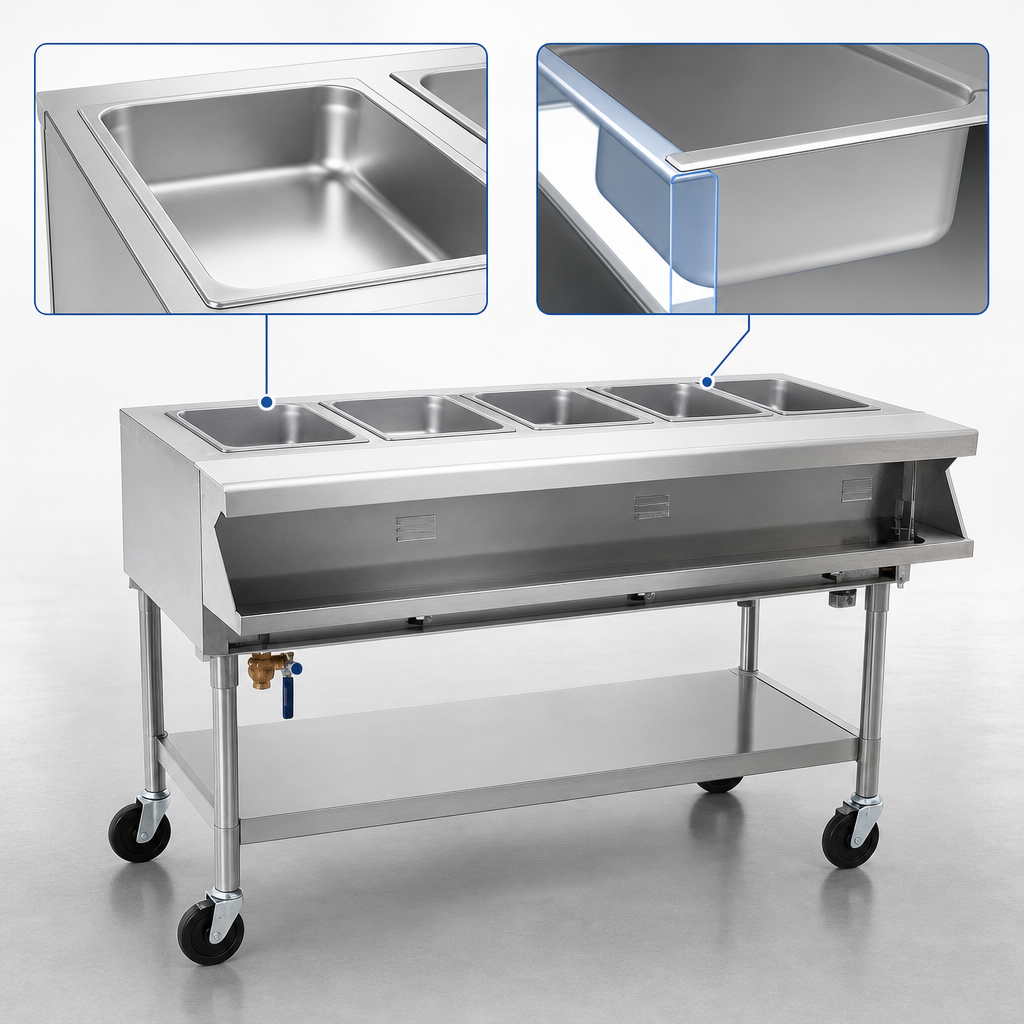

285.0 lbFive Sealed Wells
Provides five 12 x 20-inch stainless steel sealed wells for wet or dry operation.

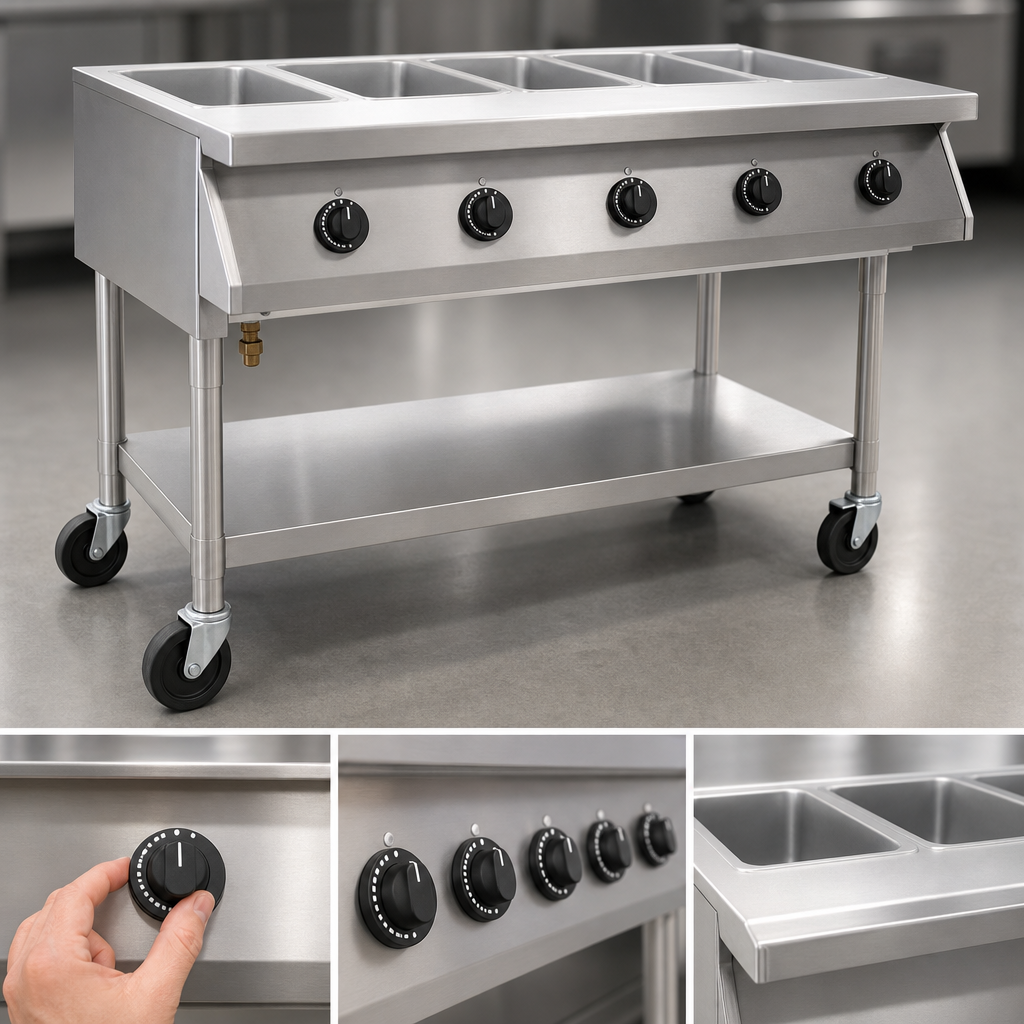

Individual Infinite Controls
Each well has an individual infinite control with high, low, and eight additional temperature settings.
Portable Open Base
The open-base table includes 4-inch swivel casters and a push bar attached to the end panel.
Drain Manifold
Each well has a 3/4-inch drain connected to a drain manifold with valve.
Included Work Surfaces
Includes a removable polyethylene cutting board, stainless steel dish shelf, and adjustable stainless steel undershelf.
Stainless Steel Construction
The top and body are made from highly polished 430 stainless steel.
Electrical Configuration
Uses 4,750 watts at 240 volts, 60 Hz, single-phase, with 19.8 amps and a NEMA 6-30P plug.
