Key specifications
- Amps
- 15.8 Amps
- Phase
- 1-Phase
- Dimensions
- 66.0"W × 32.25"D × 34.0"H
- Type
- Hot Food Table
- Style
- Portable Open Base
- Installation Type
- Floor Model
Spec sheet
Eagle Group SPHT4-240 4-Pan Sealed-Well Steam Table
- 120 V · 1-phase · 25 A
- 208 V · 1-phase · 13.7 A
- 240 V · 1-phase · 15.8 A
- 240 V · 3-phase · 10.5 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

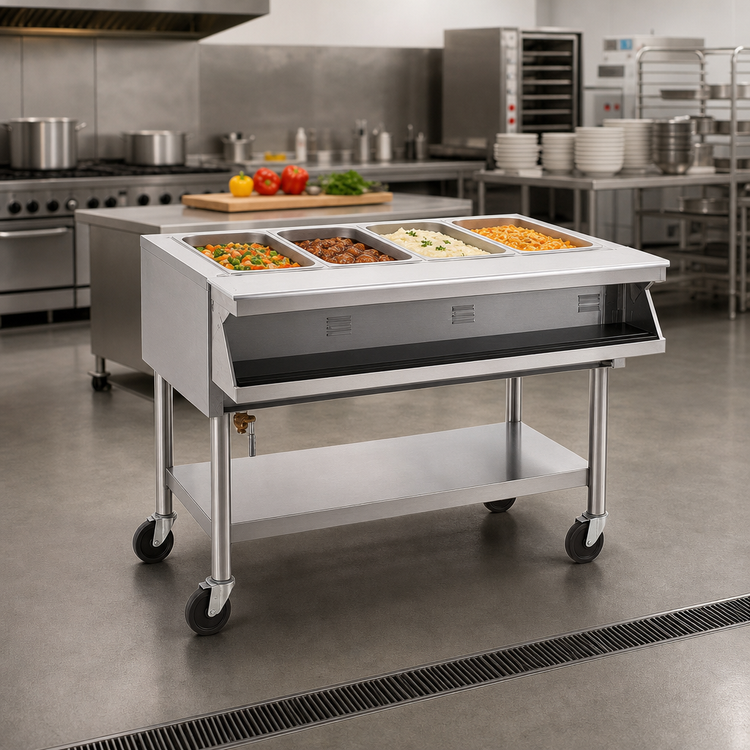

The Eagle Group SPHT4-240 is a portable electric hot food table with an open base and four 12 in x 20 in stainless steel sealed wells.
It supports wet or dry operation with individual infinite controls, four 3/4 in drains, and a drain manifold with valve. The highly polished 430 stainless steel top and body include a removable polyethylene cutting board, stainless steel dish shelf, adjustable stainless steel undershelf, push bar, and swivel casters.
This floor-model unit operates at 240 Volts, 3.8 kW, 15.8 Amps, 60 Hz, 1-Phase, with a NEMA 6-20P plug.
Overall Dimensions:
66.0"W x 32.25"D x 34.0"HProduct Weight:
227.0 lbSealed Wells

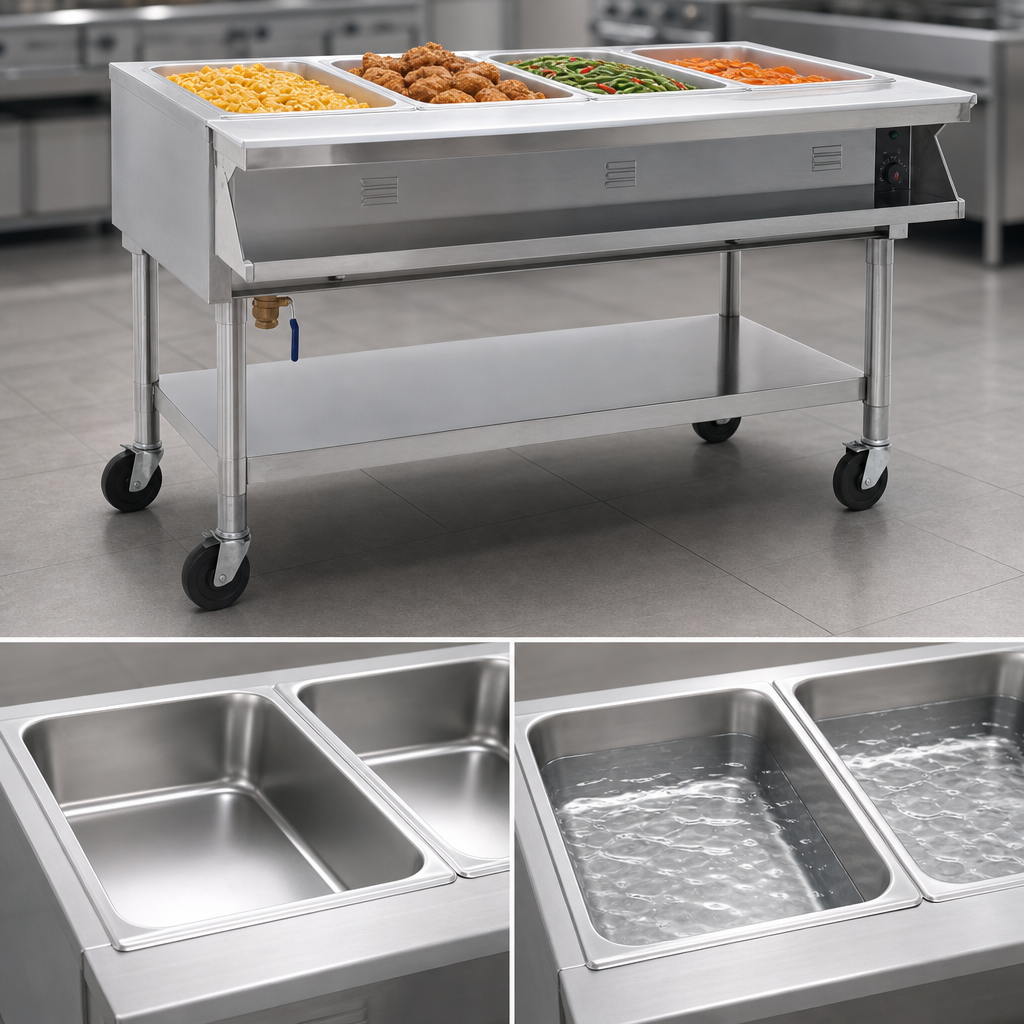

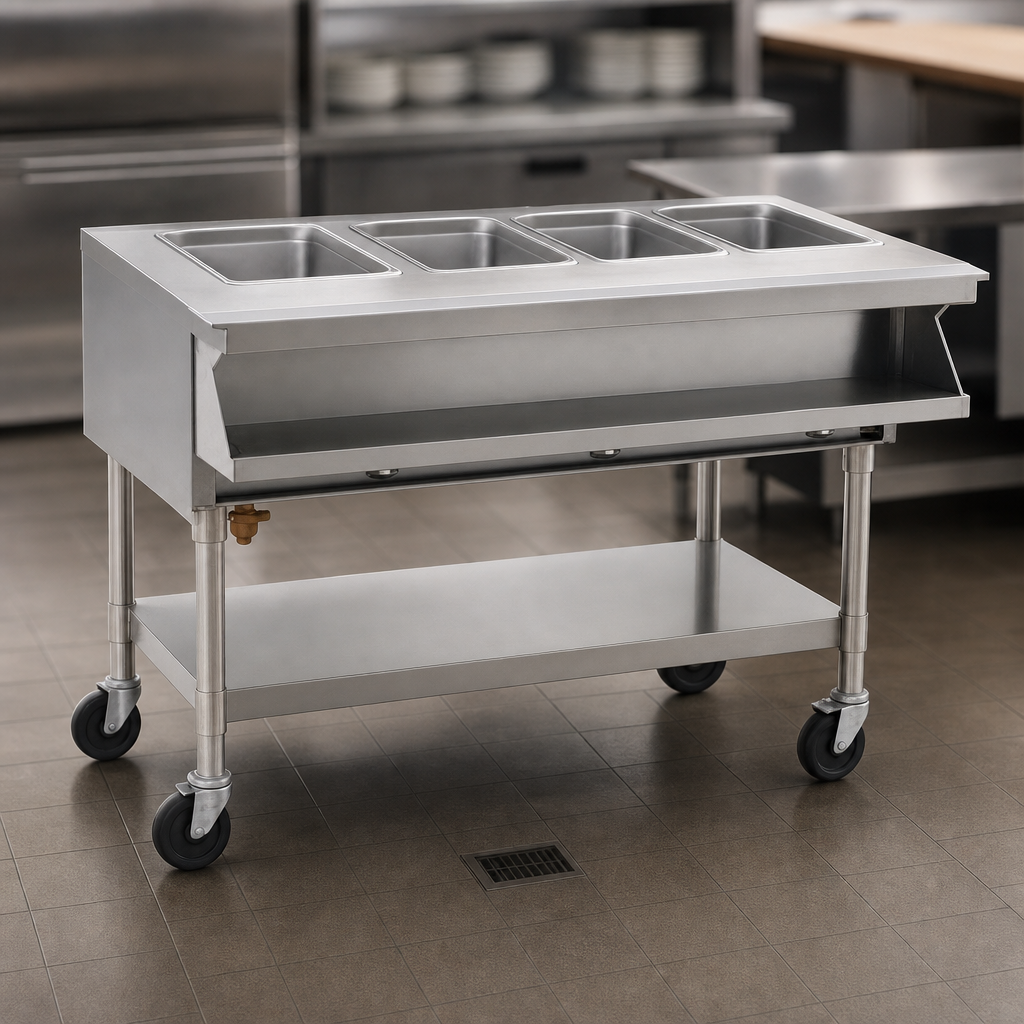

Four 12 in x 20 in stainless steel sealed wells support wet or dry operation.
Individual Controls
Each well has an individual infinite control.
Drainage
Four 3/4 in drains connect to a drain manifold with valve.
Open Base
The open base includes an adjustable stainless steel undershelf and stainless steel dish shelf.
Stainless Steel Construction
The top and body are made from highly polished 430 stainless steel.
Mobility
The portable unit has 4 in swivel casters and an attached push bar.
Included Cutting Board
A removable polyethylene cutting board is included.
Electrical Configuration
Operates at 240 Volts, 3.8 kW, 15.8 Amps, 60 Hz, 1-Phase, with a NEMA 6-20P plug.
