Key specifications
- Amps
- 11.9 Amps
- Phase
- 1-Phase
- Dimensions
- 50.5"W × 32.25"D × 34.0"H
- Type
- Hot Food Table
- Style
- Mobile Open Base
- Installation Type
- Floor Model
Spec sheet

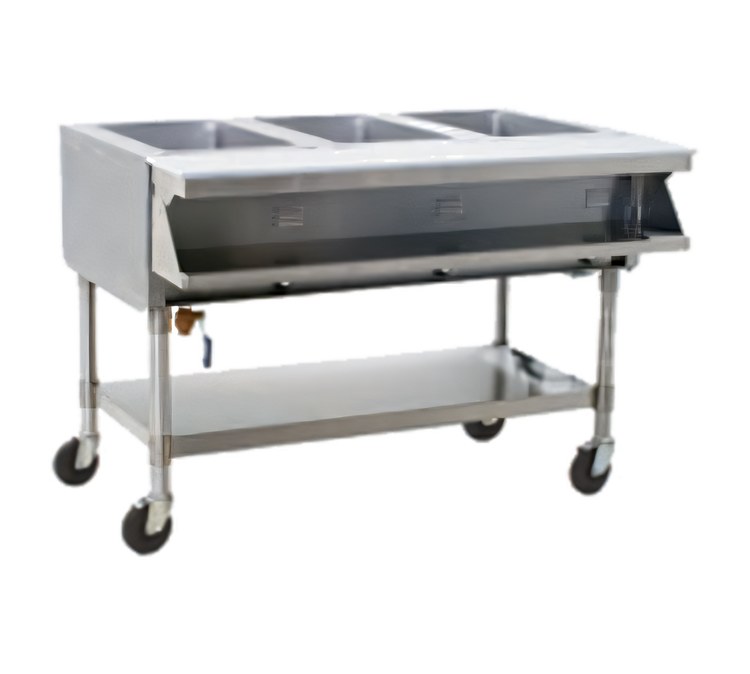

Eagle Group SPHT3-240 3-Pan Mobile Sealed-Well Steam Table
- 120 V · 1-phase · 18.8 A
- 208 V · 1-phase · 10.3 A
- 208 V · 3-phase · 6 A
- 240 V · 1-phase · 11.9 A
- 240 V · 3-phase · 6.9 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Eagle Group SPHT3-240 is a mobile electric hot food table with an open base and three sealed wells. It is specified for wet or dry operation and has an individual infinite control for each well.
- Three 12 in x 20 in sealed wells with 304 stainless steel construction and 3/4 in drains.
- Top and body are highly polished 430 stainless steel.
- Includes a removable polyethylene cutting board, stainless steel dish shelf, and adjustable stainless steel undershelf.
- Portable design includes 4 in swivel casters and a push bar attached to the end panel.
- Electrical configuration is 240 Volts, 2.85 kW, 11.9 Amps, 60 Hz, single-phase, with a NEMA 6-15P plug.
Overall Dimensions:
50.5"W x 32.25"D x 34.0"HProduct Weight:

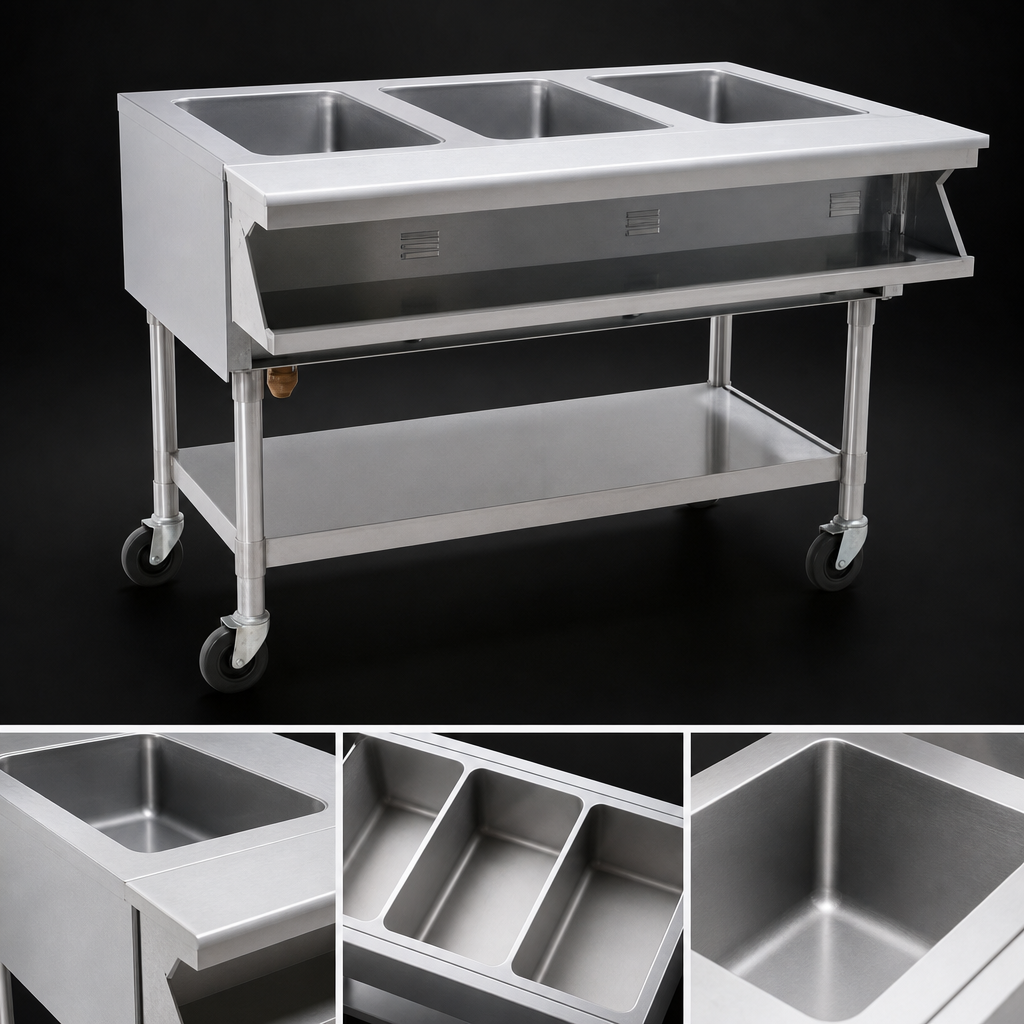

155.0 lbThree Sealed Wells
Three 12 in x 20 in sealed wells are constructed from 304 stainless steel.

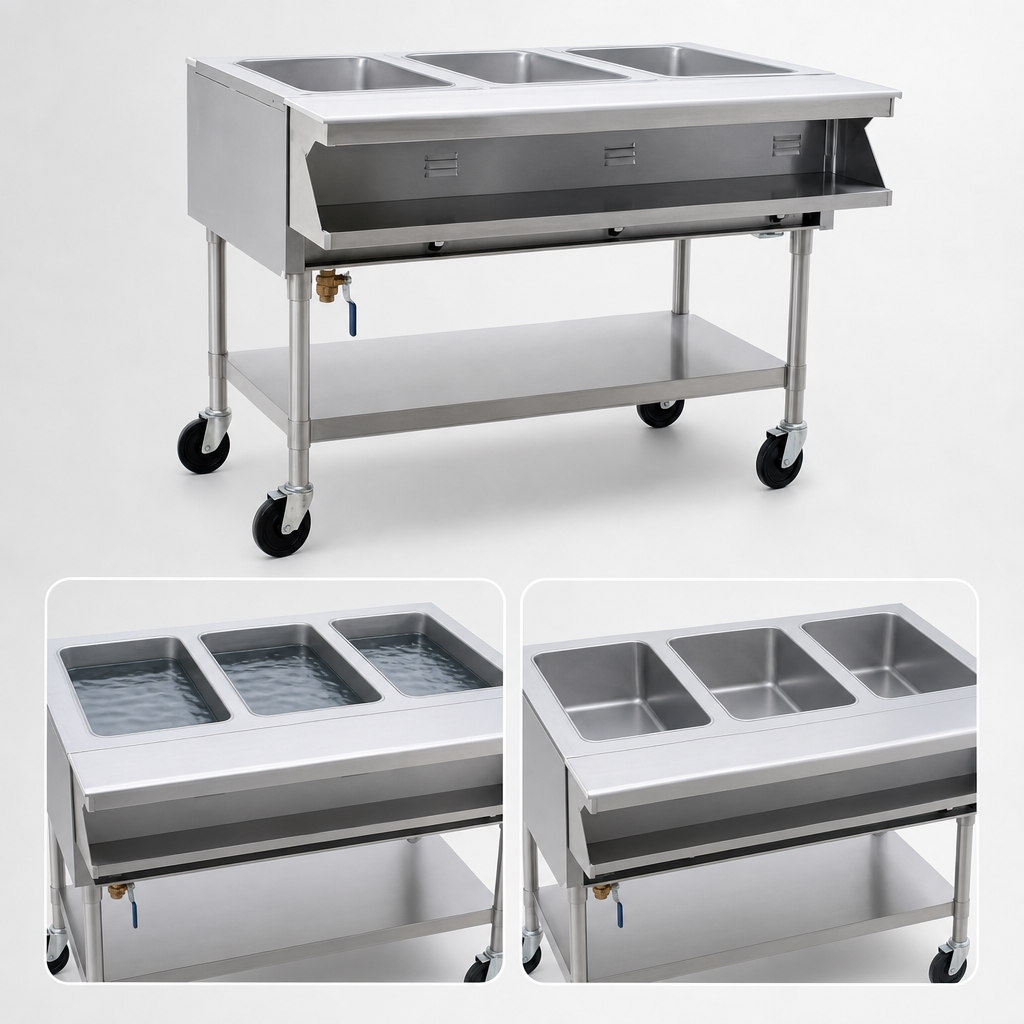

Wet or Dry Operation
The wells are specified for wet or dry operation.
Individual Infinite Controls
Each well has an individual infinite control with high and low selections plus eight other temperature settings.
Drain Manifold
Each well has a 3/4 in drain connected to a common drain manifold with valve.
Stainless Steel Construction
The top and body are highly polished 430 stainless steel, while the heat compartments are 304 stainless steel.
Mobile Design
The portable unit has 4 in swivel casters and a push bar attached to the end panel; two casters have brakes.
Included Work Surfaces
A removable polyethylene cutting board, stainless steel dish shelf, and adjustable stainless steel undershelf are furnished.
