Key specifications
- Amps
- 18.8 Amps
- Phase
- 1-Phase
- Dimensions
- 50.5"W × 32.25"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model
Spec sheet
Eagle Group SPHT3-120 Mobile 3-Pan Hot Food Table
- 120 V · 1-phase · 18.8 A
- 208 V · 1-phase · 10.3 A
- 208 V · 3-phase · 6 A
- 240 V · 1-phase · 11.9 A
- 240 V · 3-phase · 6.9 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

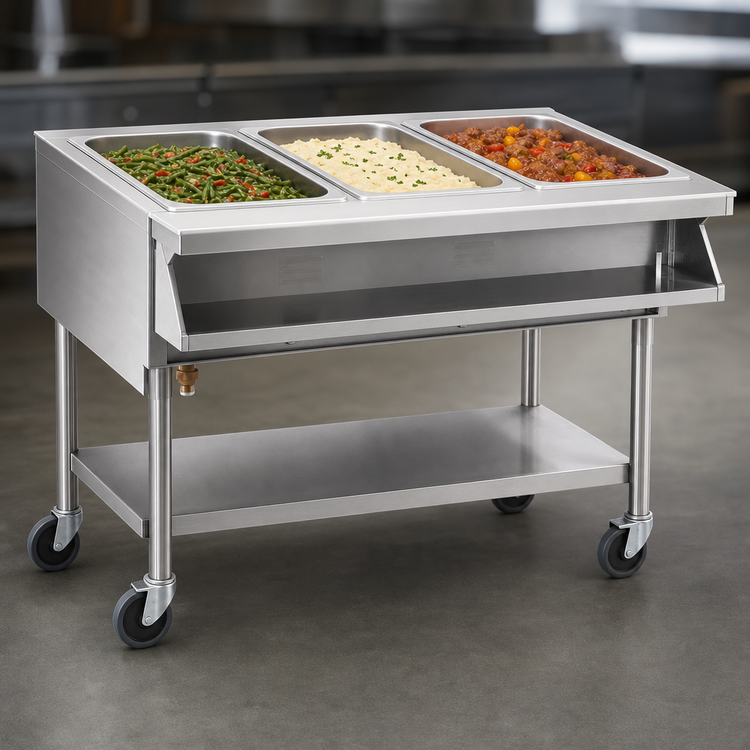

The Eagle Group SPHT3-120 is a mobile electric hot food table with an open base and three stainless steel sealed wells.
- Three sealed wells: Includes three 12 x 20-inch wells for wet or dry operation.
- Individual controls: Each well has an individual infinite control.
- Included components: Removable 8-inch-deep polyethylene cutting board, stainless steel dish shelf, and adjustable stainless steel undershelf.
- Mobile design: Includes 4-inch swivel casters and an attached push bar.
- Drainage: Three 3/4-inch drains connect to a drain manifold with valve.
- Construction: Highly polished 430 stainless steel top and body.
The unit measures 50.5 inches wide by 32.25 inches deep by 34 inches high and operates at 120 volts, 2,250 watts, 18.8 amps, 60 Hz, single-phase with a NEMA 5-30P plug.
Overall Dimensions:
50.5"W x 32.25"D x 34.0"HProduct Weight:
155.0 lbThree Sealed Wells

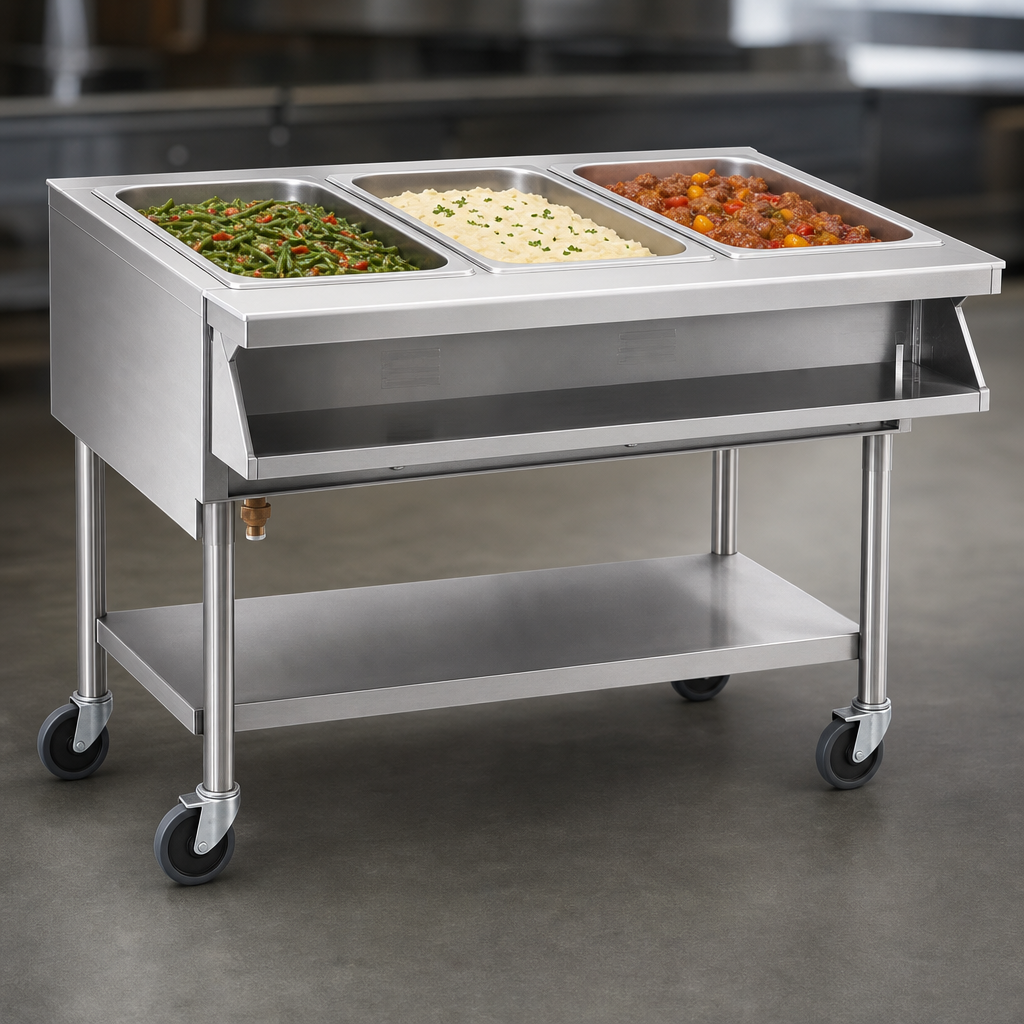

Includes three 12 x 20-inch stainless steel sealed wells.

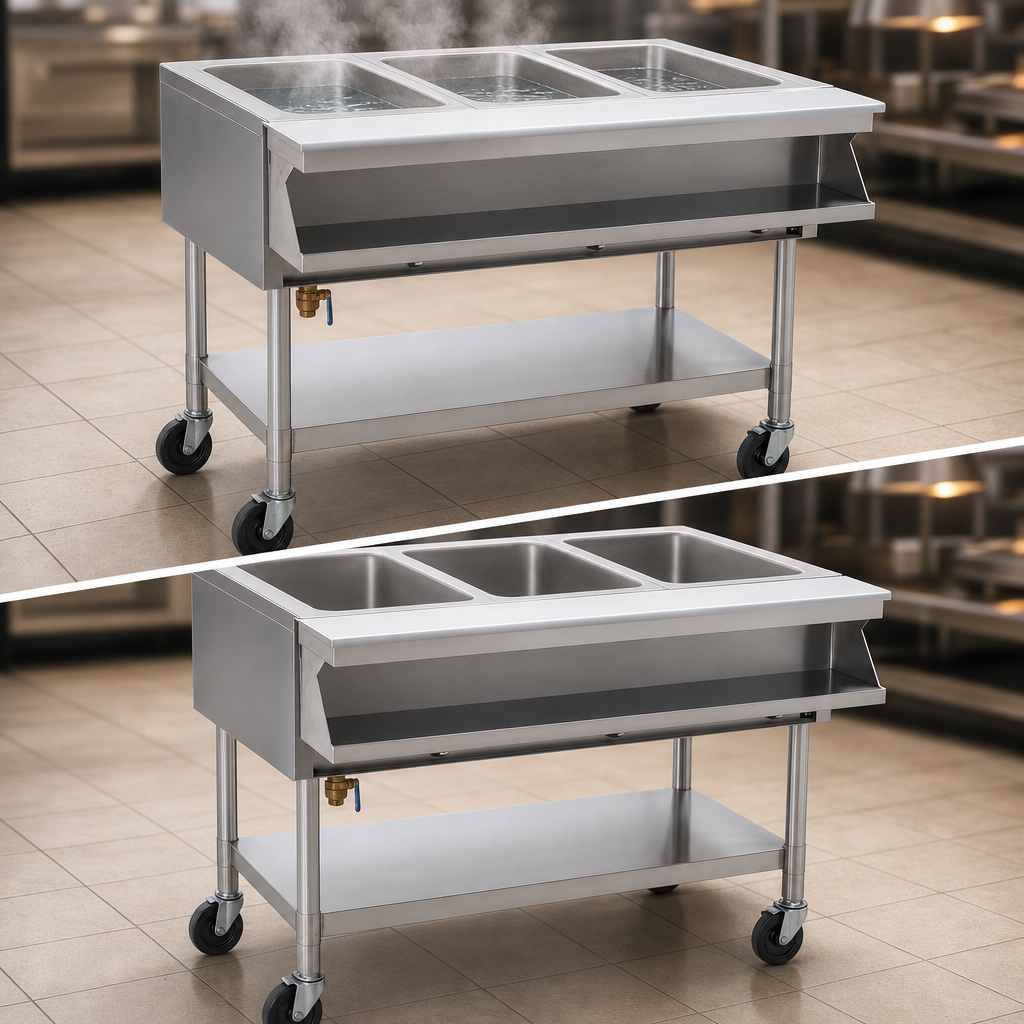

Wet or Dry Operation
The wells support wet or dry operation.
Individual Infinite Controls
Each well has an individual infinite control.
Mobile Open Base
The open-base unit includes 4-inch swivel casters and an attached push bar.
Drain Manifold
Three 3/4-inch drains connect to a drain manifold with valve.
Included Work Surfaces
Includes a removable 8-inch-deep polyethylene cutting board, stainless steel dish shelf, and adjustable stainless steel undershelf.
Stainless Steel Construction
The top and body are highly polished 430 stainless steel.
Electrical Configuration
Operates at 120 volts, 2,250 watts, 18.8 amps, 60 Hz, single-phase with a NEMA 5-30P plug.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
