Eagle Group SGDI-6-240T6-D 6-Well Electric Drop-In Hot Food Well Unit with Drain

Full-Size, 240V, Single Phase, Individual Thermostatic Controls

Keep your hot foods at perfect serving temperatures with this durable and versatile 6-well electric drop-in hot food well unit, designed for seamless integration into your countertop.

  • Designed for wet or dry operation to accommodate various food types and prevent food from drying out.
  • Features six individual full-size (12" x 20") wells, each with its own thermostatic control.
  • Constructed with a heavy gauge 300 series stainless steel top and an insulated galvanized steel body for durability and efficient heat retention.
  • Equipped with a convenient drain for easy cleaning and maintenance.
  • Recessed control panel with individual thermostat controls and power-on indicator lights for precise temperature management.
  • UL and NSF certified, ensuring compliance with commercial safety and sanitation standards.

Product Weight:

131.0 lb

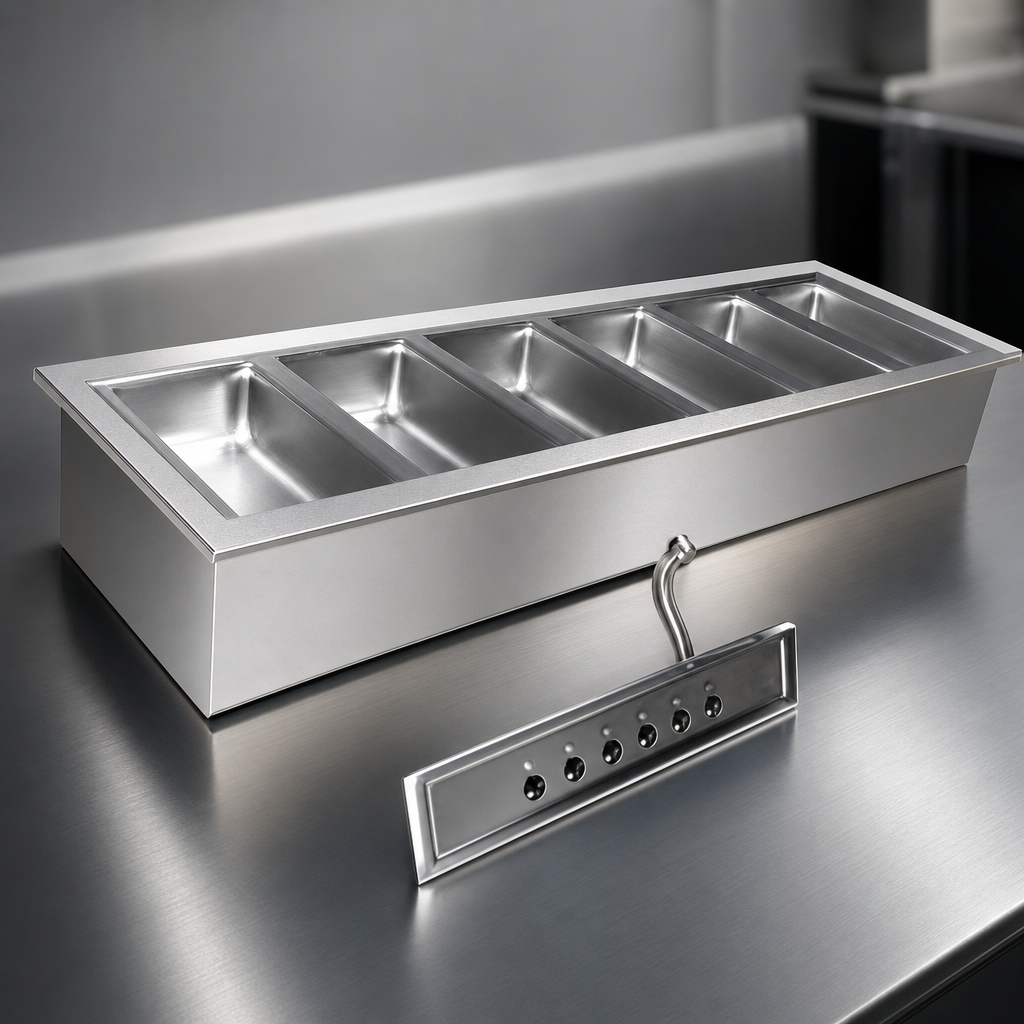

Heavy Gauge Stainless Steel Top

Constructed from durable 300 series stainless steel, providing a robust and long-lasting surface for commercial kitchen environments.

Heavy Gauge Stainless Steel Top

Insulated Galvanized Steel Body

The unit's body is enclosed with galvanized steel and lined with 2" (51mm) fiberglass thermal wool insulation to ensure efficient heat retention and energy savings.

Deep-Drawn Stainless Steel Wells

Heat compartments are constructed of one-piece deep-drawn 304 series 18-8 stainless steel with coved corners for easy cleaning and maintenance.

Individual Thermostatic Controls

Each of the six wells features its own thermostatic control with a positive 'Off' position and an amber light to signal a power-on condition, recessed into a one-piece, front-mounted control panel.

Wet or Dry Operation

This versatile unit is suitable for both wet and dry heating applications, offering flexibility in how different foods are held at optimal serving temperatures.

Integrated Drain with Ball Valve

Equipped with a drain connected by ¾"-diameter copper pipe fittings to a single ball valve, which can be field-installed to the operator's left or right for convenient water removal.

Bottom-Serviceable Heating Elements

Tubular heating elements are securely clamped to the underside of the wells, designed for service through the bottom of the unit.

Flexible Control Conduit

A 24" (610mm) flexible conduit connects the body enclosure and control panel, allowing for easier positioning and installation of the control panel.

Field-Convertible to 3-Phase

The unit is shipped wired for single-phase operation but can be easily converted to three-phase operation in the field by a qualified electrician.

Type Hot Food Well Unit
Style Drop-In
Installation Type Drop-In
Pan Capacity 6 Full-Size (12" x 20") Pans
Wet or Dry Operation Wet or Dry
Controls Individual Thermostatic
Drain Connection Required
Water Connection Not Required
Material 300 Series Stainless Steel Top, Galvanized Steel Body
Interior Finish 304 Series 18-8 Stainless Steel
Insulation 2 Inches Fiberglass
Voltage 240 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 9.6 kW
Amps 40.0 Amps
Cord Length Field Wired (24 Inches Flexible Conduit)
Selling Unit Each
Units Per Case 1
Shipping Weight 131.0 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

12-month parts and labor warranty from shipment date, or 6 months from initial service date (whichever comes first).

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Autofill installation sheet PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes, the Eagle Group SGDI-6-240T6-D is designed for versatile wet or dry operation, allowing you to choose the best method for keeping your food hot and preventing it from drying out.
This unit requires 240 Volts, 60 Hz, single-phase power. It draws 40.0 Amps and has a total wattage of 9600 Watts. It is designed for field wiring.
No, this specific model comes with a standard drain, but the AutoFill® water system is an optional accessory that can be purchased and installed separately to automatically maintain water levels.
The SGDI-6-240T6-D unit features six individual openings, each measuring 12" x 20", designed to hold six full-size food pans.
The body of the unit is enclosed with galvanized steel and lined with 2" (51mm) fiberglass thermal wool insulation to ensure efficient heat retention.
Eagle Group provides a limited warranty for 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first, covering defects in materials and workmanship under normal use.
