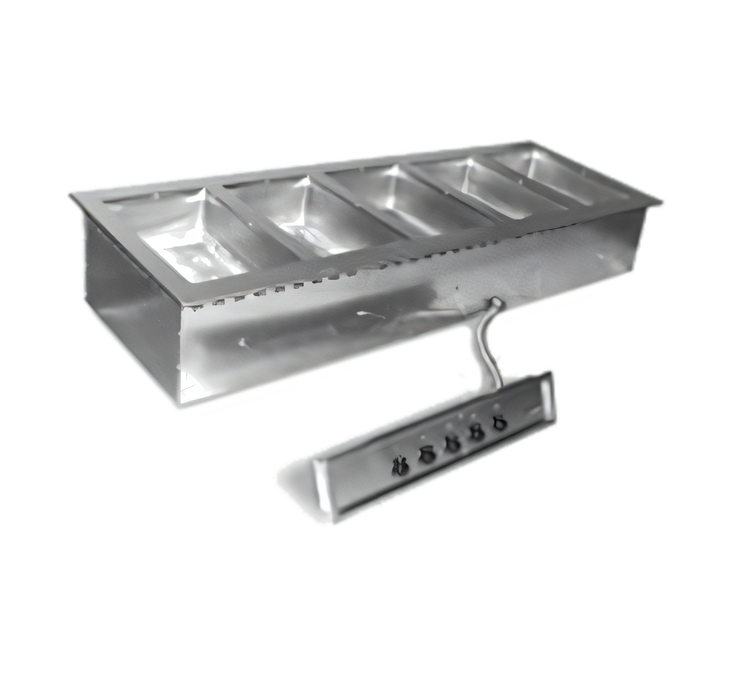

Eagle SGDI-5-240T-D 5-Well Electric Drop-In Hot Food Well Unit with Drain
Eagle SGDI-5-240T-D 5-Well Electric Drop-In Hot Food Well Unit with Drain
Five Full-Size Pan Capacity, 240V, Wet or Dry Operation
Designed for versatility and durability, this Eagle SGDI-5-240T-D drop-in hot food well unit ensures your food stays at optimal serving temperatures with independent control for each well.
- Accommodates five full-size 12" x 20" food pans, perfect for high-volume service.
- Individual thermostatic controls allow precise temperature management for each well.
- Heavy-gauge 300 series stainless steel top with a durable galvanized steel body ensures longevity.
- Equipped for both wet or dry operation to suit various food holding needs.
- Integrated drain with a ball valve simplifies cleaning and water removal.
- Fiberglass insulation in the body retains heat and improves energy efficiency.
- Recessed control panel with amber power-on lights for safe and intuitive operation.
Product Weight:

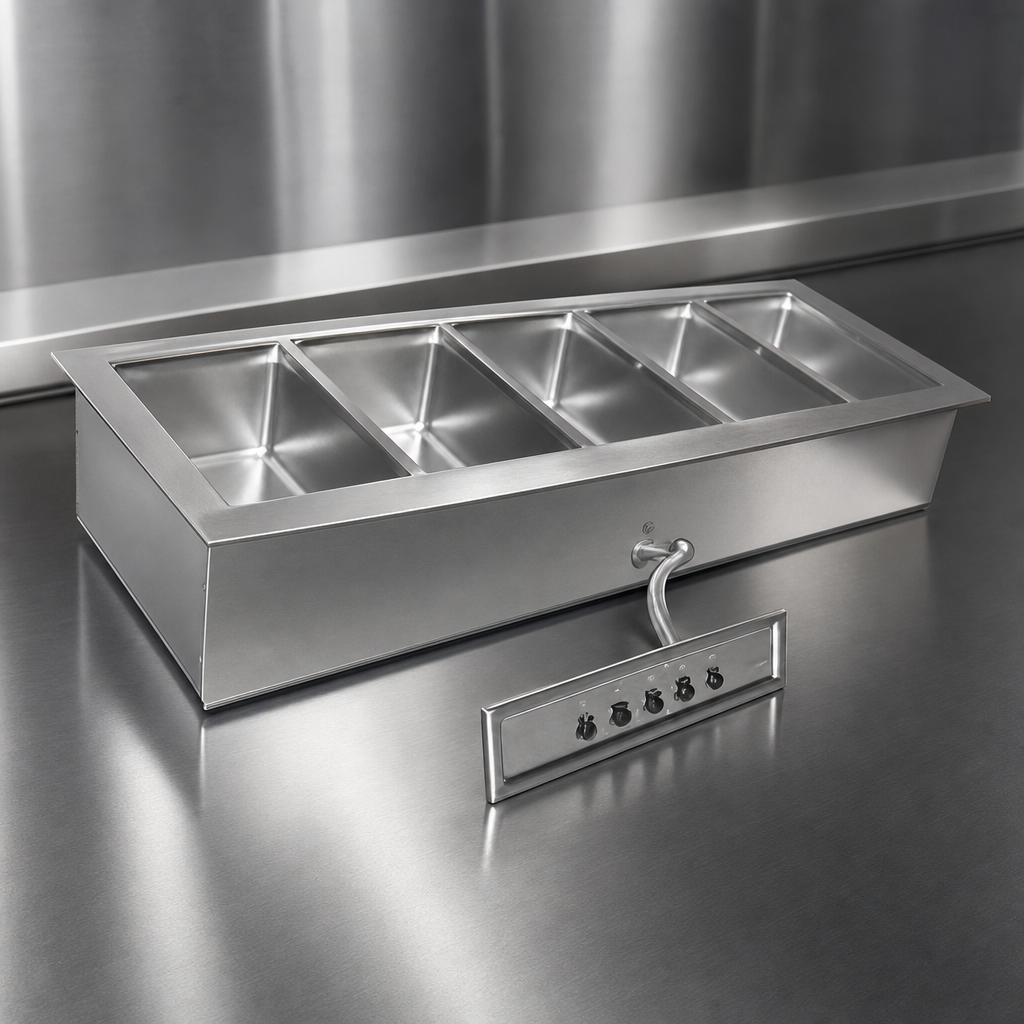

111.0 lbHeavy Gauge Stainless Steel Construction
Features a heavy gauge 300 series stainless steel top and a galvanized steel body with 2 inches of fiberglass insulation for durability and heat retention.
One-Piece Deep-Drawn Wells
Each heat compartment is constructed from one-piece deep-drawn 304 series 18-8 stainless steel with coved corners for easy cleaning and maintenance.
Individual Thermostatic Controls
Each well has its own thermostatic control with a positive 'Off' position, allowing for independent temperature management of different food items. An amber light indicates when power is on.
Wet or Dry Operation
Designed to operate efficiently with or without water, providing flexibility for different food holding applications. Wet operation with hot water improves heat distribution and prevents food from drying out.
Integrated Drain System
Units with drains are connected by 0.75-inch diameter copper pipe fittings to a single ball valve, which can be mounted to the operator's left or right for convenient water drainage.
Recessed Control Panel
Control knobs are recessed into a one-piece, front-mounted control panel, protecting them from accidental adjustments and spills.
Field-Convertible to Three-Phase
All multi-well units are shipped wired for single-phase operation but can be easily converted to three-phase operation in the field by an electrician.
Tubular Heating Elements
Tubular heating elements are securely clamped to the underside of the wells, allowing for easy service access through the bottom of the unit.
Certifications & Compliance
Warranty & Protection
12 months parts and labor warranty from date of shipment from factory, or 6 months from date first placed into service (whichever comes first).
