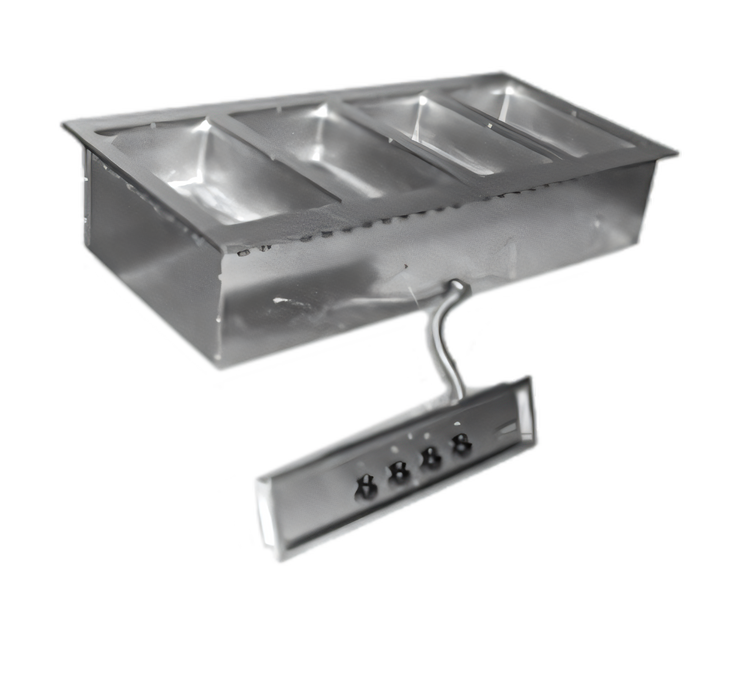

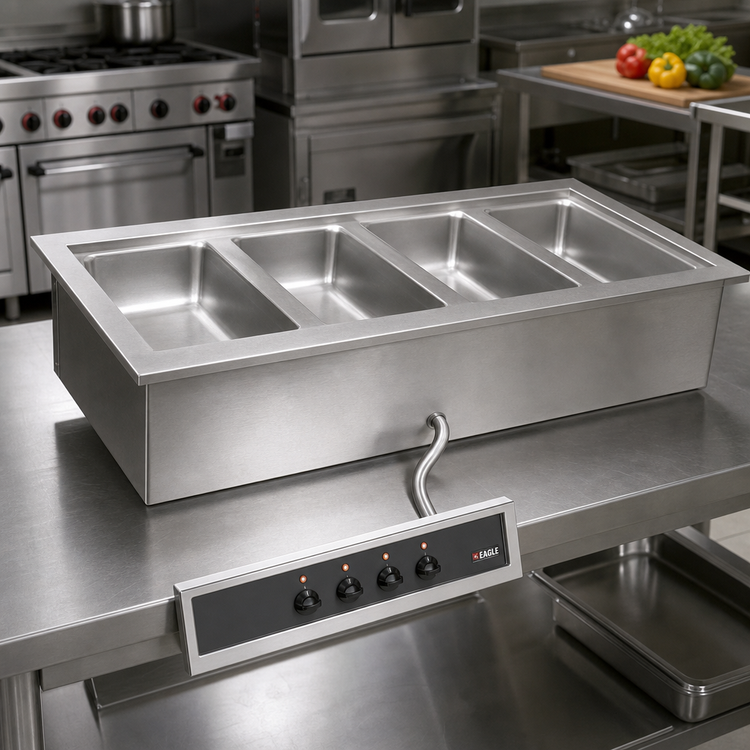

Eagle Group SGDI-4 Drop-In Electric Hot Food Well Unit with (4) Wells

Full-Size, 240V, Single Phase, Wet/Dry Operation

Keep a variety of hot foods at safe serving temperatures with this versatile, efficient four-well drop-in unit, perfect for buffets and serving lines.

  • Four individual 12" x 20" pan wells accommodate full-size food pans.
  • Designed for both wet and dry operation for maximum flexibility.
  • Independent thermostatic controls for each well ensure precise temperature management.
  • Durable 304 stainless steel wells and heavy-gauge stainless steel top withstand commercial use.
  • Fiberglass insulation maintains heat efficiency and reduces energy consumption.
  • Equipped with a drain for easy cleaning and water removal.

Product Weight:

91.0 lb

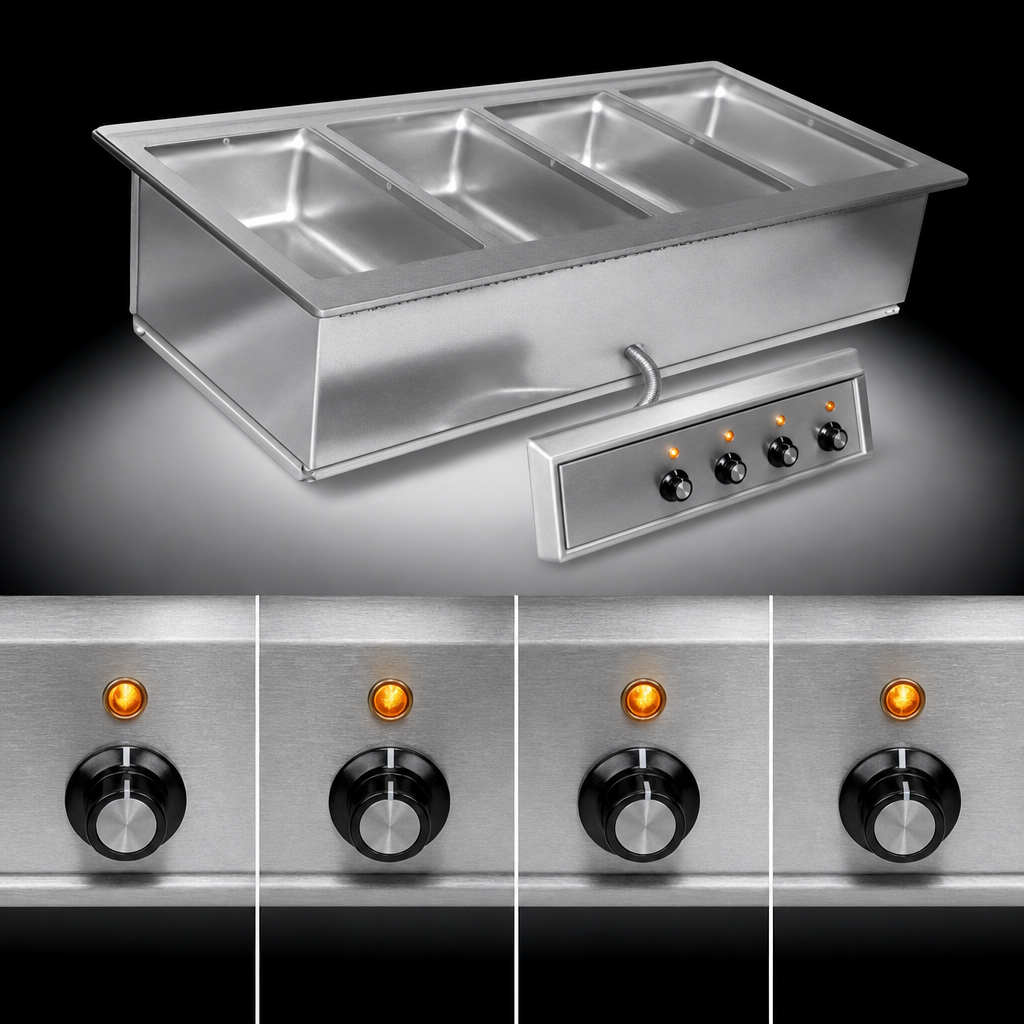

Individual Thermostatic Controls

Each well features its own thermostat with a positive "Off" position and an amber power-on light, allowing precise temperature management for different food items.

Individual Thermostatic Controls

Wet or Dry Operation

Versatile design supports operation with or without water, providing flexibility for various menu items and heating needs.

Deep-Drawn Stainless Steel Wells

One-piece, deep-drawn 304 series 18-8 stainless steel wells with coved corners ensure durability and easy cleaning.

Heavy Gauge Construction

Features a heavy gauge 300 series stainless steel top and a galvanized steel body with 2" fiberglass insulation for robust performance and heat retention.

Field-Installable Drain

Units include a ¾"-diameter copper pipe drain system with a single ball valve, which can be field-installed to the operator's left or right for convenience.

Field Convertible to Three-Phase

The unit is shipped wired for single-phase but can be easily converted to three-phase operation in the field (except for single-well units).

Type Hot Food Well Unit
Style Individual Pans
Installation Type Drop-In
Compartments 4
Pan Capacity 4 Full-Size Pans
Pan Size 12" x 20"
Controls Individual Thermostatic
Wet or Dry Operation Wet or Dry
Drain Connection Required
Drain Connection Size 3/4 Inch FNPT
Material Stainless Steel Top, Galvanized Steel Body
Interior Finish 304 Stainless Steel
Insulation 2 Inch Fiberglass
Voltage 240 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 6400 Watts
Amps 26.7 Amps
Selling Unit Each
Units Per Case 1
Shipping Weight 91.0 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Autofill installation sheet PDF Download PDF Installation & operation PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This unit is designed to hold four full-size (12" x 20") food pans.
Yes, this hot food well unit is designed for both wet and dry operation, offering versatility for various food holding needs.
The SGDI-4-240T6-D requires 240 Volts, 60 Hz, single-phase power, drawing 26.7 Amps and consuming 6400 Watts. It can also operate at 208 Volts with reduced wattage and amperage.
No, the AutoFill® Water System is an optional accessory for this unit, allowing for automatic water level maintenance in the wells.
Yes, all multi-well SGDI drop-in units, including this four-well model, are shipped wired for single-phase but can be easily converted to three-phase operation in the field by a qualified electrician.
