Eagle Group

Eagle Group 3-Well Drop-In Electric Hot Food Well with Drain, Wet/Dry, 120V

SKU: SGDI-3-120T-D
$3,988.23
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Eagle Group 3-Well Drop-In Electric Hot Food Well with Drain, Wet/Dry, 120V

Individual 12 x 20 Pan Openings, Thermostatic Controls, Direct-Wire

Keep three full-size pans hot and ready on a busy serving line with an insulated drop-in well built for wet or dry operation and precise individual temperature control.

  • Holds three individual 12 x 20 inch pans for flexible hot-holding service.
  • Wet or dry operation lets you match the menu and your serving style.
  • Individual thermostatic controls make it easy to manage each well.
  • Stainless steel top and wells with a galvanized insulated body improve durability and heat retention.
  • Drain-equipped design simplifies water removal and cleanup.
  • 120V, 60 Hz, single-phase, 3600W, direct-wire electrical connection.

Product Weight:

71.0 lb

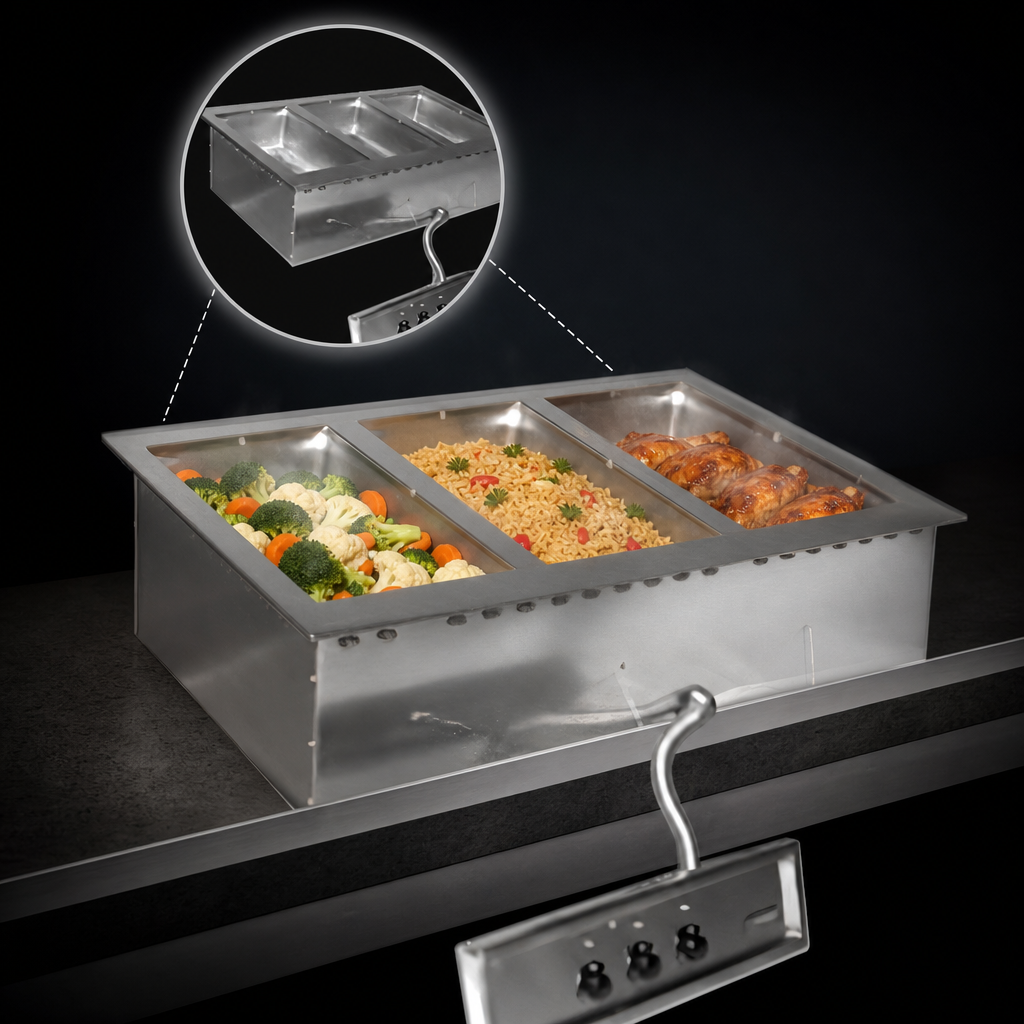

Three Individual Wells

Three separate 12 x 20 inch openings support buffet, cafeteria, and serving line applications.

Three Individual Wells

Wet or Dry Operation

Can be used with water for better heat distribution or run dry when needed.

Individual Thermostatic Controls

Each well has its own thermostat, positive OFF position, and amber power-on light.

Stainless Steel Top and Wells

Heavy-gauge 300 series stainless steel top and one-piece 304 stainless steel wells provide food-zone durability.

Insulated Galvanized Body

The galvanized body is lined with 2 inch fiberglass insulation to help retain heat.

Drain Manifold with Ball Valve

Units with drains connect to a single ball valve for easier emptying and maintenance.

Field-Wired Electrical Connection

The unit is designed for field wiring and all wiring terminates in a junction box.

Type Hot Food Well Unit
Style Individual Pans
Installation Type Drop-In
Compartments 3
Pan Capacity 3 Full-Size 12 x 20 Inch Pans
Pan Size 12 x 20 Inches
Controls Individual Thermostatic
Voltage 120 Volts
Amps 30.0 Amps
Watts 3.6 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type Field Wired
Water Connection Not Required
Drain Connection Size 3/4 Inch FNPT
Material Stainless Steel
Interior Finish 304 Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Weight 71 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Frequently Asked Questions

Yes. The documentation states that the unit is designed for wet or dry operation, and wet use is recommended for the best heat distribution.
It is designed for three individual 12 x 20 inch pans.
Yes. Units with drains connect to a single ball valve for draining.
This model is 120V, 60 Hz, single-phase, 3600W, and 30.0 amps, and it is designed for field wiring.
Yes. Each well has an individual thermostatic control with a positive OFF position and an amber power-on light.
Yes. The documentation lists an optional AutoFill water system accessory.
