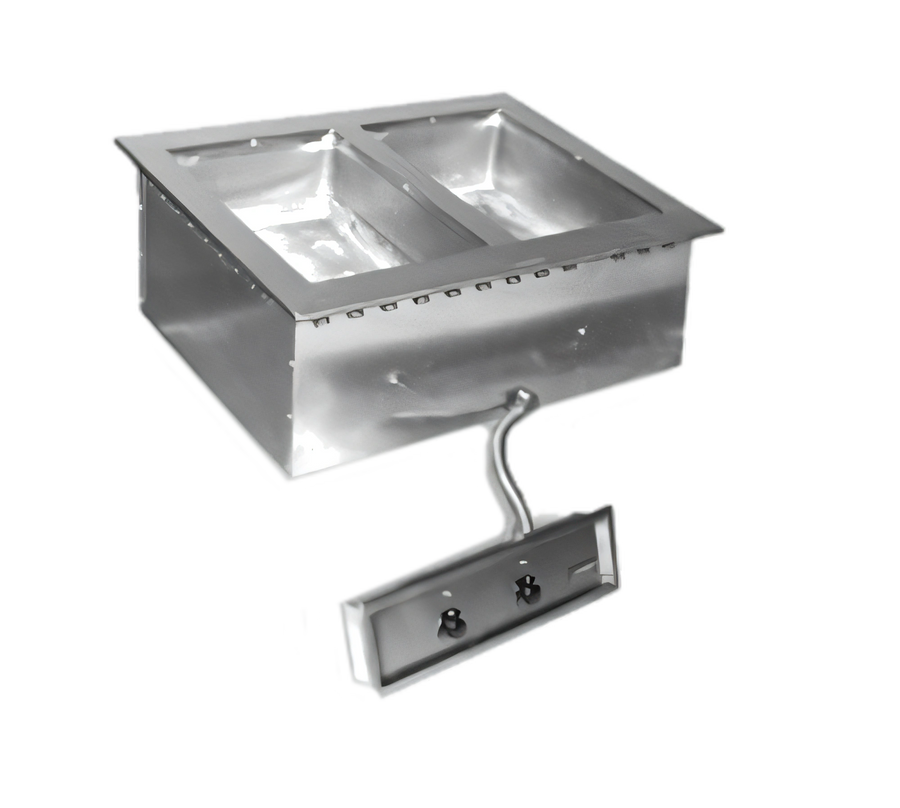

Eagle Group SGDI-2-240T6-D 2-Well Drop-In Electric Hot Food Well with Drain

Individual Pan Design, Wet or Dry Operation, 240V/60Hz

Keep two full-size pans hot and ready to serve with a durable, insulated drop-in well that supports both wet and dry holding.

  • Holds two full-size 12" x 20" pans in individual wells for flexible buffet service.
  • Wet or dry operation gives you holding versatility for different menu items.
  • Stainless steel top and insulated galvanized body help durability and heat retention.
  • Individual thermostatic controls with power-on indicator light simplify operation.
  • Drain-equipped design supports easier water management and cleanup.
  • 240V single-phase unit can be operated at 208V with reduced amperage and wattage.

Product Weight:

51.0 lb

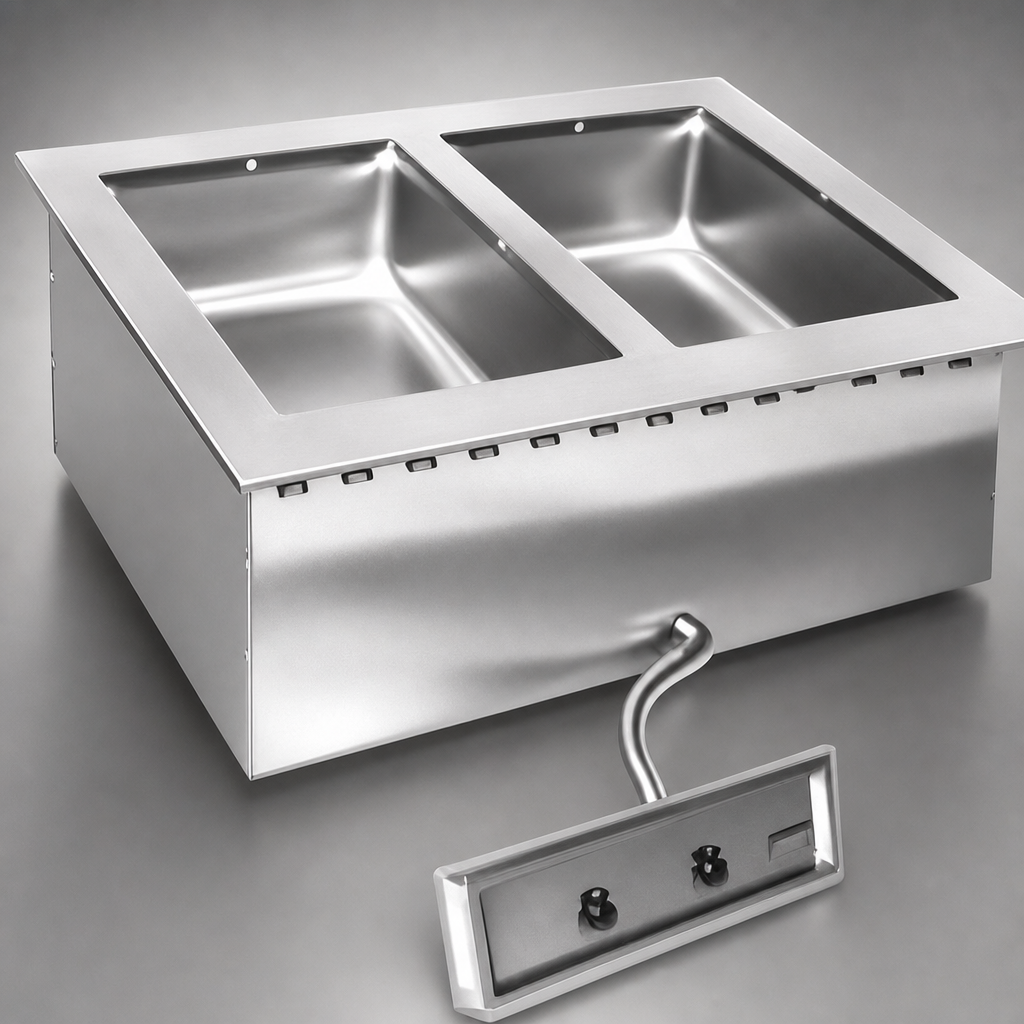

Stainless Steel Top

Heavy-gauge stainless steel top provides a durable, easy-to-clean food contact surface.

Stainless Steel Top

Galvanized Steel Body With Insulation

Galvanized exterior body is lined with 2" fiberglass insulation to help retain heat.

Two Individual Full-Size Wells

Designed for (2) 12" x 20" pan openings with an individual pan design.

Wet Or Dry Operation

Can be used with water for improved heat distribution or dry for flexible holding.

Individual Thermostatic Controls

Each well has individual thermostat controls with a positive OFF position and an amber power-on light.

Drain-Equipped Design

Units with drains connect through 3/4" diameter copper pipe fittings to a single ball valve for field installation.

Field-Wired 240V Electrical System

Shipped wired for single-phase operation and designed for field wiring; 240V units may also be operated at 208V with reduced available amperage and wattage.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 2 Full-Size Pans (12 Inches x 20 Inches)
Controls Individual Thermostatic
Wet Or Dry Operation Wet or Dry
Insulated Yes
Drain Connection Required
Drain Connection Size 3/4 Inch FNPT
Water Connection Not Required
Material Stainless Steel
Voltage 240 Volts
Amps 13.3 Amps
Watts 3.2 kW
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1
Shipping Weight 51 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Autofill installation sheet PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for two individual full-size pans measuring 12" x 20".
Yes. The unit supports both wet and dry operation.
Yes. This model is the drained version and drain-equipped units connect by copper pipe fittings to a single ball valve.
It is rated for 240V, 60Hz, single-phase operation at 3200W and 13.3 amps.
Yes. The 240V units shown as 240T6 may be operated at 208V, with available amperage and wattage reduced by 25%.
No. It is intended to keep hot foods at serving temperature, not to cook them.
