Key specifications

Amps
15.6 Amps
Phase
1-Phase
Dimensions
79.0"W × 30.5"D × 34.0"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: SDHT5-240

Eagle Group SDHT5-240 5-Pan Dry Well Hot Food Table

$2,525.03
/each
Estimated to ship in 3–6 business days
Electrical
Overshelf kit
Undershelf type
Cutting board
Factory Add-Ons
Spillage pans
Included: Eagle Group warranty 12 months from factory shipment or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $234/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Base Material Stainless Steel
Finish Polished
Pan Capacity 5 Pans
Well Size 12 in x 20 in
Well Type Dry
Well Depth 8 in
Controls Individual Infinite
Voltage 240 Volts
Amps 15.6 Amps
Watts 3.75 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-30P
Cord Length 6 ft

Description

The Eagle Group SDHT5-240 is a stationary electric hot food table with an open base and five dry wells for holding preheated foods.

It features a 430 stainless steel top and body, stainless steel legs and undershelf, individual infinite controls, and adjustable bullet feet.

  • Five dry wells: Five 12 in x 20 in wells, each 8 in deep.
  • Individual controls: Infinite controls provide high and low selections plus eight other temperature settings.
  • Dry holding: Designed to maintain preheated foods at proper temperatures, not to cook or heat refrigerated or frozen foods.

Overall Dimensions:

79.0"W x 30.5"D x 34.0"H

Product Weight:

244.0 lb

Five Dry Wells

Five 12 in x 20 in dry wells are 8 in deep.

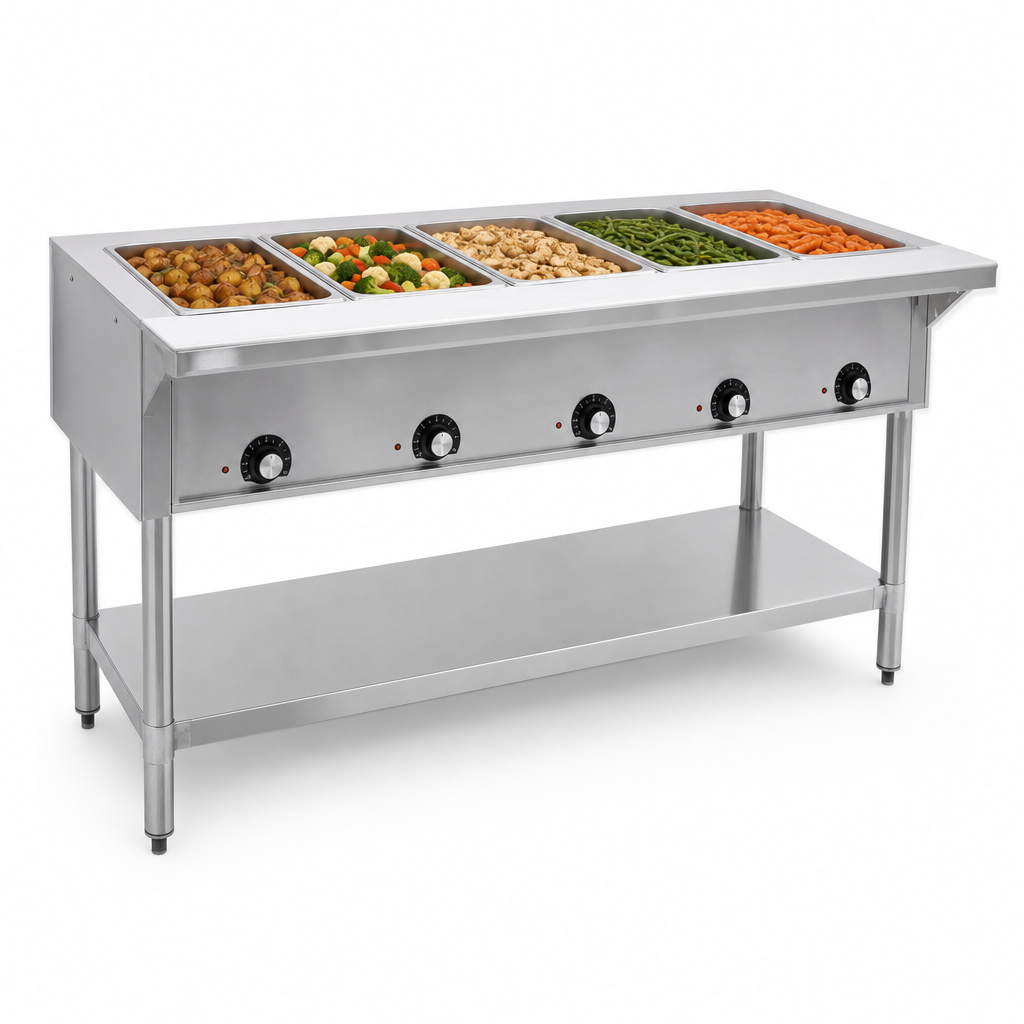

Individual Infinite Controls

Controls provide high and low selections plus eight other temperature settings.

430 Stainless Steel Top and Body

The top and body are constructed of 430 stainless steel.

Stainless Steel Base

The SDHT configuration includes stainless steel legs and an adjustable stainless steel undershelf.

Cutting Board

A cutting board is mounted on stainless steel brackets on the control side.

Adjustable Feet

Adjustable stainless steel bullet feet support the table.

Dry Operation

The table is designed to be operated dry; spillage pans are required if wet operation is needed.

Frequently Asked Questions

It has five dry wells, each measuring 12 in x 20 in and 8 in deep.
It uses 240 Volts at 60 Hz and 1-Phase, draws 15.6 Amps, and includes a NEMA 6-30P plug.
No. It is designed to be operated dry; a spillage pan is required if wet operation is needed.
No. It is designed to maintain preheated foods at proper temperatures, not to cook or heat refrigerated or frozen foods.
The table is 79 in wide, 30.5 in deep, and 34 in high, with a listed weight of 244 lb.
Eagle's hot food table warranty covers 12 months from factory shipment or 6 months from the date first placed into service, whichever comes first.
