Key specifications
- Amps
- 9.38 Amps
- Phase
- 1-Phase
- Dimensions
- 48.0"W × 30.5"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model
Spec sheet

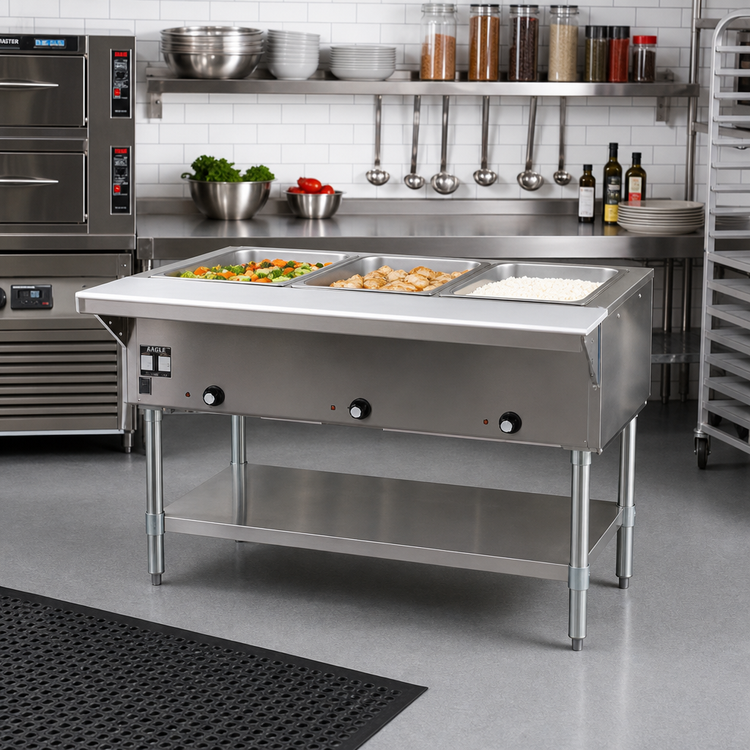

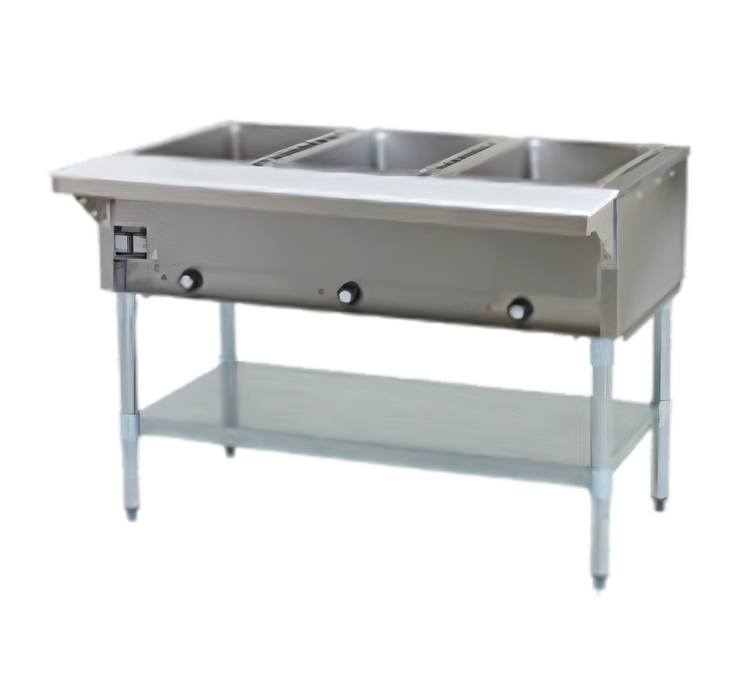

Eagle Group SDHT3-240 48-Inch 3-Well Dry Hot Food Table
- 120 V · 1-phase · 12.5 A
- 208 V · 1-phase · 10.8 A
- 240 V · 1-phase · 9.38 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Eagle Group SDHT3-240 is an electric hot food table with a 48-inch width, open base, and three 12 x 20-inch dry wells for maintaining preheated foods at proper temperatures.
Each well has an individual infinite control with high, low, and eight additional temperature settings. The top and body are 430 stainless steel, with an 8-inch polycarbonate cutting board, adjustable stainless steel undershelf, tubular legs, and adjustable bullet feet.
Configured for 240 volts, 60 Hz, single-phase operation, the table draws 9.38 amps and provides 2.25 kW through a NEMA 6-15P plug.
- Three 12 x 20-inch dry wells
- Individual infinite controls for each well
- Open base with adjustable stainless steel undershelf
- Designed for maintaining preheated foods, not cooking or heating refrigerated or frozen foods
Overall Dimensions:
48.0"W x 30.5"D x 34.0"HProduct Weight:

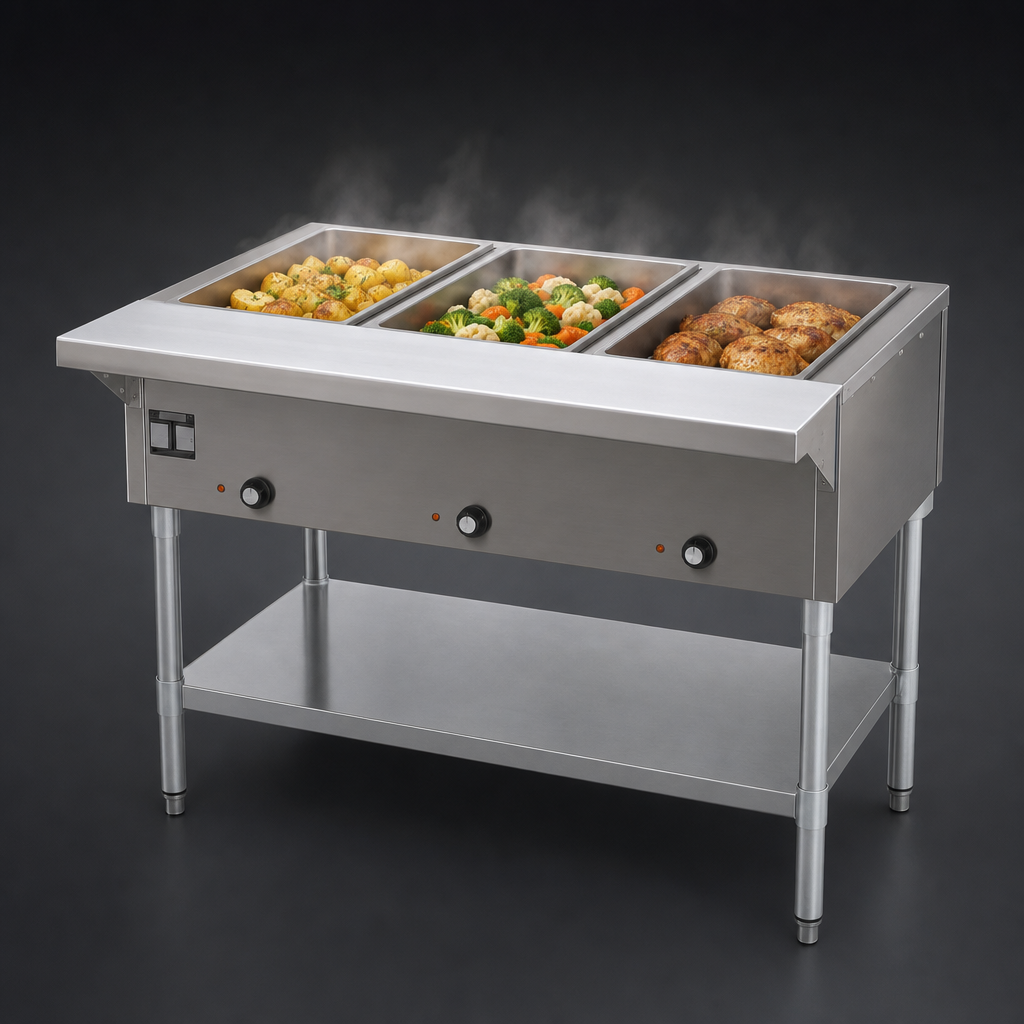

180.0 lbThree Dry Wells
Provides three 12 x 20-inch dry wells for holding preheated foods.

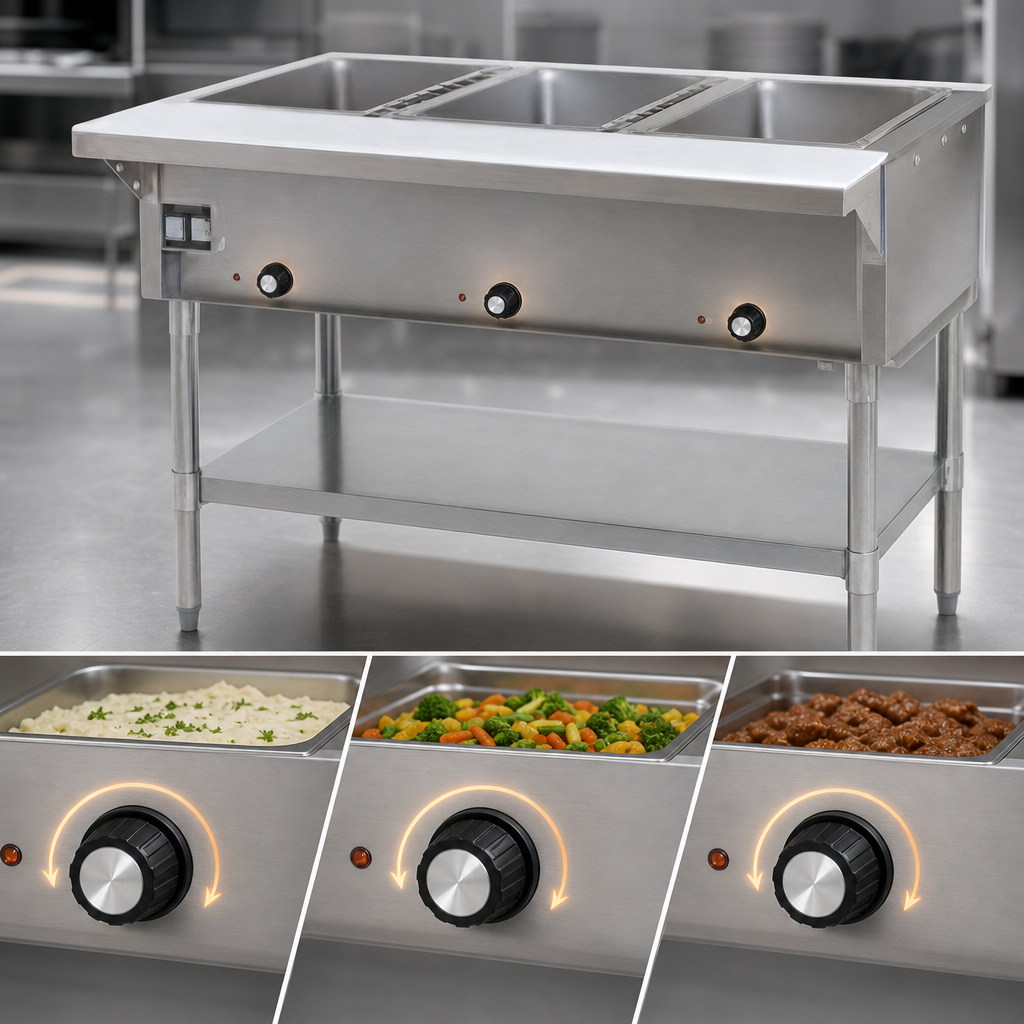

Individual Infinite Controls
Each well has an individual infinite control with high, low, and eight additional temperature settings.
430 Stainless Steel Construction
The top and body are constructed of 430 stainless steel; the undershelf and tubular legs are stainless steel.
Open Base
The open base includes an adjustable stainless steel undershelf.
Polycarbonate Cutting Board
Includes an 8-inch polycarbonate cutting board.
Adjustable Support
Tubular legs include adjustable bullet feet.
Dry Food Holding
Designed to maintain preheated foods at proper temperatures and not to cook or heat refrigerated or frozen foods.
Electrical Configuration
Operates at 240 volts, 60 Hz, single phase, with 2.25 kW, 9.38 amps, and a NEMA 6-15P plug.
