Key specifications
- Amps
- 12.5 Amps
- Phase
- 1-Phase
- Dimensions
- 48.0"W × 30.5"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model
Spec sheet
Eagle Group SDHT3-120 48-Inch 3-Pan Dry Well Hot Food Table
- 120 V · 1-phase · 12.5 A
- 208 V · 1-phase · 10.8 A
- 240 V · 1-phase · 9.38 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

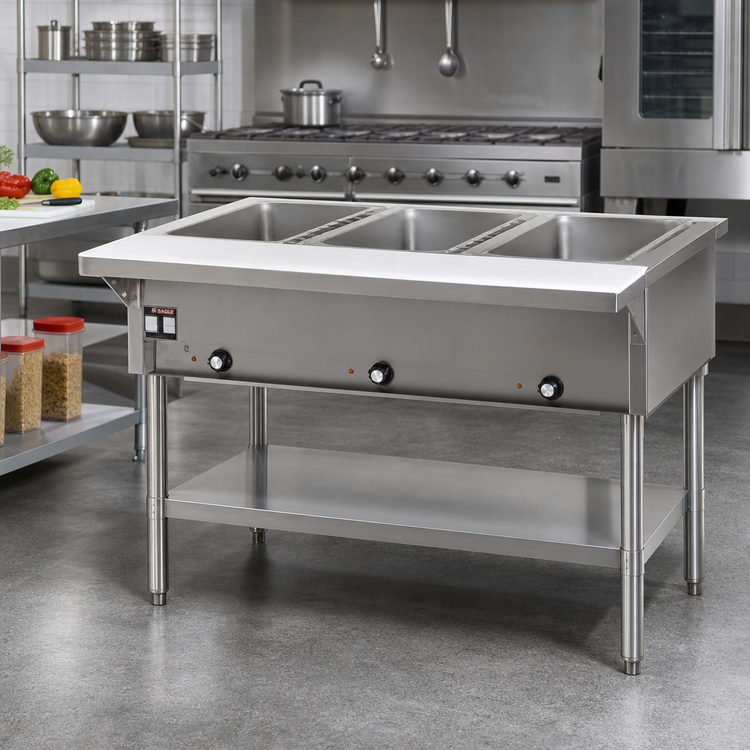

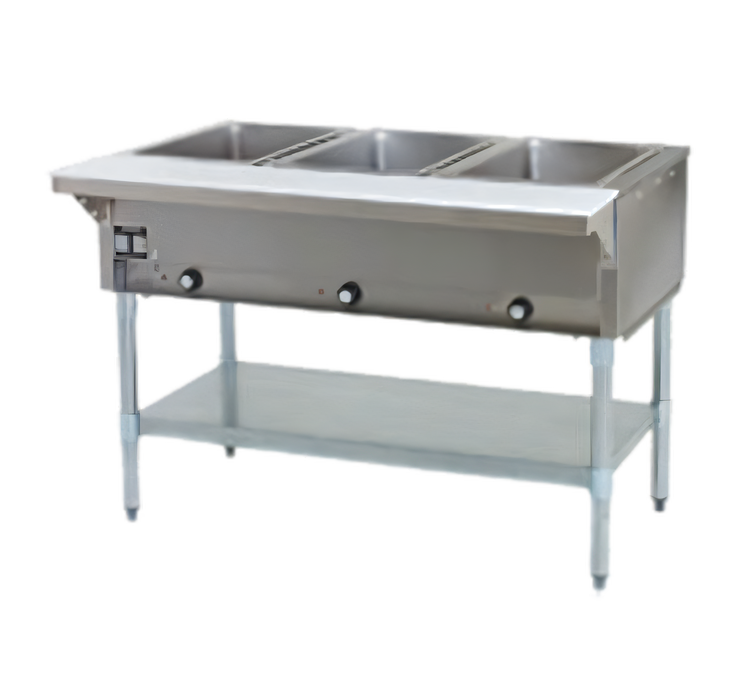

The Eagle Group SDHT3-120 is a stationary electric hot food table with an open base and three dry wells sized 12 x 20 inches.
Its 430 stainless steel top and body, stainless steel undershelf and tubular legs, adjustable bullet feet, and polycarbonate cutting board suit commercial foodservice holding applications. Individual infinite controls provide adjustable heat settings for maintaining preheated foods.
The unit operates at 120 volts with 1.5 kW of power, 12.5 amps, and a NEMA 5-15P plug. It is designed to maintain preheated foods at proper temperatures, not to cook or heat refrigerated or frozen foods.
Overall Dimensions:
48.0"W x 30.5"D x 34.0"HProduct Weight:

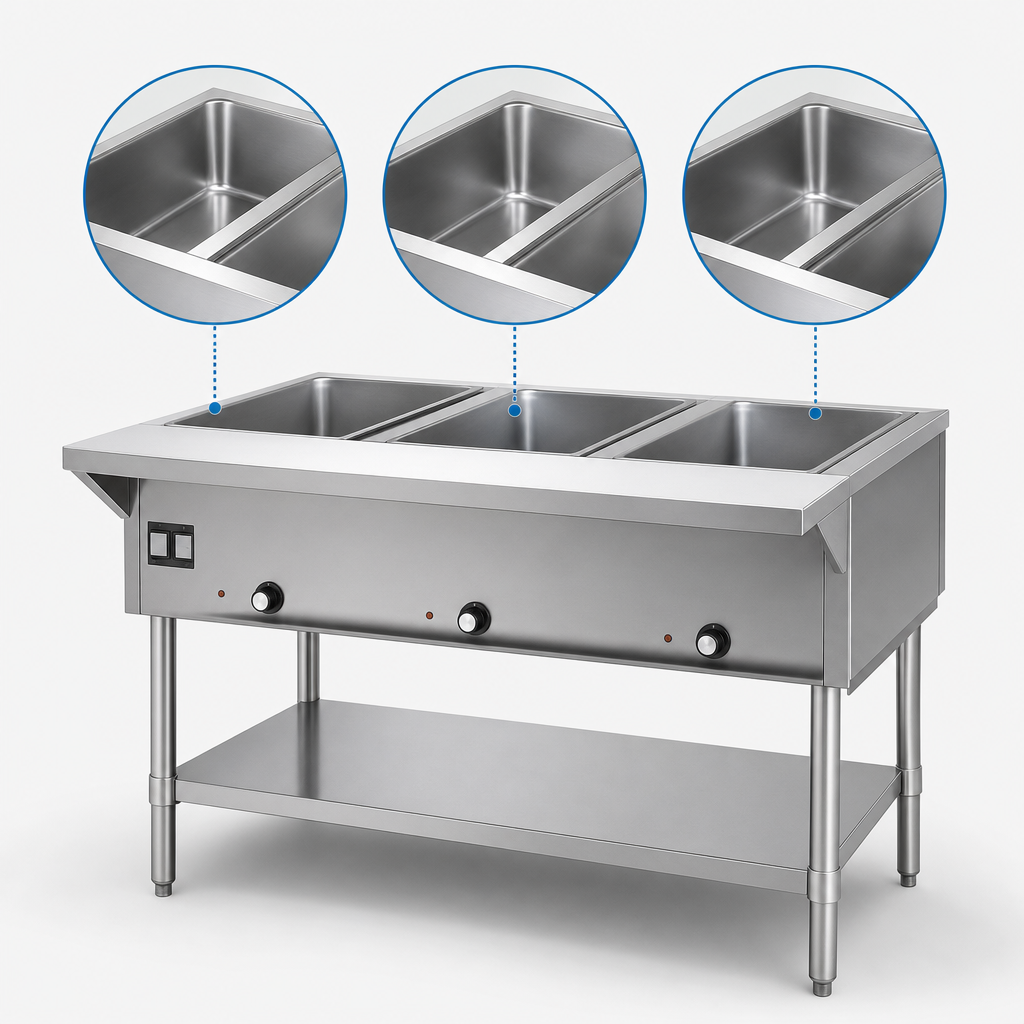

180.0 lbThree Dry Wells
Three 12 x 20-inch dry wells are 8 inches deep.
Individual Infinite Controls
Individual infinite controls provide high and low selections plus eight additional temperature settings.

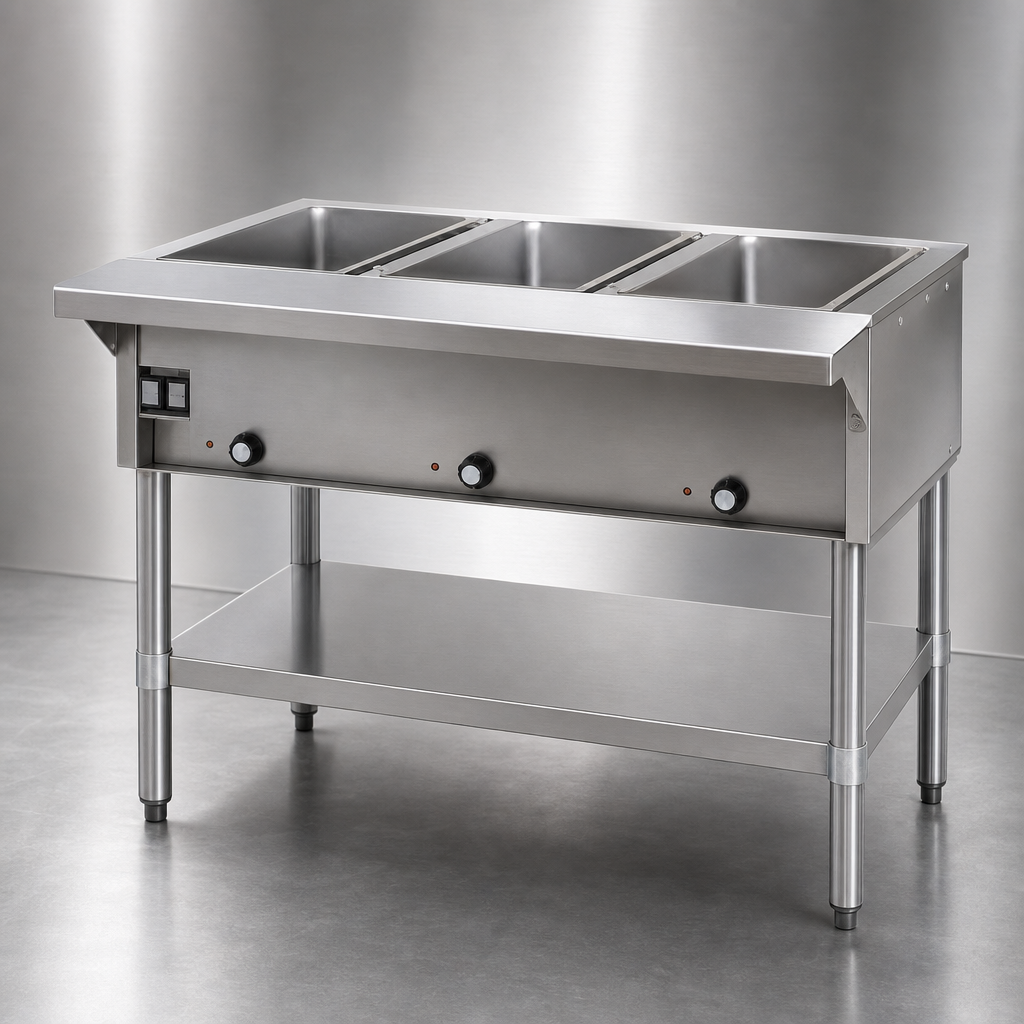

430 Stainless Steel Construction
The top and body are constructed of 430 stainless steel.
Open Base
The open base includes a stainless steel adjustable undershelf and tubular legs.
Polycarbonate Cutting Board
A polycarbonate cutting board is furnished on stainless steel brackets.
Electrical Connection
The 120-volt, single-phase unit provides 1.5 kW of power and uses a NEMA 5-15P plug.
Adjustable Feet
Adjustable stainless steel bullet feet support leveling.
Preheated Food Holding
The unit is designed to maintain preheated foods at proper temperatures and is not designed for cooking or heating refrigerated or frozen foods.
