Eagle Group

Eagle RedHots 132-Inch Lighted Single Strip Heat Lamp, 208V

SKU: RHHL-132-208-L
$1,826.64
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Eagle Group Food Heat Lamps Food Warmers & Holding Equipment Heat Lamps New Arrivals Restaurant Equipment Serving & Display Equipment Strip Heat Lamp

Eagle RedHots 132-Inch Lighted Single Strip Heat Lamp, 208V

Rod-Type Heating Element, Incandescent Lights, Standard Wattage

Deliver even holding heat across a 132-inch service line with a lighted strip lamp that combines individual element control, incandescent illumination, and rugged aluminum construction.

  • 132-inch lighted strip heat lamp for broad coverage across long serving lines.
  • Rod-type metal heating element with individual toggle control and indicator lights.
  • Incandescent lights with shatter-proof Teflon-coated 60-watt bulbs and a dedicated switch.
  • Extruded aluminum housing with an aluminized reflector plate to focus heat.
  • Built for 208 Volts, 60 Hz, 1-Phase standard-watt operation.
  • NSF and UL listed.

Overall Dimensions:

132.0"W

Product Weight:

57.0 lb

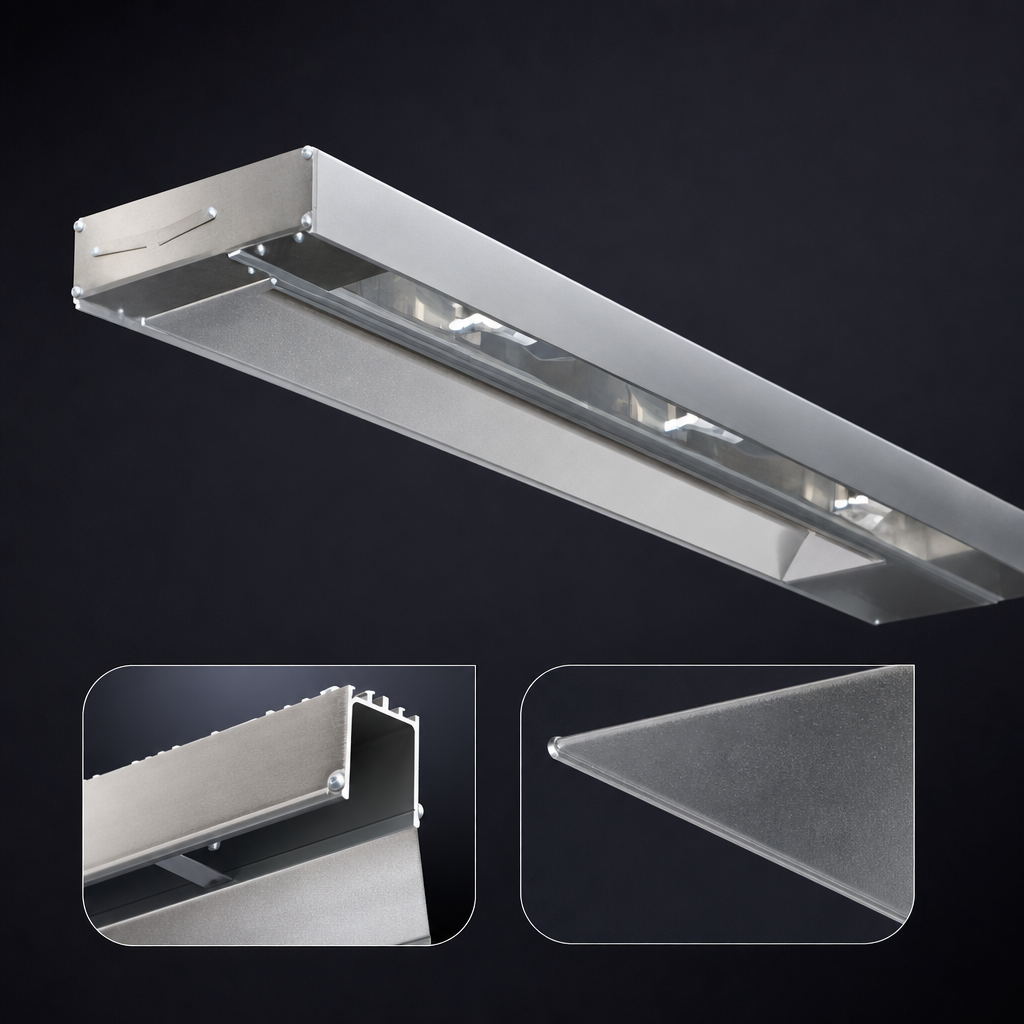

Extruded Aluminum Housing and Reflector Plate

Durable extruded aluminum exterior housing with an interior aluminized reflector plate to help focus heat.

Extruded Aluminum Housing and Reflector Plate

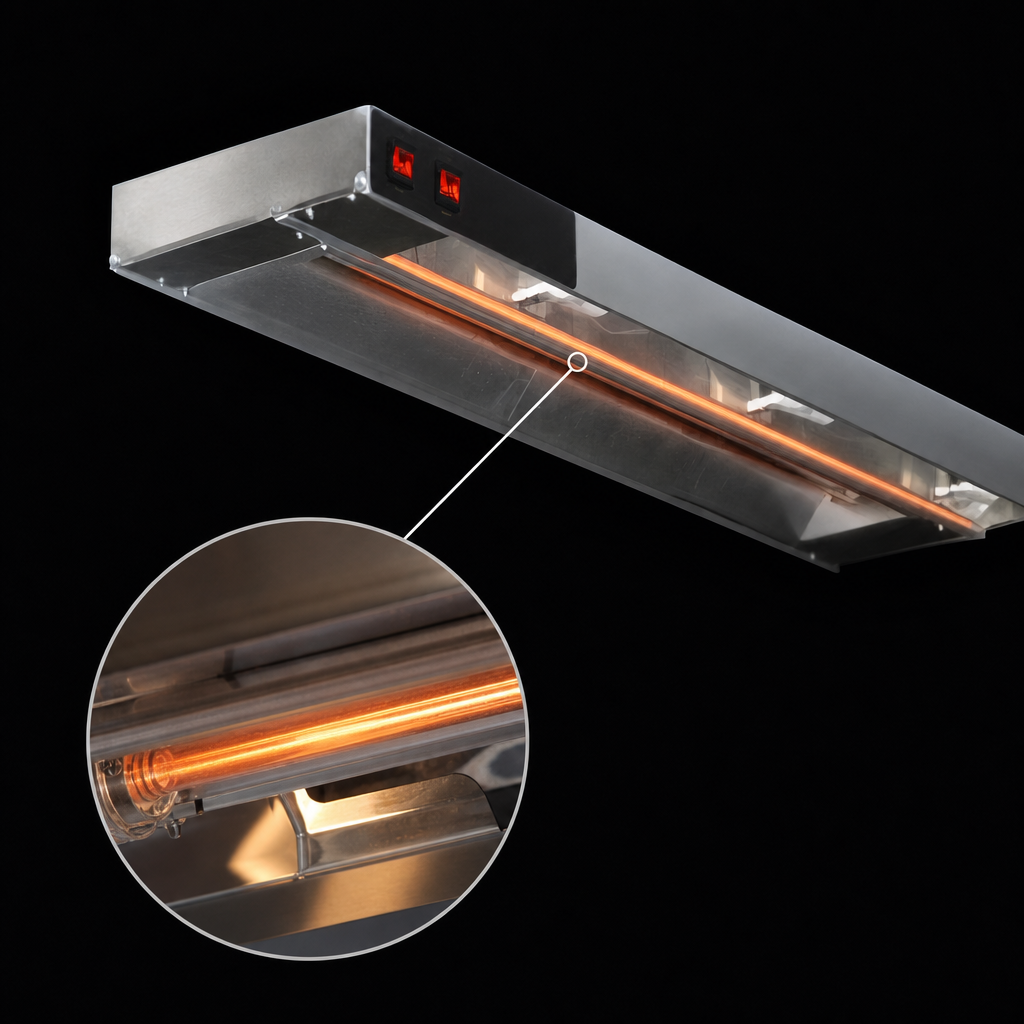

Rod-Type Heating Element

Metal heating rod design provides consistent warming across the strip.

Rod-Type Heating Element

Incandescent Lighting

Lighted version includes incandescent bulbs with shatter-proof Teflon coating and a dedicated switch.

Individual Element Control

Each heating element is controlled separately by a toggle switch with an indicator light.

Flexible Mounting Options

Can be attached with stainless steel brackets or hung from the ceiling using hanging tabs.

Optional Remote Switch Box

Remote switch boxes are available with toggle or infinite switch options when a separate control location is needed.

208V Standard-Watt Operation

Designed for 208 Volts, 60 Hz, 1-Phase operation at 2.92 kW.

NSF and UL Listed

Listed for NSF and UL requirements.

Type Lighted
Style Strip Heat Lamp
Length 132 Inches
Material Aluminum
Finish Aluminum
Voltage 208 Volts
Watts 2.92 kW
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 132 Inches
Shipping Weight 57 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The lighted version includes incandescent bulbs with shatter-proof Teflon coating and a dedicated switch.
Each heating element is controlled individually with a toggle switch and indicator light.
It can be attached with stainless steel brackets or hung from the ceiling using hanging tabs.
This model is rated for 208 Volts, 60 Hz, 1-Phase operation at 2.92 kW.
Yes. The documentation notes optional remote switch boxes with toggle or infinite switch options.
The product is NSF and UL listed.
