Key specifications
- Amps
- 10.8 Amps
- Phase
- 3-Phase
- Dimensions
- 81.5"W × 30.5"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model

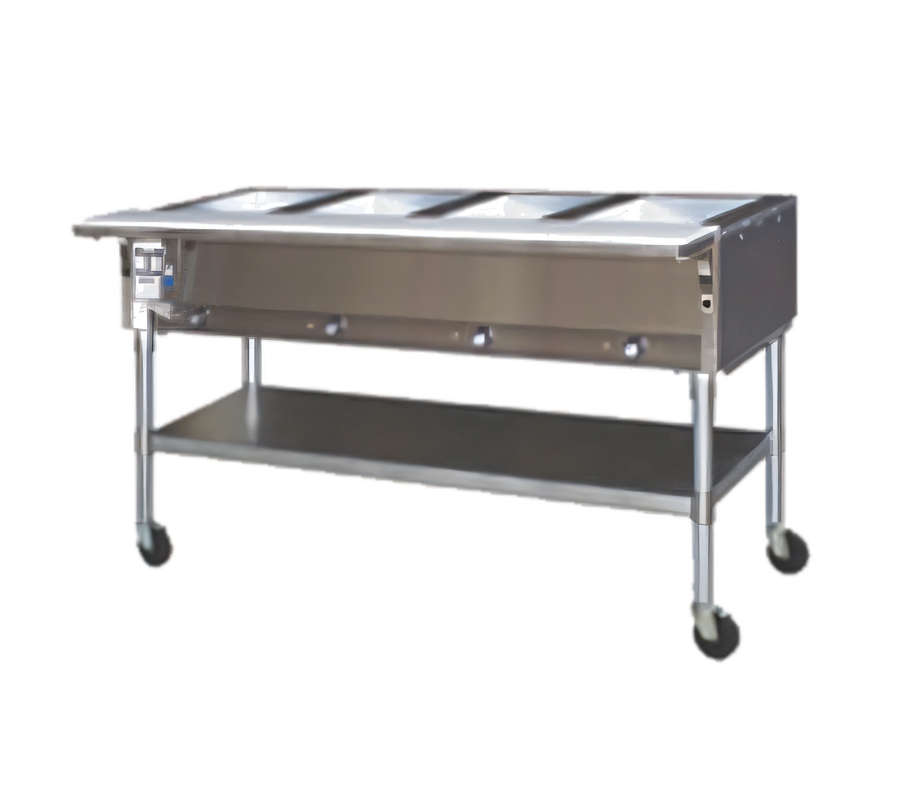

Eagle Group PDHT5-240-3 5-Pan Mobile Dry-Well Hot Food Table
- 120 V · 1-phase · 8.3 A
- 208 V · 3-phase · 12.5 A
- 240 V · 3-phase · 10.8 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Eagle Group PDHT5-240-3 is a portable electric hot food table with five 12 in x 20 in dry wells, an open base, and individual infinite controls.
- 430 stainless steel top and body
- 8 in polyethylene cutting board mounted on drop brackets
- Galvanized steel adjustable undershelf and tubular legs
- Push bar and four 4 in casters
- 240 Volts, 3-Phase, 3.75 kW electrical configuration with a NEMA 15-20P plug
The unit is designed to maintain preheated foods at proper temperatures and is not designed for cooking or heating refrigerated or frozen foods.
Overall Dimensions:
81.5"W x 30.5"D x 34.0"HProduct Weight:

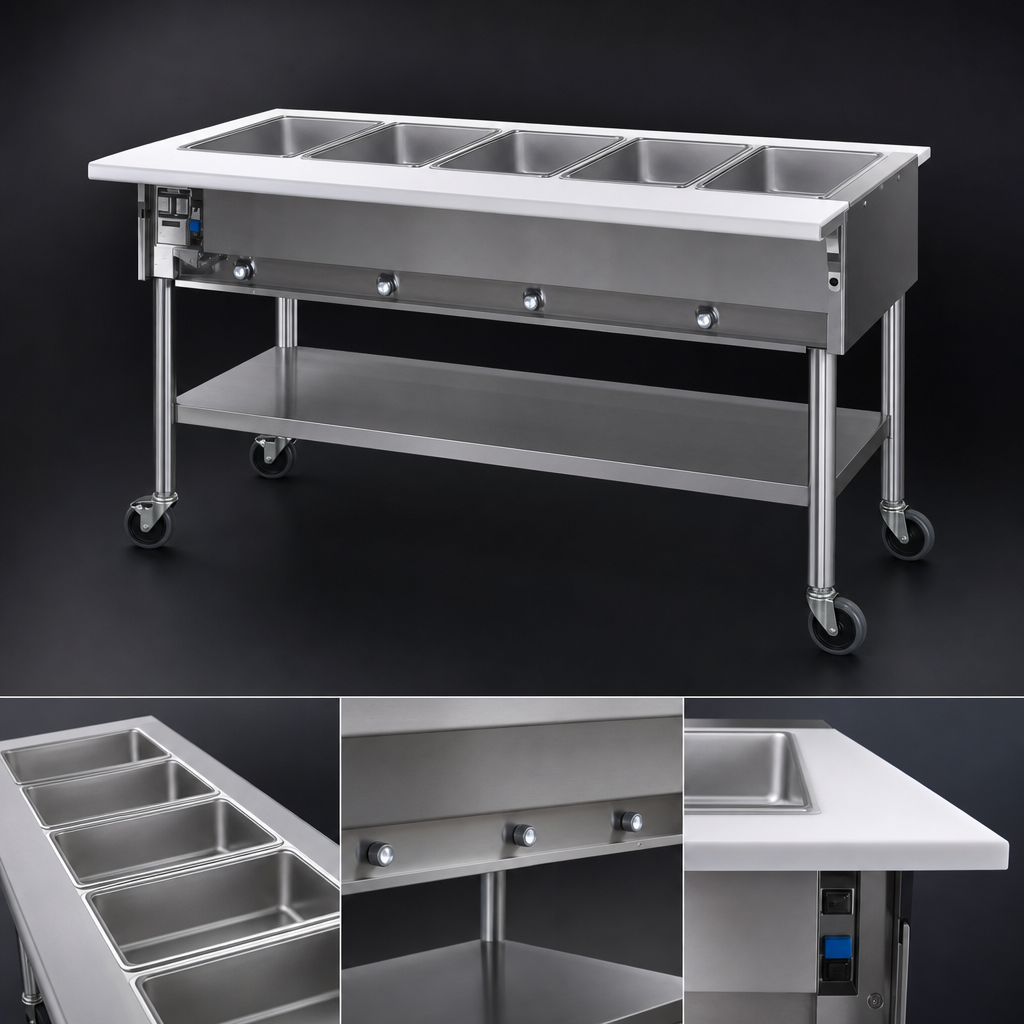

244.0 lbFive Dry Wells
Five 12 in x 20 in dry wells provide the listed holding compartments.

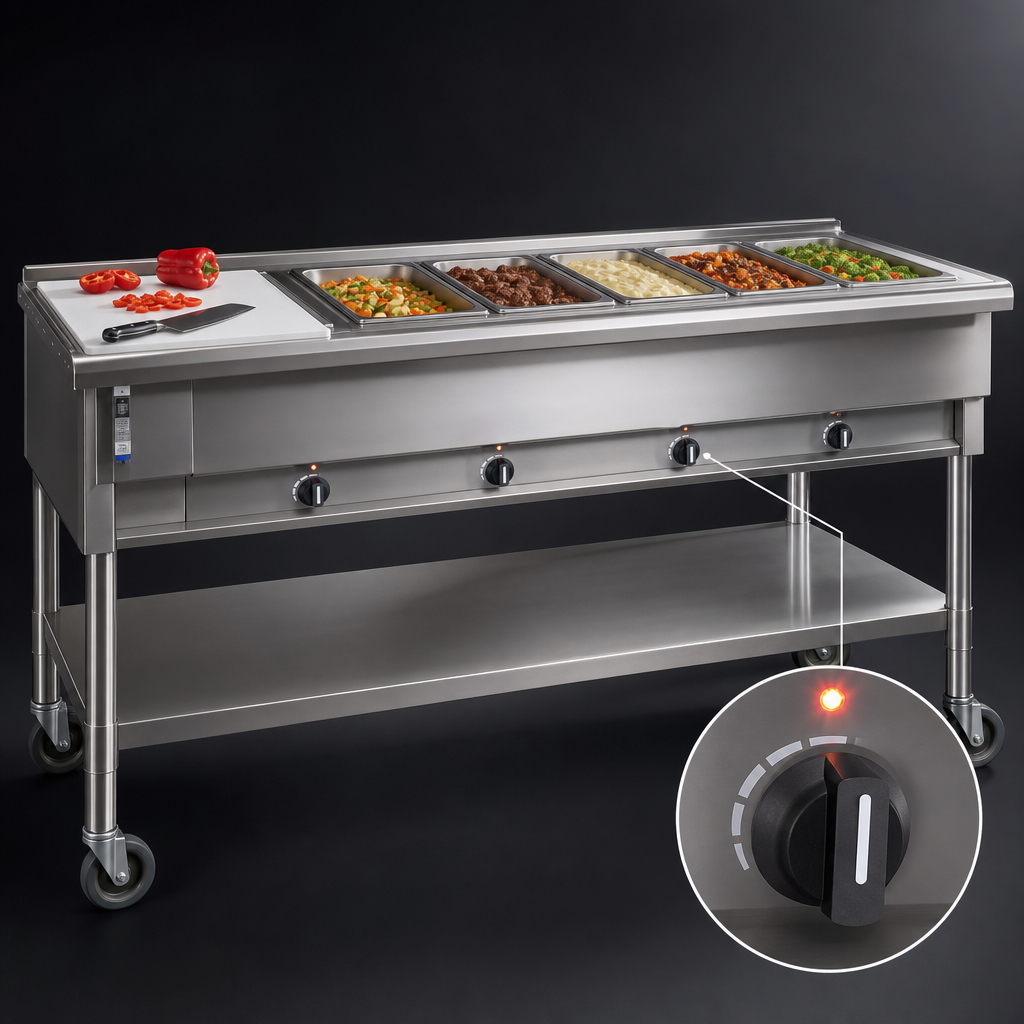

Individual Infinite Controls
Controls offer high and low settings plus eight other temperature settings.
430 Stainless Steel Top and Body
The top and body are constructed from 430 stainless steel.
Polyethylene Cutting Board
An 8 in polyethylene cutting board is mounted on drop brackets.
Galvanized Open Base
The unit has galvanized tubular legs and an adjustable galvanized undershelf.
Mobile Design
A push bar and four 4 in casters support movement of the table.
Three-Phase Electrical
The unit operates at 240 Volts, 3-Phase, 3.75 kW, and 10.8 Amps with a NEMA 15-20P plug.
