Key specifications

Amps
18 Amps
Phase
1-Phase
Dimensions
81.5"W × 30.5"D × 34.0"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: PDHT5-208

Eagle Group PDHT5-208 5-Pan Mobile Dry Hot Food Table

$2,679.47
/each
Estimated to ship in 3–6 business days
Electrical
Wells
Overshelf kit
Factory Add-Ons
Spillage pans

Need something else? Contact us.

Included: Eagle Group warranty 12 months from factory shipment or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $248/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Base Material Galvanized Steel
Base Finish Galvanized
Pan Size 12 x 20 Inches
Pan Capacity 5 Pans
Well Depth 8 Inches
Well Type Dry
Controls Infinite Controls
Voltage 208 Volts
Amps 18 Amps
Watts 3.75 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-30P
Cord Length 6 ft

Description

The Eagle Group PDHT5-208 is a portable electric hot food table with an open base and five 12 x 20-inch dry wells. Its top and body are constructed of 430 stainless steel, with a galvanized steel adjustable undershelf and tubular legs.

  • Five dry wells with individual infinite controls
  • 8-inch polyethylene cutting board mounted on drop brackets
  • Push bar and four 4-inch casters
  • 208-volt, 3.75 kW electrical configuration with NEMA 6-30P plug

The unit is designed to operate dry and maintain preheated foods at proper temperatures. It is not designed for cooking or heating refrigerated or frozen foods.

Overall Dimensions:

81.5"W x 30.5"D x 34.0"H

Product Weight:

244.0 lb

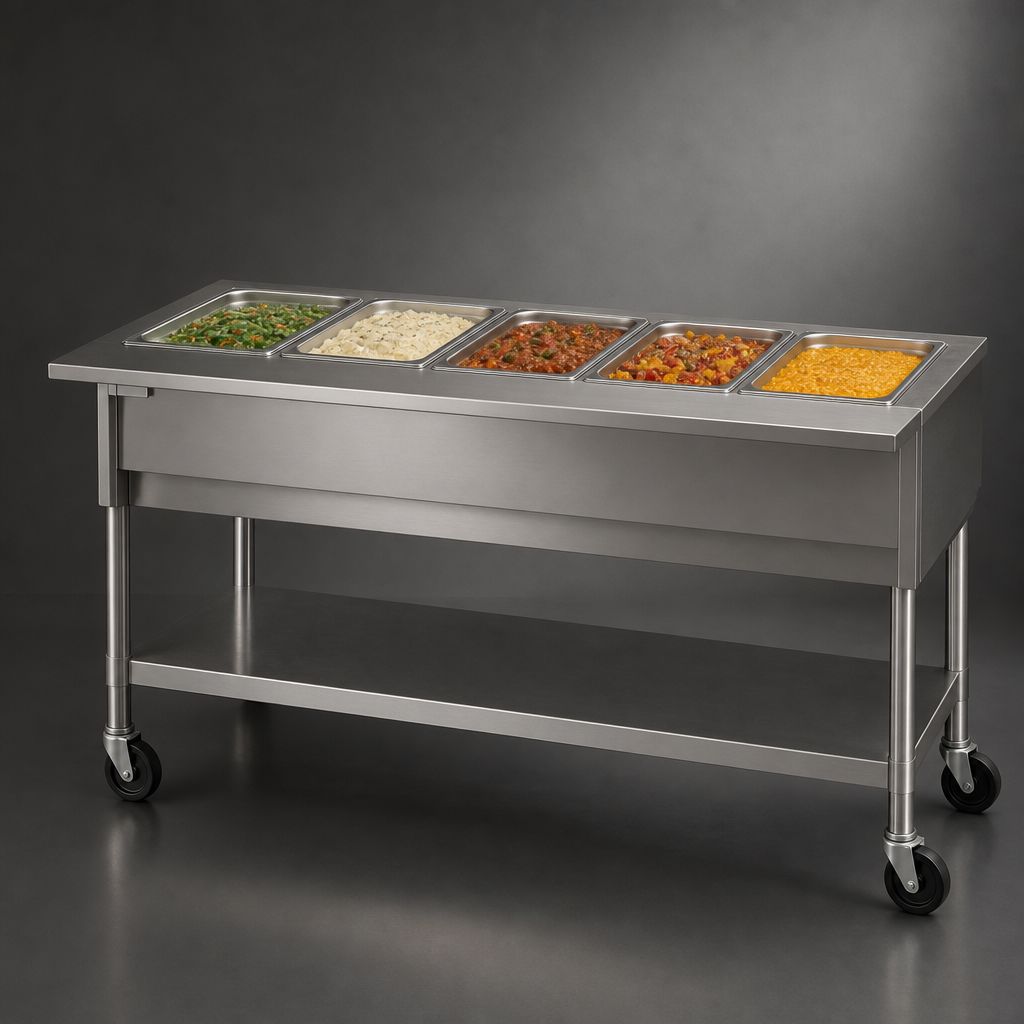

Five Dry Wells

The table has five 12 x 20-inch dry wells.

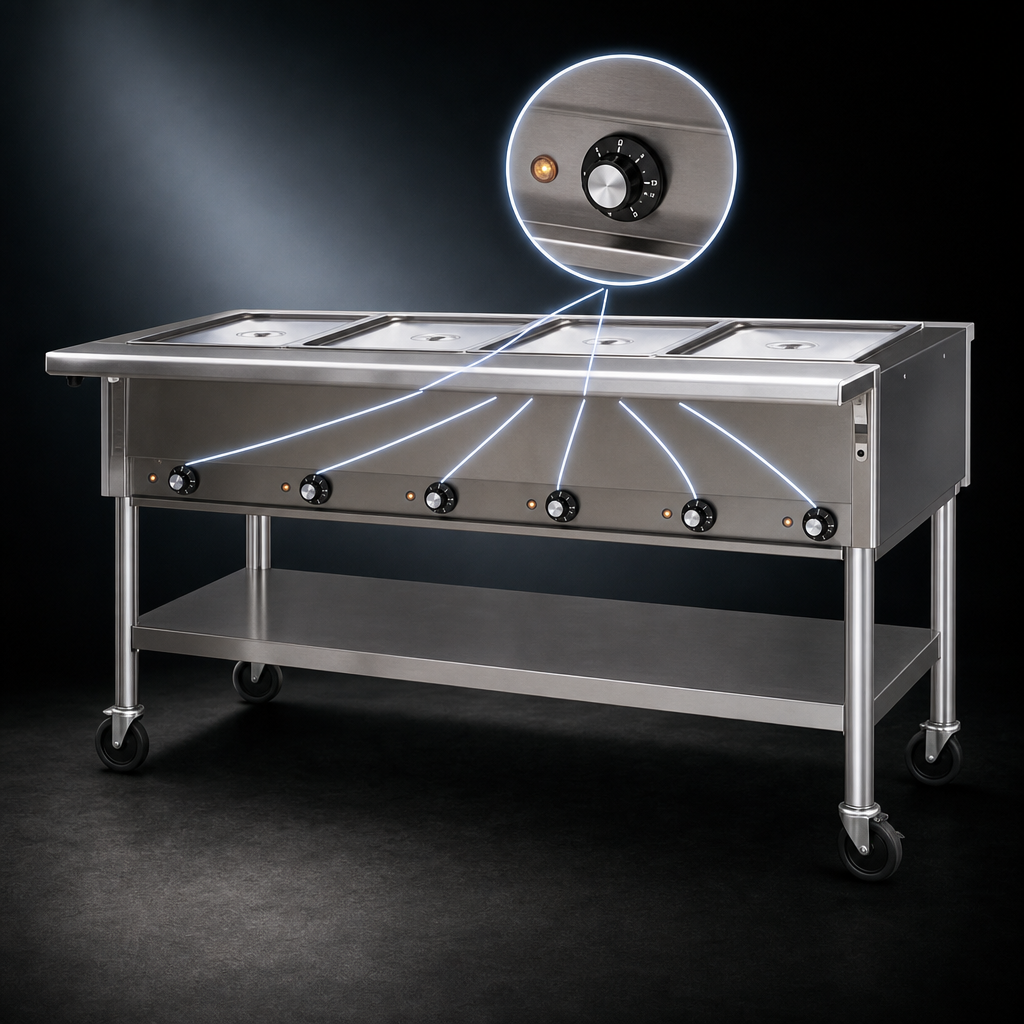

Individual Infinite Controls

Individual infinite controls offer high, low, and eight other temperature settings.

430 Stainless Steel Construction

The top and body are constructed of 430 stainless steel.

Open Base

The open base includes a galvanized steel adjustable undershelf and tubular legs.

Mobility

A push bar and four 4-inch casters are fitted to the unit.

Polyethylene Cutting Board

An 8-inch polyethylene cutting board is mounted on drop brackets.

Electrical Configuration

The unit operates at 208 Volts, 60 Hz, single-phase, with 3.75 kW, 18 Amps, and a NEMA 6-30P plug.

Dry Food Holding

The unit is designed to maintain preheated foods at proper temperatures and is not designed for cooking or heating refrigerated or frozen foods.

Frequently Asked Questions

It has five dry wells sized 12 x 20 inches.
The table is rated at 208 Volts, 3.75 kW, 18 Amps, 60 Hz, and 1-Phase, with a NEMA 6-30P plug.
The product is 81.5 inches wide, 30.5 inches deep, and 34 inches high, with a weight of 244 lb.
No. It is designed to maintain preheated foods at proper temperatures and is not designed for cooking or heating refrigerated or frozen foods.
