Key specifications
- Amps
- 12.5 Amps
- Phase
- 3-Phase
- Dimensions
- 81.5"W × 30.5"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model

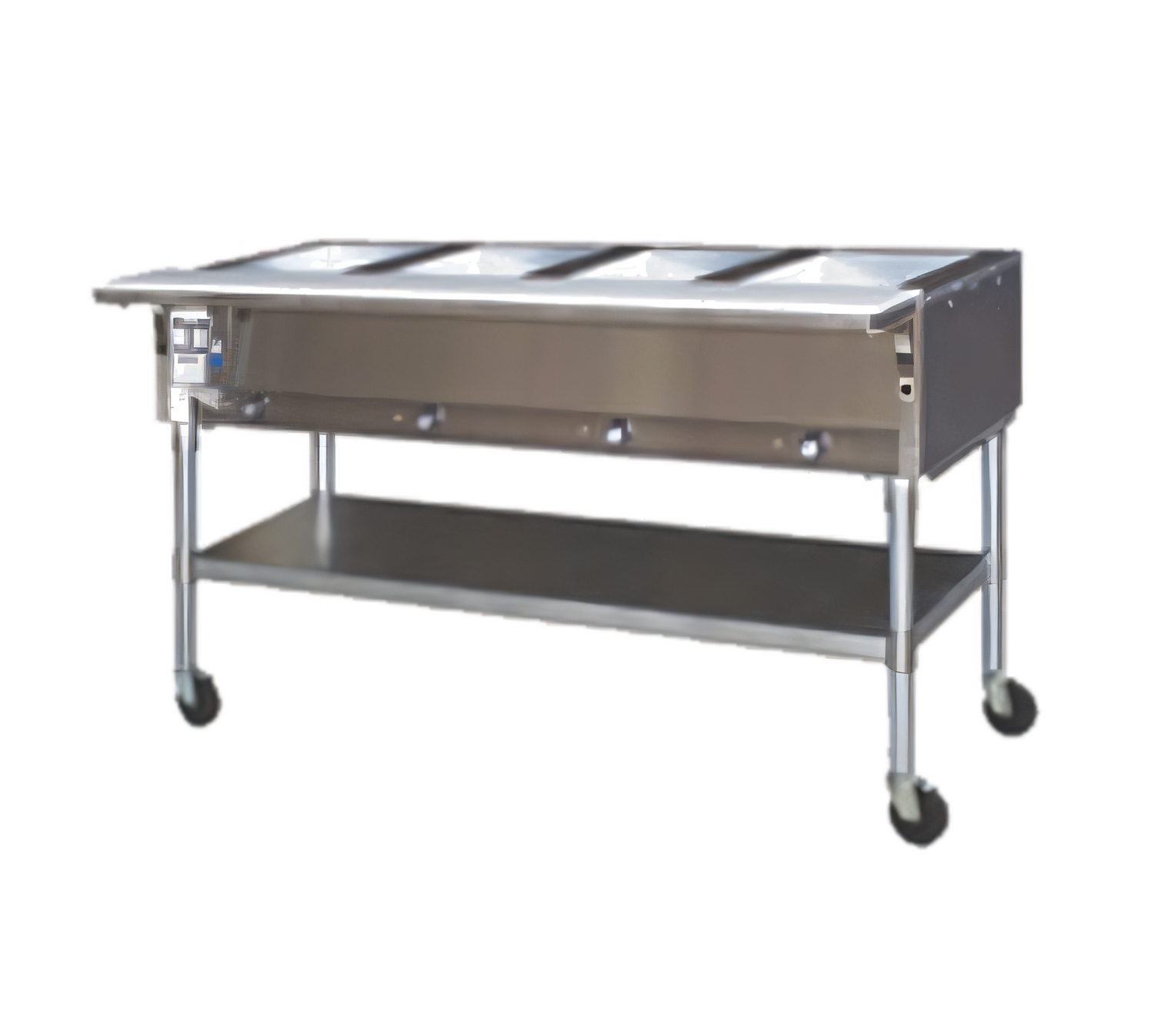

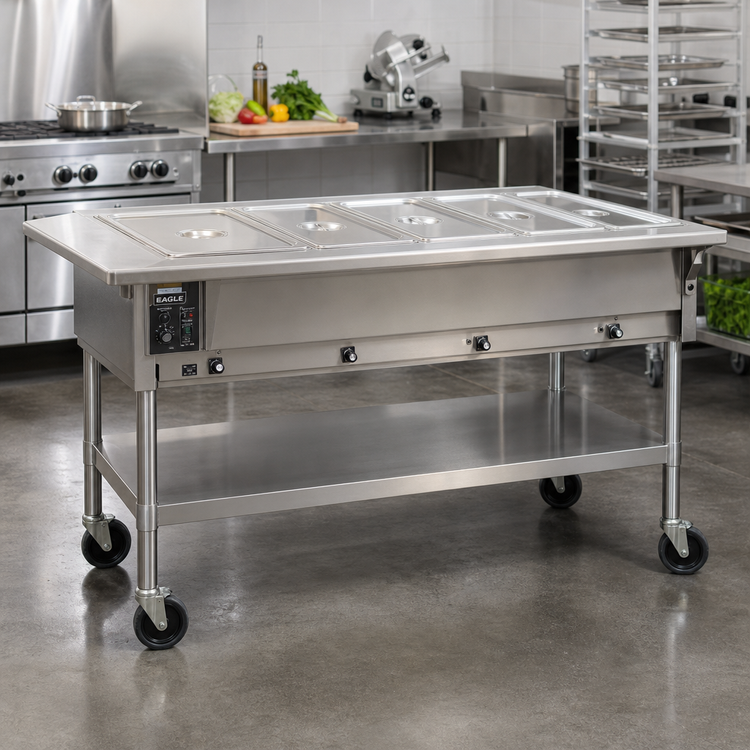

Eagle Group PDHT5-208-3 Mobile 5-Pan Dry Hot Food Table
- 120 V · 1-phase · 8.3 A
- 208 V · 1-phase · 18 A
- 208 V · 3-phase · 12.5 A
- 240 V · 1-phase · 15.6 A
- 240 V · 3-phase · 10.8 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Eagle Group PDHT5-208-3 is a mobile electric hot food table with an open base, five 12 x 20-inch dry wells, and individual infinite controls.
The top and body are 430 stainless steel. The base includes a galvanized steel adjustable undershelf and tubular legs, with a polyethylene cutting board on drop brackets, a push bar, and four 4-inch casters.
This model is rated at 208 volts, 60 Hz, three phase, 12.5 amps, and 3.75 kW with a NEMA 15-20P plug. It is designed for dry operation.
Overall Dimensions:
81.5"W x 30.5"D x 34.0"HProduct Weight:

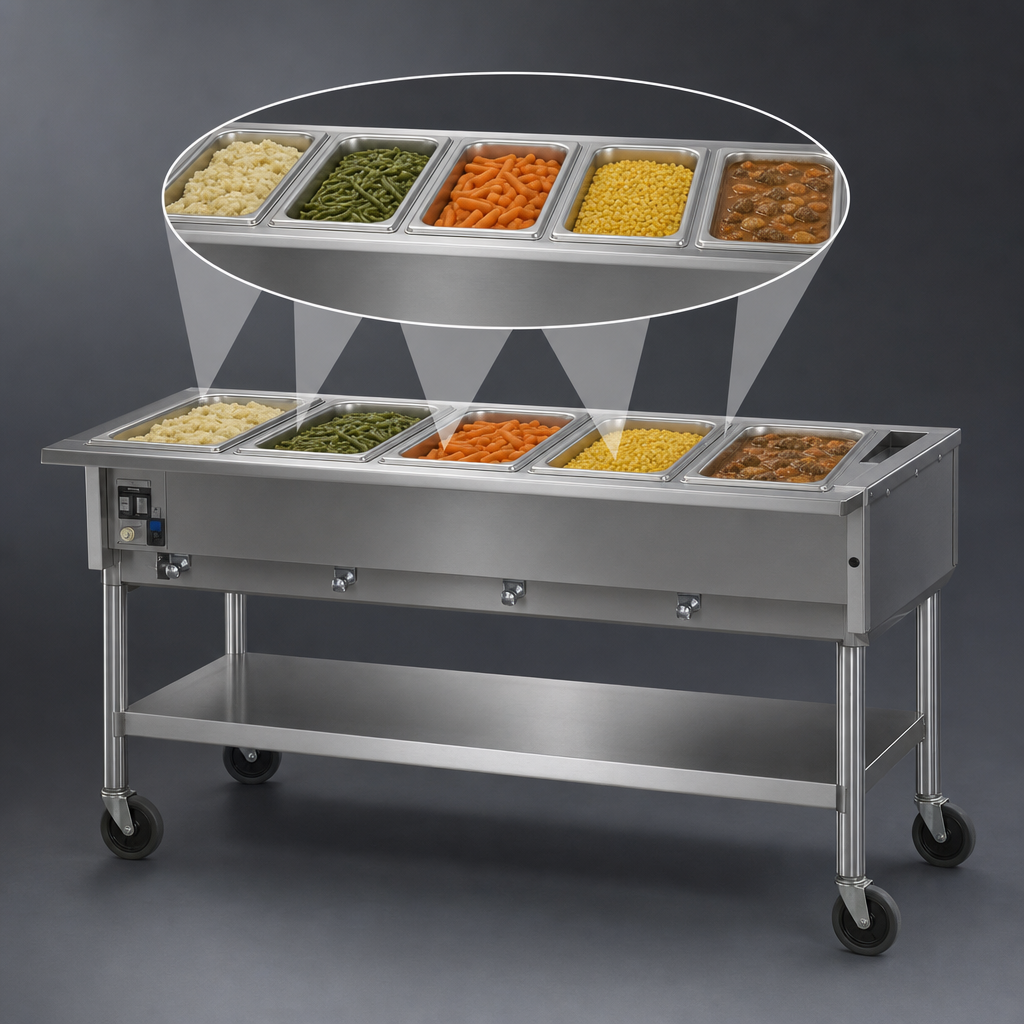

244.0 lbFive Dry Wells
Five 12 x 20-inch, 8-inch-deep dry wells provide the heating compartments.
750-Watt Heating Elements
Each compartment is fitted with a 750-watt heating element for this 208-volt model.

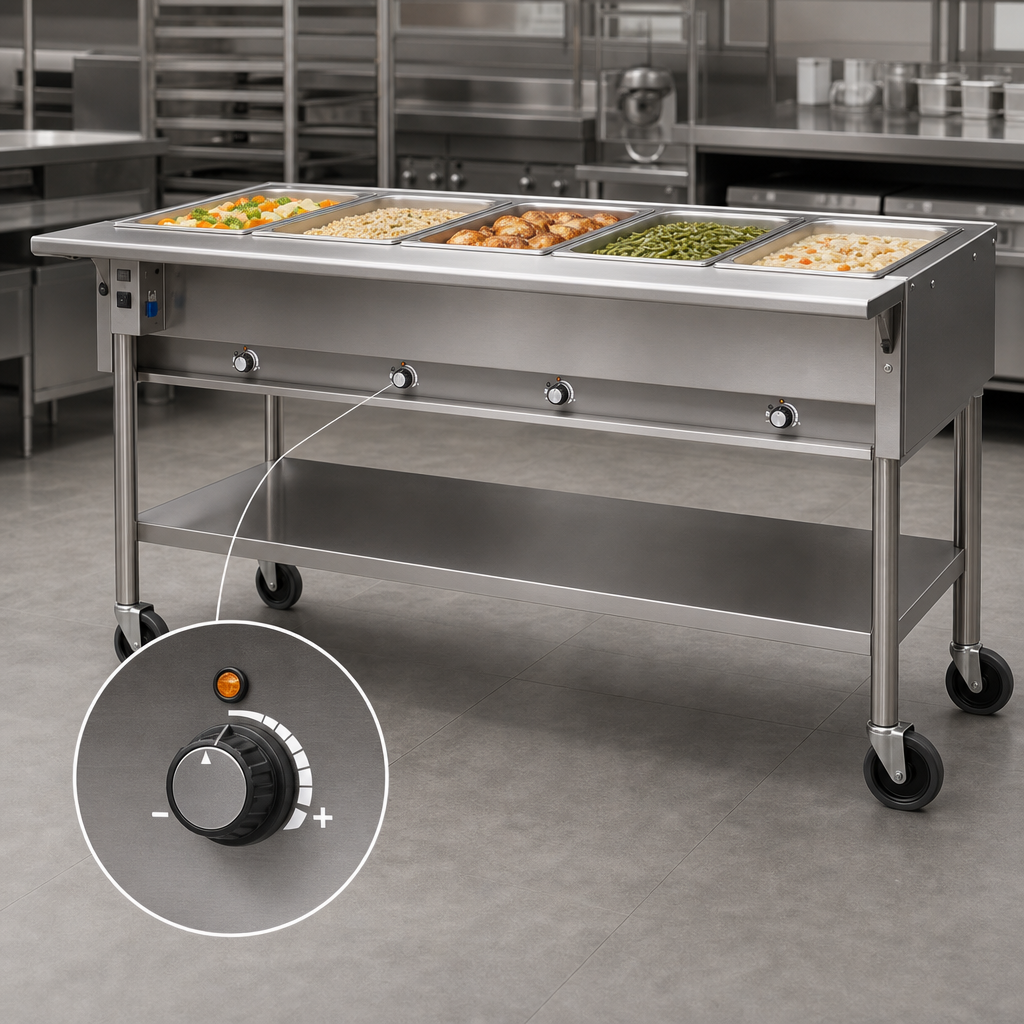

Infinite Controls
Individual infinite controls provide high and low selections plus eight other temperature settings.
430 Stainless Steel Construction
The top and body are constructed of 430 stainless steel.
Open Base
The base has galvanized steel tubular legs and an adjustable undershelf.
Mobile Design
Four 4-inch casters and a push bar are included.
Polyethylene Cutting Board
A polyethylene cutting board is mounted on drop brackets.
Dry Operation
The hot food table is designed to operate dry.
