Key specifications

Amps
12.5 Amps
Phase
1-Phase
Dimensions
66.0"W × 30.5"D × 34.0"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: PDHT4-240

Eagle Group PDHT4-240 4-Pan Mobile Hot Food Table

$2,190.66
/each
Estimated to ship in 3–6 business days
Electrical
Wells
Overshelf kit
Factory Add-Ons
Spillage pans
Included: Eagle Group warranty Limited warranty for 12 months from the date of factory shipment or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $203/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Base Material Galvanized Steel
Base Finish Galvanized
Pan Capacity 4 Pans
Well Size 12 x 20 Inches
Well Depth 8 Inches
Well Type Dry
Controls Infinite
Undershelf Adjustable
Caster Count 4
Caster Diameter 4 Inches
Voltage 240 Volts
Amps 12.5 Amps
Watts 3.0 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Cord Length 6 Feet

Description

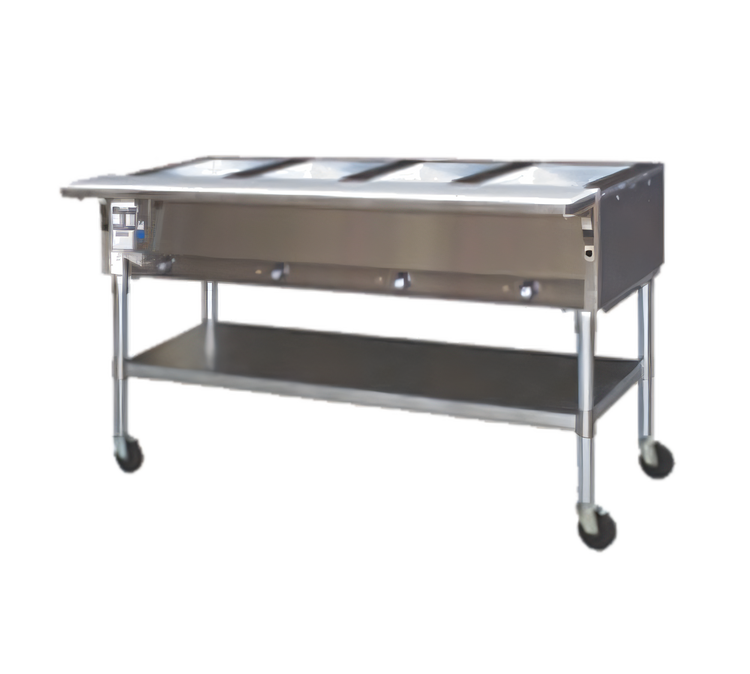

The Eagle Group PDHT4-240 is a portable electric hot food table with an open base and four 12 x 20-inch dry wells. It is designed to maintain preheated foods at proper temperatures.

The table has a 430 stainless steel top and body, a galvanized adjustable undershelf and tubular legs, an 8-inch polyethylene cutting board mounted on drop brackets, a push bar, and four 4-inch casters.

  • Individual infinite controls
  • 3.0 kW, 240-volt, 60 Hz, single-phase electrical operation
  • 12.5 amps with a NEMA 6-20P plug

Overall Dimensions:

66.0"W x 30.5"D x 34.0"H

Product Weight:

201.0 lb

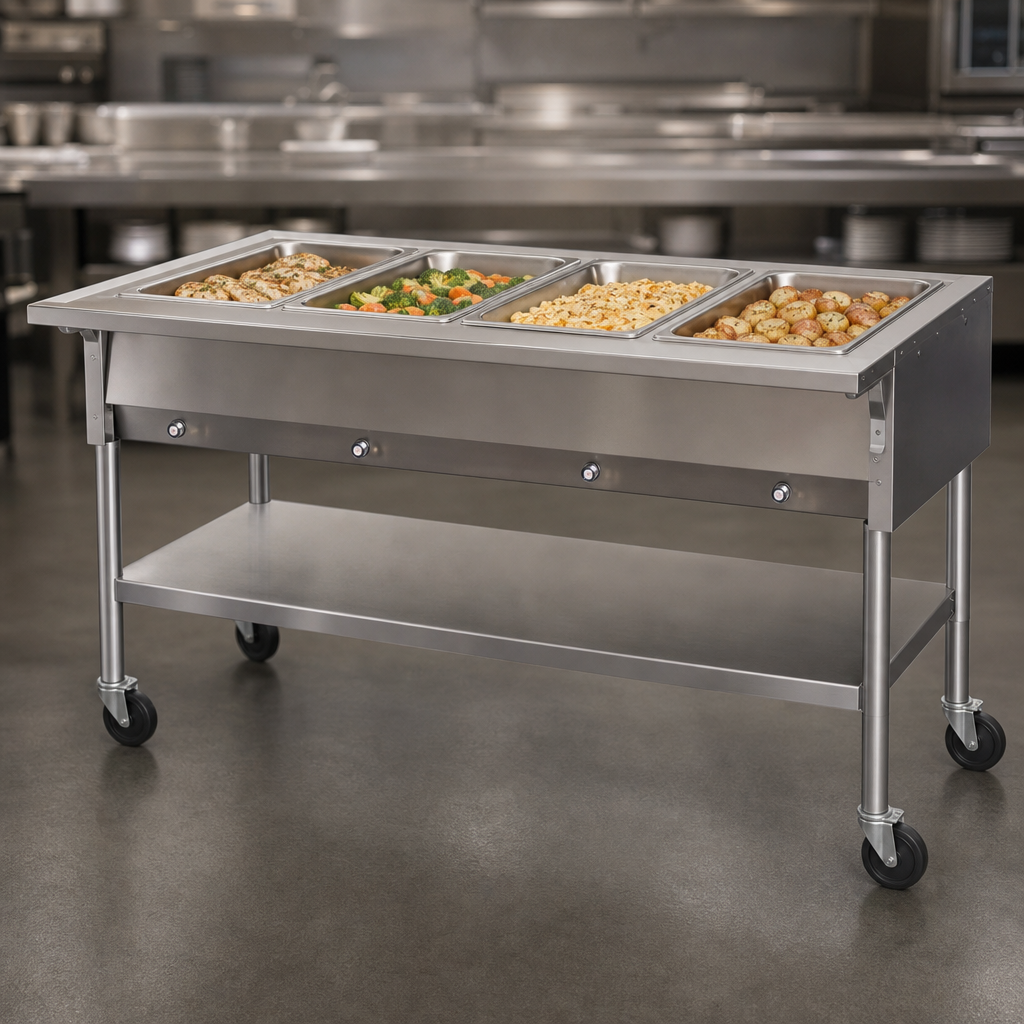

Four Dry Wells

Four 12 x 20-inch dry wells provide the heating compartments.

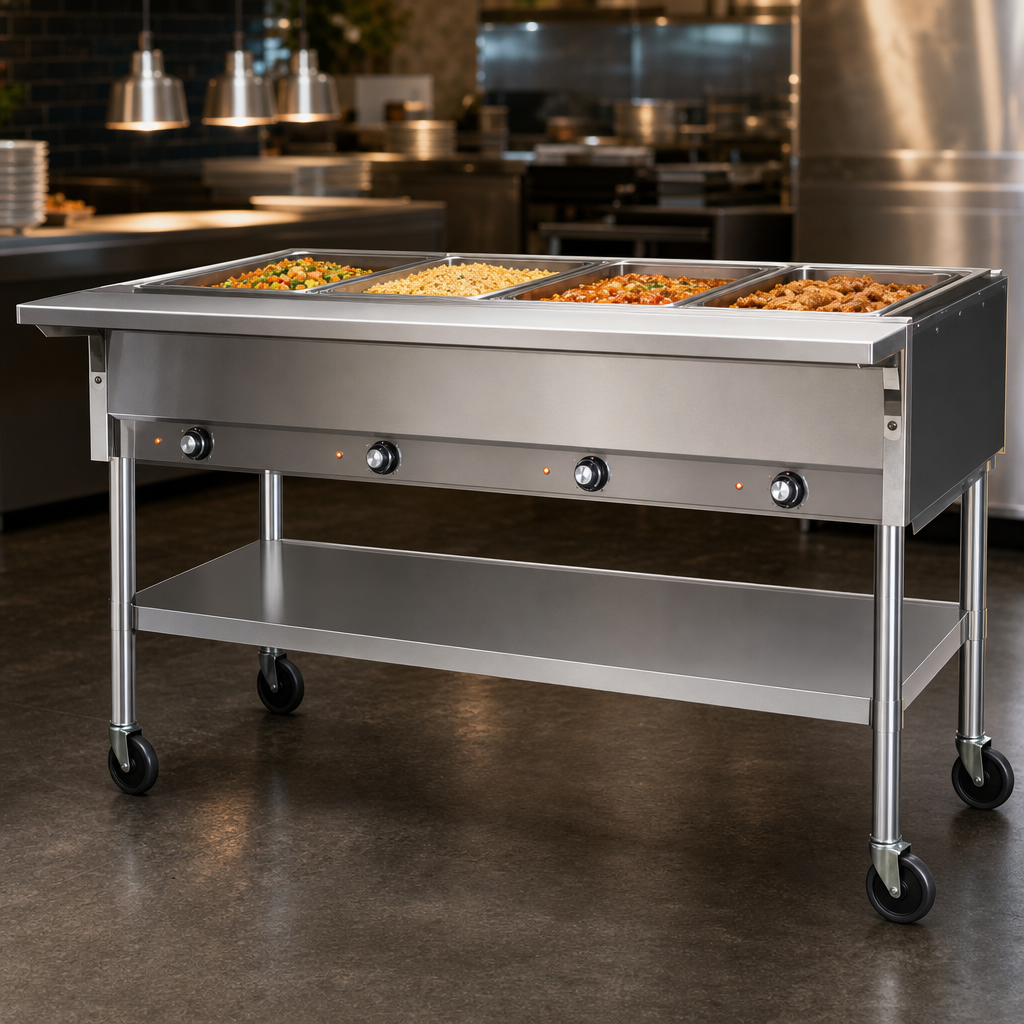

Infinite Controls

Individual infinite controls offer high and low selections plus eight other temperature settings.

Stainless Steel Top and Body

The top and body are constructed from 430 stainless steel.

Open Base

The open base includes a galvanized adjustable undershelf and tubular legs.

Polyethylene Cutting Board

An 8-inch polyethylene cutting board is mounted on drop brackets.

Mobility

A push bar and four 4-inch casters are provided.

Electrical Configuration

The unit operates at 240 volts, 60 Hz, single-phase, 3.0 kW, and 12.5 amps with a NEMA 6-20P plug.

Frequently Asked Questions

It has four 12 x 20-inch dry wells.
The product measures 66 inches wide by 30.5 inches deep by 34 inches high.
It requires 240 volts, 60 Hz, single-phase power, draws 12.5 amps, and uses a NEMA 6-20P plug.
The top and body are 430 stainless steel. The adjustable undershelf and tubular legs are galvanized steel.
Yes. It has four 4-inch casters and a push bar.
Eagle warrants hot food tables for 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first.
