Key specifications
- Amps
- 14.4 Amps
- Phase
- 1-Phase
- Dimensions
- 66.0"W × 30.5"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model
Eagle Group PDHT4-208 66-Inch 4-Well Dry Hot Food Table
- 2 wells · 36 in
- 3 wells · 51 in
- 4 wells · 66 in
- 5 wells · 82 in
- 120 V · 1-phase · 8.3 A
- 120 V · 1-phase · 12.5 A
- 120 V · 1-phase · 16.6 A
- 208 V · 1-phase · 7.2 A
- 208 V · 1-phase · 10.8 A
- 208 V · 1-phase · 14.4 A
- 208 V · 1-phase · 18 A
- 240 V · 1-phase · 6.25 A
- 240 V · 1-phase · 9.38 A
- 240 V · 1-phase · 12.5 A
- 240 V · 1-phase · 15.6 A
- 208 V · 3-phase · 6.3 A
- 208 V · 3-phase · 9.5 A
- 208 V · 3-phase · 12.5 A
- 240 V · 3-phase · 5.4 A
- 240 V · 3-phase · 8.3 A
- 240 V · 3-phase · 10.8 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

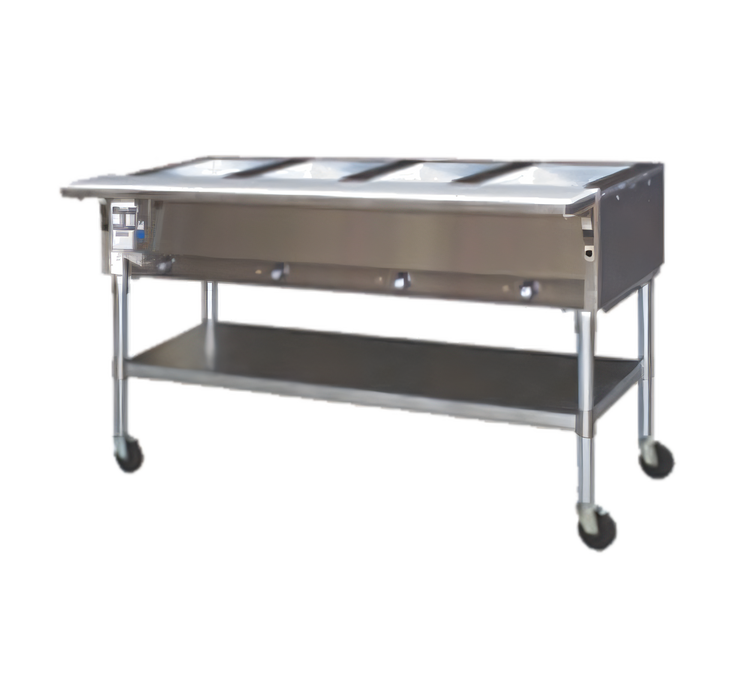

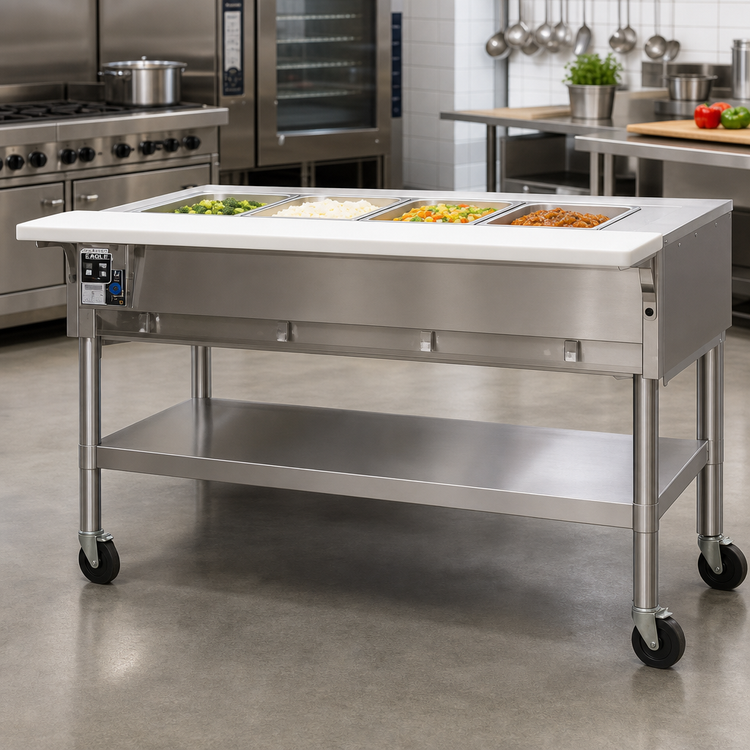

The Eagle Group PDHT4-208 is a portable electric hot food table with an open base and four dry 12 x 20 in wells. Its 430 stainless steel top and body, galvanized adjustable undershelf, tubular legs, push bar, and four casters support mobile food holding.
Individual infinite controls manage the wells, while the furnished 8-inch-wide polyethylene cutting board mounts on drop brackets. The unit operates at 208 Volts, 60 Hz, single-phase and draws 14.4 Amps through an NEMA 6-20P plug.
- Four 12 x 20 in dry wells, each 8 in deep
- Individual infinite controls with high, low, and eight other temperature settings
- 430 stainless steel top and body
- Galvanized adjustable undershelf and tubular legs
- 8-inch-wide polyethylene cutting board on drop brackets
- Push bar and four 4-inch casters
Overall Dimensions:
66.0"W x 30.5"D x 34.0"HProduct Weight:

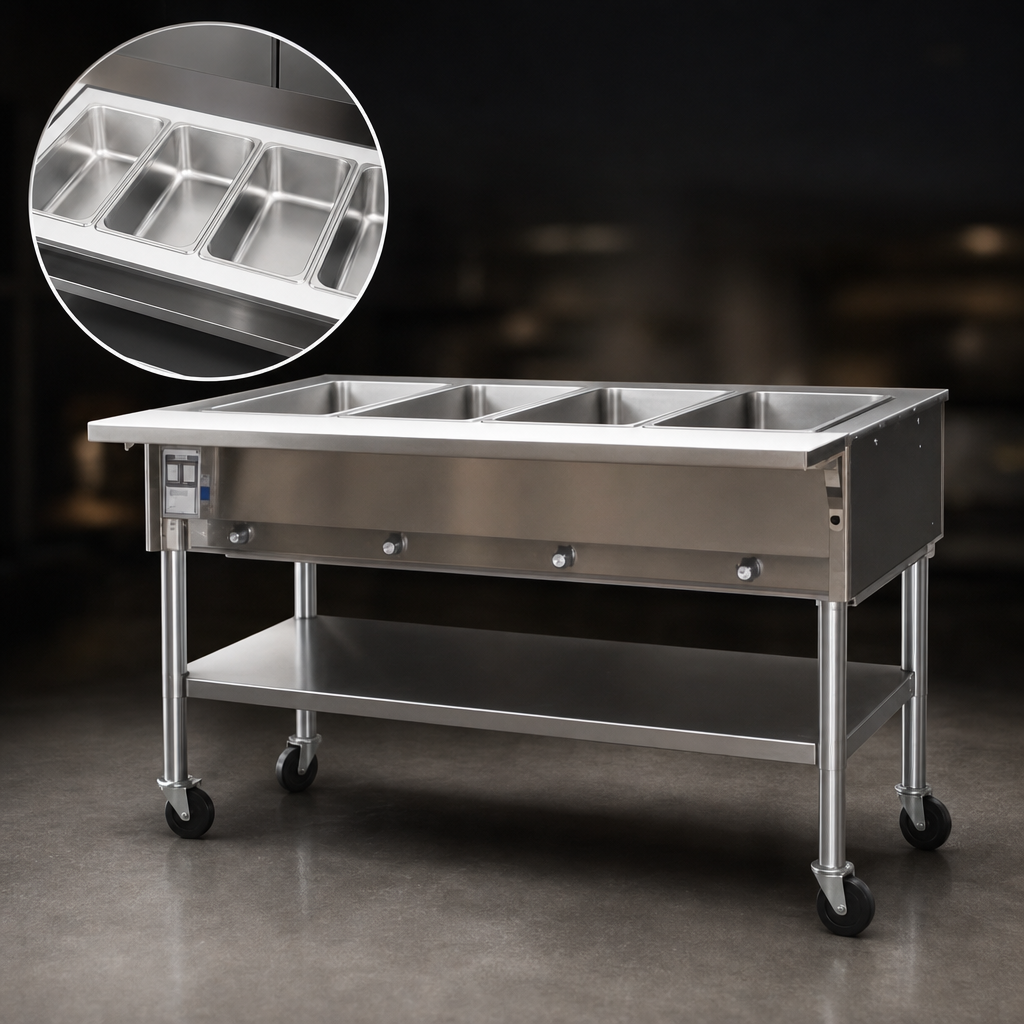

201.0 lbFour Dry Wells
The four wells measure 12 x 20 in and are 8 in deep; the unit is designed for dry operation.

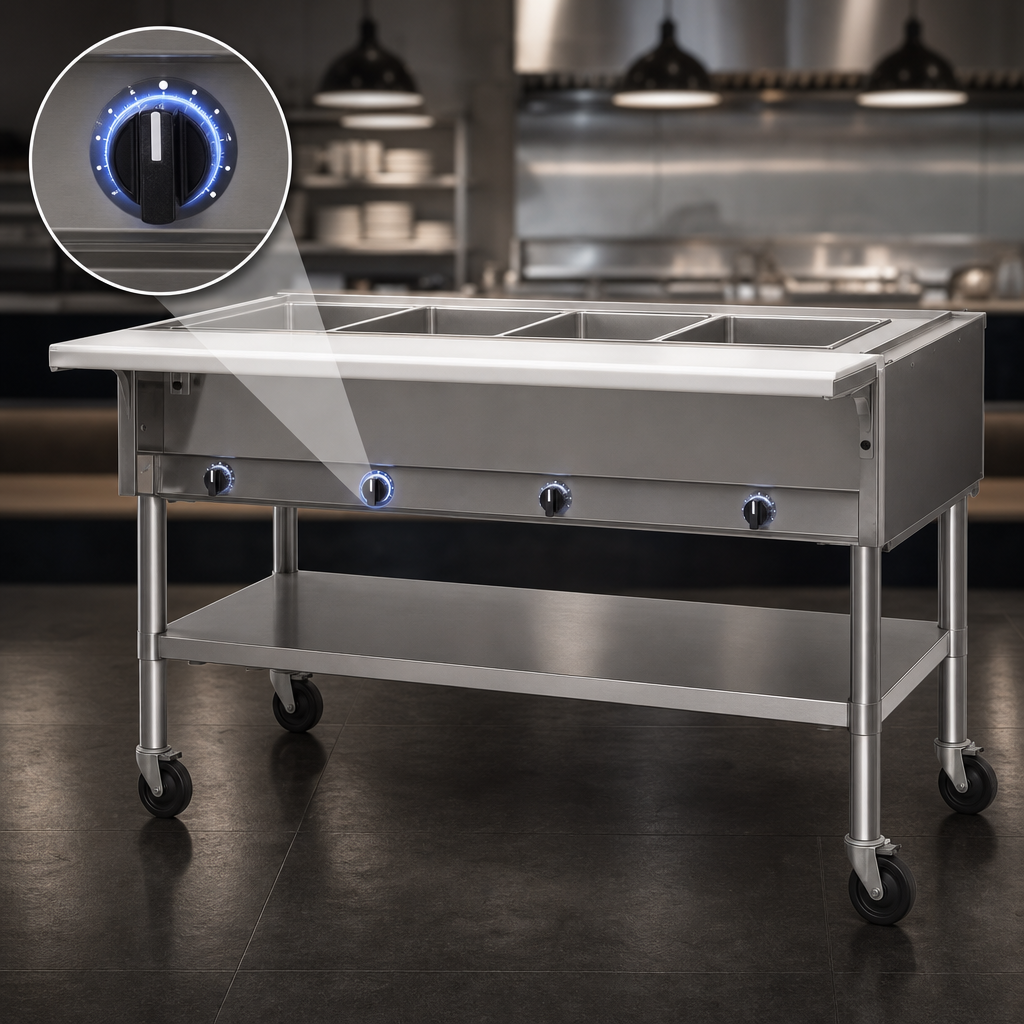

Individual Infinite Controls
Each compartment has an infinite control with high, low, and eight other temperature settings.
430 Stainless Steel Construction
The top and body are constructed of 430 stainless steel.
Open Base
The open base includes a galvanized adjustable undershelf and tubular legs.
Polyethylene Cutting Board
An 8-inch-wide polyethylene cutting board is mounted on drop brackets on the control side.
Portable Mobility
A push bar and four 4-inch casters support movement of the table.
208V Electrical Configuration
The unit is rated at 3.0 kW, 14.4 Amps, 60 Hz, single-phase, with a cord and NEMA 6-20P plug.
