Key specifications

Amps
16.6 Amps
Phase
1-Phase
Dimensions
66.0"W × 30.5"D × 34.0"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: PDHT4-120

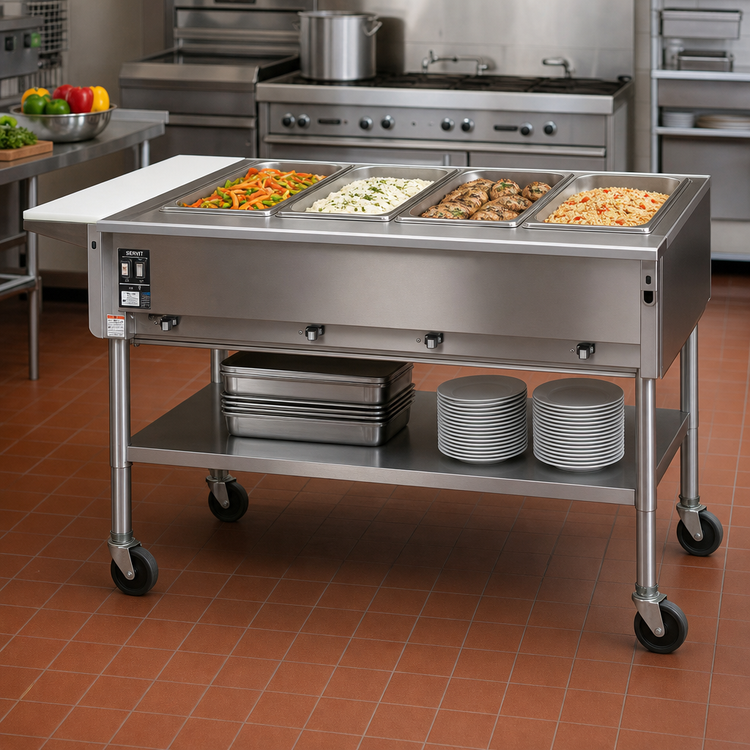

Eagle Group PDHT4-120 66-Inch Mobile 4-Pan Hot Food Table

$2,151.70
/each
Estimated to ship in 3–6 business days
Electrical
Dry wells
Overshelf kit
Factory Add-Ons
Spillage pans
Included: Eagle Group warranty Limited warranty for Eagle hot food tables is 12 months from factory shipment or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $199/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Base Material Galvanized Steel
Pan Capacity 4 Pans
Pan Size 12 x 20 in
Well Type Dry
Well Depth 8 in
Controls Infinite
Voltage 120 Volts
Amps 16.6 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-30P
Cord Length 6 ft
Shelf Count 1
Caster Count 4
Caster Diameter 4 in
Cutting Board Material Polyethylene

Description

The Eagle Group PDHT4-120 is a portable electric hot food table with an open base and four 12 x 20 in dry wells.

It has a 430 stainless steel top and body, individual infinite controls, a polyethylene cutting board mounted on drop brackets, a galvanized adjustable undershelf, tubular legs, a push bar, and four 4 in casters.

The table is designed for dry operation. A spillage pan is required for wet operation.

  • Electrical: 2 kW, 120 Volts, 16.6 Amps, 60 Hz, 1-Phase
  • Plug: NEMA 5-30P

Overall Dimensions:

66.0"W x 30.5"D x 34.0"H

Product Weight:

201.0 lb

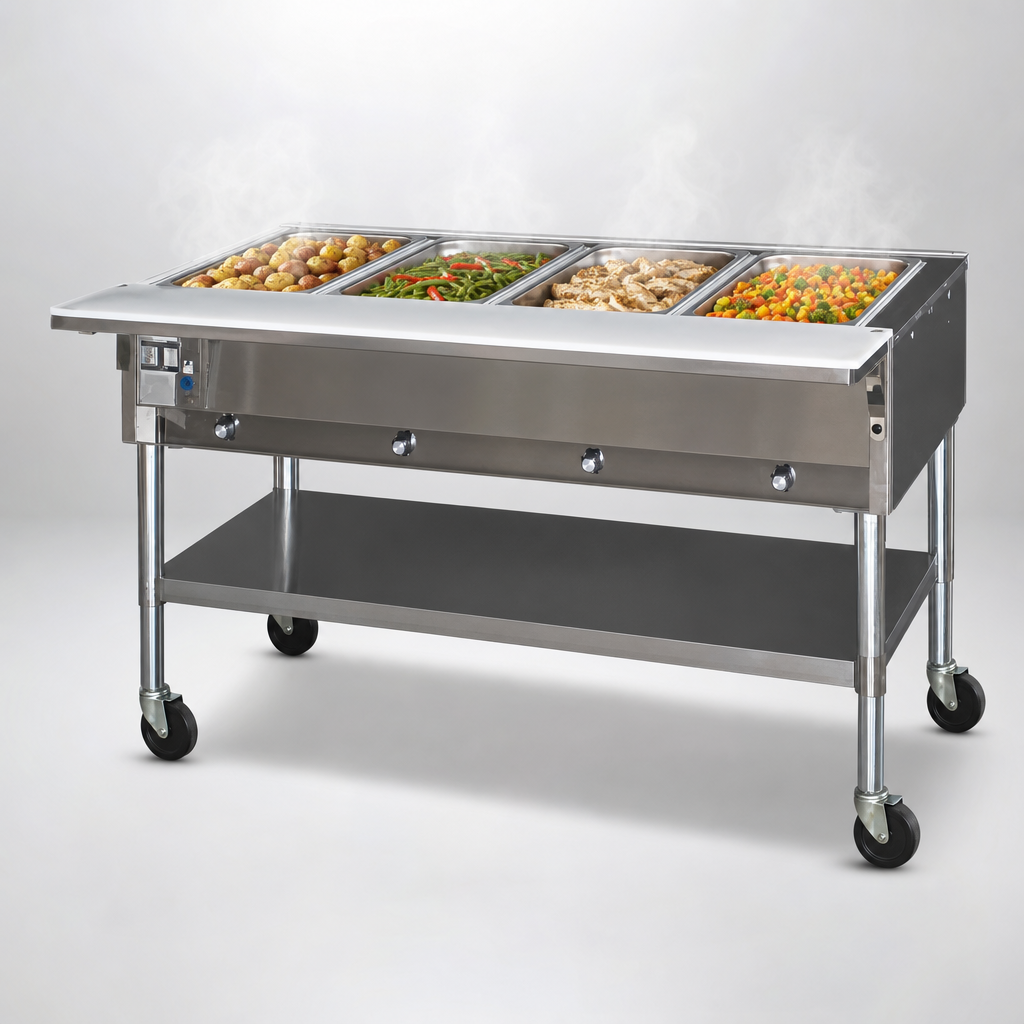

Four Dry Wells

The table has four 12 x 20 in dry wells.

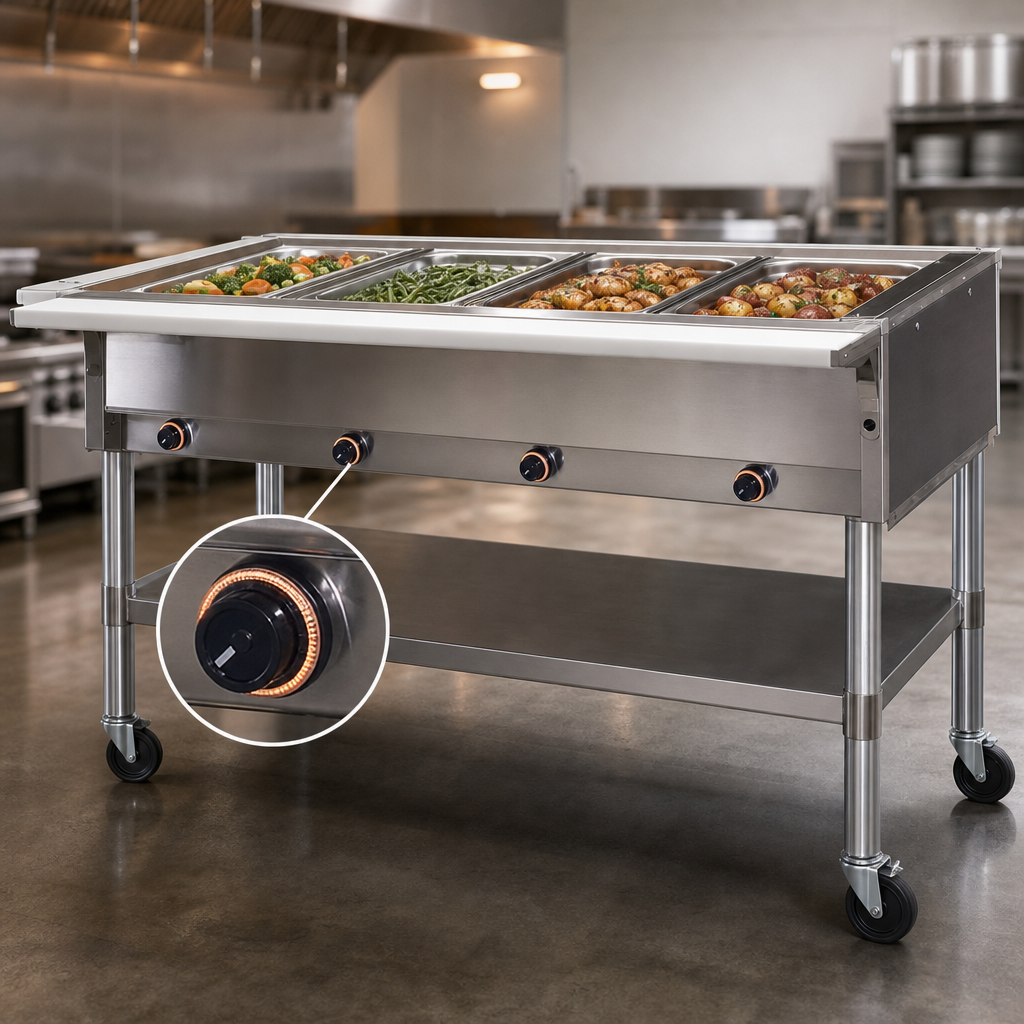

Infinite Controls

Individual infinite controls provide high and low selections plus eight other temperature settings.

Stainless Steel Construction

The top and body are constructed of 430 stainless steel.

Open Base

The base includes a galvanized adjustable undershelf and tubular legs.

Cutting Board

A polyethylene cutting board is mounted on drop brackets.

Mobility

A push bar and four 4 in casters are included.

Dry Operation

The unit is designed for dry operation; a spillage pan is required for wet operation.

Electrical Configuration

The unit is rated at 2 kW, 120 Volts, 16.6 Amps, 60 Hz, and 1-Phase with a NEMA 5-30P plug.

Frequently Asked Questions

It has four 12 x 20 in dry wells.
It uses 120 Volts, 2 kW, 16.6 Amps, 60 Hz, 1-Phase, and a NEMA 5-30P plug.
No. The unit is designed for dry operation; a spillage pan is required for wet operation.
Yes. It includes a polyethylene cutting board mounted on drop brackets.
It has individual infinite controls with high and low selections plus eight other temperature settings.
