Key specifications

Amps
6.3 Amps
Phase
3-Phase
Dimensions
50.5"W × 30.5"D × 34.0"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: PDHT3-208-3

Eagle Group PDHT3-208-3 3-Pan Mobile Dry Well Hot Food Table

$1,797.71
/each
Estimated to ship in 3–6 business days
Electrical
Well count
Overshelf kit
Cutting board
Undershelf
Factory Add-Ons
Spillage pans
Included: Eagle Group warranty 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $166/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Base Material Galvanized Steel
Pan Size 12 x 20 Inches
Pan Capacity 3 Pans
Controls Infinite
Voltage 208 Volts
Amps 6.3 Amps
Watts 2.25 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA 15-20P
Cord Length 6 Feet
Caster Diameter 4 Inches

Description

The Eagle Group PDHT3-208-3 is a portable electric hot food table with three 12 x 20-inch dry wells, individual infinite controls, and a mobile open-base design.

Its top and body are made of 430 stainless steel. The unit includes an 8-inch polyethylene cutting board on drop brackets, a galvanized steel adjustable undershelf, tubular legs, a push bar, and four 4-inch casters.

  • Three 8-inch-deep dry wells for holding preheated foods
  • 208-volt, 3-phase electrical configuration
  • 6.3-amp draw with 2.25 kW output
  • NEMA 15-20P plug and cord

Overall Dimensions:

50.5"W x 30.5"D x 34.0"H

Product Weight:

160.0 lb

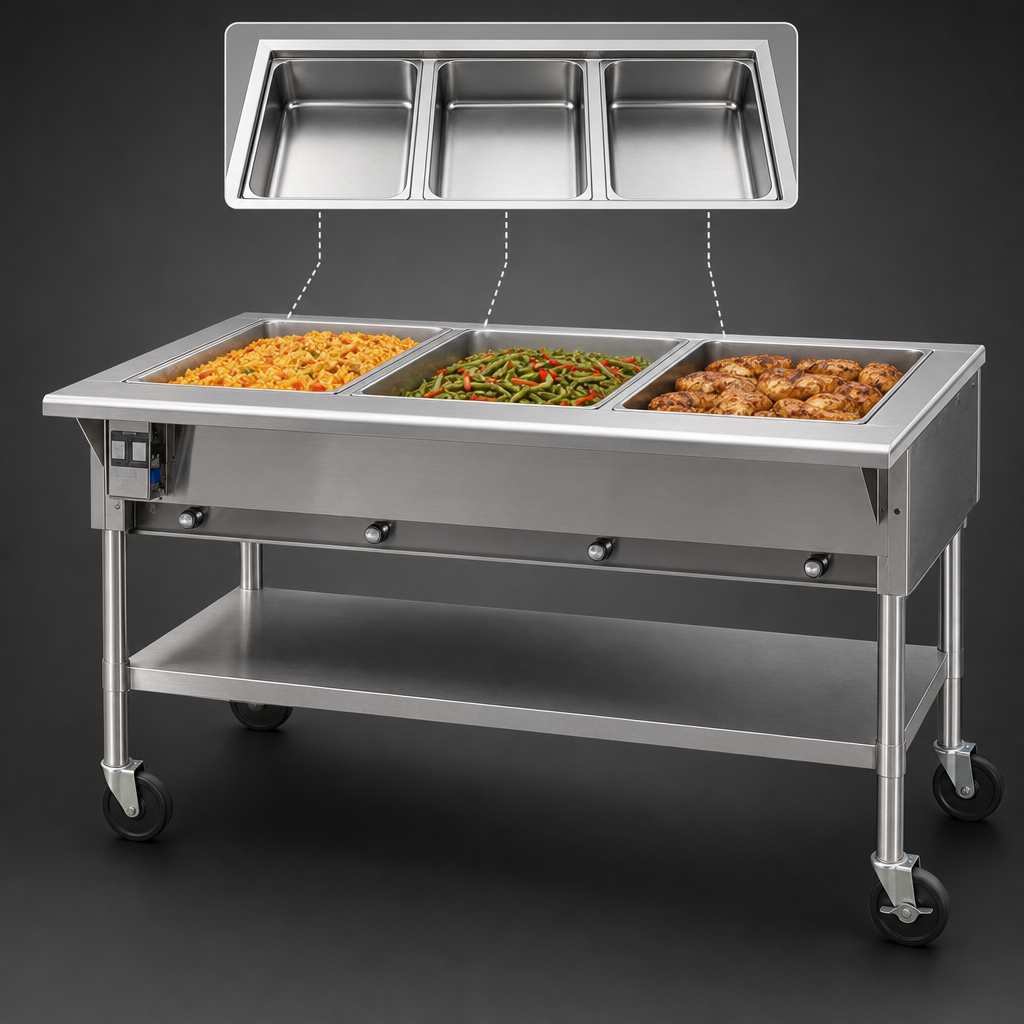

Three Dry Wells

Three 8-inch-deep dry wells accommodate 12 x 20-inch pans.

Infinite Controls

Individual infinite controls provide adjustable heat settings for the compartments.

Stainless Steel Construction

The top and body are constructed of 430 stainless steel.

Open Shelf Base

The open base has a galvanized steel adjustable undershelf and tubular legs.

Mobile Design

A push bar and four 4-inch casters support movement of the table.

Polyethylene Cutting Board

An 8-inch polyethylene cutting board is mounted on drop brackets.

Three-Phase Electrical System

The unit is rated at 208 volts, 3-phase, 2.25 kW, and 6.3 amps with a NEMA 15-20P plug.

Frequently Asked Questions

It has three 8-inch-deep dry wells sized for 12 x 20-inch pans.
No. The unit is designed to operate dry; a spillage pan is required if wet operation is needed.
It requires 208 volts, 60 Hz, 3-phase power, draws 6.3 amps, and uses a NEMA 15-20P plug.
Yes. It includes an 8-inch polyethylene cutting board mounted on drop brackets.
Yes. It has a push bar and four 4-inch casters.
