Key specifications
- Phase
- 3-Phase
- Dimensions
- 48.0"W × 32.25"D × 34.5"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model
- Material
- 430 Stainless Steel
Eagle Group Spec-Master HT3OB-208-3 48-Inch 3-Pan Hot Food Table
- 120 V · 1-phase · 18.8 A
- 208 V · 3-phase
- 240 V · 3-phase · 5.4 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

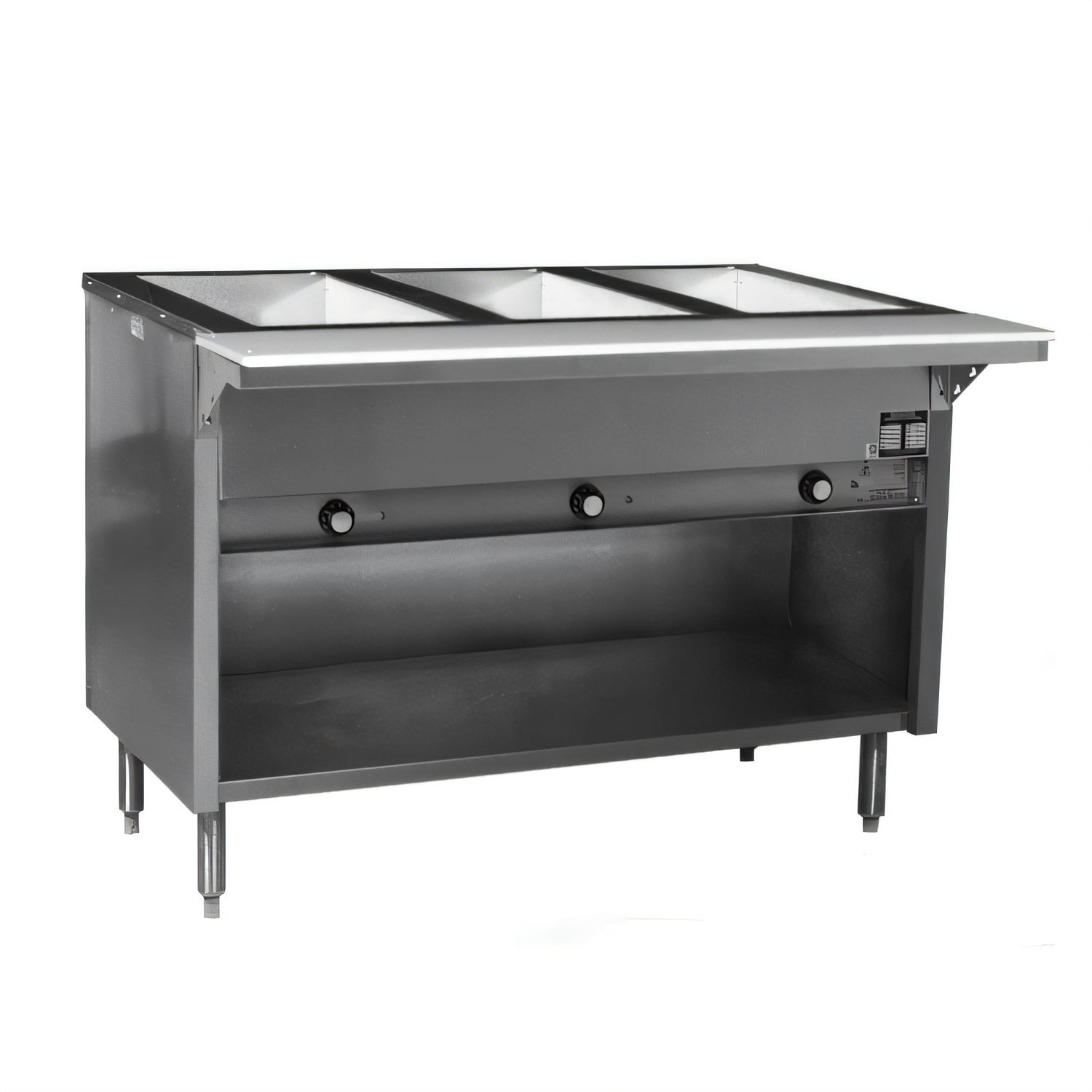

HT3OB-208-3 is a 48-inch electric hot food table with an open base and three 12 x 20-inch wells.
The wells are specified for wet or dry use and have thermostatic controls in a recessed panel. The cutsheet states the table is designed for dry operation and requires a spillage pan for wet operation. A master toggle switch with indicator light operates the unit.
The top is 22-gauge 430 stainless steel and the body is 20-gauge 430 stainless steel. The table is furnished with an 8-inch-deep, 1/2-inch-thick polyethylene cutting board. Electrical service is 2.25 kW at 208 volts, 60 Hz, three-phase, with a junction box for field wiring.
Overall Dimensions:
48.0"W x 32.25"D x 34.5"HProduct Weight:

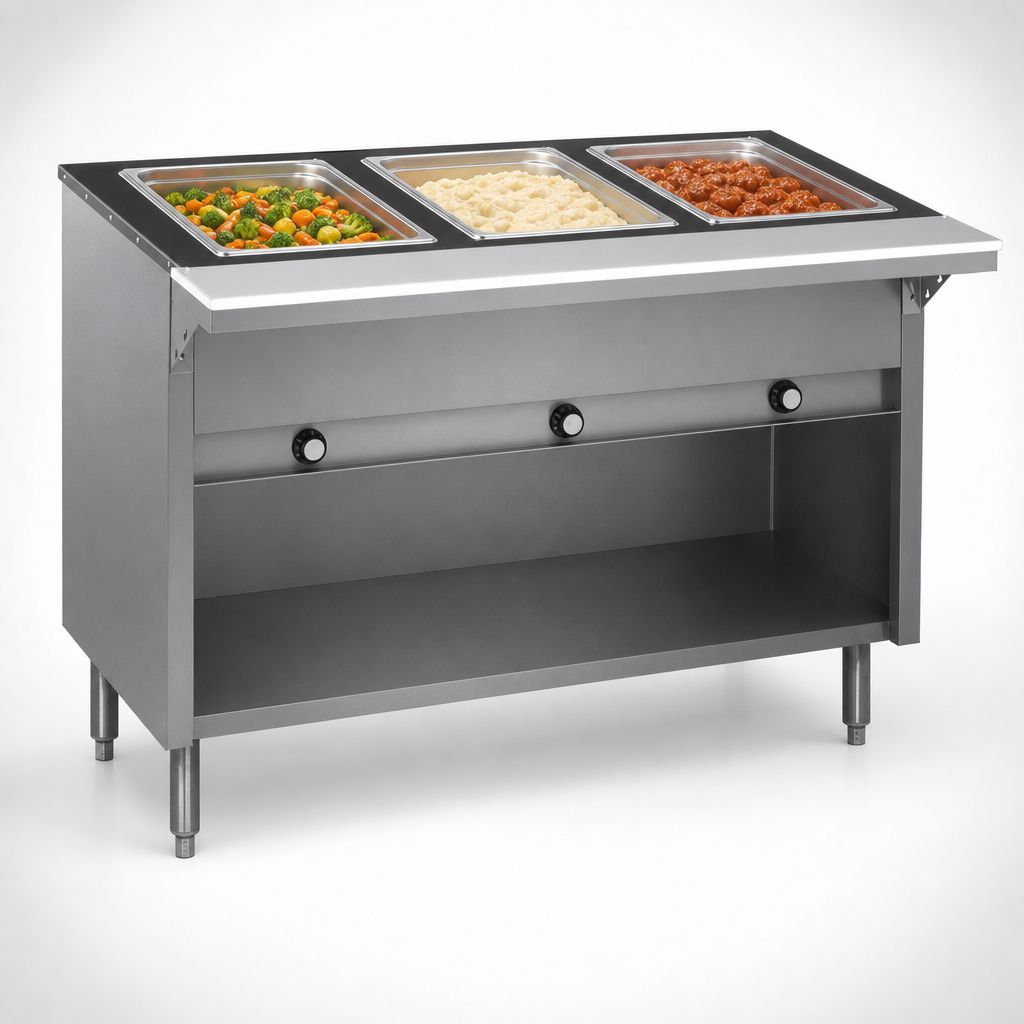

240.0 lbThree Wet/Dry Wells
Includes three 12 x 20-inch wells specified for wet or dry use.

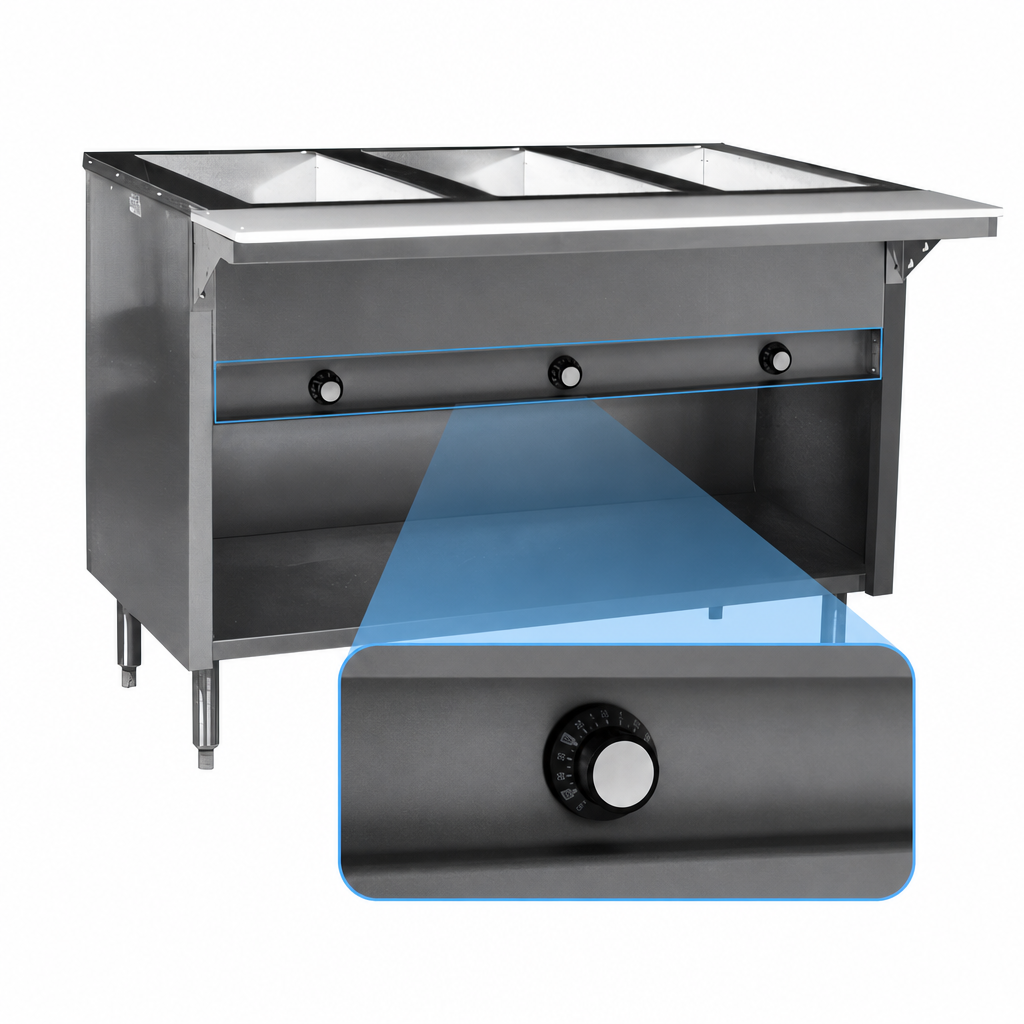

Thermostatic Controls
Individual thermostatic controls are located in a recessed panel.
Master Toggle Switch
The unit is wired to a master toggle switch with an indicator light.
Open Base
The table has an open base with stainless steel tubular legs and adjustable plastic feet.
430 Stainless Steel Construction
The top is 22-gauge 430 stainless steel and the body is 20-gauge 430 stainless steel.
Polyethylene Cutting Board
A furnished cutting board measures 8 inches deep and 1/2 inch thick.
Field-Wiring Junction Box
Wiring terminates at a junction box for field wiring.
